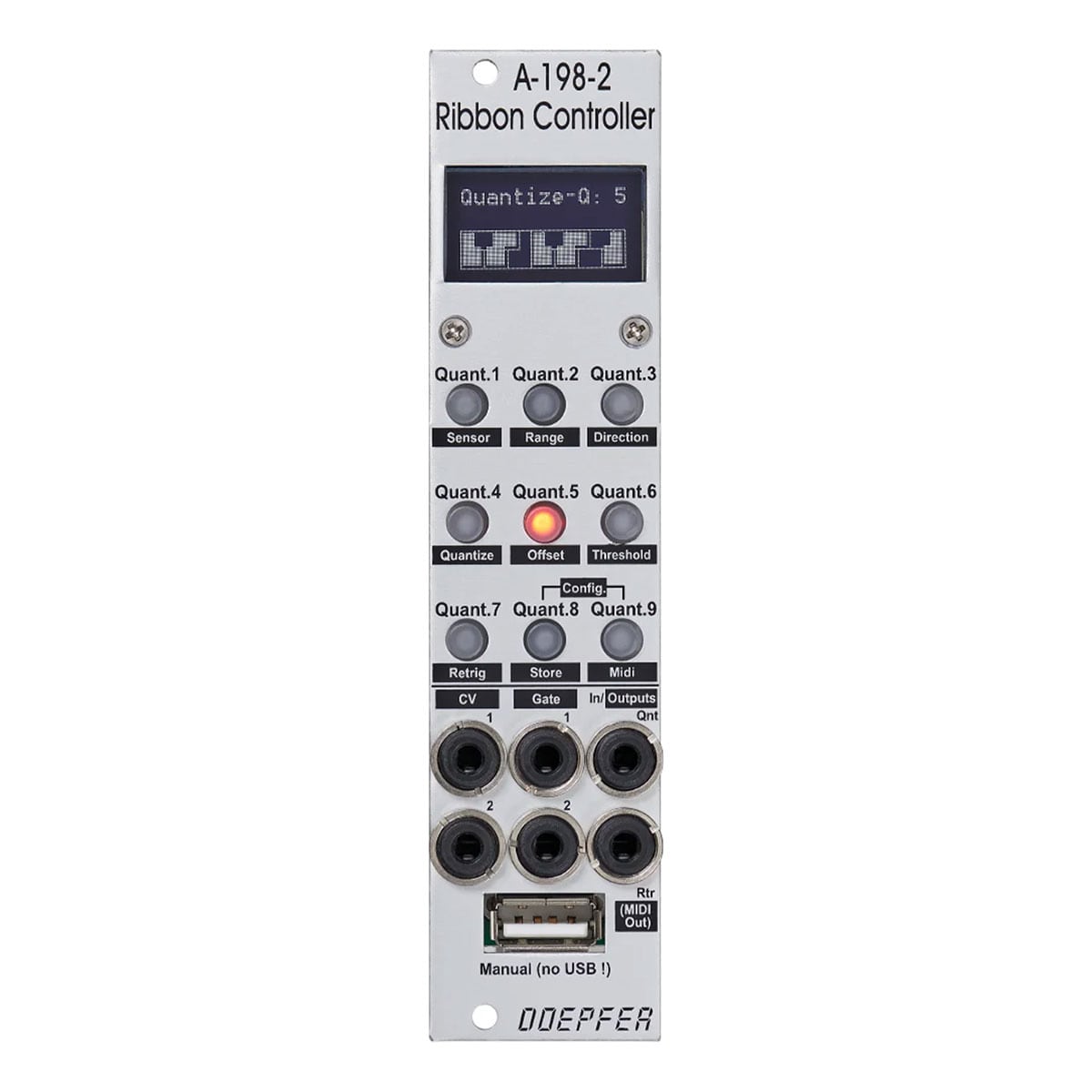

DOEPFER / A-198-2 Trautonium Manual / Ribbon Controller II

DOEPFER / A-198-2 Trautonium Manual / Ribbon Controller II

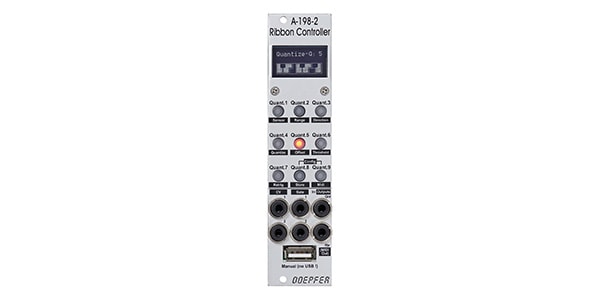

  • DOEPFER / A-198-2 Trautonium Manual / Ribbon Controller II画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

Module A-198-2 is a controller interface module that expands upon and improves upon the company's troutonium/ribbon controller module, A-198-1.
The A-198-2 incorporates numerous improvements over the A-198, including:

Gate signal generation in Hold mode

Nine programmable quantization settings → displayed as a 1-octave keyboard

Quantized/non-quantized switching → switchable not only via the module itself but also via external CV input Qnt (e.g., dynamic control during performance via footswitch (module A-177-2))

Retrigger on/off switching → controlled via the module itself or external CV input Rtr

Five-step switching of the position CV (CV1) output range → adjustable from 0-1V (1 octave) to 0-5V (5 octaves)

Seven-step setting of the pressure CV (CV2) output range, maximum 0 to +7V

Arbitrary setting of ribbon operation direction

Programmable offset voltage for CV1 (position) and CV2 (pressure)

Adjustable threshold for Gate 2 (pressure trigger)

MIDI output option → input socket Rtr Replaces the existing module or is used via a passive breakout module.
All parameters can be stored in non-volatile memory (including 9 quantization settings).
Operated via an OLED display and 9 red illuminated momentary switches (buttons).
The A-198-2 control unit is identical to the A-198-1 and consists of a linear position sensor and pressure sensor approximately 50 cm long.

Connection to Manual Ribbon and Precautions
The A-198-2 Trautonium Manual/Ribbon Controller connects to the separately sold Manual Ribbon via a USB cable (USB Type A to Type A), similar to the A-198. While a USB cable is used for its versatility and availability, its specifications are completely different from the USB standard. Never connect it to a computer or other electronic product via USB, as this may cause malfunction.

Width: 6HP
Depth: 45mm
Current Consumption:
+12V: 50mA
-12V: 10mA
Note: A Manual Ribbon is required for use. It will not operate on its own.
