DOEPFER / A-160-1 Clock Divider

DOEPFER / A-160-1 Clock Divider

  • DOEPFER / A-160-1 Clock Divider画像1
  • DOEPFER / A-160-1 Clock Divider画像2
  • DOEPFER / A-160-1 Clock Divider画像3
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

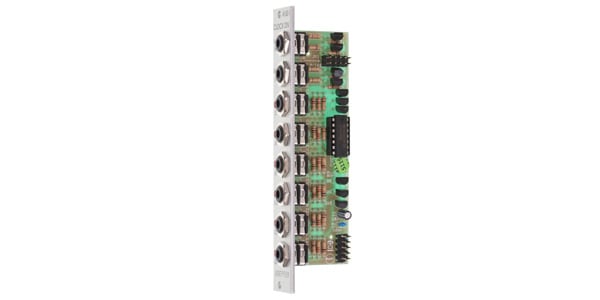

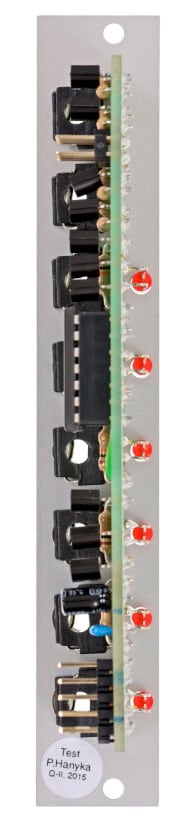

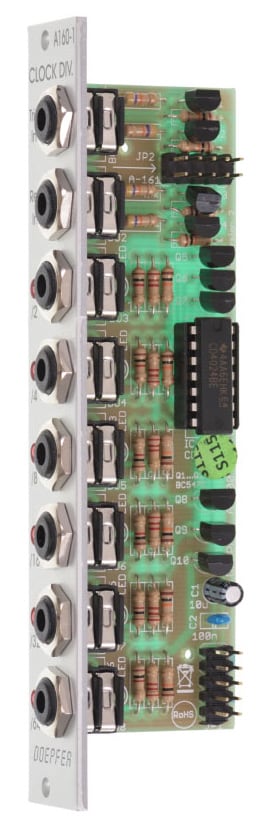

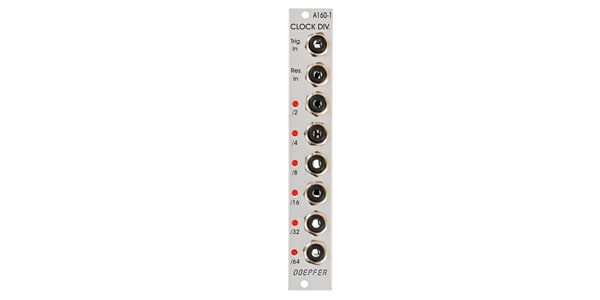

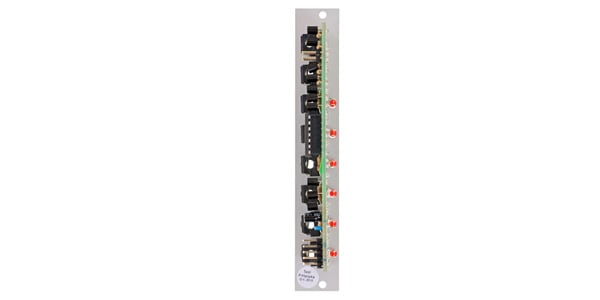

DOEPFER is a clock divider for Eurorack modular synthesizers. It divides the frequency of the input clock signal and outputs it. For clock/trigger/gate signals.
The A-160-1 CLOCK DIV. is a clock divider that divides the frequency of an input clock and outputs the result. It's a clock divider for clock/trigger/gate signals, specifically designed as a rhythm source to generate triggers at low frequencies. The Trig. In input accepts clock signals such as LFOs, MIDI clocks (analog clock signals converted by a MIDI-CV converter), and MIDI-CV converter gate signals.

The six outputs simultaneously output divided clock signals ranging from 1/2 to 1/64 of the input clock frequency. The minimum output level is 0V, and the maximum level is approximately +10V.

The A-160-1 also features a reset input (Res. In). When a reset signal is detected, all outputs will become 0 until the voltage input to Res. In disappears.

The A-160-1 can be used in combination with the A-161 Clock Sequencer to create step sequences of 1 to 8 steps.

Width: 4HP
Depth: 40mm
Current Consumption:
+12V: 40mA
