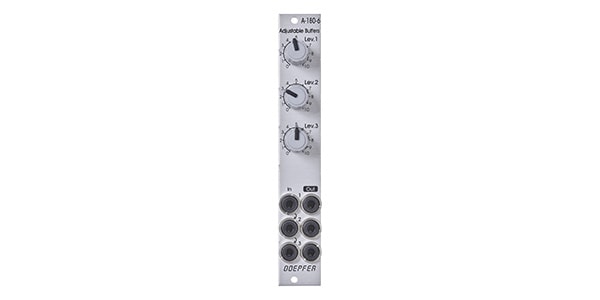

  • DOEPFER / A-180-6 Triple Adjustable Buffer / Control Voltage Source画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

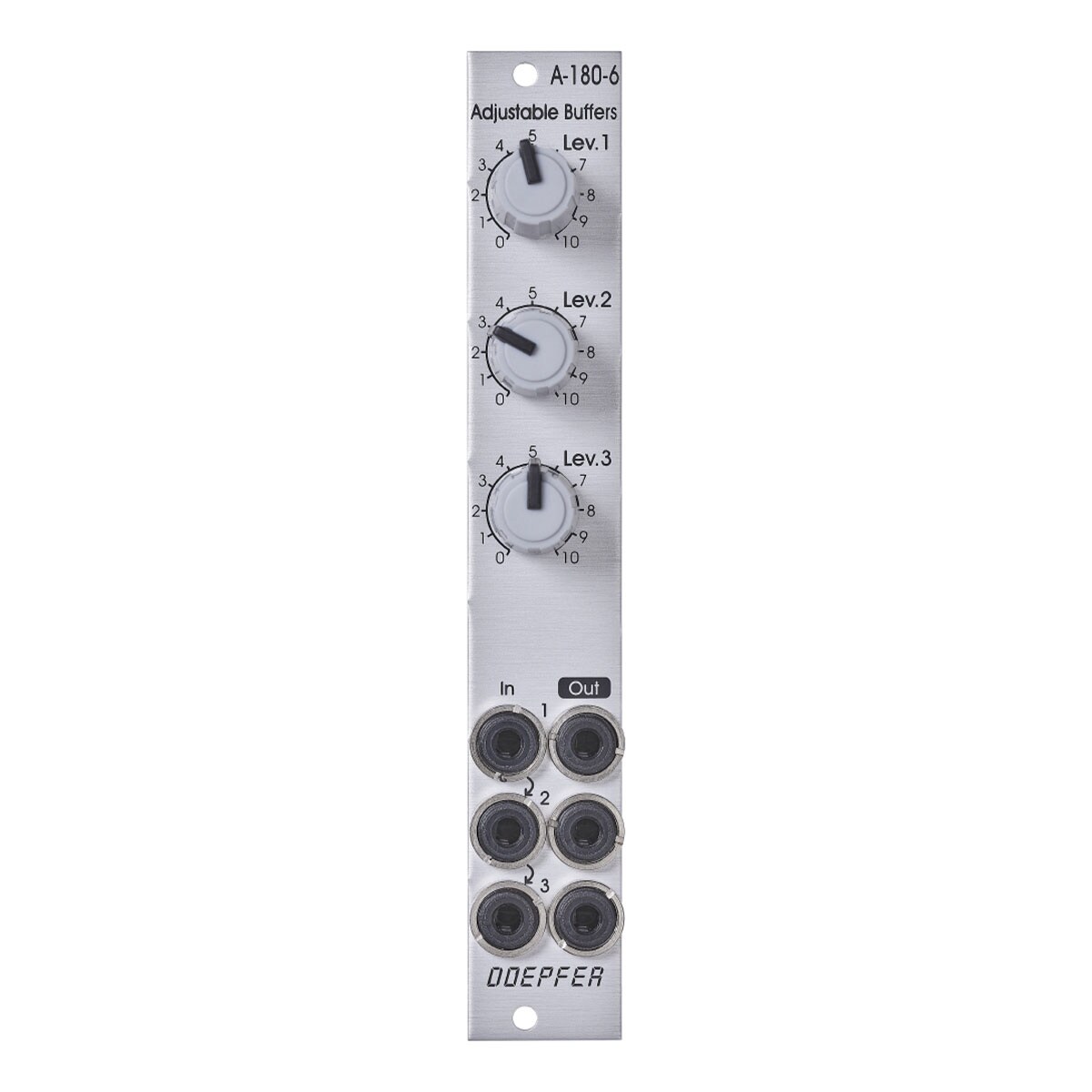

The A-180-6 is a triple voltage buffer module with three independent level control functions.
Overview

Each unit has a maximum gain of 1x (factory setting), but this can be changed to 2x by configuring the solder bridge on the board.

Inputs 2 and 3 are internally wired to the inputs of the preceding unit. Therefore, if inputs 2 and 3 are left unconnected, one signal can be distributed to three separate signals. Alternatively, if signals are connected to all inputs, three independent signals can be processed individually.

Furthermore, the normalization method for input 2 can be switched by changing the solder bridge. In this setting, the output voltage of unit 1 (level-adjusted as needed) becomes the default signal for input 2. In this case, if inputs 2 and 3 are unconnected, level control 1 will also affect the outputs of units 2 and 3.

Also, input 1 can be internally wired to +5V using a jumper setting. In this configuration, this module can be used as a control voltage (CV) source.

The output voltage range switches as follows depending on the maximum gain setting:

Maximum Gain 1x: 0 to +5V
Maximum Gain 2x: 0 to +10V
Width: 4HP
Depth: 30mm
Current Consumption:
+12V: 10mA
-12V: 10mA
