DOEPFER's Eurorack modular synthesizer. A combo of modules that can generate a manually controllable 1V/Oct CV/Gate signal and up to 15 gate/trigger signals.
The A-173-1/2 Micro Keyboard/Manual Gate Modules are a combo module capable of generating a manually controllable 1V/Oct CV/Gate signal and up to 15 gate/trigger signals. Common uses include manually generating 1V/Oct CV signals without an external keyboard or CV interface (such as for sequencer transposition), start/stop control, envelope triggering, and other gate signal generation applications.

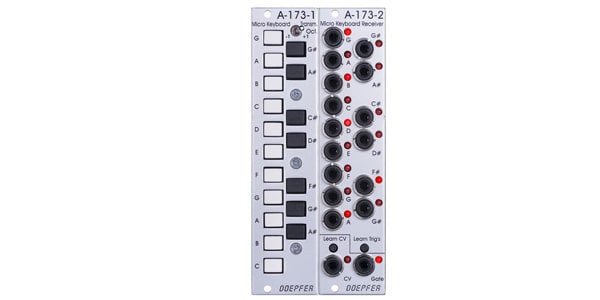

The A-173-1 is the transmitting module, consisting of a 1 1/2 octave micro keyboard and a 3-position octave selector switch. Information from the A-173-1 is transmitted to the A-173-2.
The A-173-2 is the receiving module, receiving information from the A-173-1 and generating a 1V/Oct signal and several gate/trigger signals.
The upper section of the module outputs gate/trigger signals corresponding to the buttons on the A-173-1, and the status of each output can be visually confirmed by LEDs. Each output can be set to gate mode (on while the corresponding key is pressed, off when released) or toggle mode (on/off each time the corresponding key is pressed). Use the ""Learn Trigs"" button to set the gate output mode. While this button is pressed, the mode of each key is indicated by the LED lighting, and the mode switches each time the key is pressed (LED off: gate mode / LED on: toggle mode).
The lower section of the module outputs 1V/Oct and gate signals for all keys. This gate output always operates as a normal gate (on while the key is pressed, off when released), regardless of the gate/toggle mode setting on the upper section.
The A-173-2's ""Learn CV"" function (setting 0V CV keys) allows you to decouple certain keys from the CV/Gate output section, enabling control of gate/trigger outputs only. To use this ""split function,"" press and hold the ""Learn CV"" button while pressing any key to set the split key. Keys above the set split key (outputting 0V CV) will be connected to the CV/Gate output section, while keys below the split key will be decoupled and output only from the gate/trigger section.
Module Connection
The two modules communicate using standard MIDI note On/Off messages and are internally connected by a two-wire cable. The included cable is short enough to mount the modules side-by-side, but users can mount them separately using longer cables. Both modules are equipped with pin headers with two pins each (A-173-1 = JP4, A-173-2 = JP5). The cables must be connected to both connectors in the same orientation (for example, black = top, red = bottom). Additionally, each connector is printed with a GND symbol (an inverted ""T"") and the term ""MID"" (an abbreviation for MIDI). Incorrect connections will prevent the 173-1 and A-173-2 from communicating properly, but will not damage the modules.
Width: 6HP | 6HP
Depth: 45mm
Current Consumption:
+12V: 100mA
-12V: 10mA
