DOEPFER / A-100LC9V PSU3

DOEPFER / A-100LC9V PSU3

  • DOEPFER / A-100LC9V PSU3画像1
  • DOEPFER / A-100LC9V PSU3画像2
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

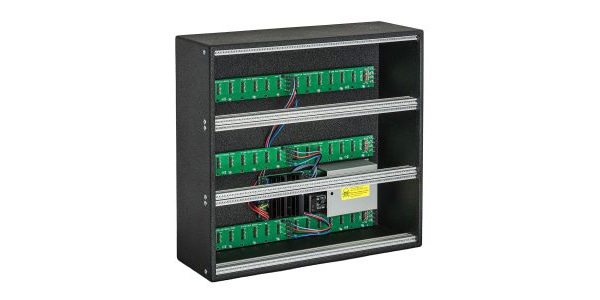

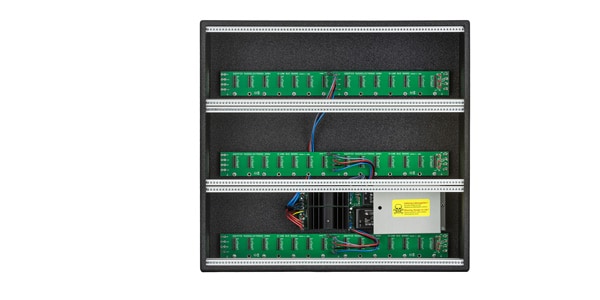

This is a powered case for Eurorack modular synthesizers from the German synthesizer manufacturer Doepfer. It offers 84 HP x 3 tiers of space to mount modules and build a complete system.
A powered case for Eurorack modular synthesizers, capable of mounting up to 252HP of modules. It's a standard size, allowing you to build a system by mounting modules in three 84HP x 3 tiers.

The power supply unit is a high-capacity PSU3 that also outputs +5V. Power is supplied via a 3-pin AC cable.

The case has a vintage-style finish with plywood and leather sheeting.

Mountable module depth:
* Top tier: Maximum 110 mm
* Middle tier: Maximum 110 mm
* Bottom tier: Maximum 110 mm (Maximum 80 mm in the right-hand area where the power supply is located)

■ Width: 252HP
■ Depth: 80mm-110mm
■ Supply Current:
+12V: 2000mA
-12V: 1200mA
+5V: 2000mA
(Maximum 4000 mA) A 2A fuse is included as standard. Replacing the fuse with a 4A fuse allows for a maximum of 4000 mA of +5V power.

Number of connectors: 42
■External dimensions
Width: 445mm
Depth: 160mm
Height: 420mm
■Weight: 5.2kg
