DOEPFER / A-142-3 Envelope/LFO Controlled VCA

DOEPFER / A-142-3 Envelope/LFO Controlled VCA

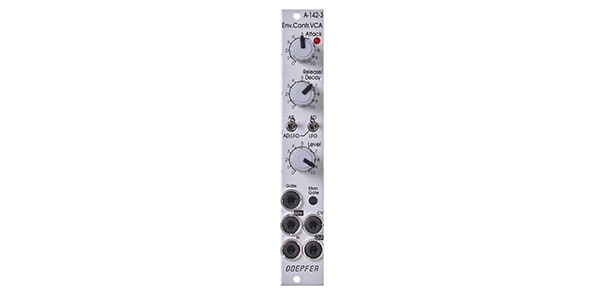

  • DOEPFER / A-142-3 Envelope/LFO Controlled VCA画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

The A-142-3 Envelope/LFO Controlled VCA is an envelope-controlled VCA in a compact 4HP chassis. It combines a VCA with an AD/AR envelope generator that also functions as an LFO. This envelope generator has exponential curve characteristics. The VCA operates linearly.

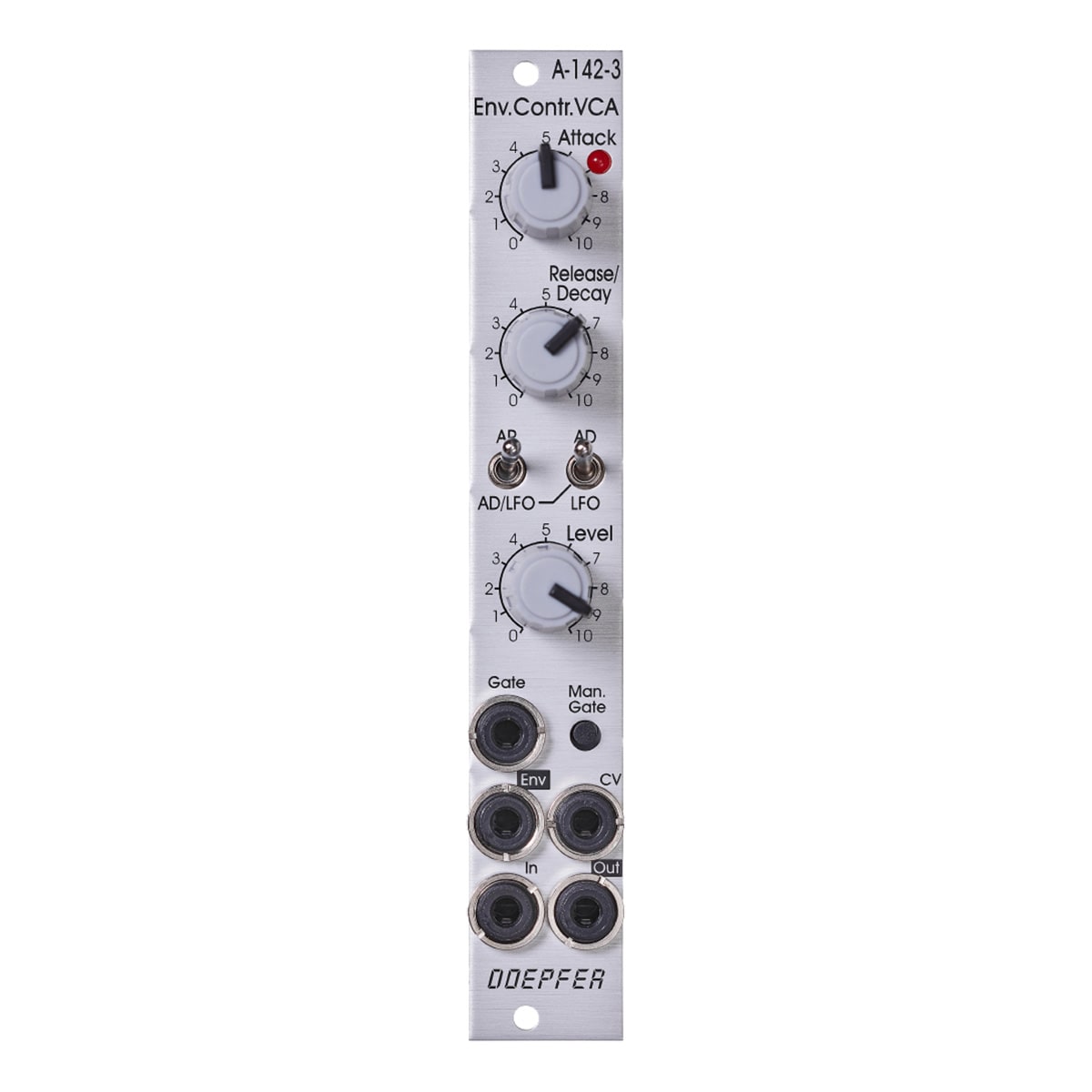

This module features the following controls and inputs/outputs:

LED display (indicates envelope/LFO output)
A: Manual attack control
D/R: Manual decay/release control
Mode selector switch:
AD: Attack/decay envelope. AR: Attack/release envelope
Envelope, LFO (when left switch is in AD/LFO position)
Level: Manual audio level control (audio signal input to VCA)
Gate input (minimum +5V, maximum +12V)
Manual gate momentary switch
Env: Envelope/LFO output (approx. 0 to +10V)
CV: VCA CV input (0 to +5V), internally wired to Env output via a 50% attenuator
In: Audio input
Out: Audio output
Attack/decay/ The configurable release time range is approximately 4 milliseconds to 7 seconds, and can be switched between approximately 0.1 milliseconds and 150 milliseconds via a jumper setting on the circuit board.
Similarly, the LFO frequency is approximately 0.05 Hz (20-second cycle) to 100 Hz, but can be switched between 2 Hz and 2.5 kHz via a jumper setting.

The VCA (CEM3381) used in this module is AC-coupled and therefore suitable only for audio signal processing. It is not suitable for CV signal processing.

Width: 4HP
Depth: 45mm (measured from the back of the front panel)
Current Consumption:
+12V: 20mA
-12V: 20mA
