DOEPFER / A-100LMBV PSU3

DOEPFER / A-100LMBV PSU3

  • DOEPFER / A-100LMBV PSU3画像1
  • DOEPFER / A-100LMBV PSU3画像2
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

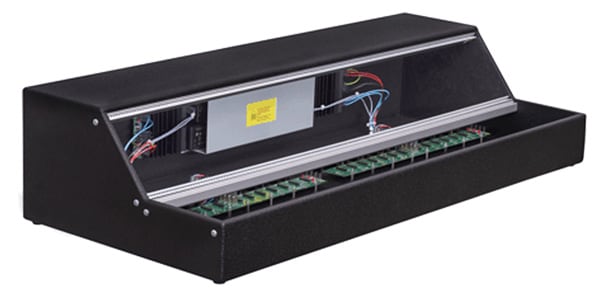

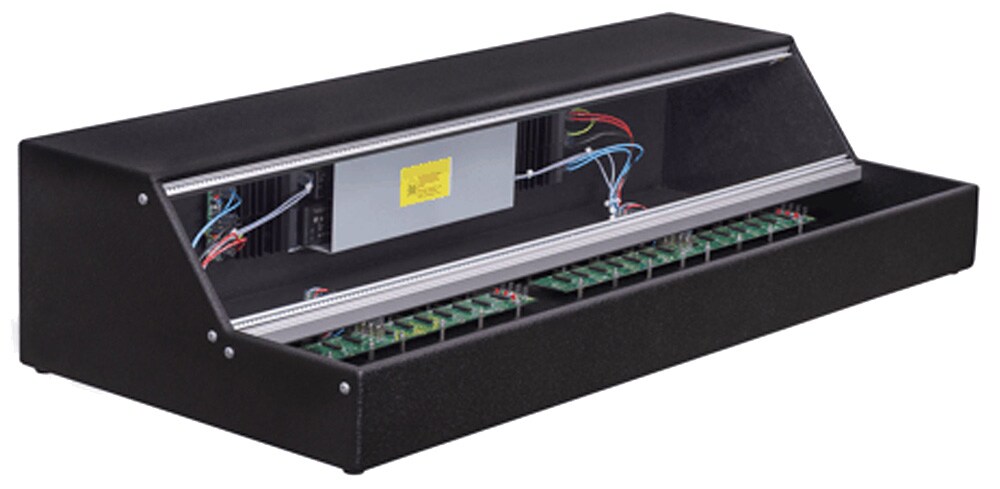

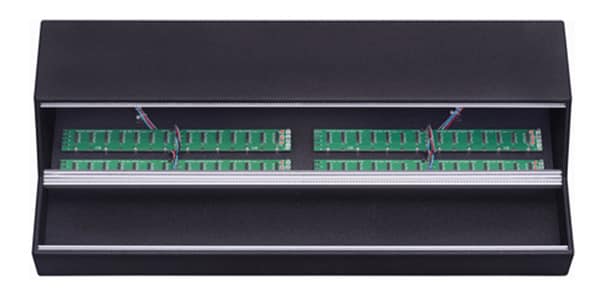

This is a powered case for Eurorack modular synthesizers from the German synthesizer manufacturer Doepfer. It features a two-tiered structure with 168 HP of horizontal and diagonal sections, allowing for the mounting of up to 336 HP of modules.
A flat-mount case with power supply for Eurorack modular synthesizers, capable of mounting up to 336HP of modules. A monster-sized case for heavy users, offering 168 HP x 2 tiers of module mounting space horizontally and diagonally. The top panel is designed to accommodate modules such as the A-100 LMS9V.

The power supply unit features two high-capacity PSU3 units that also output +5V. Power is supplied via a 3-pin AC cable.

The case has a vintage-style finish with plywood and leather sheeting.

Module mounting depth:
* Front tier: 65mm
* Rear tier: 90mm

■Width: 336HP
■Depth: 65mm-90mm
■Supply current:
+12V: 4000mA
-12V: 2400mA
+5V: 4000mA
(Maximum 8000mA) A 2A fuse is included as standard. Replacing the fuse with a 4A fuse allows for a maximum of 8000 mA of +5V power.

Number of connectors: 56
■External dimensions
Width: 870mm
Depth: 380mm
Height: 190mm
■Weight: 8kg
