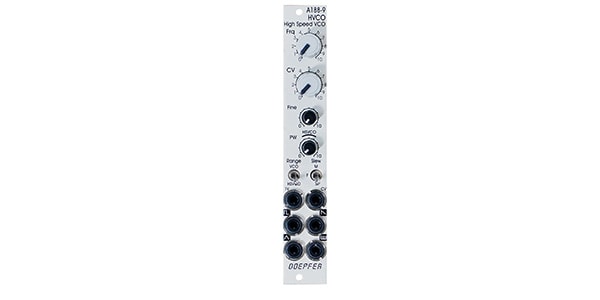

DOEPFER / A-188-9 High Speed ​​VCO / Audio VCO

DOEPFER / A-188-9 High Speed ​​VCO / Audio VCO

  • DOEPFER / A-188-9 High Speed ​​VCO / Audio VCO画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

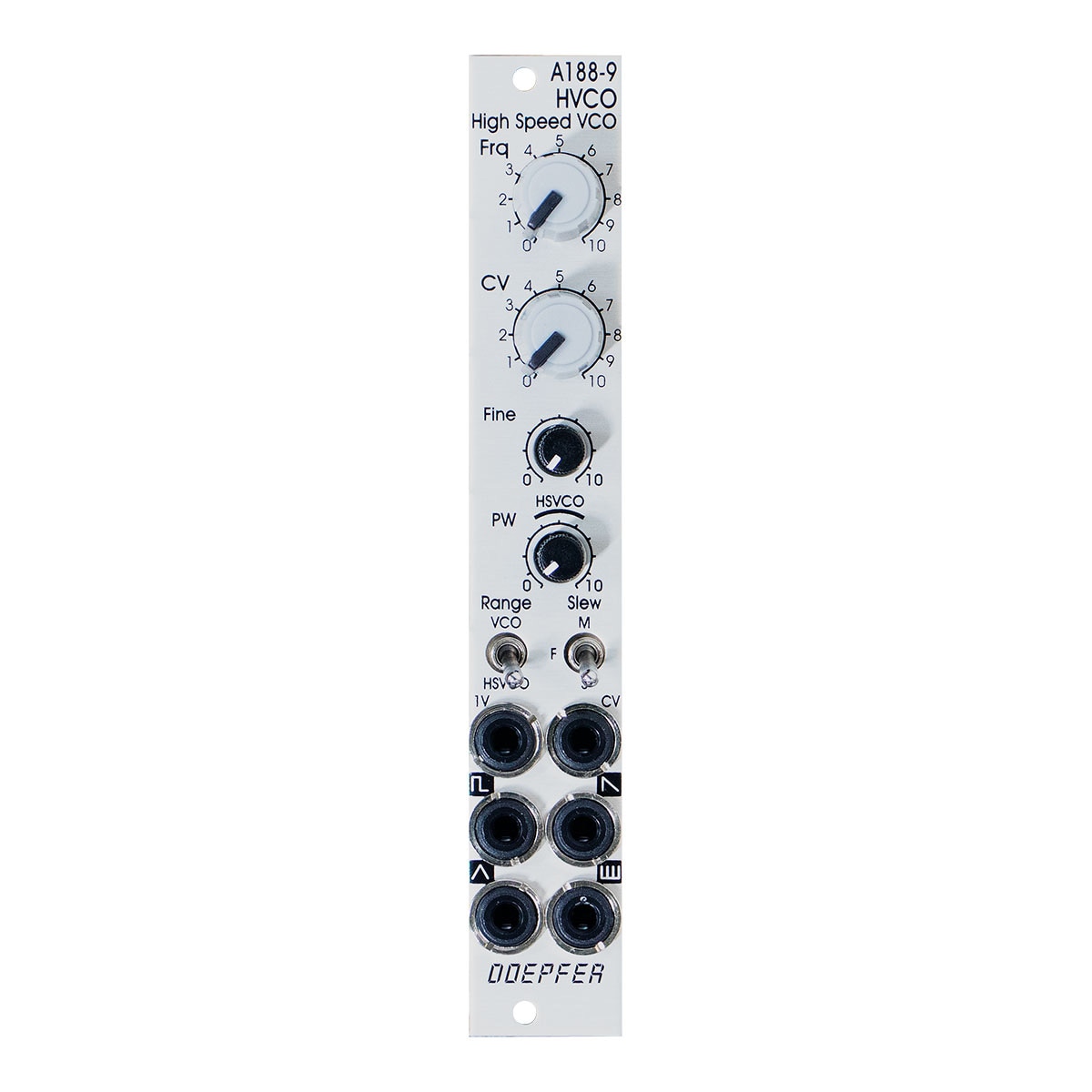

The A-188-9 High Speed ​​VCO / Audio VCO is a so-called high-speed VCO (voltage-controlled oscillator) module that perfectly tracks frequencies beyond the audible range, from approximately 13kHz to 450kHz, on a 1V/Oct scale.
Overview

The primary use of this module is to generate precise delay times for Karplus-Strong synthesis in conjunction with BDD modules. It can create string-like sounds even with very short delay times. This module is particularly compatible with Doepfer's proprietary BBD modules such as the A-188-1 and A-188-2.

This module can also be used in conjunction with other modules requiring high-speed clock inputs (digital noise, delay, frequency dividers).

The basic configuration of this module consists of two components: a standard audio VCO (12Hz-400Hz and 400Hz-14kHz frequency band) and a subsequent PLL (Phase-Locked Loop) unit, forming an HSVCO (High-Speed ​​VCO; 13kHz-450kHz). The PLL multiplies the audio VCO frequency by 32, enabling the generation of frequency signals beyond the audible range.

The A-188-9 features standard waveform outputs (sawtooth, triangle, and square waves), and the square wave's pulse width is adjustable. Therefore, it can be used effectively as a standard audio VCO.

Features
Dual-mode VCO: Audio VCO and High-Speed ​​VCO (up to 500kHz)
Integration with BBD modules (Karplus-Strong synthesis)
Standard audio waveform outputs: Sawtooth, square, and pulse waves
Supports Pulse Width Modulation (PWM)
Built-in Phase-Locked Loop (PLL): Slu-controllable
Adjustable Slu-Time: Controls ripple, etc.

Width: 14HP
Depth: 45mm
Current Consumption
+12V: 30mA
-12V: 15mA
