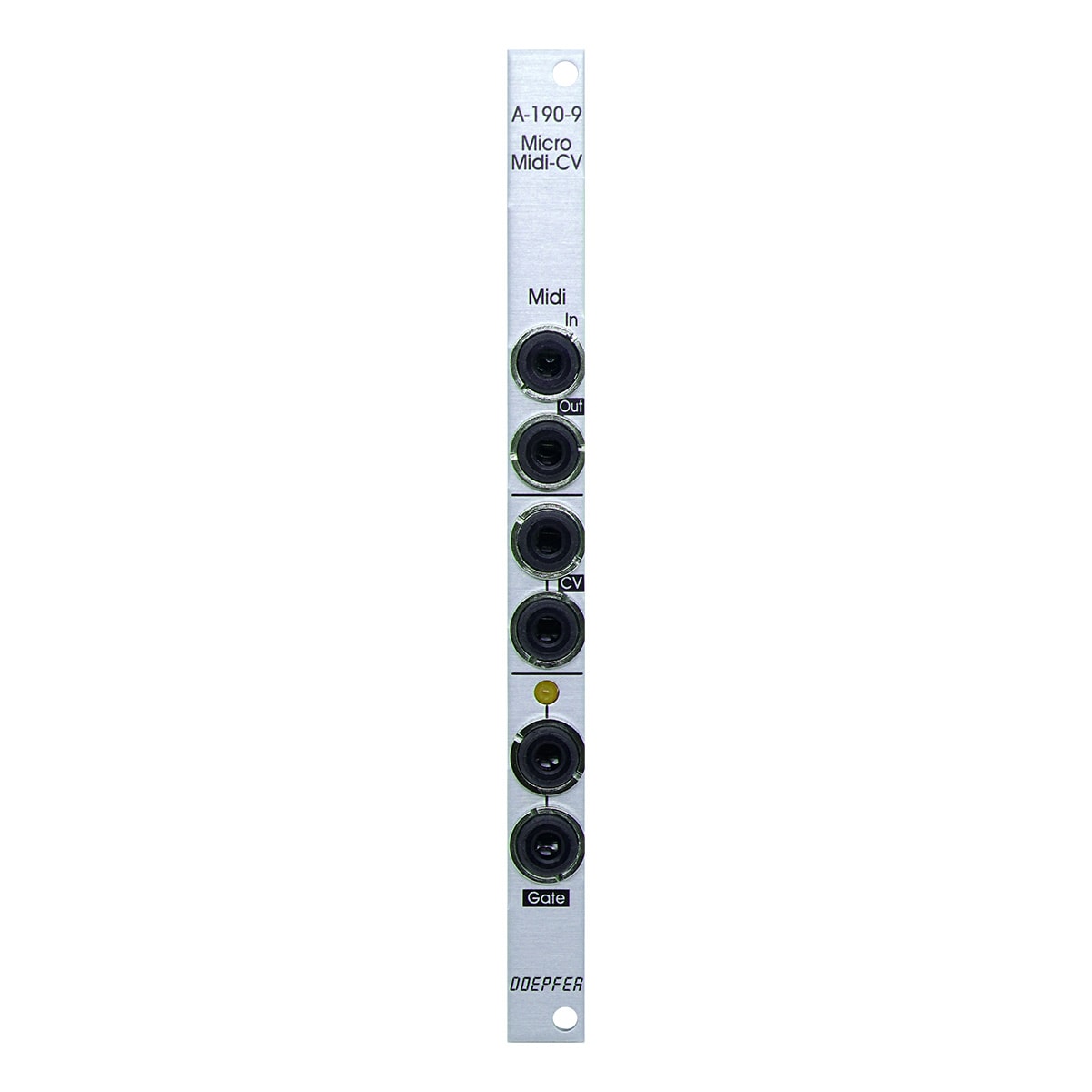

DOEPFER / A-190-9 Micro MIDI-to-CV/Gate Interface

DOEPFER / A-190-9 Micro MIDI-to-CV/Gate Interface

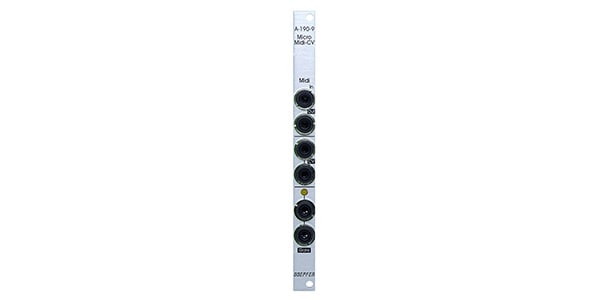

  • DOEPFER / A-190-9 Micro MIDI-to-CV/Gate Interface画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

The A-190-9 is a simple MIDI-to-CV/Gate interface module. It is designed for applications that do not require the advanced features found in the higher-end models of the A-190 series.
Features
Simple monophonic MIDI-to-CV/Gate interface
Uses a 3.5mm TRS connector for MIDI input. Two jumper settings on the board allow compatibility with both 3.5mm MIDI Type A and Type B standards.
Supports internal connection via Arduino cable, allowing normalized connection of the MIDI output of A-100 modules (A-155-2, A-198-2, etc.) to this module's MIDI input.
Ideal for outputting the CV voltage of A-155-2 and A-155-3 as quantized CV.
Equipped with three 1V/Oct CV outputs (three-way distribution of the same signal)
CV output range: 0 to +5V
CV output is controlled by MIDI note messages, using MIDI note number 36 as the 0V reference.
Supported MIDI messages are note on/note off only. Velocity, pitch bend, control change, and MIDI clock are not supported.
The CV scale can be adjusted using the multi-turn trimmer potentiometer on the circuit board (calibrated to 1.00V/Oct at the factory).
Two gate outputs are provided (dividing the same signal into two).
Gate output level: 0V / +10V
Equipped with an LED indicator to show the gate status.
Factory default settings are MIDI note 36 = 0V, MIDI channel 1. By changing the solder jumper settings, you can select a different MIDI channel or MIDI Omni mode.
It can also be used as a simple MIDI IN/OUT breakout module when combined with A-155-2 or A-198-2.
For information on the functions of the pin headers and jumpers, and how to connect them internally with A-155-2/A-155-3, please refer to **""A190_9_jumper.pdf""**.

Width: 2HP
Depth: 10mm
Current Consumption:
+12V: 30mA
-12V: 10mA
