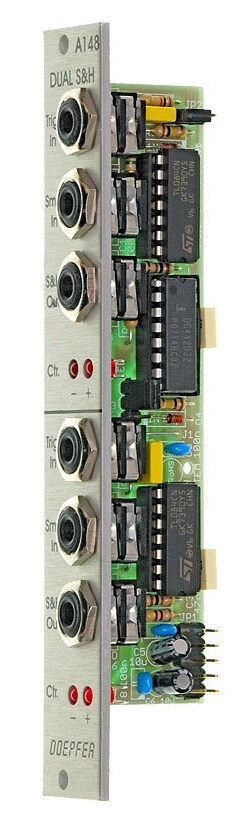

  • DOEPFER / A-148 Dual S&H画像1

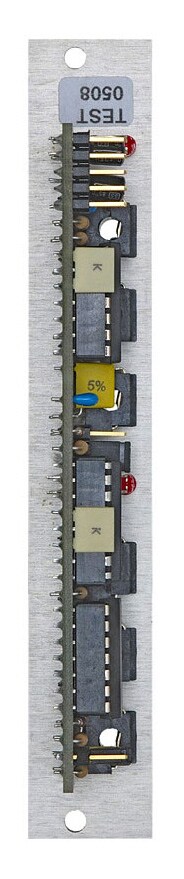

  • DOEPFER / A-148 Dual S&H画像2

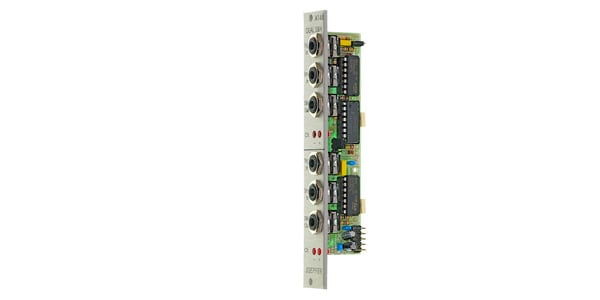

  • DOEPFER / A-148 Dual S&H画像3
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

The A-148 DUAL S&H is a Eurorack modular synth module featuring two sample and hold channels that generate stepped CV signals.
The A-148 DUAL S&H is a module equipped with two sample-and-hold circuits that generate stepped CV signals. The signal input to Smp.In (Sample In) is sampled the moment a trigger signal is input to Trig.In (Trigger In), and the sampled signal is output from S&H Out while maintaining a constant voltage.

The shape of the stepped CV signal changes depending on the waveform input to Smp.In. Inputting noise or random voltages generates a random CV signal, while inputting an LFO generates a rising or falling stepped CV signal.

Two LEDs on each S&H circuit display the voltage (positive or negative) of the sampled signal.

Each module (upper and lower) can be switched between sample-and-hold (S&H) and track-and-hold (T&H) modes by changing the jumper on the circuit board. In T&H mode, the output signal follows the input signal while Trig.In is at a ""high value"". When Trig.In reaches a ""low value,"" it simultaneously holds the voltage at that instant. Factory settings are configured with the upper unit for sample and hold and the lower unit for track and hold.

Width: 4HP
Depth: 30mm
Current Consumption:
+12V: 20mA
-12V: 20mA
