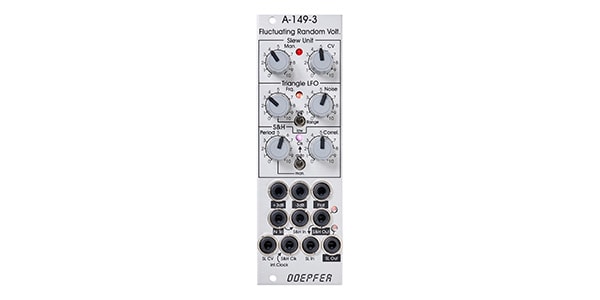

The A-149-3 Fluctuating Random Voltages is the third module in the A-149 series, a random voltage generation module inspired by Don Buchla's ""Source of Uncertainty 265/266 (SOU)"".
Overview
The A-149-3 expands on the idea of ​​""Fluctuating Random Voltages,"" adding access to internal signals and numerous extensions.
A key feature of the A-149-3 is that each of the four elements that make up the functionality of ""Fluctuating Random Voltages""—the triangle wave LFO, noise generator, S&H, and slew limiter—has independent inputs, outputs, and controls.

This allows for flexible patch reuse and application, and it can also be used as a random utility module that further expands on the original's elements.

Features
The A-149-3 consists of the following four blocks:

• Noise Section
Filters digital noise using three different curves, generating three noise outputs.
+3dB: Bright blue noise
-3dB: Dark red/brown noise
Flat: Flat noise similar to pink noise
• Triangle LFO (Noisy Triangle)
Adds the noise signal to the internal triangle LFO, allowing adjustment of noise level (Noisiness) and frequency (Frq.).
The waveform changes continuously from a triangular wave to a randomly fluctuating waveform.

An internal jumper allows selection of the noise source (-3dB/Flat).

The output is taken from the “N Tri” jack.

* Sample & Hold (S&H)

Uses the N Tri signal as input and samples and holds using either an internal or external clock.

The clock can be switched between Manual and Auto modes, and in Auto mode, it works in conjunction with the Slew section.

The “Correlation” control allows for unique feedback processing to smoothly blend the output signal.

* Slew Limiter (SL)

A circuit that slews the S&H output. The slew time can be adjusted manually or with an external CV.

Two internal bactrols are used, and LEDs visually indicate the slew time.

It is also possible to control the S&H clock frequency and slew time in conjunction.

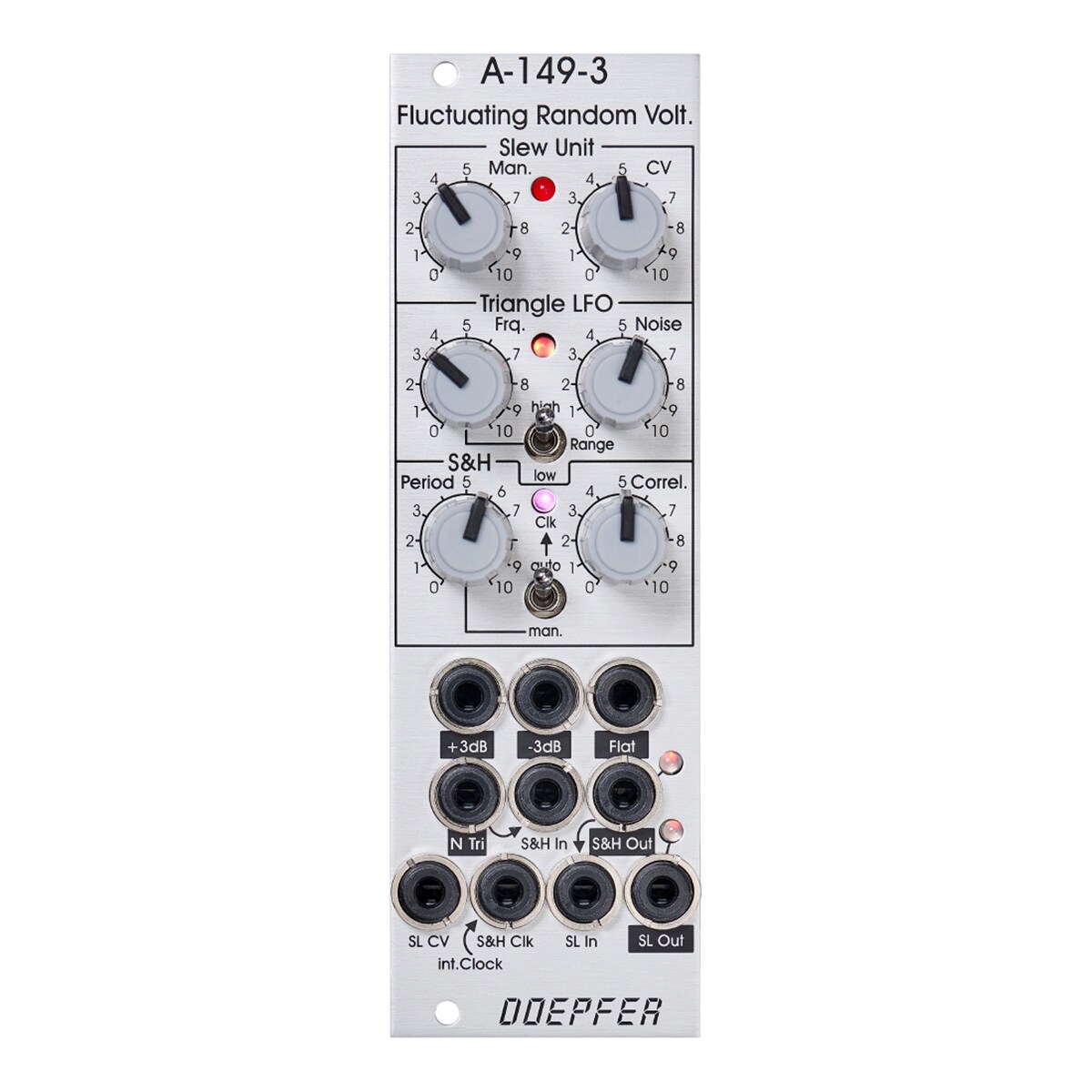

Main Controls
Triangle LFO
Frq.: Frequency adjustment (approx. 110Hz to 5-second period)
Noise: Noise level adjustment
+3dB/-3dB: Noise source selection
S&H
Period: Internal clock period adjustment
Correl.: Output and input correlation (smoothing) level
Man./Auto: Clock control mode switching (Auto mode is linked to Slew)
Slew Limiter
Man.: Manual adjustment of slew time
CV: Attenuator for external CV
Input/Output Terminals
+3dB / -3dB / Flat: Various noise outputs
N Tri: Noisy triangle output (approx. 10Vpp)
S&H In / Out: S&H input/output (In is internally connected to N Tri)
S&H Clk: Clock input (internally connected to internal clock)
SL CV / SL In / SL Out: Slew Limiter control voltage/input/output (S&H (Out and internal wiring)
Technical Specifications
Triangle LFO: Approx. 110Hz to 5-second period, output level approx. 10Vpp
Internal Clock: Approx. 3 seconds to 30Hz, output level approx. 10Vpp (0 to +10V)
S&H Clock Input Level: +5V
Usable with both audio and CV signals
Width: 8HP
Depth: 45mm
Current Consumption
+12V: 50mA
-12V: 40mA
