DOEPFER / A-100P9 PSU3

Variations

This is a powered case for Eurorack modular synthesizers from the German synthesizer manufacturer Doepfer. It can mount up to 252HP of modules. It's a flight case design, so it's ready to use as soon as the cover is attached.

A powered case for Eurorack modular synthesizers, capable of mounting up to 252HP of modules. It's a standard size, allowing you to build a system by mounting modules in three 84HP tiers.

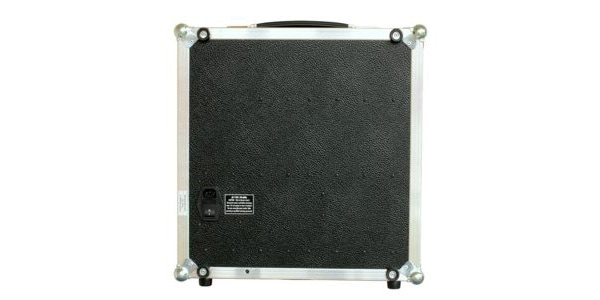

The power supply unit is a high-capacity PSU3 that also outputs +5V. Power is supplied via a 3-pin AC cable.

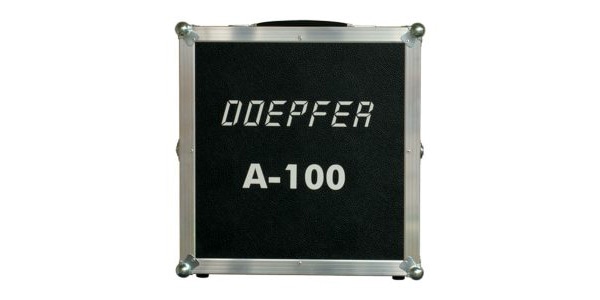

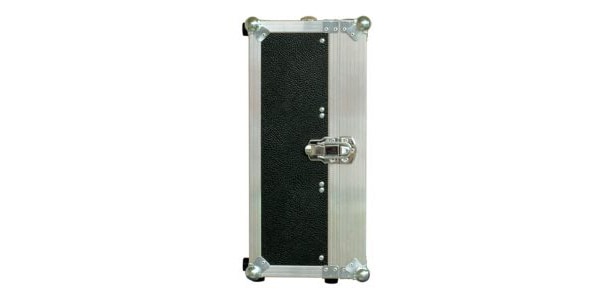

It features a flight case design with a wooden board and metal frame, and a handle. With the cover attached, it's ready for transport.

Mountable Module Depth
• Upper section: Maximum 100 mm
• Middle section: Maximum 100 mm
• Lower section: Maximum 100 mm (Maximum 70 mm for the right-hand area with power supply)

■ Width: 252 HP
■ Depth: 70 mm - 100 mm
■ Supply Current:
+12V: 2000 mA
-12V: 1200 mA
+5V: 2000 mA
(Maximum 4000 mA) A 2A fuse is included as standard. Replacing it with a 4A fuse allows for a maximum of 4000 mA of +5V.

■ Number of Connectors: 42
■ External Dimensions:
Width: 445 mm
Depth: 175 mm / 235 mm
Height: 485 mm
(Without cover / With cover)
■ Weight: 8.3 kg
