DOEPFER / A-100BS-3-LC9 PSU3

Variations

The BS-3 is a new basic system that combines a good balance of reliable standard modules and new modules developed in recent years and eliminates the need for MIDI.

Product Overview

A-100 BS-3 About the New "Basic System

This new system is a redesigned and updated version of the Basic System that has been in operation for many years and is intended to create a useful system focused on the core concepts of analog modular synthesis for music education, Eurorack beginners, and experienced Eurorack users who want to get “back to basics” and play intensively. The goal is to create a useful system that focuses on the core concepts of

The system lineup includes the classic A-100 P6, the elegant faux-leather LC6v design, and the P9 and LC9v, larger versions with lots of blank space, allowing each user the freedom to design his or her own system.

Features
A return to the original vision
For Eurorack enthusiasts and beginners alike
The BS-3 is a return to Doepfer's original vision of analog modular synthesis.

Modules can be used in endless combinations by connecting cables to the CV connectors on the front panel.

The BS-3 is an easily configured system for everyone from Eurorack aficionados to beginners, and can be used as a base for exploring sound synthesis and electronic sounds, or as an auxiliary tool for delving deeper into various types of synthesis. It can be used as a base for exploring sound synthesis and electronic sounds, or as an auxiliary tool for delving deeper into various types of synthesis.

For example, you can create four-part paraphonic patches or use the ring modulator to create complex sounds in a variety of ways, including percussion and drum sounds in addition to classic synth sounds. The system's two filters can also be self-oscillating and used as additional sound sources, and the Wave Shaper can be used to alter simple sounds to change the overall timbre.

Since the system configuration required varies with the user's personal requirements, the system can be freely expanded by removing the BS-3 blank panels and replacing them with Eurorack modules, including those from other manufacturers.

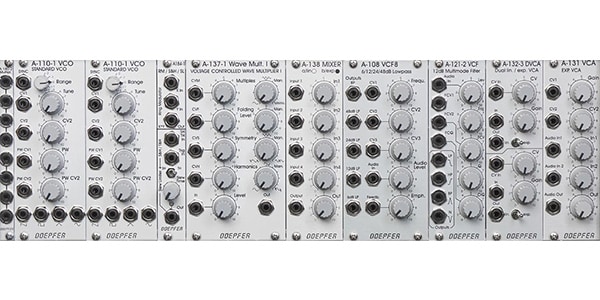

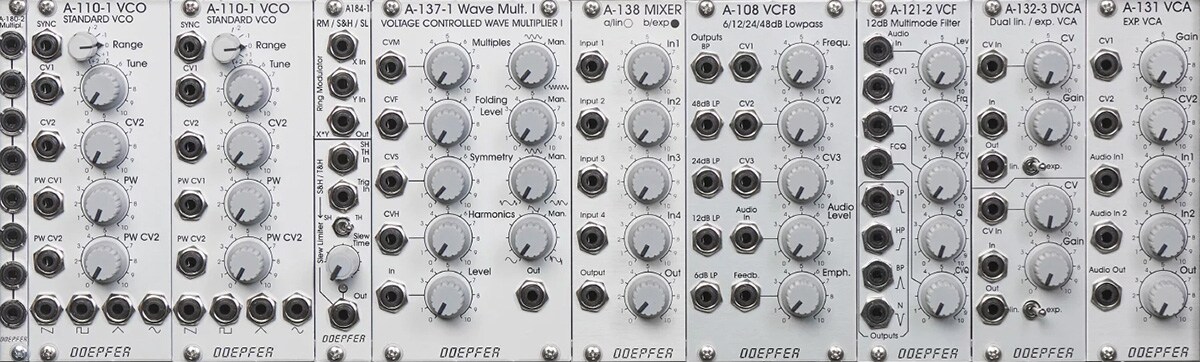

Mounted module upper section
Two VCOs, VCF, VCA and other audio sources and processors are mounted.

*From left to right

A-180-2 Multiples 1
A-110-1 Standard VCO
A-110-1 Standard VCO
A-184-1 Ring Modulator/S+H/T+H/Slew Limiter
A-137-1 Wave Multiplier I
A-138b Mixer logarithm
A-108 6/12/24/48dB Low Pass Filter
A-121-2 12dB Multimode Filter
A-132-3 Dual linear/exponential VCA
A-131 VCA (exp.)

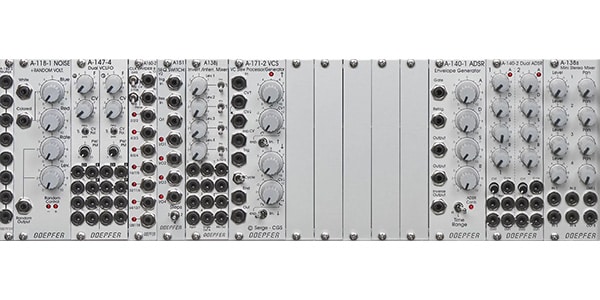

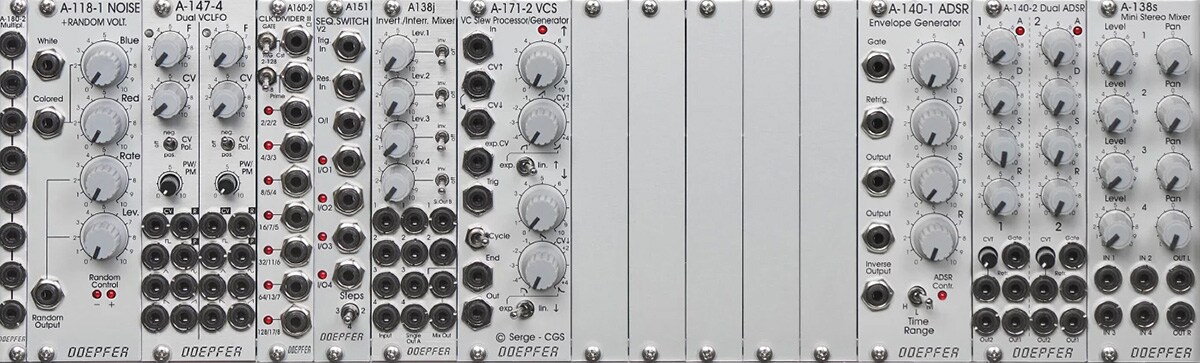

Bottom row of installed modules
Consists of modulation sources such as LFO, sequencer, and EG, as well as blank panels for system expansion.

From left to right

A-180-2 Multiples 1
A-118-1 Noise / Random
A-147-4 Dual VCLFO
A-160-2 Clock Divider II
A-151 Quad Sequential Switch
A-138j Inverting/Interrupting Mixer (Janus Mixer)
A-171-2 VC Slew Processor / Generator
A-100B-4 Blind Panel 4HP
A-100B-4 Blind Panel 4HP
A-100B-4 Blind Panel 4HP 4HP
A-100B-4 Blind Panel 4HP
A-140-1 ADSR Envelope Generator
A-140-2 Dual Mini-ADSR
A-138s Mini Stereo Mixer

Rackmount, portable, and stationary
Seven types of lineups to choose from to match your operating environment
The A-100 BS-3 series offers seven types to choose from to match your operating environment. The A-100 BS-3 Series is available in seven different types: a reasonably priced stationary wooden case, a portable case if you often take it outside for studio or live performances, and a rack-mount case that can fit into a 19-inch rack or rack case in your studio.

The mounted modules can be removed and relocated as desired.

In the 9U 3-tier size case, modules can be expanded by removing the lower blank panel. Modules can be mounted up to the maximum capacity of 84HP or power supply, including sequencers, controllers, and additional filters. Since Eurorack modules are a universal standard, modules from many other manufacturers around the world can also be mounted.

All cases are equipped with a high-capacity power supply unit PSU3. This allows for expansion of the system with plenty of room for power supply when modules are expanded.

*Some modules cannot be mounted, such as deep modules.

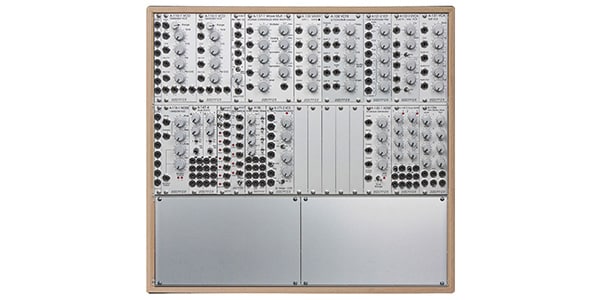

9U size 3-tier natural finish wooden case with BS-3 modules

Module expansion is possible in the blank space

Power supply
PSU3
Dimensions
Width: 445 mm
Depth: 160 mm
Height: 420 mm
Weight: approx. 8.2 Kg (including modules)
