DOEPFER / A-165-2 DIGITAL MODIFIERS SLIM LINE

DOEPFER / A-165-2 DIGITAL MODIFIERS SLIM LINE

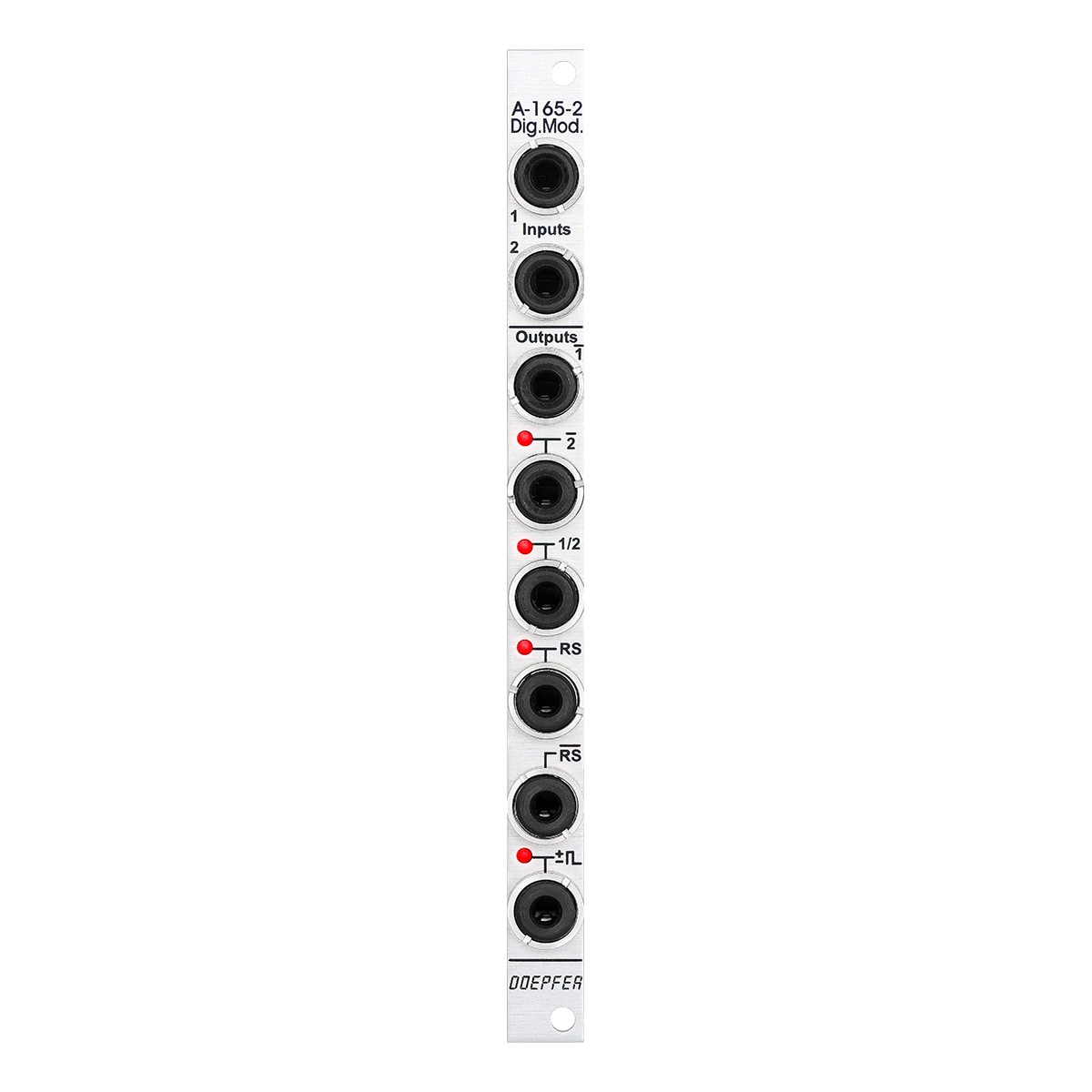

  • DOEPFER / A-165-2 DIGITAL MODIFIERS SLIM LINE画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

The A-165-2 is equipped with six modulation circuits for digital signals (clock, gate, trigger, start, stop, etc.) obtained from the two input signals Input 1 and Input 2.
Inverted signal of Input 1 (1 designation)
Inverted signal of Input 2 (2 designation)
T (Toggle - inverted) flip-flop. Controlled by the Input 1 input signal. This output changes its state when a rising edge is applied to Input 1. (1/2 designation, works similarly to a 1:2 divider.)
Set/Reset flip-flop. Changes state to "high" when Input 1 is on a rising edge, and to "low" when Input 2 is on a rising edge. (RS designation)
Inverted output of the Set/Reset flip-flop (RS designation)
Pulse output, a short trigger pulse signal of about 50ms duration is generated on both a rising and falling edge of Input 1.
Outputs 2, 1/2, RS and Pulse output are equipped with LEDs to indicate the state of the respective output.
The output levels of all 6 outputs can be set to 0/+5V or 0/+11V by jumpers on the board.

Input voltage threshold:

Voltage below +0.8V is treated as "low".

Voltage above +3.0V is treated as "high".

Width 2HP
Depth 45mm
Current consumption +12V: 30mA
