DOEPFER / A-130-4 QUAD VCA

DOEPFER / A-130-4 QUAD VCA

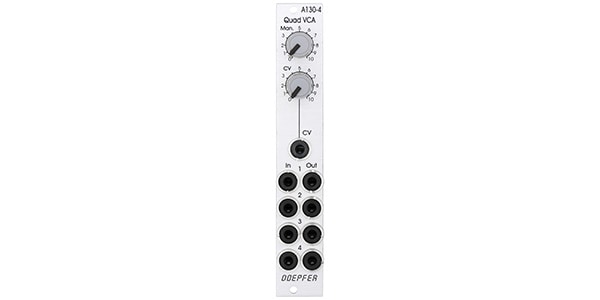

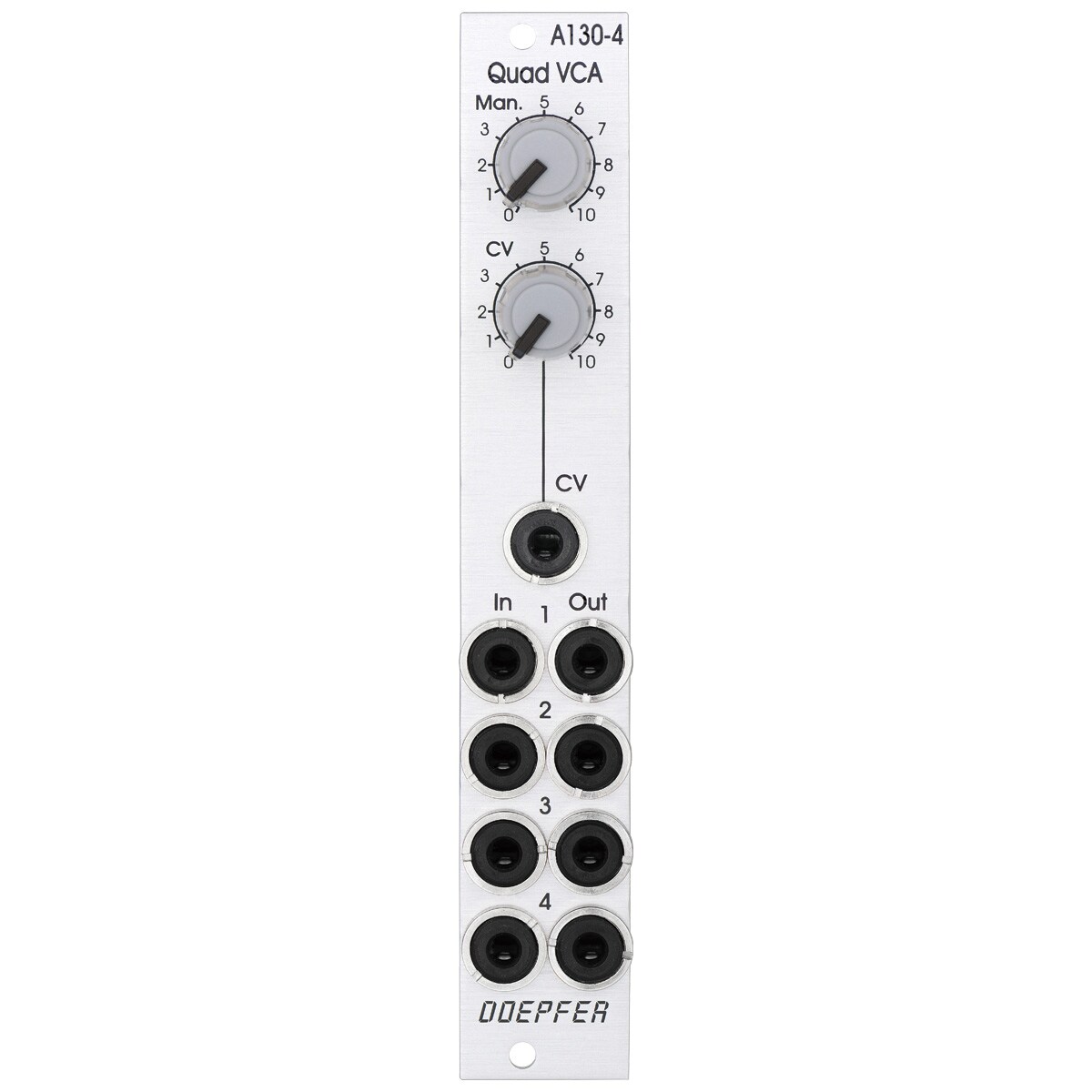

  • DOEPFER / A-130-4 QUAD VCA画像1
  • メーカーサイトManufacturer Site

Variations

▼ もっと見る

The A-130-4 features four linear VCAs with a common level control.
It can control the amplitude/level of up to four different audio or CV signals simultaneously, making it suitable for a wide range of uses. The A-130-4 is the successor to the A-132-2, and is smaller in width than the A-132-2, from 8HP to 4HP.

Controls
Man. Control Knob: Manually controls the amplitude
CV Control Knob: Attenuator for the CV signal input to the CV input terminal

Input/Output
In 1 ~ 4: VCA input
Out 1 ~ 4: VCA output

Features
The maximum gain of each VCA output is approximately 1 (when the Man. Control Knob is fully turned clockwise). Even if an external CV signal is added to the CV input, the maximum gain is limited to 1.
The base of this module is equipped with two internal connectors (pin headers with 4 pins each). Pin header #1 can be used to normalize the four inputs to other modules (e.g. Quad LFO A-145-4 or A-147-5, Quad ADSR A-143-2). Pin header #2 can be used to connect the four outputs to other modules.

Maximum input level without clipping/distortion is approximately 20Vpp (-10V to +10V).

Width 4HP
Depth 45mm

Current consumption +12V: 30mA

-12V: 30mA
