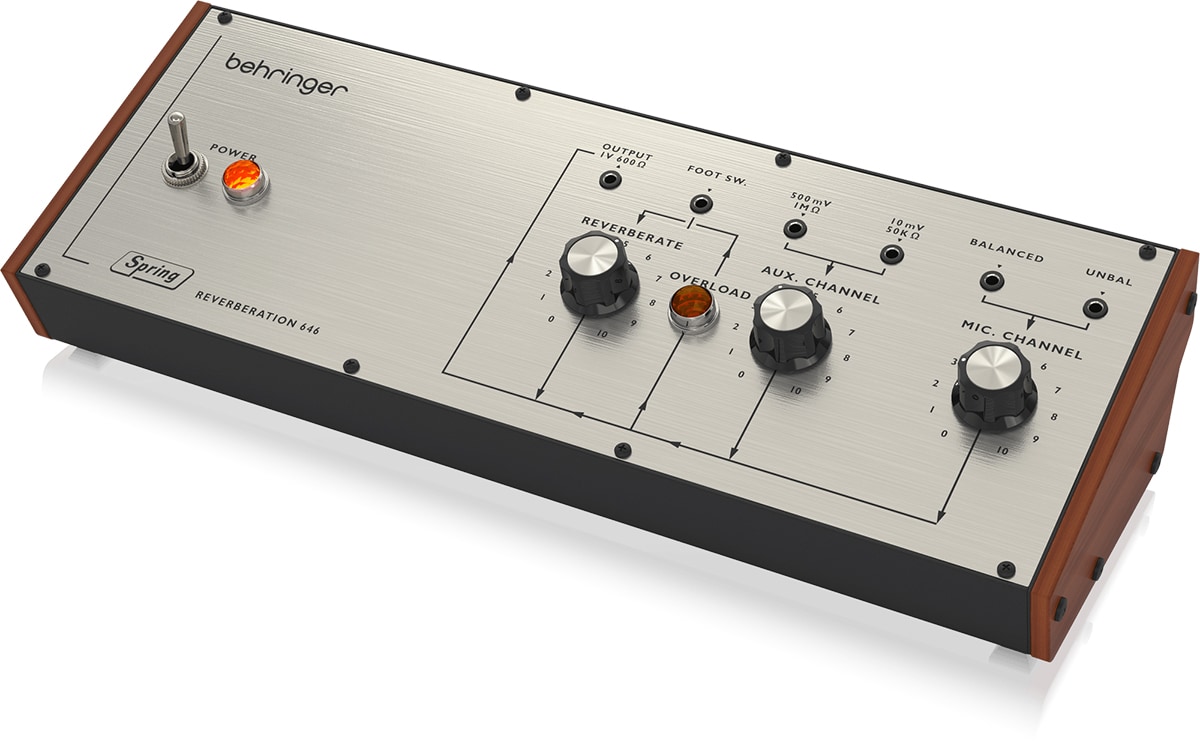

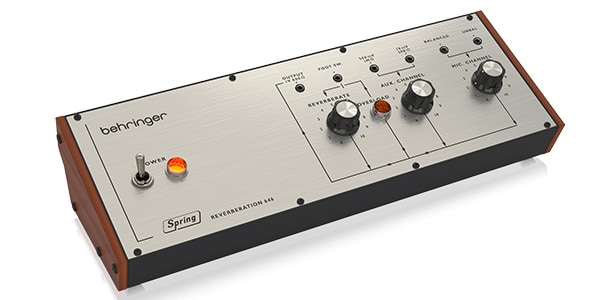

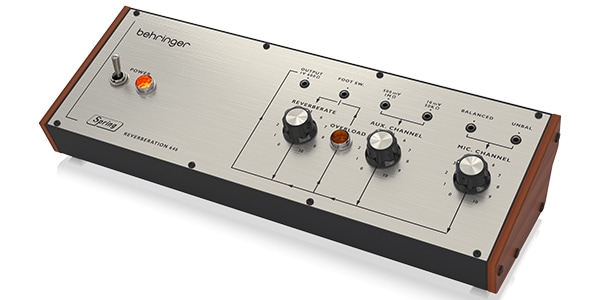

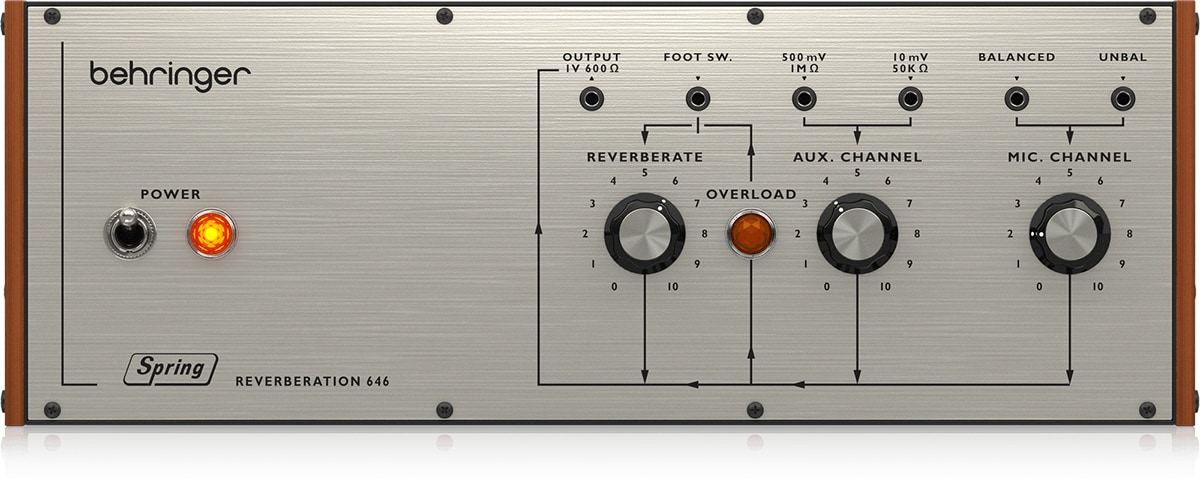

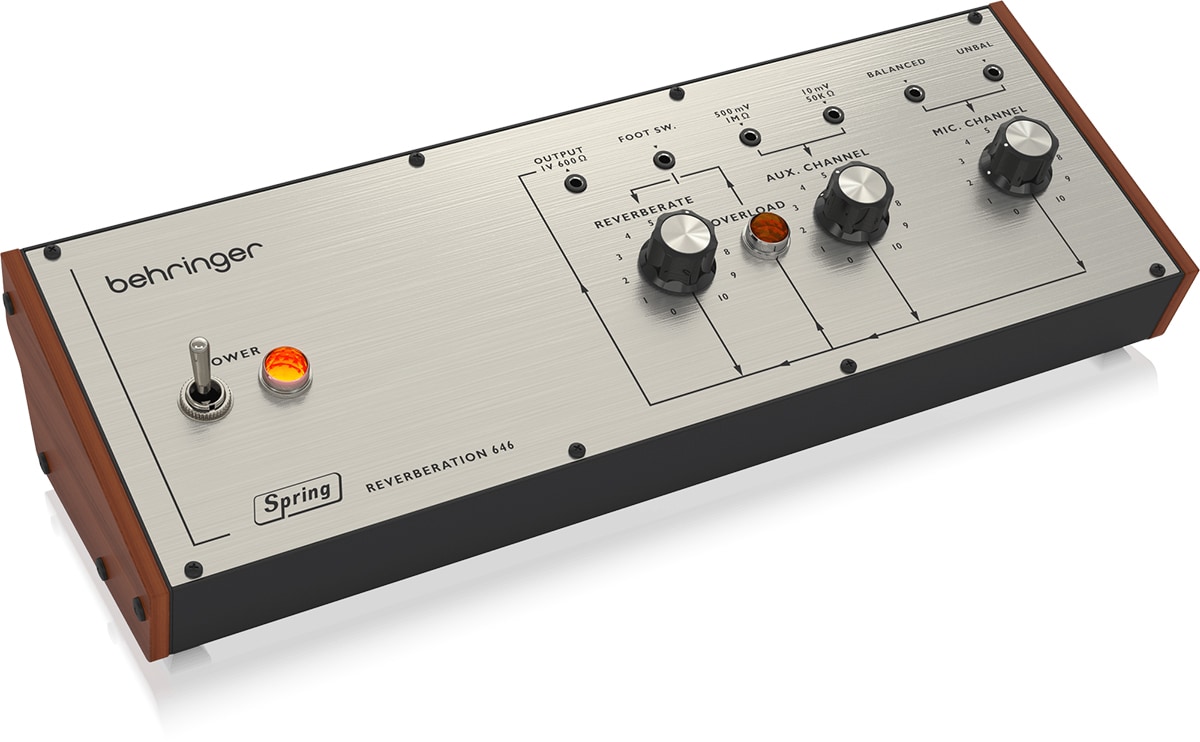

BEHRINGER / SPRING REVERBERATION 646

Legendary spring reverb with overload circuit in Eurorack format

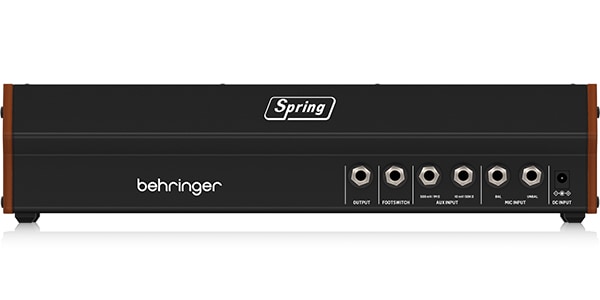

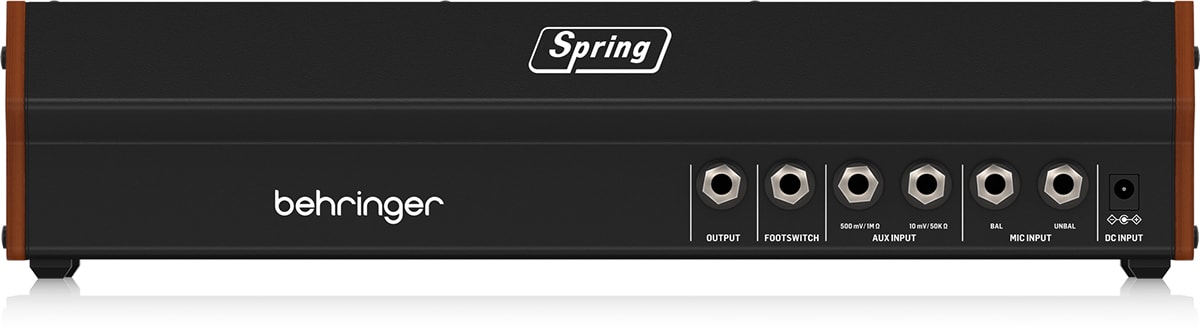

■Inputs
Balanced Microphone x 2 : 25 Ω 20 μv sensitivity
Unbalanced Microphone x 2 : 25 Ω 20 μv sensitivity
High Level Auxilliary x 2 : 1 MΩ 500 mv sensitivity
Low Level Auxilliary x 2 : 50 kΩ 10 mv sensitivity
■Outputs
Unbalanced line level x 2

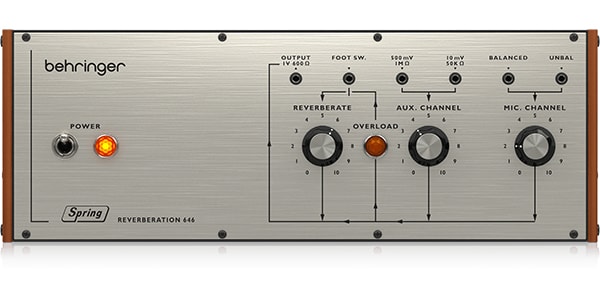

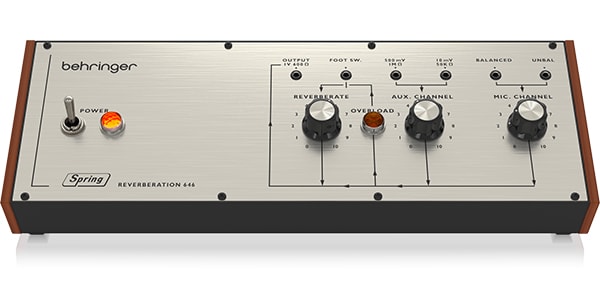

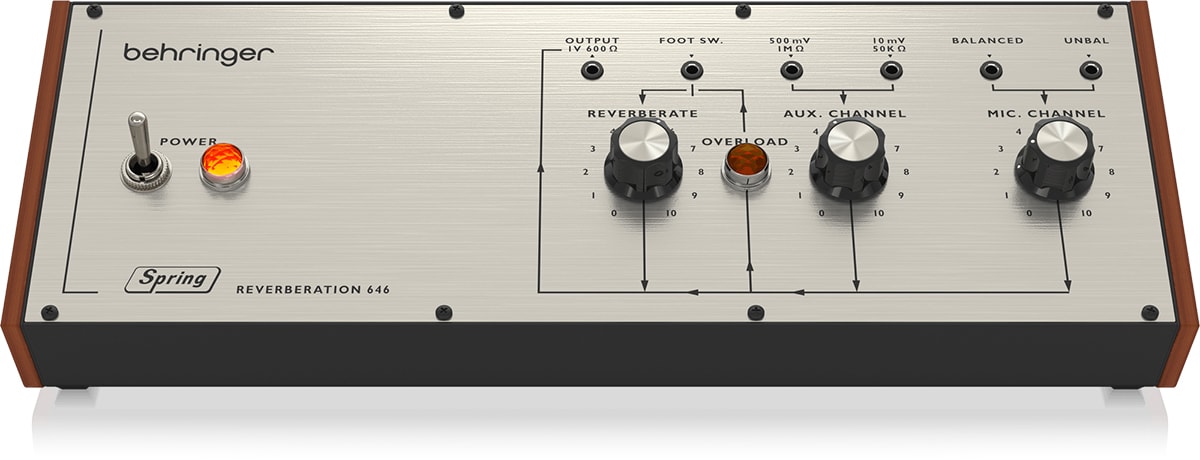

■Controls
Switches : Power (top panel)
Knobs
・Reverberate
・Aux Channel
・Mic Channel
Sockets : Mute Footswitch x 2
■Specifications
Frequency Response : ±2 dB 35 Hz - 20 kHz
Reverberation Delay : 29 - 37 ms nominal
Reverberation Time : 2 seconds at 300 Hz
Reverberation Response : ±3 dB 100 Hz - 6 kHz
Size
・37.37 x 13.56 x 8.64 cm
・72 hp when in Eurorack
Weight
・1.58 kg
Consumption : 1000 mA 12 V DC
