BEHRINGER / PRO-800

The Behringer PRO-800 is a classic analog 8-voice polyphonic synthesizeThe Behringer PRO-800 is an analog 8-voice polyphonic synthesizer in Eurorack format with 2 VCOs, classic-style VCF, arpeggiator, sequencer and 400 onboard programs.r with two VCOs, one VCF, arpeggiator, and sequencer.

■PRO-800

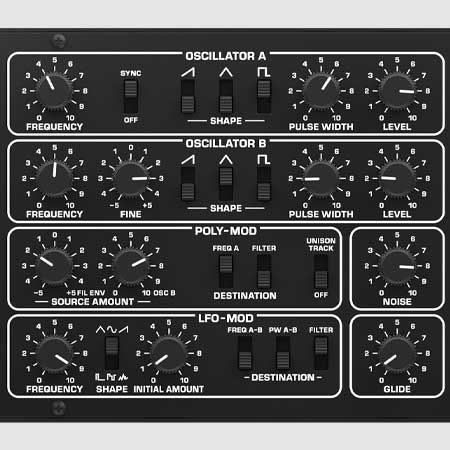

The Behringer PRO-800 is a classic analog 8-voice polyphonic synthesizer with 2 VCOs, 1 VCF, an arpeggiator and sequencer. Based on the classic Prophet 600, this synth captures the vintage sounds of the original coupled with some modern features like MIDI and onboard memory for storing up to 400 patches to truly make the PRO-800 a great choice for the modern musician.

■Product Features
Classic Polyphonic 8-voice synthesizer and authentic reproduction of the Prophet 600
Pure analog signal path based on authentic VCO, VCF and VCA designs
2 VCOs per voice for fat and detuned sounds
Unison mode for fat 16 oscillator lead and bass sounds

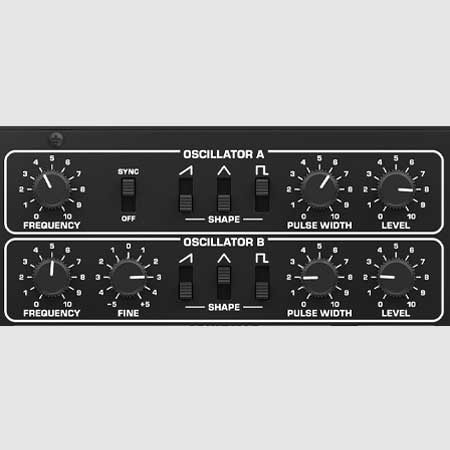

Up to 6 simultaneous oscillator shapes (OSC A: saw, triangle and pulse; OSC B: saw, triangle and pulse waveforms)
Square waves with pulse width control and PWM via global LFO
Classic 4-pole filter design with self-resonance capability
Unique “POLY MOD” function allows OSC B and the filter envelope to modulate OSC A frequency plus filter cutoff
Dedicated LFO with 6 waveform shapes to modulate the pulse width and pitch of oscillators A and B plus filter cutoff frequency
2 ADSR envelope generators for modulation of VCF and VCA
Arpeggiator with up/down and key-assign modes
Polyphonic 2-track sequencer for creative sequences
400 user program memories for storing all your favorite patches
Additional noise generator found in the ultra-rare Japanese Version called MMI 6E3.1
Polyphonic glide for everything from subtle portamento to extreme effects
Chord memory for transposing a chord across the keyboard
Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)

■Classic Design with Modern Additions
In keeping with the classic feel, the PRO-800 sports a pure analog signal based on authentic VCO, VCF and VCA designs that have made original synths like the Prophet 600 so sought after by many electronic musicians and enthusiasts. Each of the 8 voices also contains 2 VCOs for some massive, detuned sounds.

■Unlimited Creativity
Unison mode on the PRO-800 also allows you to create some nice fat 16 oscillator lead and bass sounds. Combine that with the ability to use up to 6 separately tweakable oscillator shapes (OSC A and B: saw, triangle and pulse) simultaneously and you can create some ultra-sizzly solos or ginormous bass tones. The “POLY MOD” function even allows OSC B to modulate OSC A.

■A Good Memory

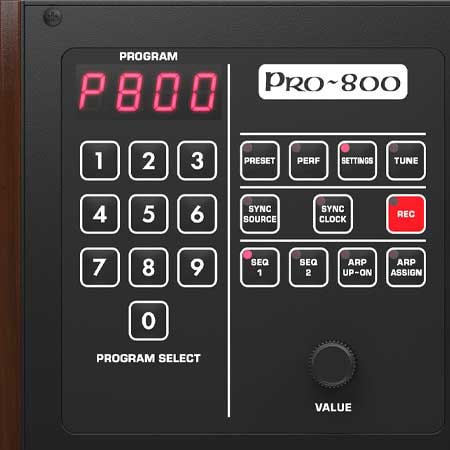

Have a bevy of ideas but just can’t remember them all especially with the pressure of a live performance? We’ve got the solution for you! Up to 400 patches can be stored on the PRO-800! Simply enter the program number with the keypad and your patch will be ready for action.

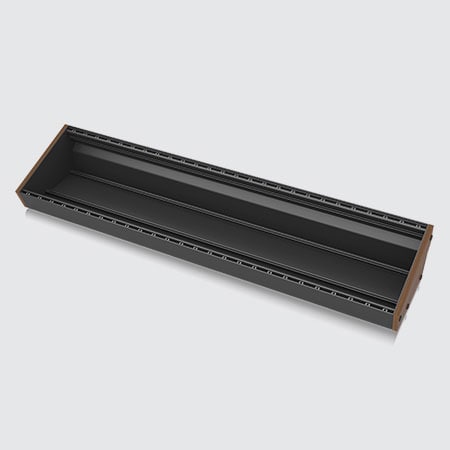

■Eurorack Ready
The PRO-800 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the PRO-800 to be mixed with other synth modules for a truly unique set up.

■Synthesizer Architecture
Number of voices: 8
VCO: 3340 oscillators x 16 (2 VCOs per voice)
Type: Analog
LFO: 1 (0.08Hz - 20Hz)
VCF: 1 x 4-pole low-pass filter (24dB/oct, slope)

■Connectivity
MIDI: 5 DIN MIDI (IN/THRU)
USB: USB2.0 Type B (USB MIDI)
Headphone: 3.5mm TRS stereo 7.5mW/32?
headphone output impedance: 8Ω
OUTPUT: 1/4” TS unbalanced +5.0dBu
AUDIO OUT: 1/8” TS unbalance +20dBu
FOOT SWITCH: 1/4” TS unbalanced
Sync: TS 3.5m 1PPS/2PPQ/24PPQ/48PPQ
Filter CV IN: TS 3.5mm 0V~+10V

■USB
Type: USB class compliant USB 2.0 Type B
Support: Windows 7 or later / Mac OS X 10.10 or later
Power Supply
Power consumption: 14.4W
Adapter specification: 12VDC 1200mA center plus (included)

■Size
Dimensions (H x W x D ): 96.6 x 424.4 x 135.6 mm
Weight: 1645 g
Eurorack HP: HP80
