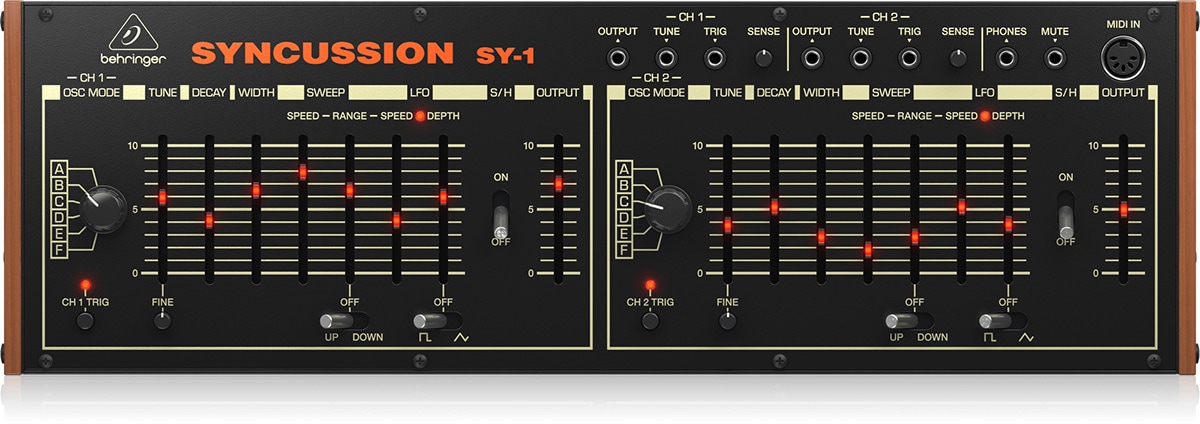

BEHRINGER / SYNCUSSION SY-1

Based on the classic 70's machine, this analog percussion synthesizer features 6 oscillator modes, including FM and dual oscillator mixes.

Experience the legendary sound and feel of a classic analog percussion synthesizer with the Behringer SYNCUSSION SY-1. The original was based on the classic dual analog percussion synthesizer of the 70s, It has been used by legendary artists such as Prince, Kraftwerk, Herbie Hancock, and many more. Now you can get the same dynamic, iconic sound without burning a hole in your pocket!

Tune Your Beats
The SY-1 offers six oscillator modes, each with a different character and tone. You can choose from Single Oscillator, FM, Dual Oscillator Mix, Dynamic Oscillator Mix, FM/Noise Mix, and Pure Noise. Each mode can be shaped by adjusting the tune, decay, and filter cutoff controls. This allows you to create a wide range of percussive sounds and effects, from deep kicks and snappy snares to metallic clangs and sci-fi zaps. The SY-1 can also be triggered using a drum pad, a drum machine such as the Behringer RD-8, or other external triggers.

Dynamics at Your Fingertips
Dynamics at Your Fingertips
Movement and dynamics are crucial to creating exciting rhythms. That's why SY-1 includes a pitch sweep function that lets you use the speed, range, and up/down controls to create dramatic pitch plunges and rises, as well as special effects and transitions. In addition, SY-1 features square wave and triangle wave LFOs that can be used to modulate pitch and filter for unique vibrato effects.

Synthesizer Architecture
Number of Tones
2

Type
Analog

Oscillator
2 VCOs

2 LFOs
2 LFOs

VCF
2 LPF

Envelope
Decay only

Connections
Power Switch
Push-button on/off
(rear panel)

MIDI Input
5-pin DIN/16 channels

USB 2.0 Type B
USB 2.0 type B

Headphone
3.5 mm TRS, stereo,
5 mW 32 ohm

USB 2.0 Type B
Type B
Class compliant USB 2.0
Type B

Supported OS
Windows 7 or higher
Mac OSX 10.10 or higher

Oscillator Section
Switches
OSC mode x 2

Controls
Tuning x 2

External Inputs
Tuning x 2

Envelope section
Switches
Trigger x 2

Controls
Decay x 2
Sensitivity x 2

External Input
Trigger x 2
Mute

LEDs
Trigger x 2

Filter Section
Controls
Width x 2
Sweep Speed x 2
Sweep Range x 2

Switches
Sweep up/down/off

LFO Section
Controls
Speed x 2
Depth x 2

Switches
Waveform
Square / Triangle / Off
Sample & Hold On/Off

Output Section
Controls
Output Level x 2

Socket
CH1 out/CH2 out x 2
Headphone output
