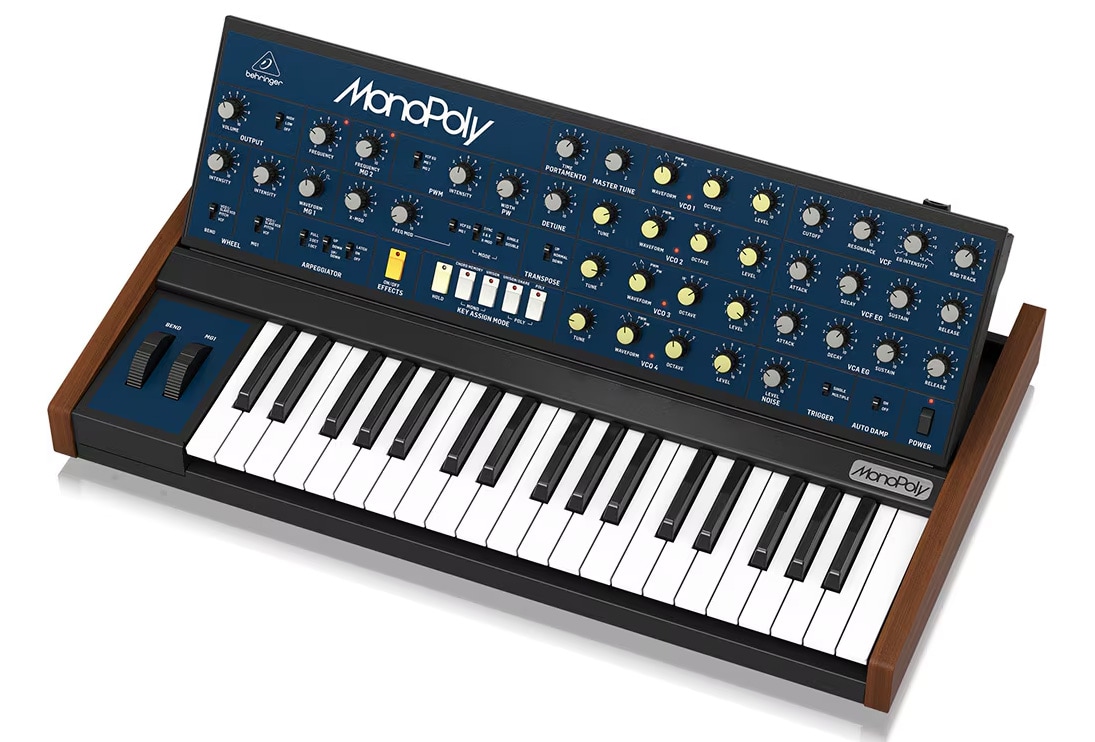

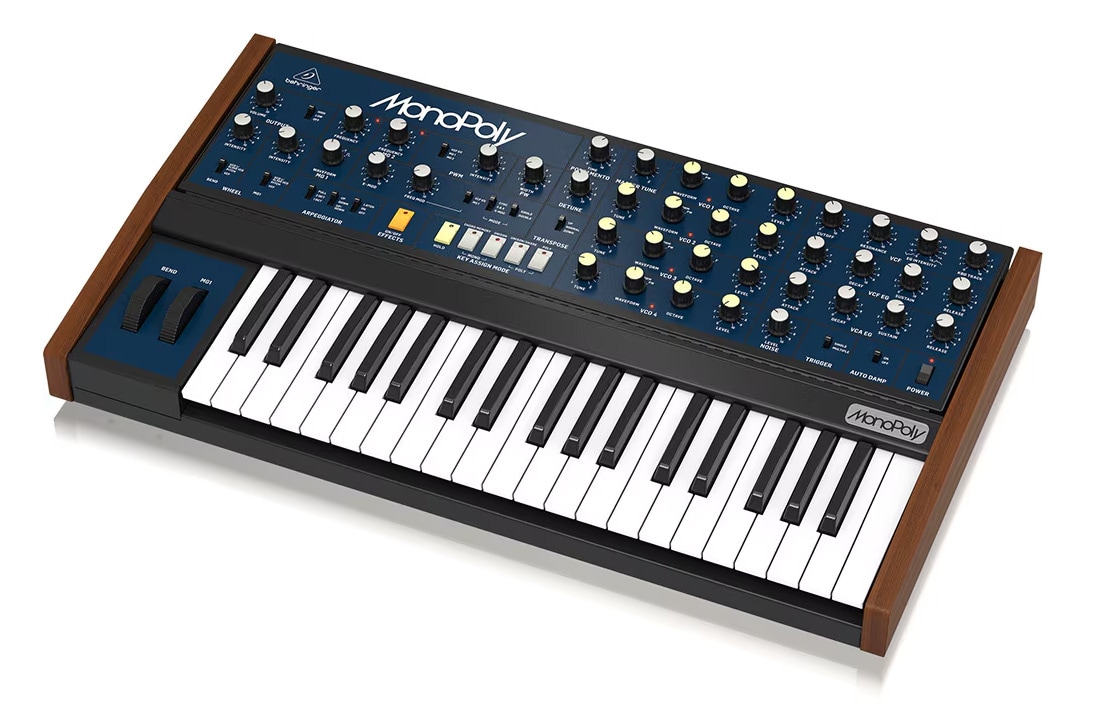

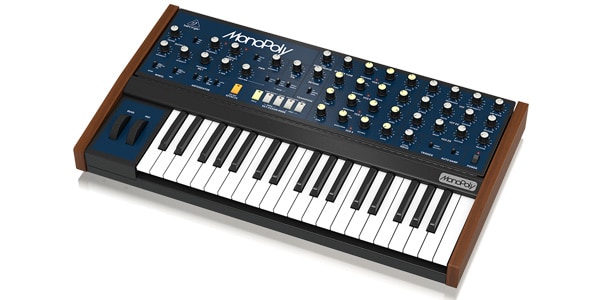

BEHRINGER / MONOPOLY

Analog 4-voice polyphonic synthesizer with 37 full-size keys, 4 VCOs, VCF, 2 LFOs, 2 envelopes, sync, cross modulation and arpeggiator

Features

- Analog synthesizer with authentic style 4 VCO design

- 4 with mono/unison/polyphonic modes VOICE polyphonic/paraphonic design

37 full-size keyboard with velocity function

Reproduces the ""original circuit"" of the 80s

Analog-designed VCO, VCF, and VCA

Equipped with 4 waveforms and pulse width modulation per VCO

Autotuning function that automatically tunes the VCO

Classic 24dB filter with resonance

Cross modulation and oscillator sync for adding complex modulation to lead sounds

Dual LFO with 4 selectable waveforms and multiple destinations

ADSR envelope dedicated to filter and VCA

Chord memory function that allows you to play chords with one key

Noise generator to expand the timbre

Independent pitch modulation on VCO1 for sync/cross modulation

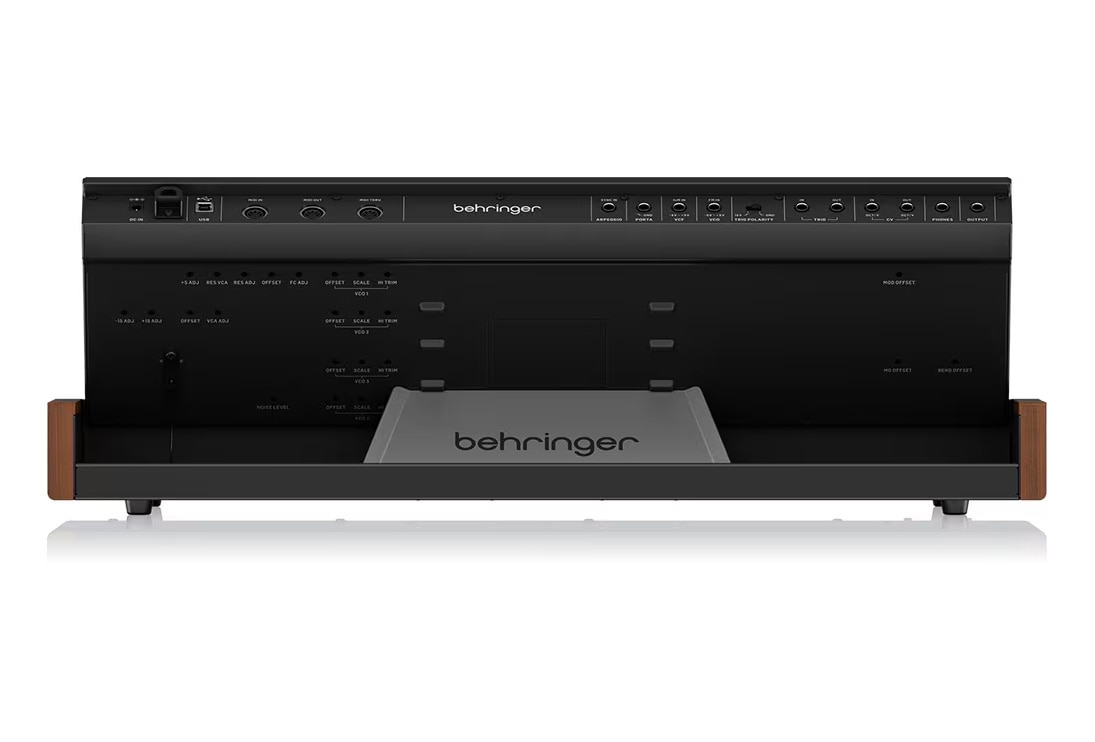

Front panel angle can be adjusted in 3 stages

62 controls provide direct real-time access to all important parameters

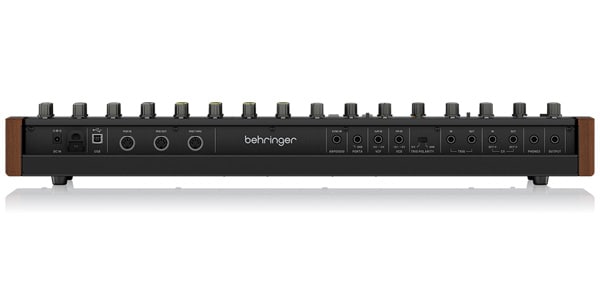

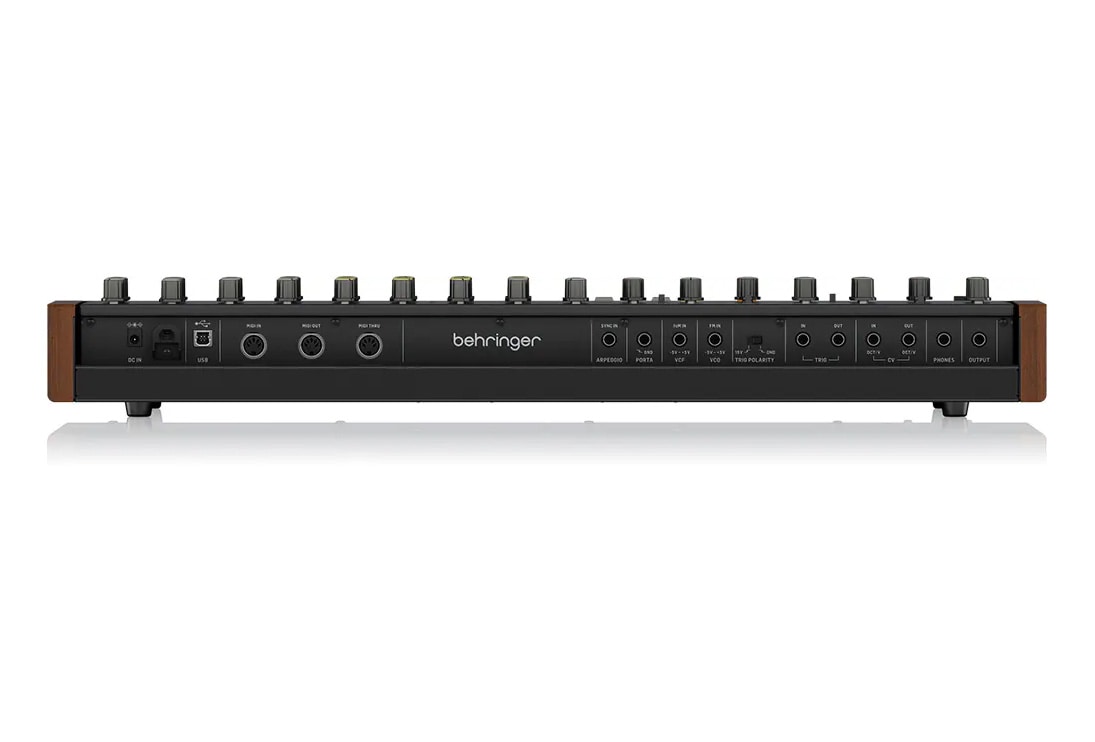

Multiple Input/Output for controlling filter cutoff, oscillator pitch, CV/gate, etc.

USB / with MIDI channel and voice priority selection MIDI implemented

Specifications
■Synthesizer architecture
Number of voices: multiphonic/polyphonic
Number of voices: multiphonic
Type: analog
VCO: 4 (32.7 Hz to 4.186Hz)
LFO
MG1: 0.1Hz to 20Hz
MG2: 0.1Hz to 30Hz
VCF: 1 (24dB/oct low pass filter)
VCA: 1
Envelopes: VCF, VCA

■MIDI
MIDI terminals: MIDI IN and MIDI THRU (16ch selectable)
USB terminal: Class compliant USB 2.0 Type B (Windows 7 or higher or Mac OS X 10.6.8 or higher)

■Output
Main output: 1 x 1/4"" TS unbalanced
Maximum output level: +6dBu
Impedance: 700Ω
Headphones: 1 x 1/4"" TRS stereo
Maximum output level: -2dBu

■Power supply
Power adapter: 12V DC, 1000mA (included)
Power consumption: Max. 9W

■Physical
Standard operating temperature: 5℃ to 40℃
Dimensions: 648 x 90 x 361 mm (W x H x D)
Weight: 10.3 Kg
