BEHRINGER / 2600

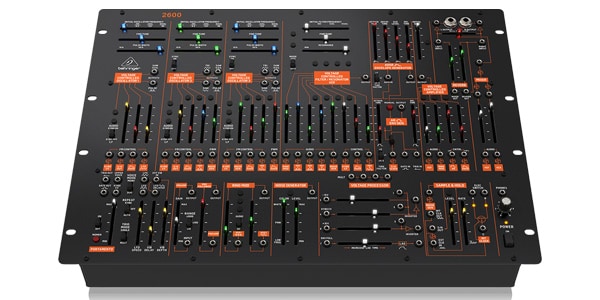

The BEHRINGER/2600 is an 8U semi-modular analog synthesizer with 3 VCOs and a multi-mode VCF.

■Features
- Triple VCO design allows for extremely thick sounds
- Faithful reproduction of the original “2600” circuit using matched transistors and JFETs
- Semi-modular design that can be used without patching
- Classic two-mode switchable multi-mode VCF with three VCO-dedicated low-pass outputs, each with LFO switching, FM input, and multiple waveform outputs
- Wide range of functions including ring modulator, lag processor, S&H, Schmitt trigger, and envelope follower
- ADSR/AR envelope generator with switchable time factor
- Realistic digital spring reverb emulation
- Variable color switching Noise generator with 2 outputs: pulse and sine
LFO with 2 outputs: pulse and sine
Voltage processor with switchable range post-filter distortion (PFD) and inverter options
VCA with differential input (+/-) with both linear and exponential control
Extra features like attenuator, mixer, inverter, slew rate limiter, 4-way multiple
External audio input
58 faders and 15 buttons for real-time access to all parameters
83 patch inputs and outputs for ultimate flexibility
Headphone out with dedicated level control
USB with selection of MIDI channel and audio priority / MIDI implementation

■Specifications
・Synthesizer architecture
・Number of voices: Multiphonic
・Type: Analog
VCO: 3 (0.03 Hz to 40 kHz across 4 ranges)
LFO: 1 (0.25Hz to 25Hz)
VCF: 1 (24dB/oct 4-pole low-pass filter, 4012 mode/4072 mode switchable)
VCA: 1
Envelopes: AR, ADSR
Effects: Digital spring reverb
・MIDI
MIDI terminals: MIDI IN and MIDI THRU (16ch selectable)
USB terminal: Class-compliant USB 2.0 Type B (Windows 7 or higher or Mac OS X 10.6.8 or higher)
・Power supply
Power adapter: 12V DC, 2000mA (included)
Power consumption: Max. 15W
・Physical
Standard operating temperature: 5℃ to 40℃
Dimensions: 482 x 356 x 108 mm (W x H x D)
Rack unit: Standard 19 inch rack (95HP), 8U size
Weight: 5.1Kg
