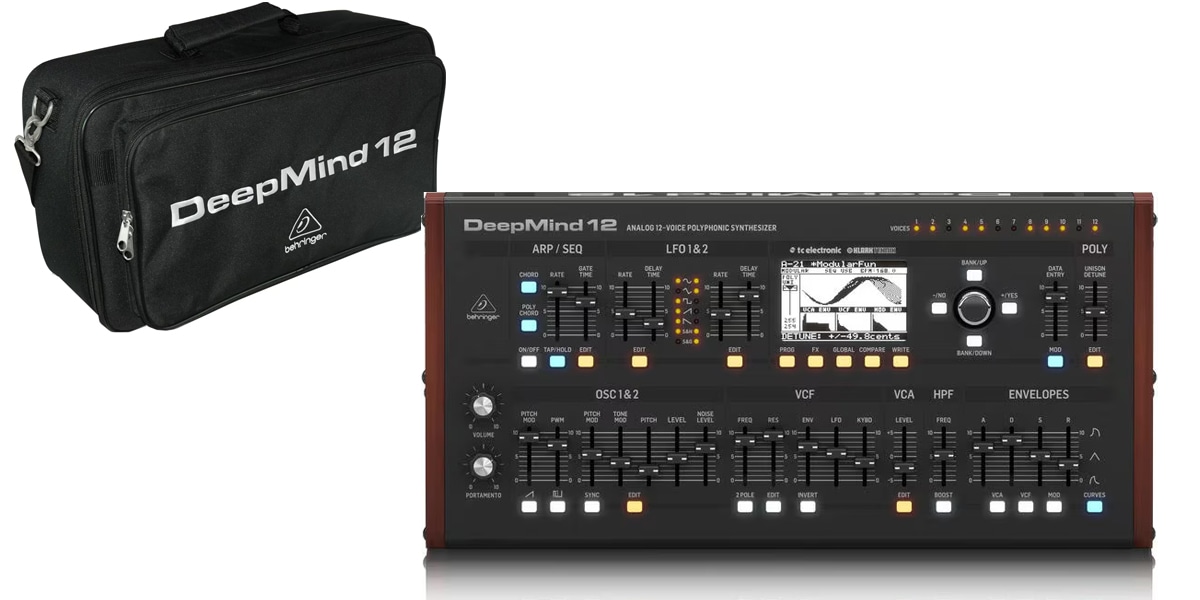

BEHRINGER / DEEPMIND 12 Desktop type soft case set

The desktop version of BEHRINGER's first analog 12-voice polyphonic synthesizer. This is a set of the main body and soft case.

■Set contents:
・Body
・Soft case

analog 12 note polyphonic synthesizer
4 FX engines, 2 OSCs and LFOs per voice, 3 ADSR generators, 8-channel modulation matrix, 32-step control sequencer, tablet remote control, and Wi-Fi.

fx rack
It comes with up to 4 simultaneous FX engines using over 33 algorithms from TC Elextronic, Midas, and Klark Teknik. (Reverb, chorus, flanger, phaser, delay, multiband distortion, etc.)

Creating a waveform
Each voice is equipped with two LFOs. LFO features include adjustable slew rate, modulation delay, key sync, assignable clock sync (internal and external MIDI), envelope auto-triggering, delay, and fade-in. Seven types of waveforms are available: sine wave, triangle wave, square wave, two types of sawtooth waves (ramp up, ramp down), sample & hold, sample & glide.

3 envelope generators
Equipped with three envelopes that modulate various parameters. The ADSR (Attack, Decay, Sustain, Release) envelope generator allows you to create unique curves. Envelope trigger modes include legato, mono, and retrig.

8ch modulation matrix
With 19 modulation sources and over 130 destinations, DeepMind12 boasts a wide range of modulation options. ""Press and hold"" shortcuts allow quick and easy manipulation of these source and destination sections.

Remote control via iPad
Parameters can be controlled remotely by connecting to an iPad/PC/Mac compatible Android app using USB/MIDI/Wi-Fi. DeepMind12's Wifi Client/Access Point allows you to access your home network without any additional hardware.

specification

global
LCD with display backlight
Main menu PROG, FX, GLOBAL, COMPARE, WRITE
Edit menu ARP / SEQ, LFO, OSC, POLY, VCF, VCA, VCA ENV, VCF ENV, MOD ENV, MOD MATRIX
8 banks of presets with 128 programs each
Fader mode MIDI CC, NRPN, OFF

control
Encoder 1 rotary knob
26 sliding faders (35 mm)
31 backlit switches

connectivity
MID I In/Out/Thru 5 Pin DIN / 16 Channel
Pedal/CV?"" TRS
Sustain?"" TS
USB USB 2.0, type B
Output L / R ?"" TRS, balanced, max. +18 dBu
Headphones?"" TRS, unbalanced, max. +21 dBu

synthesizer architecture
voice 12 analog
2 per OSC voice
2 per LFO voice
VCF 2-pole/4-pole
HPF (common to all voices) 6 dB per octave
Envelope VCA, VCF, MOD
Mod Matrix 22 Sources / 130 Addresses

digital effects
4 per FX slot program
FX Type 34 Algorithm
Internal effects engine One true stereo SHARC DSP
Effect signal processing 32/40 bit floating point @ 48 kHz
A/DD/A Performance 24-bit 48 kHz, 114 dB dynamic range
bypass true hard bypass

USB
Type class compliant USB 2.0, Type B
Supported Operating Systems Windows 7 and above** MacOS X 10.6.8 and above iOS 8 and above (iPad) Android 6.0 and above

Wifi
Inside the antenna
Access point, maximum number of clients 1
IEEE 802.11 b/g standard 2.4 GHz
Frequency range 2,412 - 2,462 MHz WLAN channel 11
Maximum output power 16 dBm (802.11 b) / 20 dBm (802.11 g) / 20 dBm (802.11 n)

power requirements
Main connector standard IEC receptacle
Power consumption maximum 55W
Internal switch mode PSU autoranging 100 - 240 V, (50/60 Hz)

environment
Operating temperature range 5°C to 45°C (41°F to 113°F)

Physical (packaging)
Dimensions (H x W x D) 116 x 461 x 224 mm
Weight 5.0 kg
