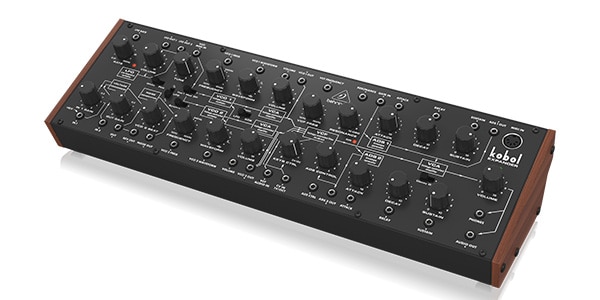

BEHRINGER / KOBOL EXPANDER

KOBOL EXPANDER is an analog semi-modular synthesizer with seven variable waveforms, a unique "Kobol" VCF in Eurorack format, and two VCOs.

■KOBOL EXPANDER
Master the waveforms and shape them however you like with Behringer KOBOL EXPANDER, the latest spellbook in an endless sea of beats, pulses, and voltages.

■Faithful to the Original
Behringer KOBOL EXPANDER is a duophonic analog synthesizer with two VCOs for morphing between seven waveforms, oscillator synchronization, and pulse width modulation that revives the original circuitry of the 1970s. The unique 4-pole VCF also provides the natural saturation found only on the "Kobol" synth.

■Expand Your Horizons!
If you want to take the KOBOL EXPANDER even further, the analog LFO has two selectable waveforms that can be connected to multiple external modules or synths for more complex sounds. That's not all. The built-in noise generator and voltage processor offer even more possibilities for creating spicier sounds.


■Synthesizer Architecture
Number of voices: Monophonic
Type：Analog
Oscillators：2 VCOs
LFO：1 LFO
VCF：LPF 24 dB/octave
Envelopes：2ADS

■Connectivity
Power switch: Slider On/Off (Top Panel) / Push button On/Off (Rear Panel)
MIDI In；5-pin DIN / 16 channels (Top Panel)
MIDI Thru: 5-pin DIN / 16 channels (Back Panel)
Channel Select: 4 DIP Switch (Rear Panel)
USB (MIDI): USB Type B
Audio Out: 3.5 mm TS (Top Panel) / 6.35 mm TS (Back Panel)

■USB (MIDI): USB Type B
USB Type: Class compliant USB Micro
Supported Operating Systems:
・Windows 7 or higher
・Mac OS X 10.10 or higher

■Volume
Control: Volume: 0 to 10

■LFO Section
Control:
・LFO Section Control: LFO Rate
・LFO Volume
Switch: Waveform: Square, S&H, Triangle
Sockets:
・LFO Rate In
・LFO Out 1
・LFO Out 2
