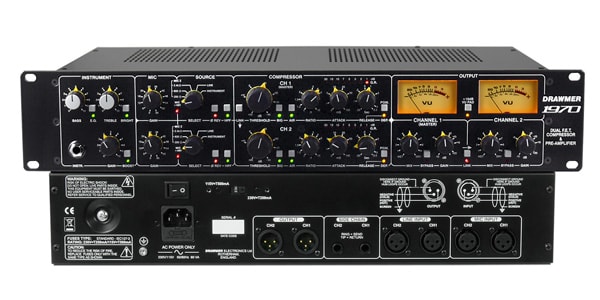

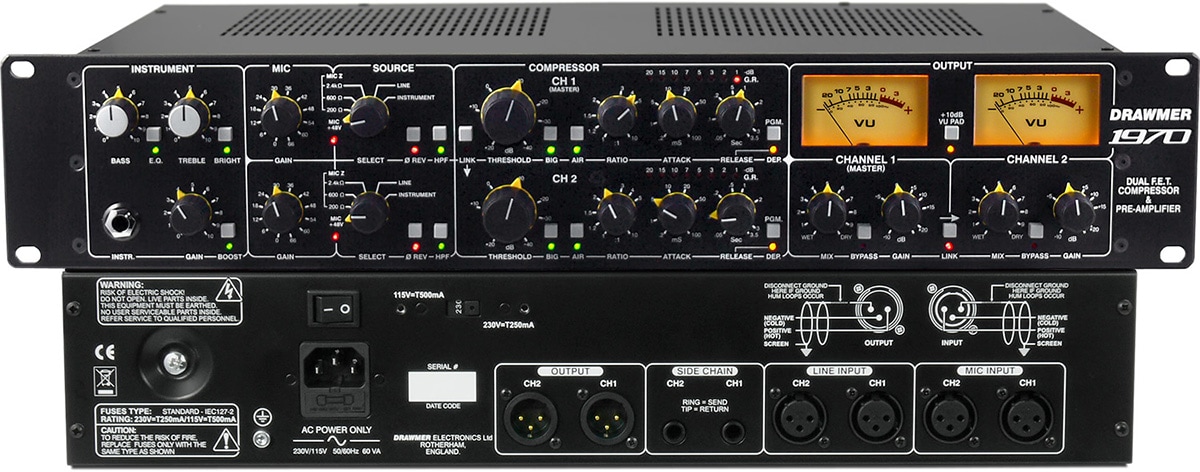

DRAWMER / 1970 Dual FET compressor, microphone preamplifier

A new dual-FET compressor/preamp that builds upon the company's 1960 model while featuring a significantly expanded set of functions.

The 1970's feature set is similar to the Drawmer 1960, but the 1970 is significantly improved, with the DI EQ fine-tuned for greater accuracy.

The 1970 uses the latest THAT Corporation technology with two microphone preamps to deliver extremely clean, transparent, and accurate recordings that can be processed later using your preferred warming method, including saturation, valve, transformer, and tape. Furthermore, each channel offers 66dB of gain, and switchable microphone impedance for precise microphone matching ensures you get the best out of any microphone you use. It also features phantom power, phase reverse, and a high-pass filter.

The 1970 is a versatile tool for any studio or live event, from tracking instruments with its dedicated DI input to recording vocals with ultra-clean microphone preamps, recording guitar cabinets with two microphones, recording singers playing guitar, and even compressing stereo buses with its comprehensive linking and mixing functions.

Features

* Two THAT Corporation ultra-clean microphone preamps with 66dB gain, phantom power for precise microphone matching, and switchable microphone impedance.

* Independent line and microphone XLR inputs.

* Professional-quality instrument DI input with low and high EQ.

* Can be used as two mono tracking compressors or one stereo bus compressor (avoiding image shift) via class-leading comprehensive linking functionality.

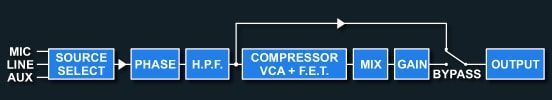

* Can completely bypass FETs for an extremely clean output.

* Standard controls such as threshold, ratio, attack & release, and eight LED GR meters for each band.

* Rear panel sidechain insert points allow for further control.

* ""Big"" mode and ""Air"" mode help maintain extremely deep lows and enhance sparkling highs.

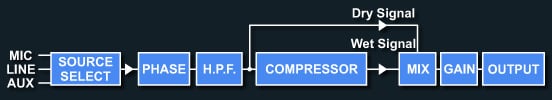

? Variable Wet/Dry Mix and Output Gain knobs on both channels provide ""parallel compression"" functionality without the need for external mixing devices, offering complete and easy control over the amount of compression used and the output level.

? Two backlit analog VU meters with switchable +10dB rescale mode. Output time-delay relay for clean power up/down.

? Internal low-hum toroidal linear power supply with voltage selector switch.

? Robust steel chassis and aluminum front panel.

? Designed and handmade by Drawmer in the UK.

■Specifications

INPUT

・・・Input Impedance 20k Ohms or greater

...Maximum Input Level +21dBu

OUTPUT

・・・Output Impedance 100 Ohms

...Maximum Output Level +21dBu into 10k Ohms Load

FREQUENCY RESPONSE

・・・20Hz to 20kHz +/-0.5dB

CROSSTALK < -75dB @ 1kHz

NOISE AT UNITY GAIN

・・・20Hz - 20kHz >93dB

% DISTORTION (THD & NOISE) @ 1kHz

...0dB (ref +4) 0.01%

...10dB (ref +4) 0.01%

MIC EIN -130dB

POWER REQUIREMENTS

・・・230Volt or 115V at 50-60hZ, 630VA

FUSE RATING

・・・T250mA for 230Volt,

・・・T500mA for 115Volt

・・・Conforming to IEC 127-2

FUSE TYPE

・・・20mm x 5mm, Class 3 Timed-Blo, 250Volt working

CASE SIZE

・・・482mm (W) x 88mm (H) x 270mm (D)

WEIGHT 4.2Kgs
