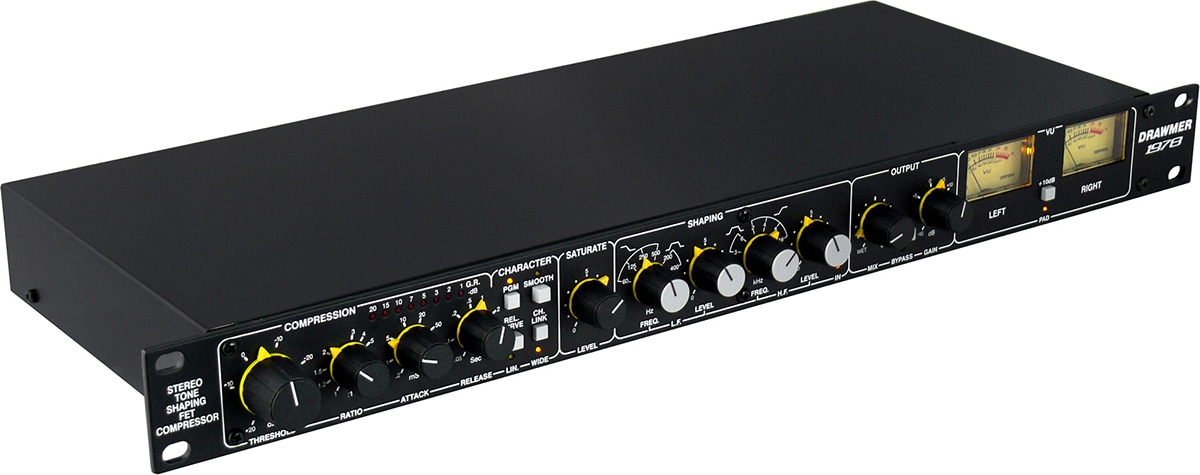

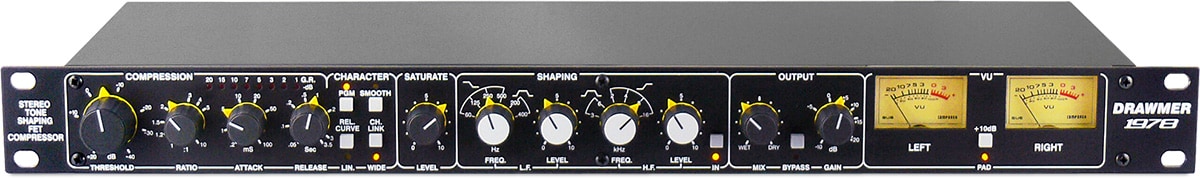

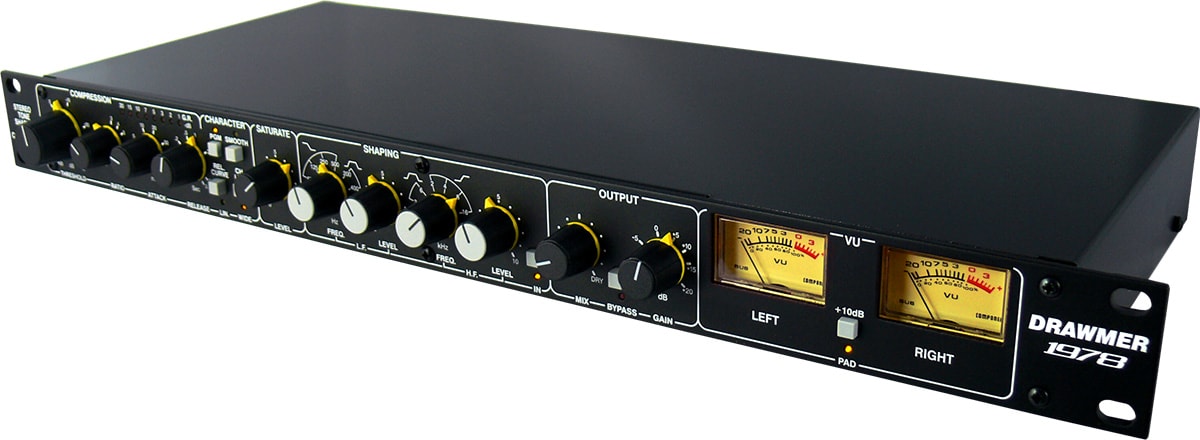

DRAWMER / 1978

A stereo tone-shaping FET compressor featuring four character switches and variable saturation control.

In addition to standard ratio, threshold, attack, and release controls, the 1978 features four character switches offering a wide range of compression flavors, and a variable saturation control that adds harmonic distortion to the signal. The sidechain function includes sidechain insertion points on both channels and a comprehensive, flexible sidechain EQ section, allowing for selective LF/HF control of specific frequencies for precise frequency-aware compression, such as de-essing. The wet/mix control allows for parallel compression by blending the processed signal with the dry signal.

Furthermore, a fast-responding dual-color backlit VU meter is used to indicate the amount of added saturation. Time-delay relays are incorporated into the output for clean power-up and power-down without pops or bangs, and a low-hum toroidal linear power supply is employed.

The 1978 is a unique bus compressor, characterized by its distinctive compression, controlled distortion, tone shaping, and wet/dry mixing. This compressor delivers a distinctive, elusive sound that sets it apart from others. It glues mixes together, brings out the bass, controls the treble, adds warmth and distortion, smooths, and broadens the sound. It offers a more analog-sounding tone at an affordable price.

Resolution Award 2016 Dynamics Category Winner.

Features


? A fast-responding stereo FET compressor with excellent L/R tracking across the entire compression range.


? Threshold, ratio, attack, release controls, and gain reduction metering provide intuitive audio control. Anyone familiar with compressors can operate the 1978.


? Four character switches offer numerous compression flavor combinations, allowing the 1978 to inherit the characteristics of other compressors.


? The saturation knob controls variable amounts of second and third-order harmonic distortion.

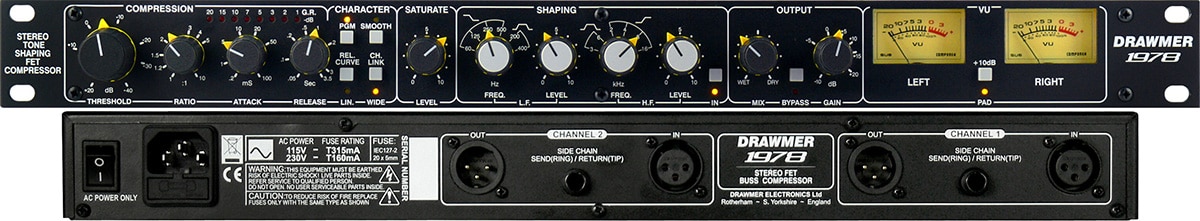

* A comprehensive sidechain EQ that allows simultaneous control of low-band and high-band filtering frequency and level. This works in conjunction with the rear panel stereo insert point, which provides even more detailed control.

* Variable wet/dry mix and output gain knobs provide ""parallel compression"" functionality without the need for external mixing devices, offering complete and easy control over the amount of compression used and the output level.

* Two analog VU meters with switchable +10dB meter rescale mode. These have additional dual-color backlighting to visually indicate the amount of saturation.

* Output time-delay relay for clean power up/down.

* Internal low-hum toroidal linear power supply with voltage selector switch.

* Robust steel chassis and aluminum front panel.

* Designed and manufactured by Drawmer, UK.

■Specifications

INPUT

・・・Input Impedance 20k Ohms or greater

...Maximum Input Level +21dBu

OUTPUT

・・・Output Impedance <100 Ohms

...Maximum Output Level +21dBu into 10k Ohms Load

FREQUENCY RESPONSE

・・・20Hz to 20kHz +/-0.2dB

CROSSTALK < -70dB @ 1kHz

NOISE AT UNITY GAIN

・・・with flat EQ response switched in circuit

...22Hz - 22kHz -88dB

% DISTORTION (THD & NOISE) @ 1kHz

...0dB (ref +4) 0.02%

...10dB (ref +4) 0.2%

POWER REQUIREMENTS

・・・230Volt or 115V at 50-60hZ, 15VA

FUSE RATING

・・・T160mA for 230Volt,

・・・T315mA for 115Volt

・・・Conforming to IEC 127-2

FUSE TYPE

・・・20mm x 5mm, Class 3 Timed-Blo, 250Volt working

CASE SIZE

・・・482mm (W) x 44mm (H) x 202mm (D)

WEIGHT 2.7Kgs
