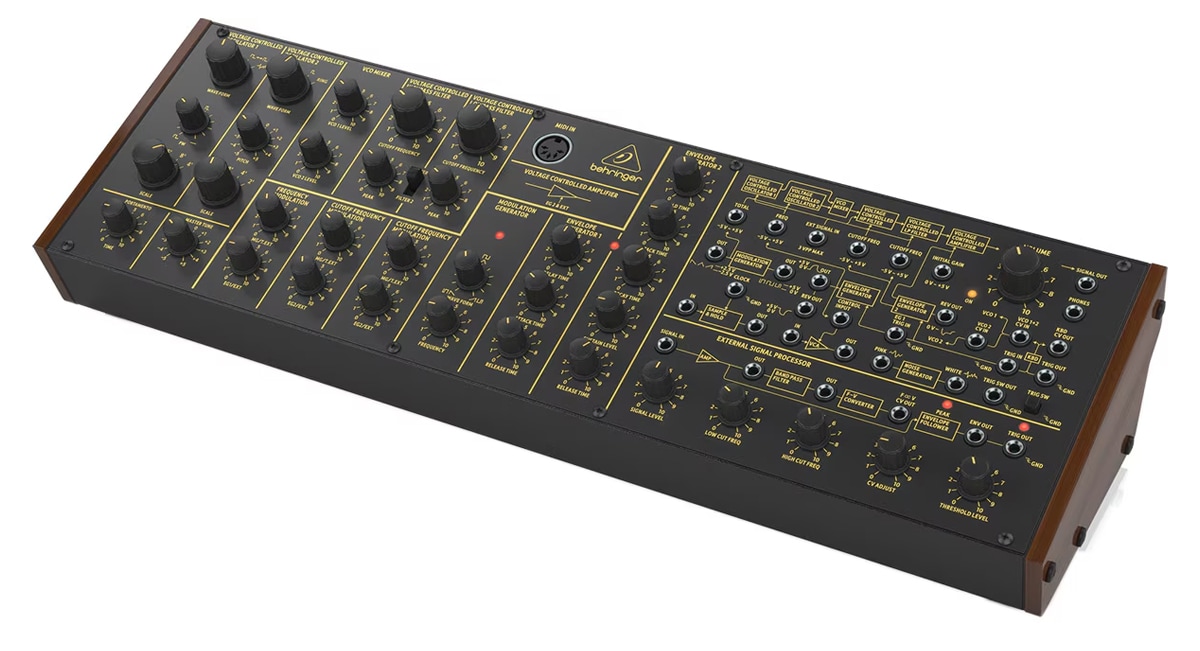

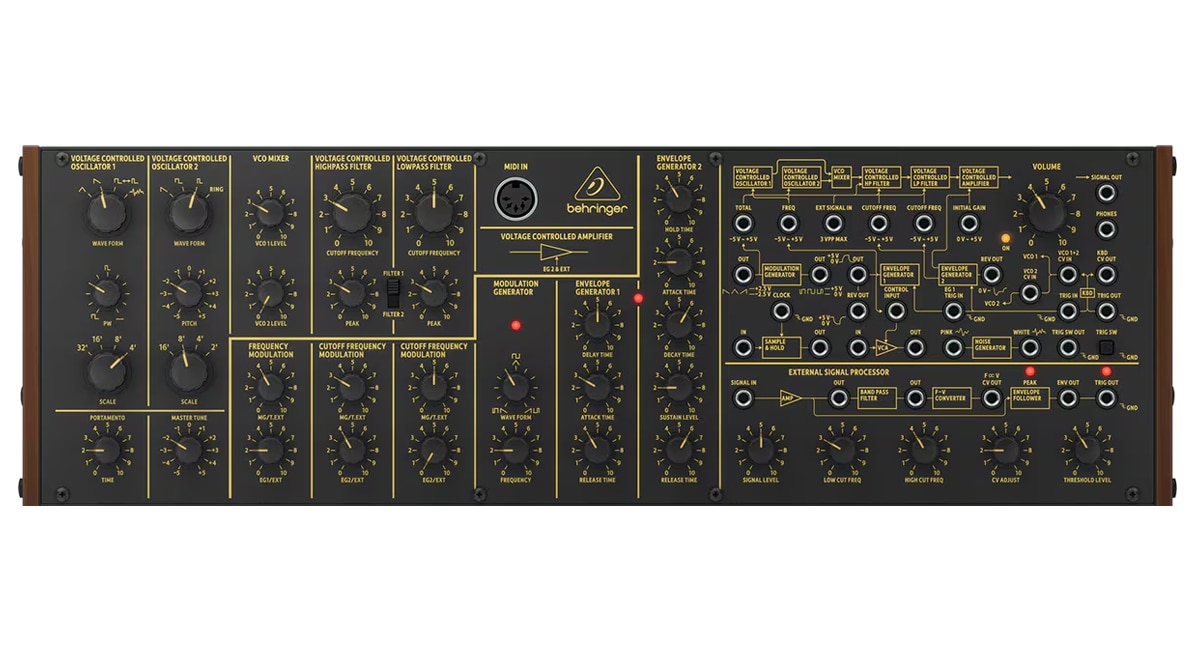

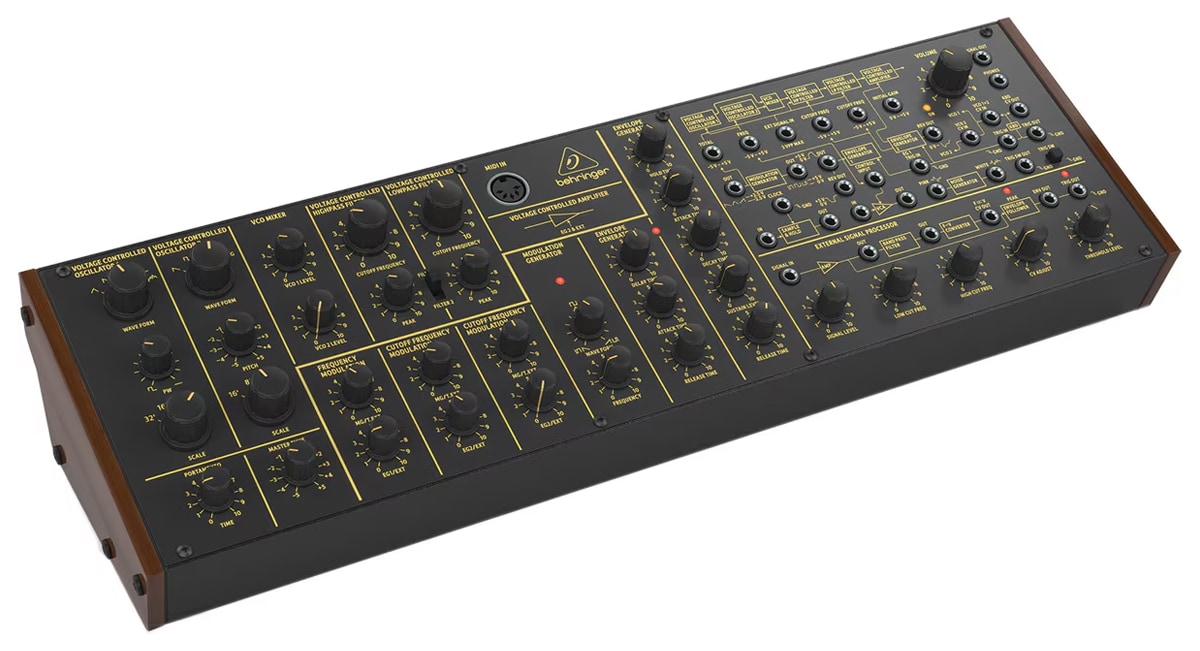

BEHRINGER / K-2

The K-2 is an analog synthesizer with a semi-modular architecture and default routing for instant playability without patching. It features four variable oscillators with variable pulse width and ring modulator.

　Features

- Pure analog signal circuitry with authentic VCO, VCF, and VCA
- Semi-modular architecture with default routing for instant playability without patching
- 1st and 2nd generation filter designs (high-pass/low-pass with peak/resonance)
- Four variable oscillators with variable pulse width and ring modulator for ultimate sound
- Dedicated fully analog triangle/square wave LFO
- Two analog envelope generators for VCF and VCA modulation
- 16-voice polychain for combining multiple synthesizers for up to 16 voices
- Eurorack compatible. The main module fits into a standard Eurorack case.

36 controls provide direct, real-time access to all essential parameters.

External audio input for processing external sound sources.

USB/MIDI with selectable MIDI channel and audio priority.

Audio Output

Main: Mono x1 (TS standard)

Headphones: Stereo x1 (TRS mini)

MIDI

IN: Yes

OUT: No

THRU: Yes

USB-MIDI: Yes (USB 2.0, Type B)

Main Unit

- Width: 42.4cm
- Height: 9.5cm
- Depth: 13.6cm
- Weight: 1.8kg

Power Supply

- Maximum Power Consumption: 12W
- Power Supply: DC12V

Compatible OS

- Windows: 7 or later
- Mac: OS X 10.6.8 or later

Accessories

- Power Adapter
