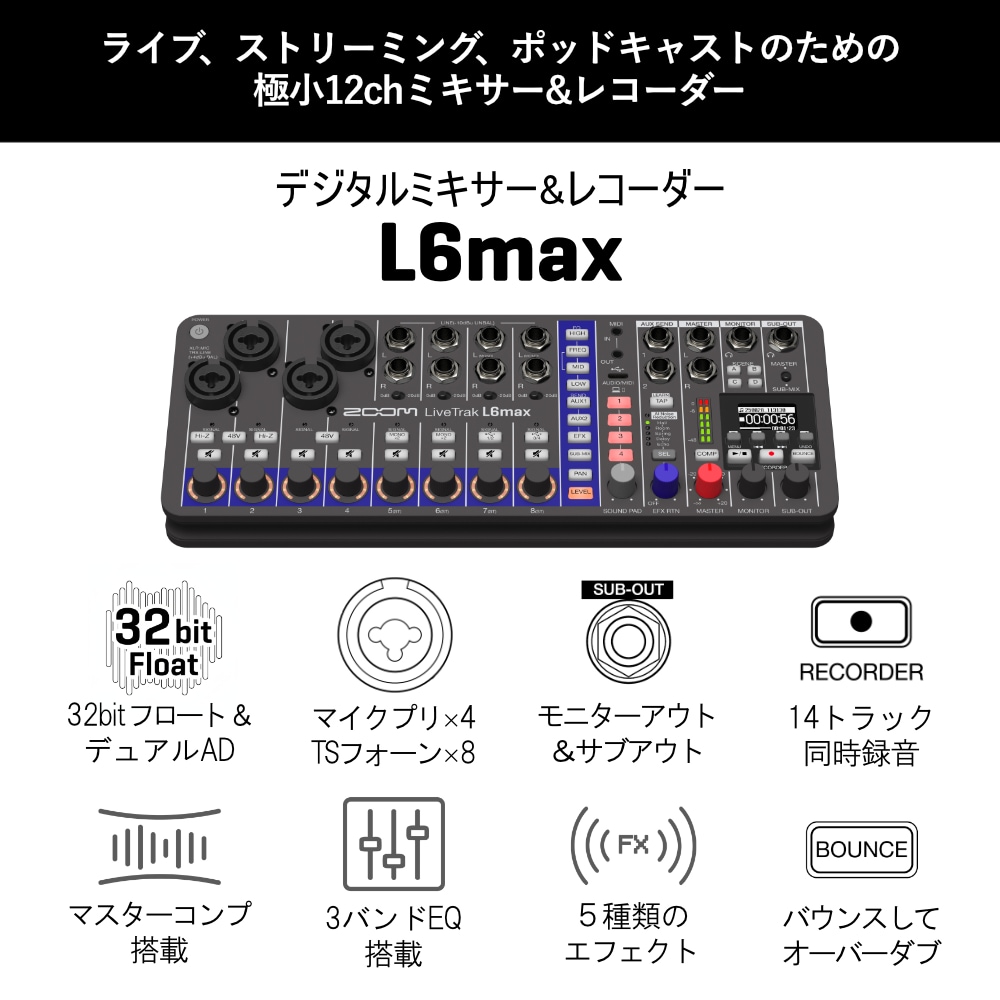

ZOOM / LiveTrak L6max

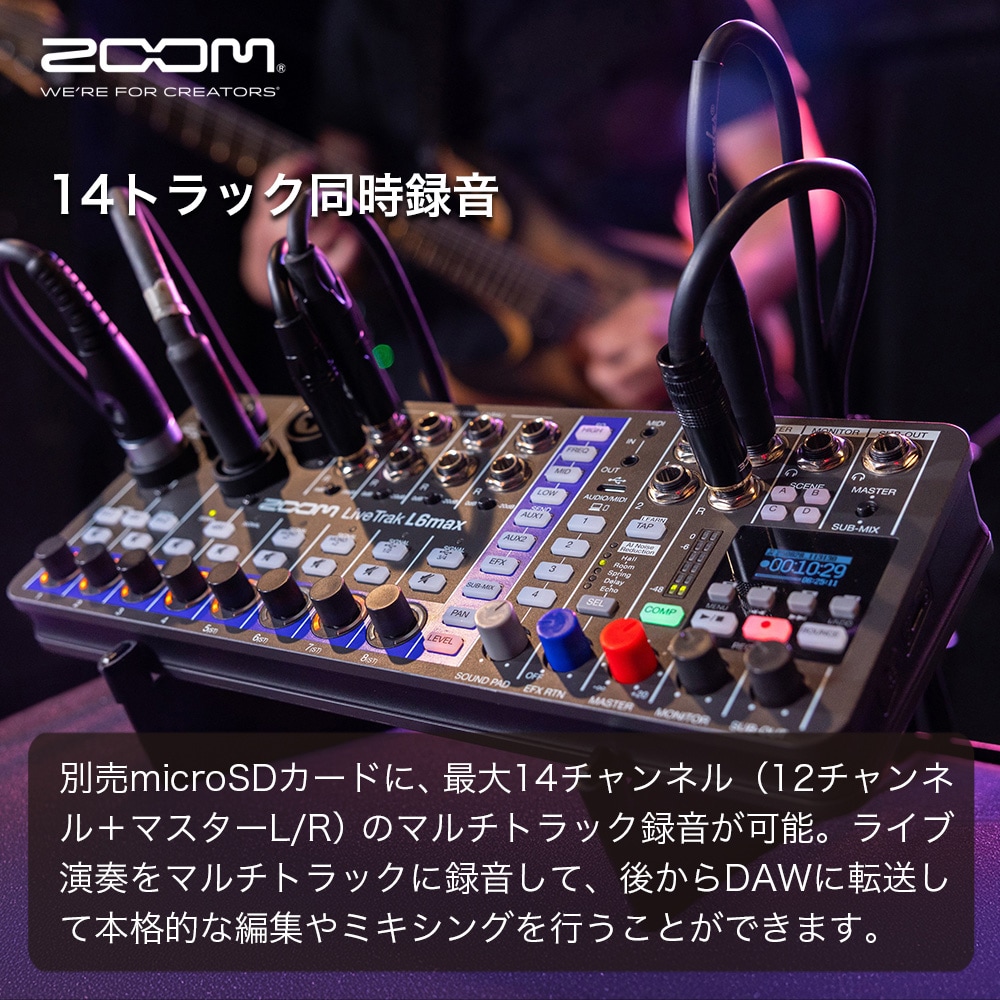

This ultra-compact digital mixer features dual AD circuits and 32-bit float recording technology. It supports 12 channels of audio input and allows simultaneous recording of up to 14 tracks (12 tracks + master L/R) to a microSD card (sold separately).

■ Digital Mixer, Multitrack Recorder

■ 32-bit Float Compatible

■ 12 Inputs / 14 Track Recording

【Main Features】

◎ Digital mixer & recorder with 32-bit float support and 12 inputs/14 track recording capabilities

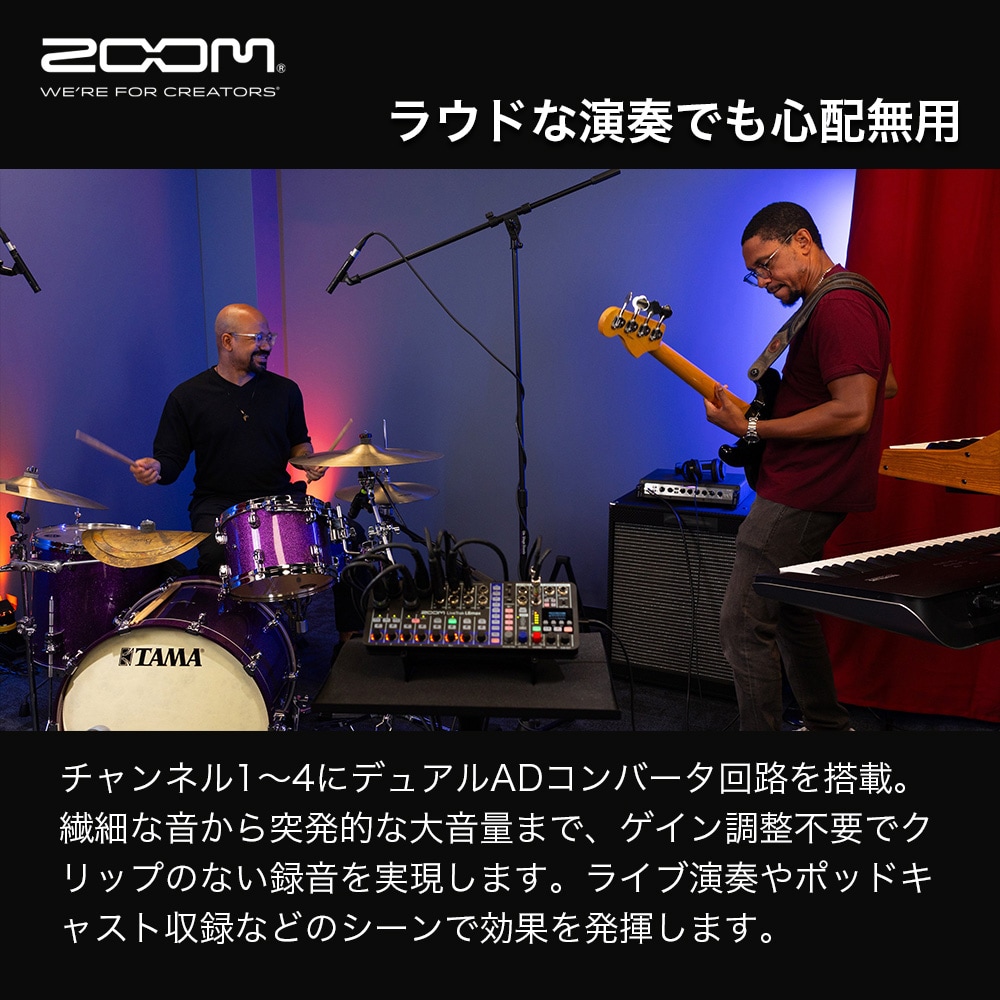

◎ Dual AD converter circuit for recording from loud to soft sounds without gain adjustment

◎ 32-bit float/48 kHz sampling audio recording that does not degrade even after editing

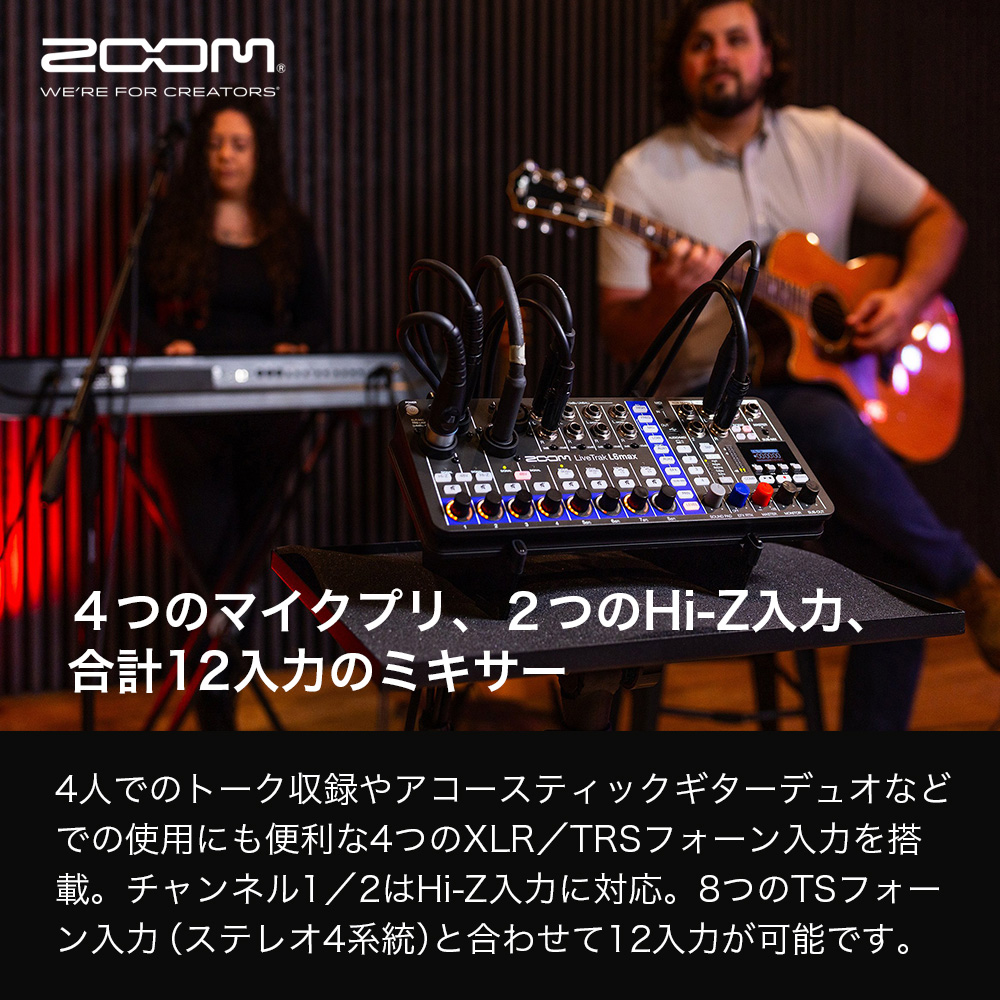

◎ Four XLR/TRS phone inputs for connecting microphones and line-level equipment (+4dBu)

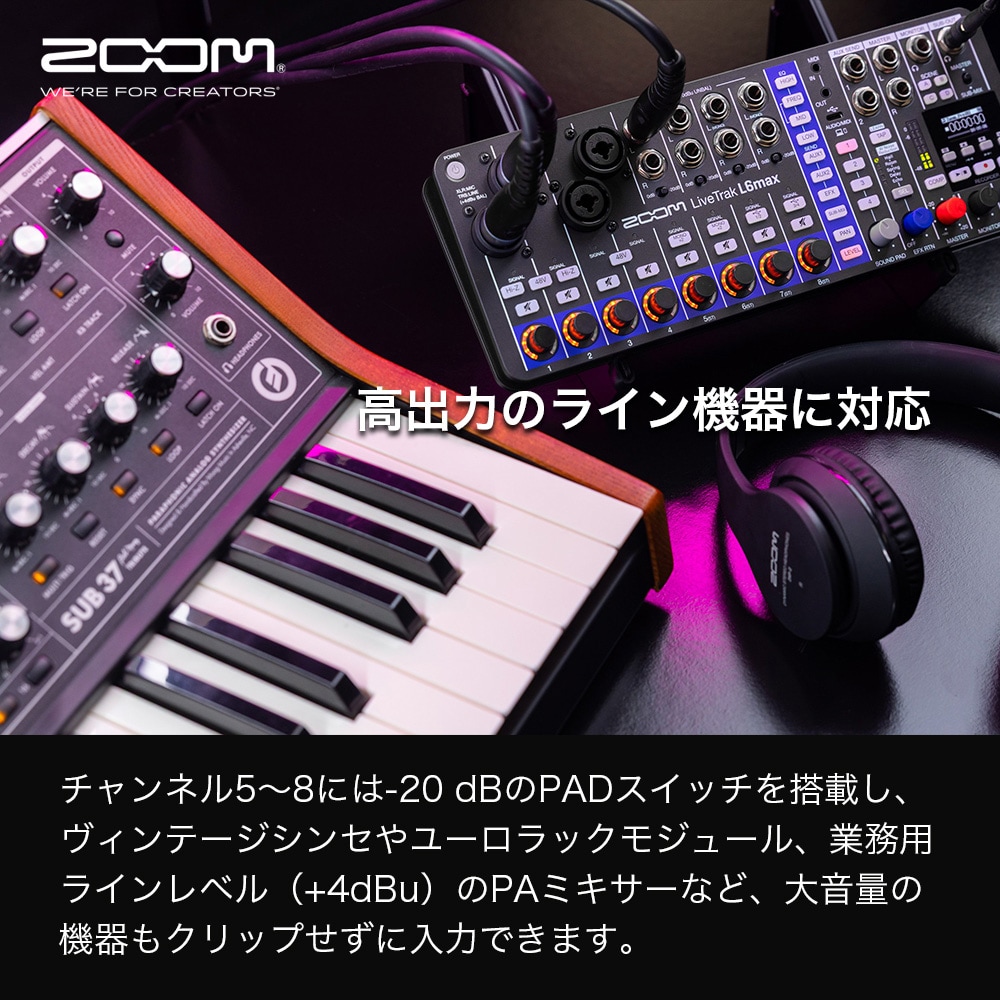

◎ Eight TS phone inputs with PAD switches for connecting professional line-level (+4dBu) equipment (stereo 4ch or mono 6ch input possible)

◎ Provides +48V phantom power required for condenser microphones (channels 1-4)

◎ Channel encoder for adjusting volume, tone, and left/right panning of each channel

◎ Three-band EQ (LOW/MID (variable center frequency)/HIGH) for adjusting the tone of each channel

◎ Channel-specific MUTE keys for musical performance through sound manipulation

◎ Five built-in send effects (Hall/Room/Spring/Echo/Delay)

◎ Master compressor to prevent level overload on the master output and increase sound pressure

◎ Two AUX SENDs for external effects (selectable PRE/POST fader output)

◎ Scene memory function to save four mixer settings

◎ Four SOUND PADs for playing jingles and sound effects at any time

◎ 3.5mm TRS phone MIDI IN/OUT terminals for connecting to external MIDI devices

◎ 14-in/4-out, 32-bit float-compatible USB audio interface function that works with Win/Mac/iOS* (simultaneous recording to the unit while live streaming is possible)

◎ Can be used for smartphone video recording (stereo mode) and music production using DAW software (multitrack mode) with a single USB-C cable

◎ Windows/Mac app ""ZOOM L6"" for detailed settings of the unit and SOUND PAD functions Editor

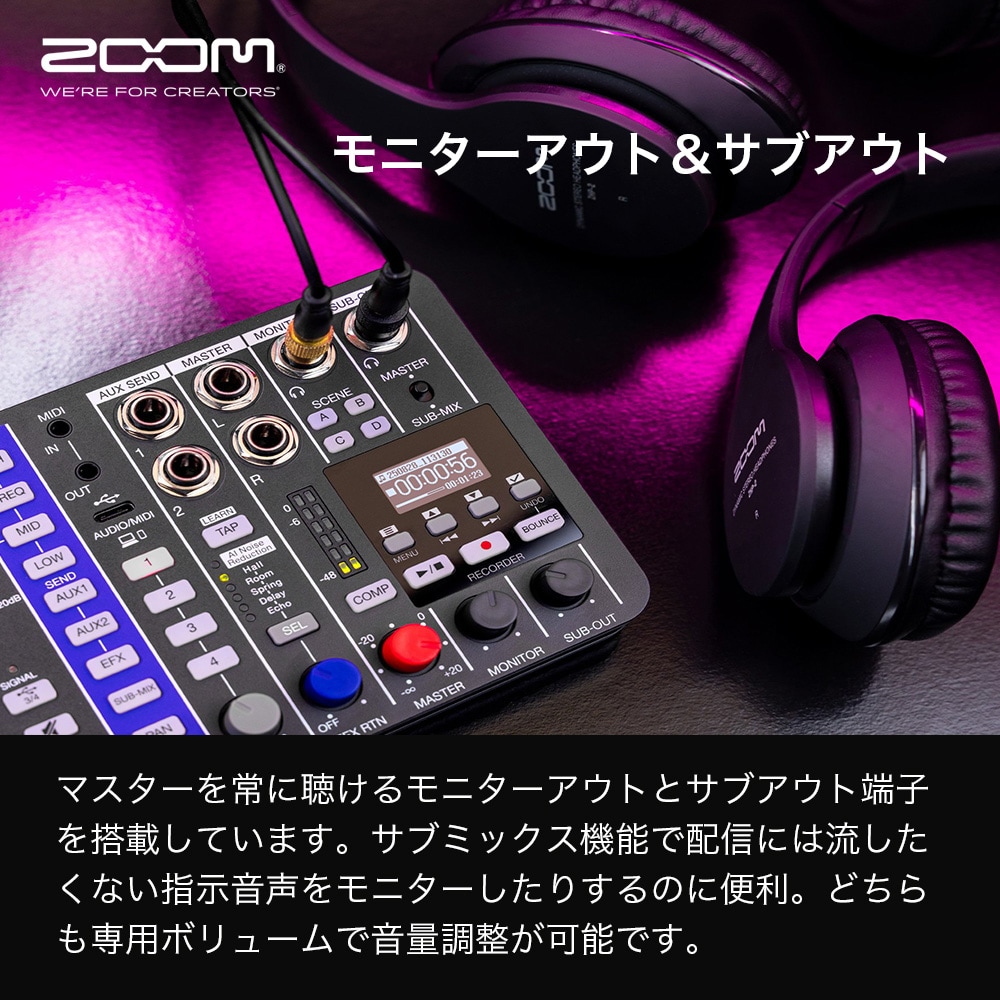

◎ Dedicated monitor output terminal with volume control for connecting headphones

◎ Uses microSDHC/microSDXC cards as recording media (supports up to 2TB / sold separately)

◎ Approximately 1.5 hours of operation with four AA alkaline batteries

◎ Powered by four AA batteries, AC adapter (AD-17 included), or USB mobile battery

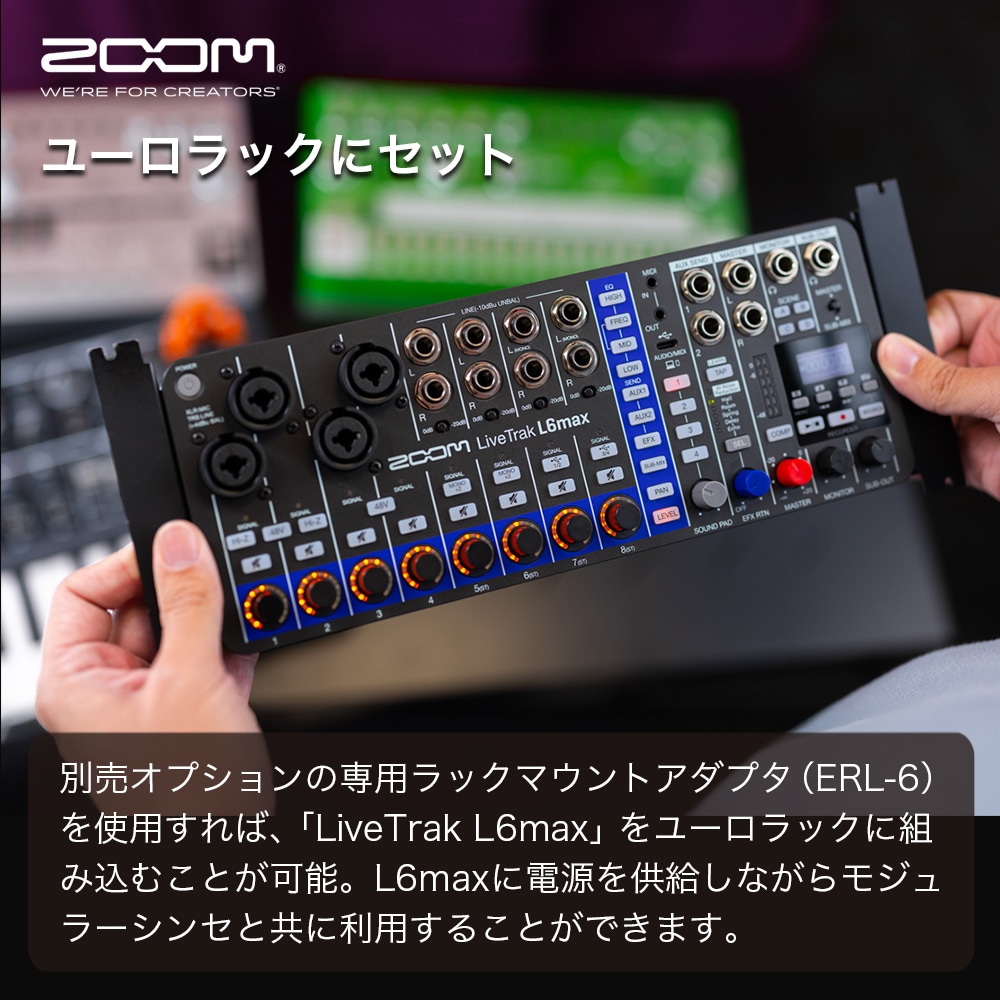

◎ Rack mount adapter (ERL-6) available separately for mounting LiveTrak L6max in a Eurorack

■ Dimensions/Weight: 284 (W) x 114 (D) x 46.5 (H) mm / 673 g (main unit only)
