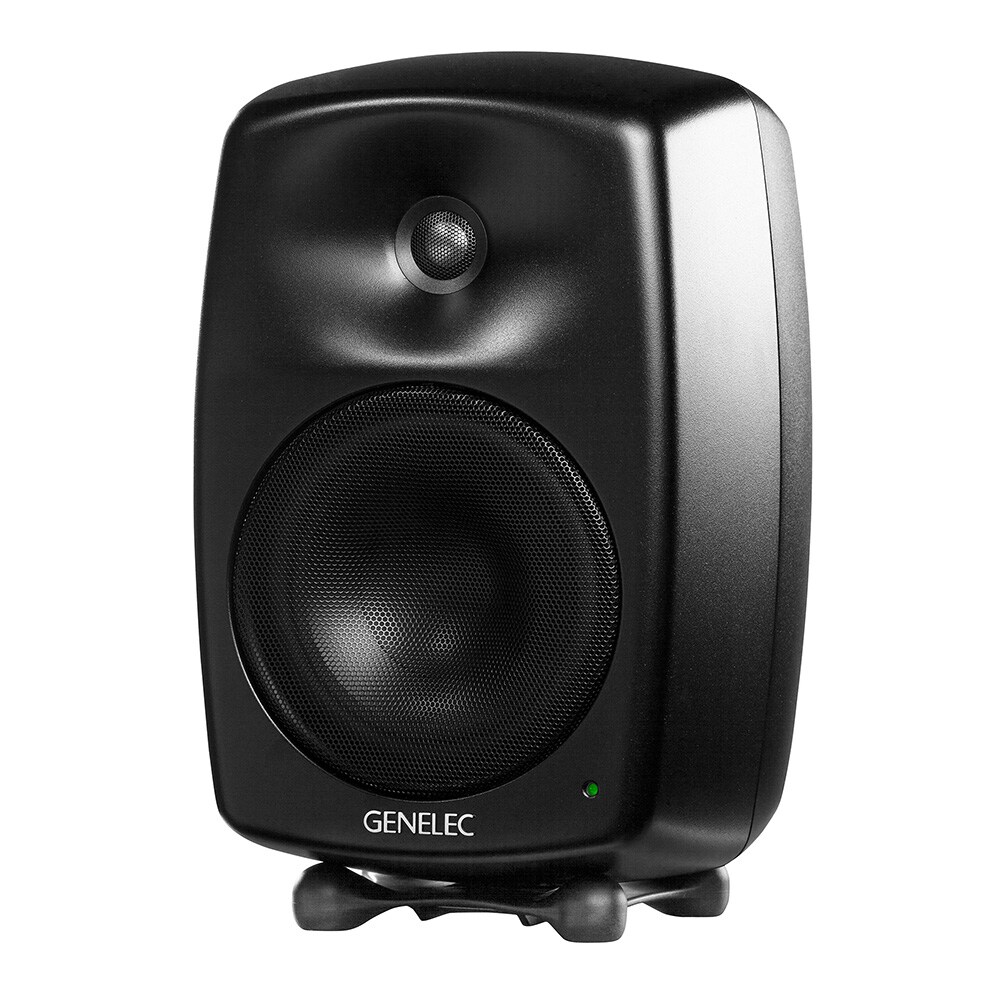

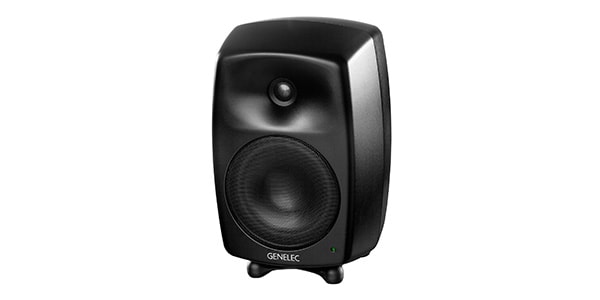

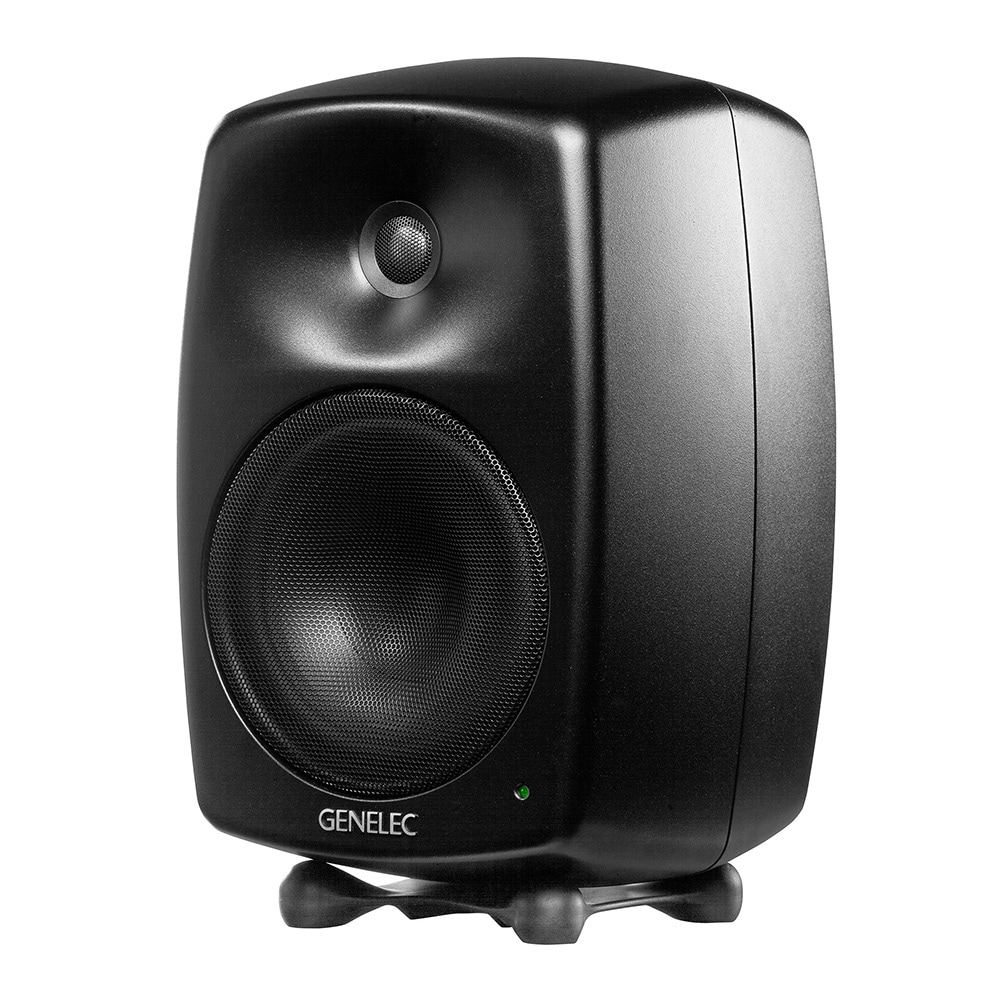

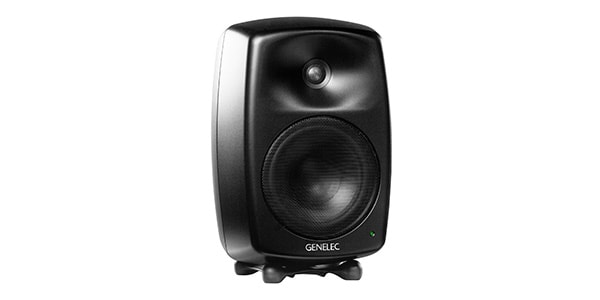

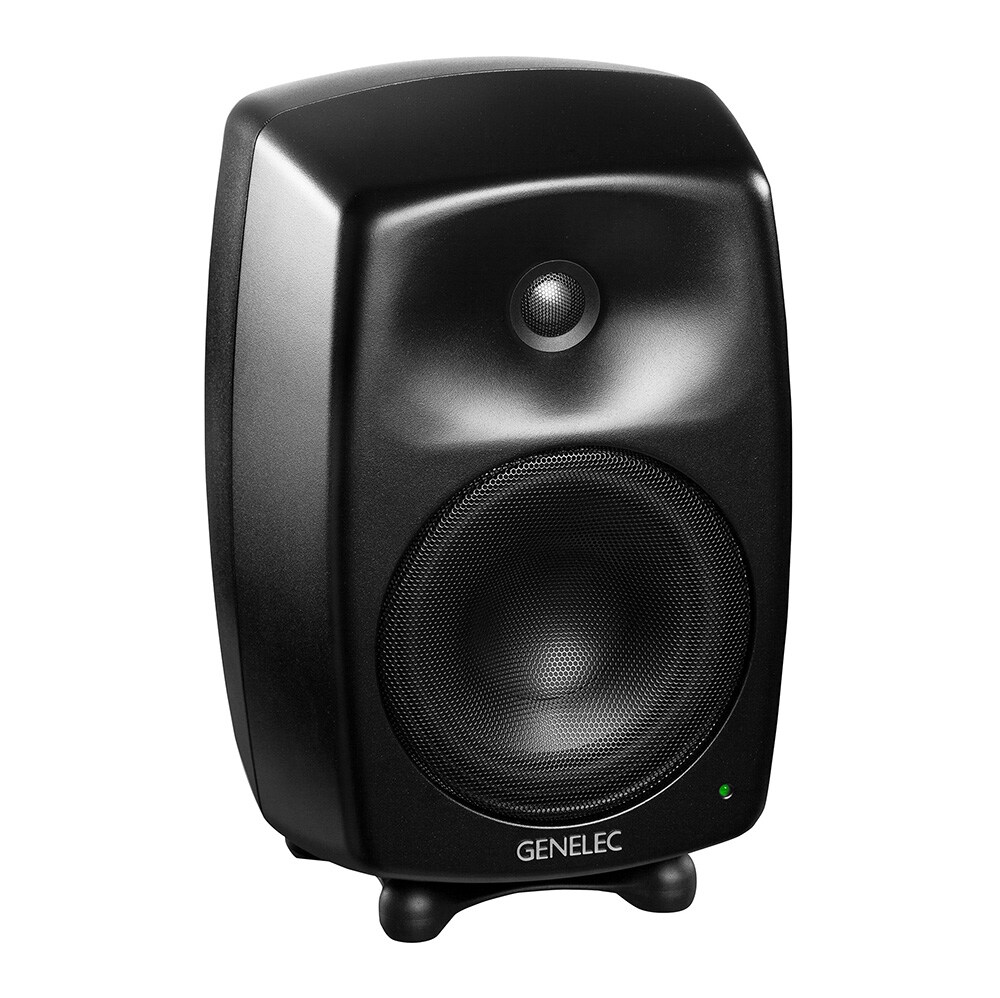

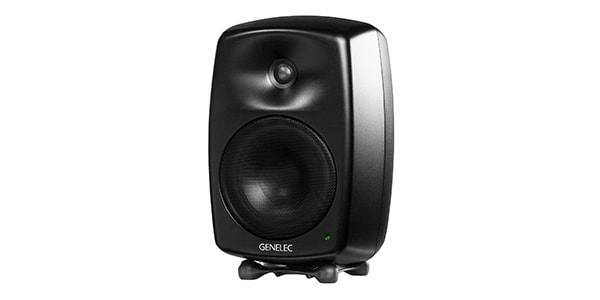

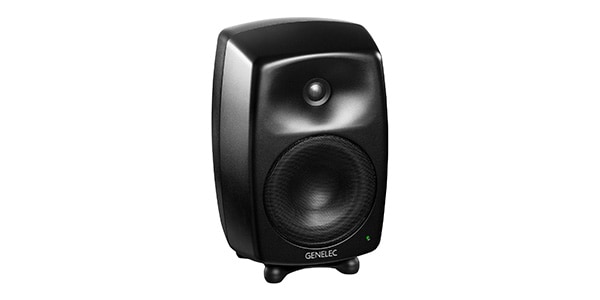

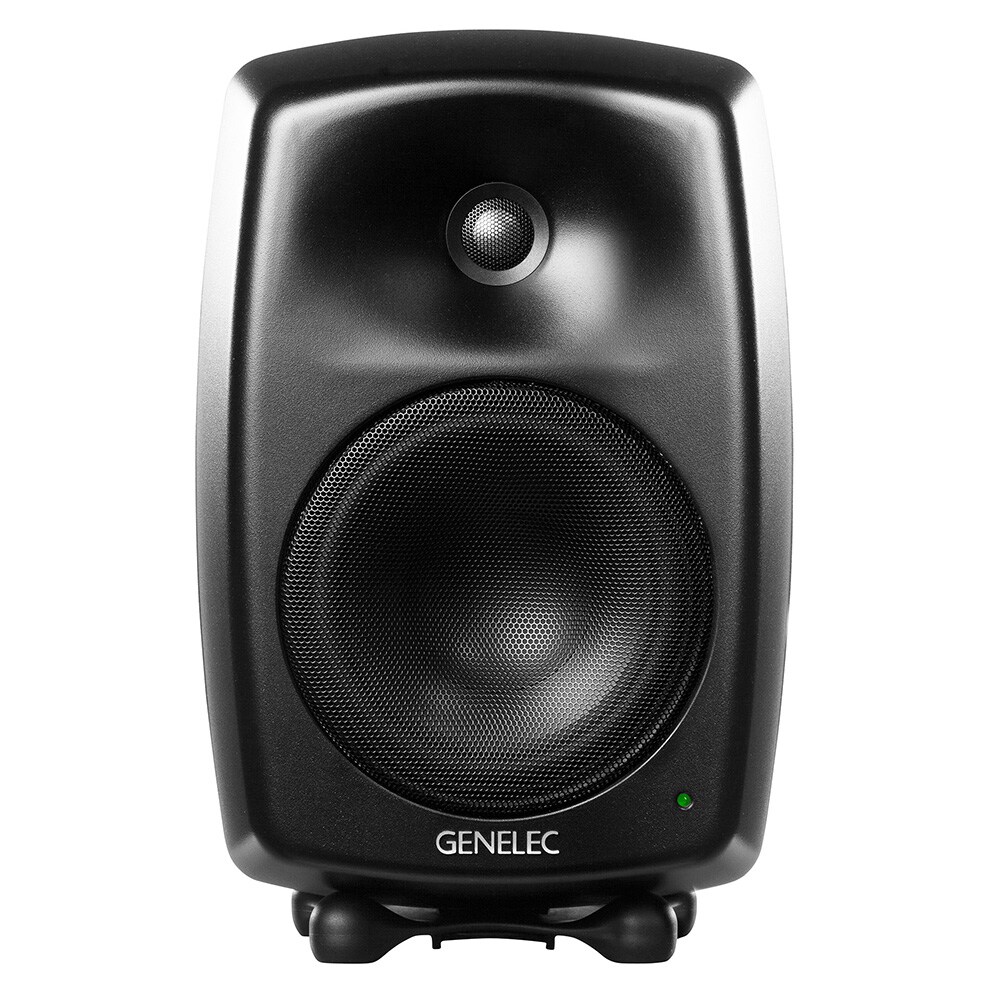

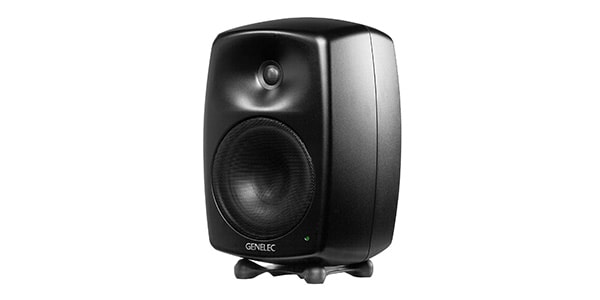

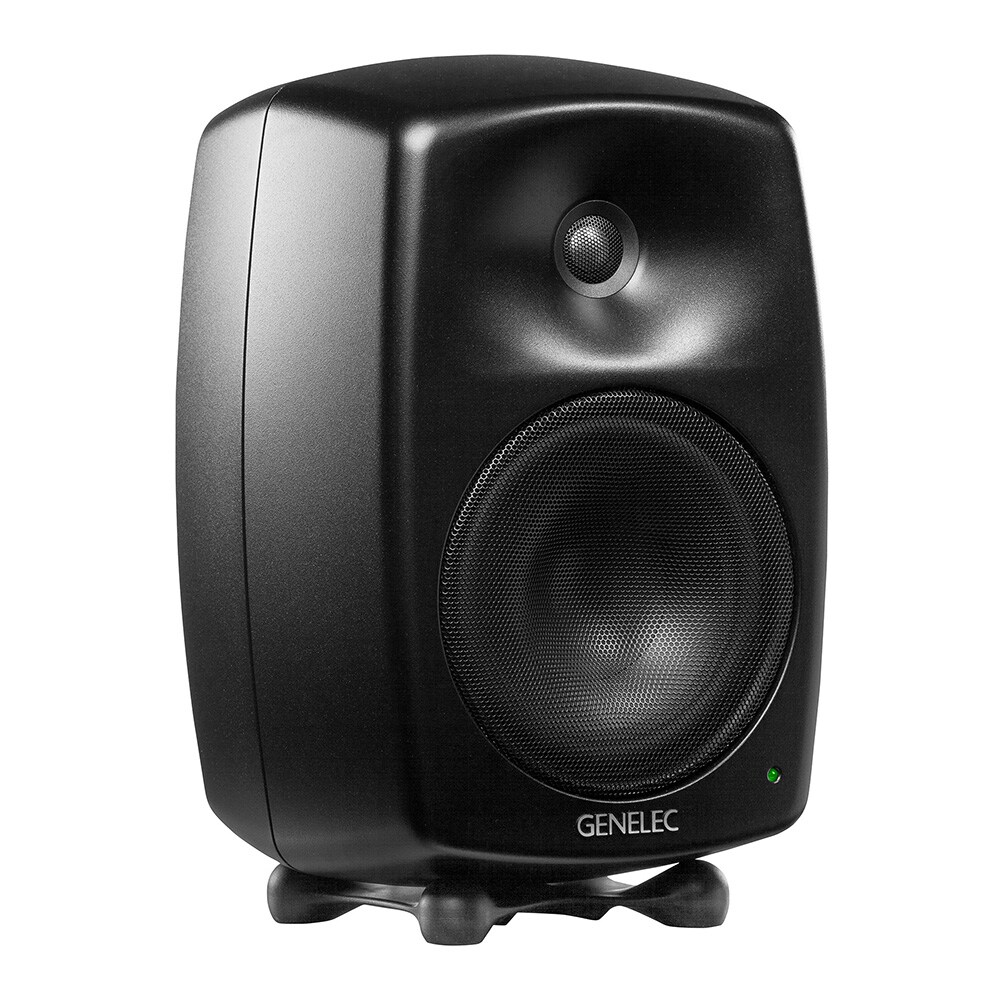

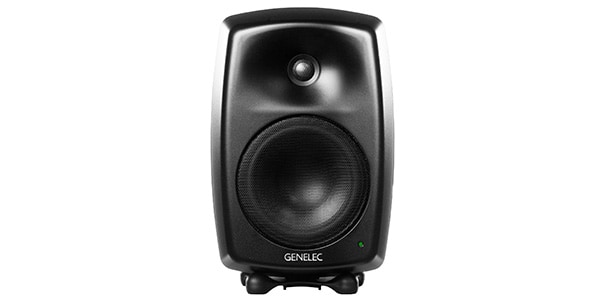

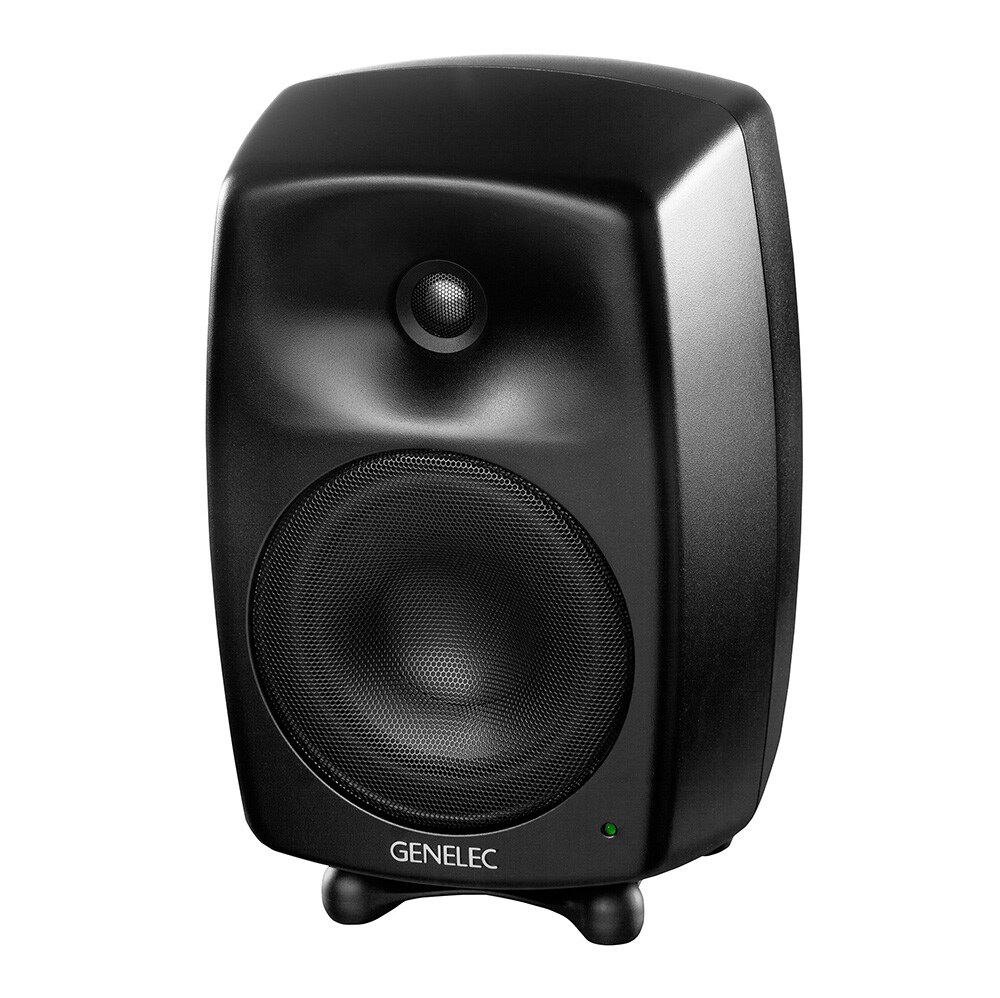

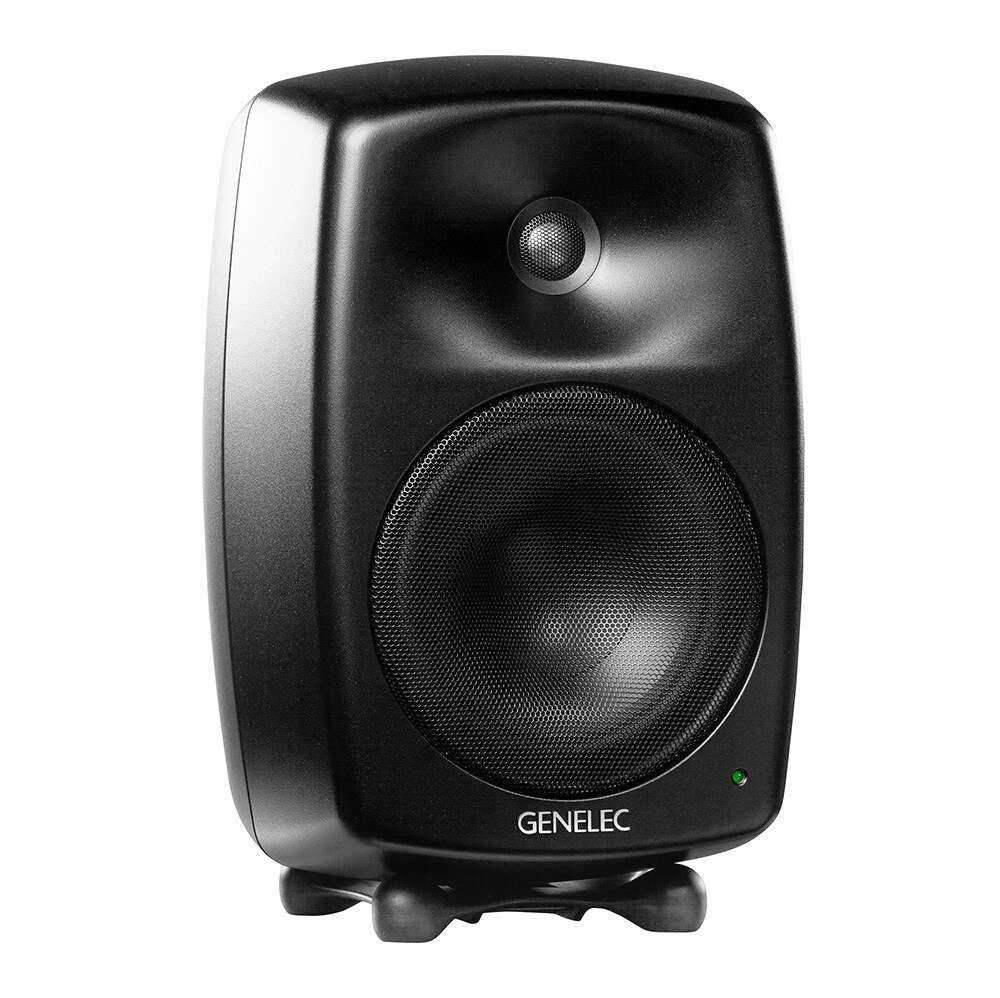

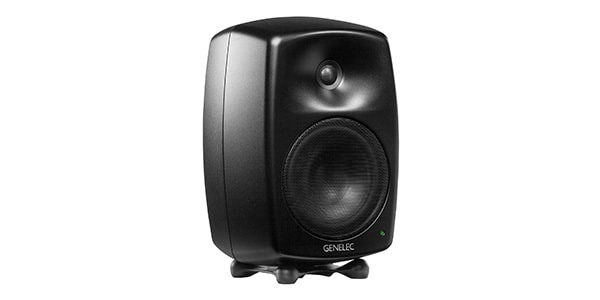

GENELEC / 8340AMM

The GENELEC/8340A is a 2-way Class D bi-amped monitor featuring a 6.5-inch woofer and highly efficient Class D amplifiers with LF 150W and HF 150W.

■Studio Monitor
■6.5-inch
■LF150W/HF150W
■Black
■1 unit

The Genelec 8340A has quickly established itself as a trusted monitoring choice in studios around the world. A 2-way, Class-D bi-amplified monitor featuring a 6.5-inch woofer and Genelec's highly efficient Class-D amplifier, the 8340A represents a perfectly balanced combination of acoustic expertise and SAM innovation.

At the system's core is an acoustic design shaped by decades of innovation and proven performance. Capable of handling extremely high sound pressure levels, the 8340A features a reflex port design for enhanced low frequencies, a Minimum Diffraction Enclosure (MDE) for uncolored sound reproduction, and a Directivity Control Waveguide (DCW™) for flat on- and off-axis response. All of these features are combined to create the versatility of the SAM. GLM (Genelec Loudspeaker Manager) software lets you fine-tune all your monitor settings, while AutoCal compensates for room acoustics to perfectly calibrate your setup for any listening environment, from simple stereo to large-scale immersive audio.

The result is a state-of-the-art monitoring solution ideal for any application, including recording studios, post-production houses, digital editing suites, radio, TV and broadcast trucks.

Key Technologies
SAM System
DCW Technology
MDE Technology
RefPort Design
Optimized Amplifier
Active Crossover
Protection Circuit
ISS Technology
Iso-Pod Stand
Various Mounting Options

Technical Specifications
SPL 110 dB
Frequency Response 38 Hz - 22 kHz (-6 dB)
Frequency Response Accuracy ±1.5 dB (44 Hz - 20 kHz)
Driver Dimensions: Woofer 6 1/2"" + Tweeter 3/4"", Metal Dome + DCW
Amplifier Output: Woofer 150 W + Tweeter 150 W (All Class D)
Dimensions: H 365 x W 237 x D 223 mm (including Iso-Pod)
Weight: 8.4 kg

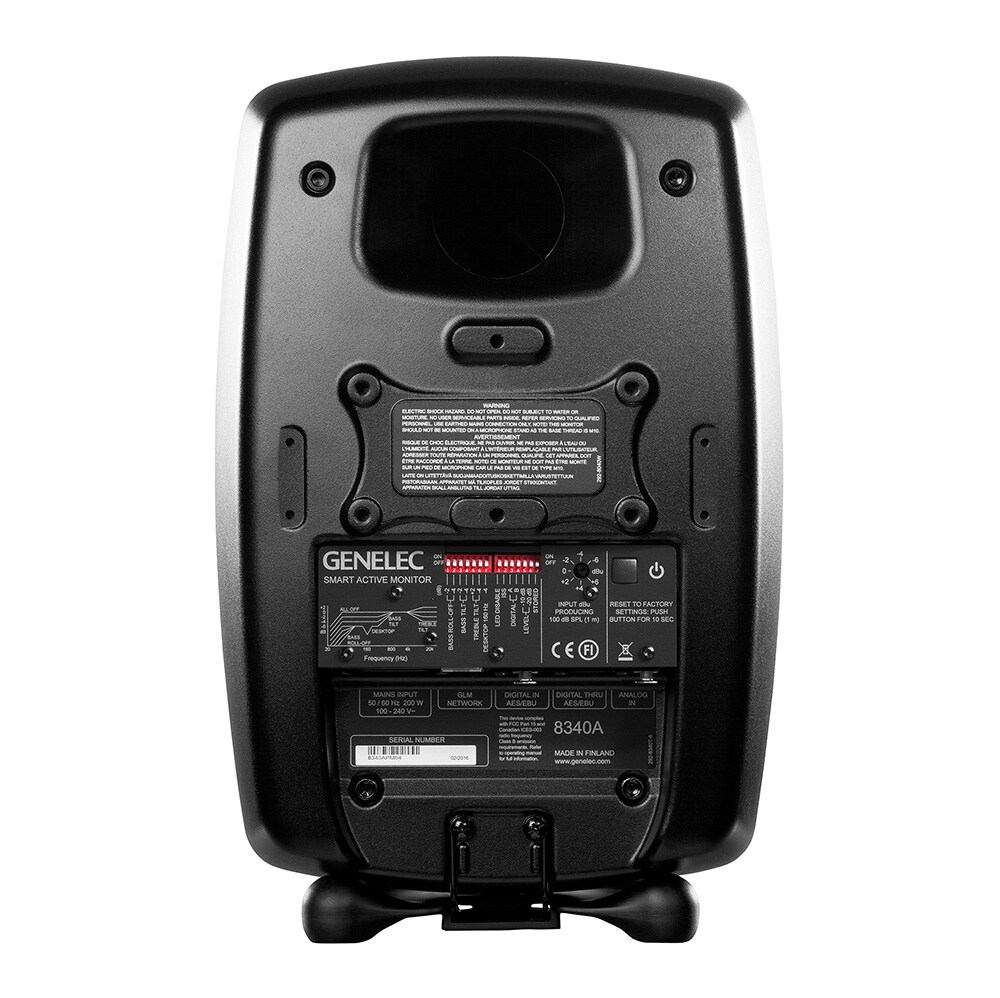

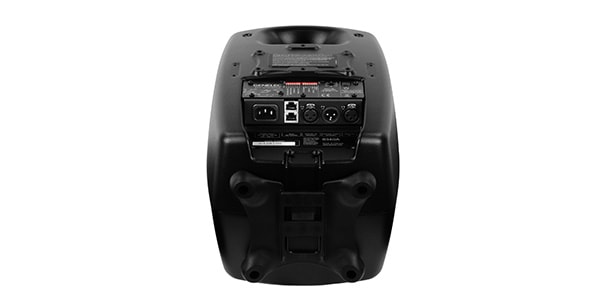

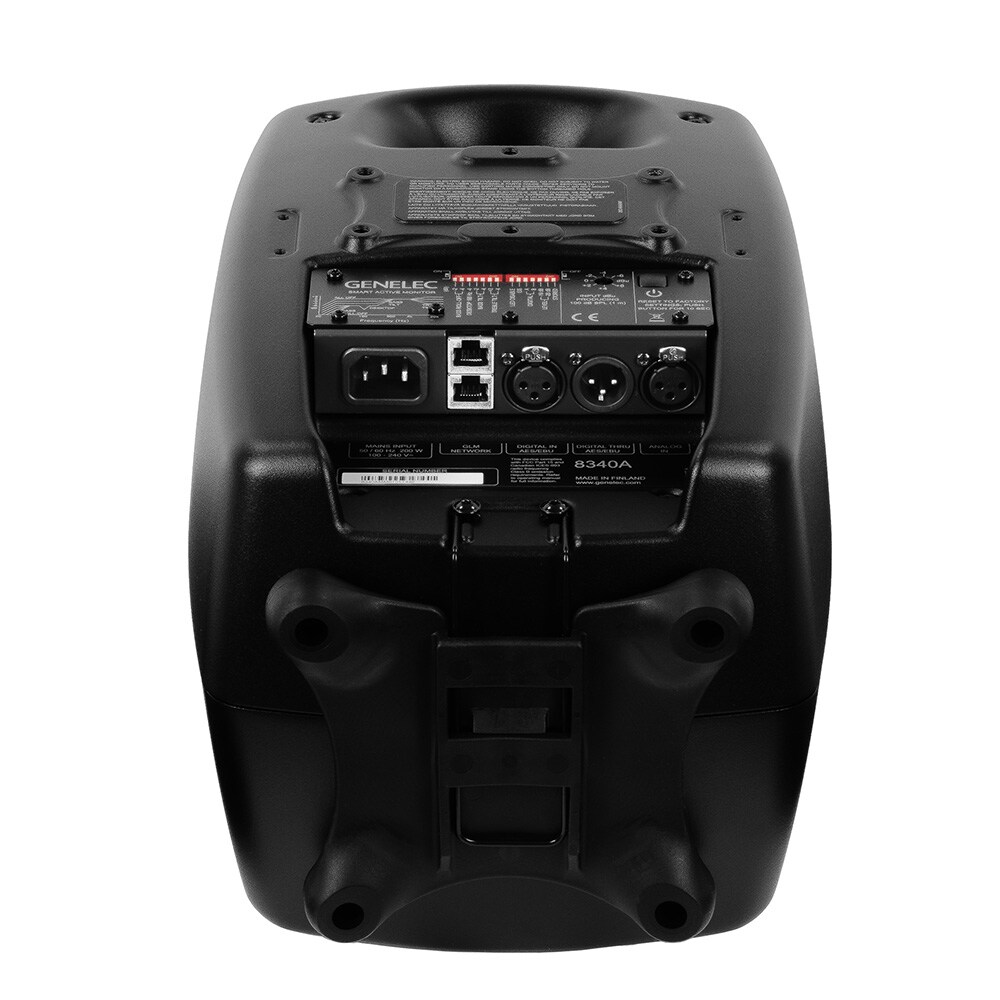

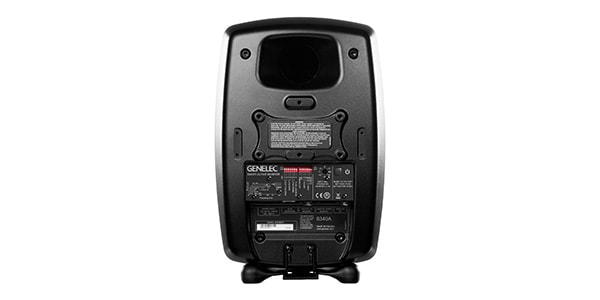

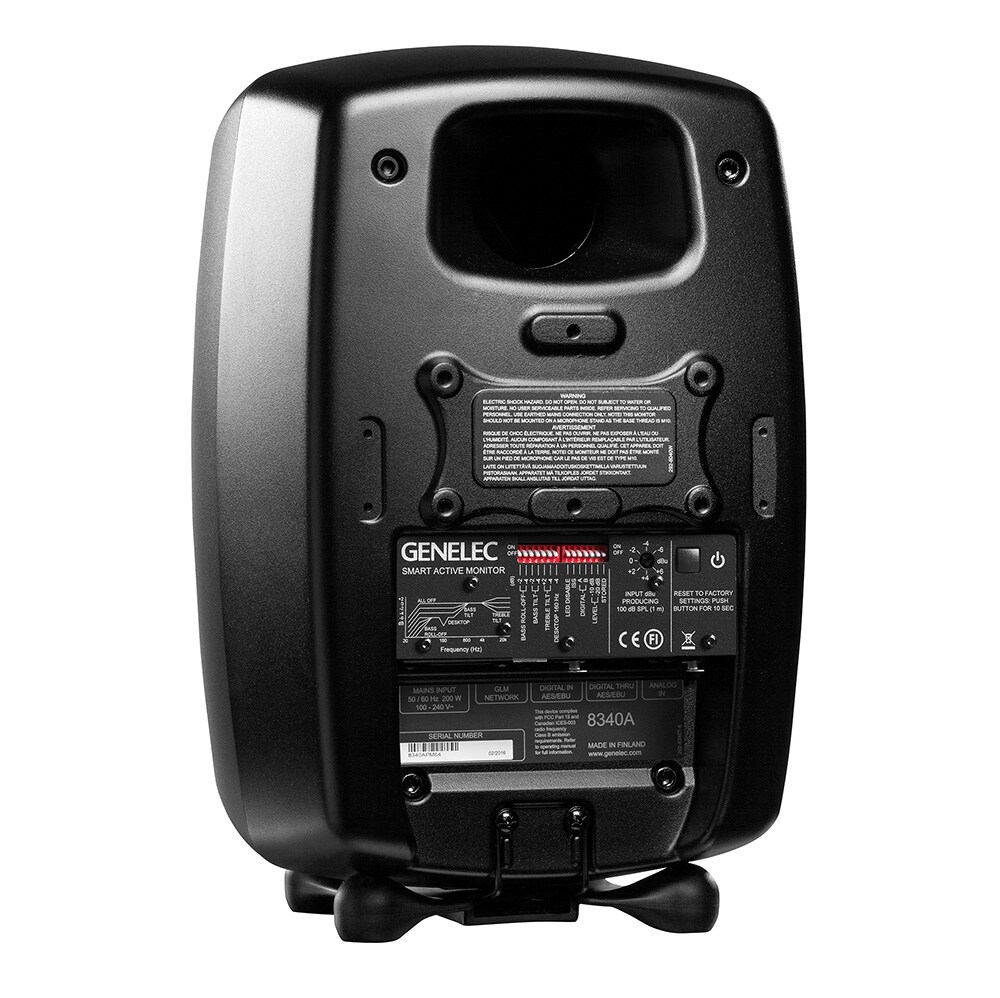

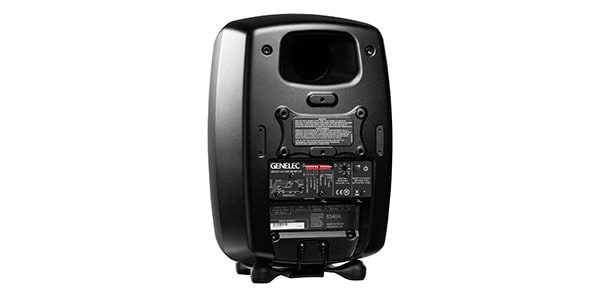

Connections: 1 x XLR Analog Input, 1 x Input / 1 x Output XLR Digital AES/EBU, 2 x RJ45 Control Network

This product is made to order, so cancellations or changes cannot be accepted for any reason after your order has been confirmed. Please be sure to inquire about delivery dates before placing your order.
