GENELEC / 8330AM

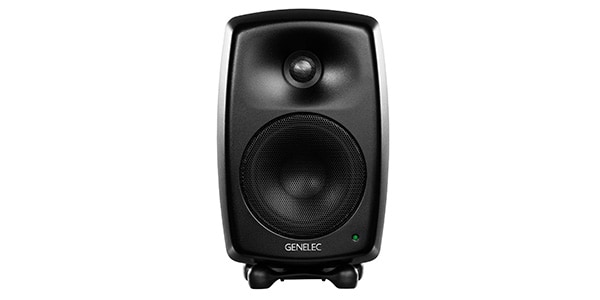

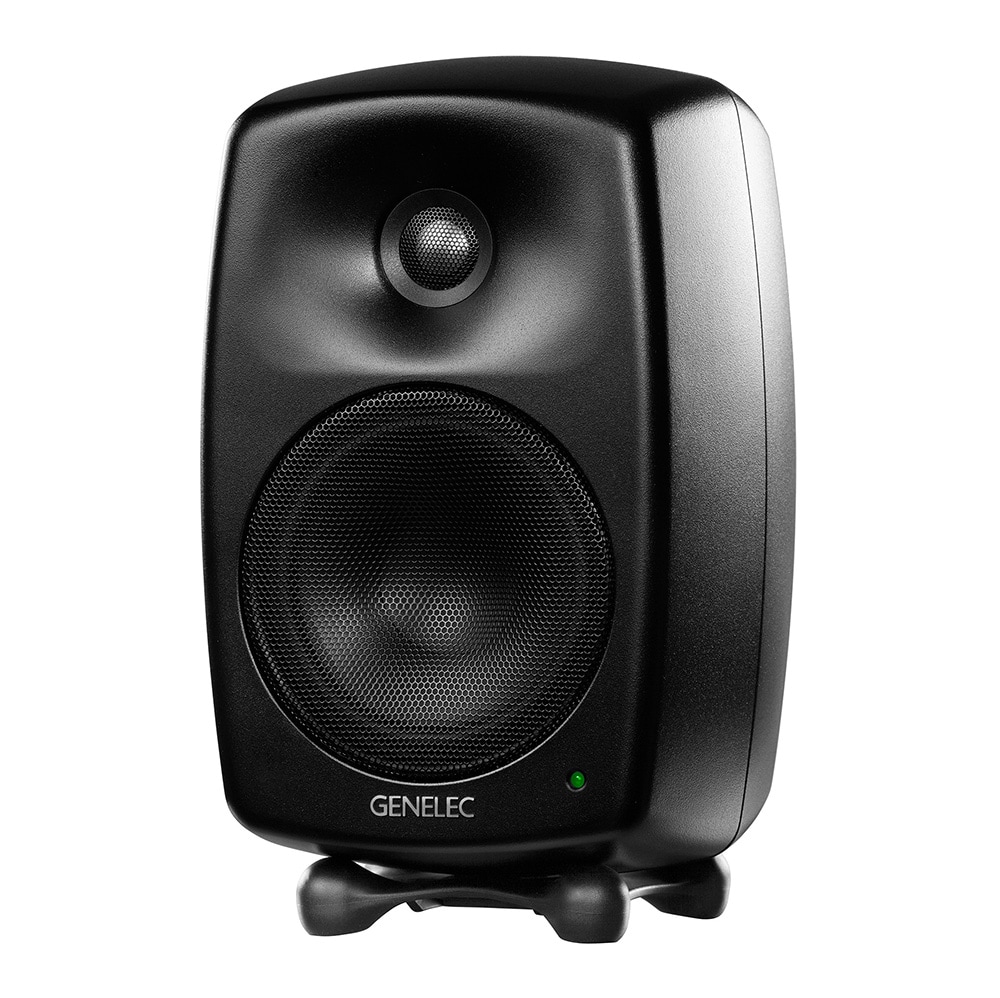

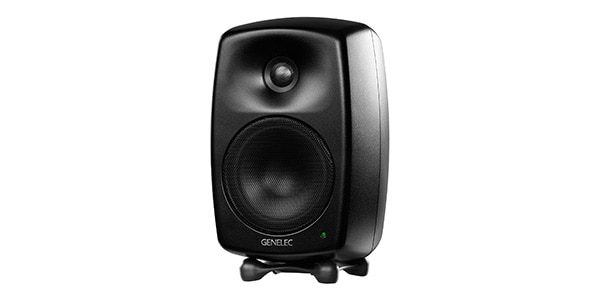

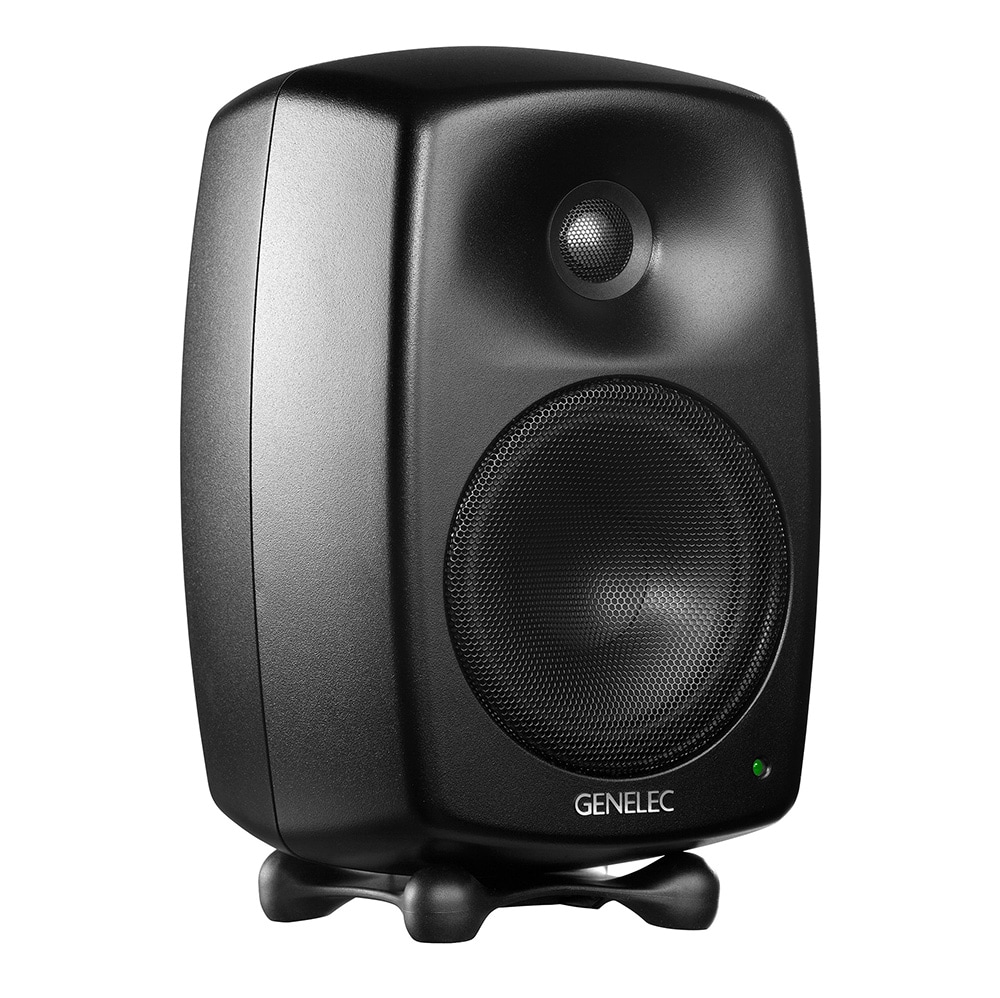

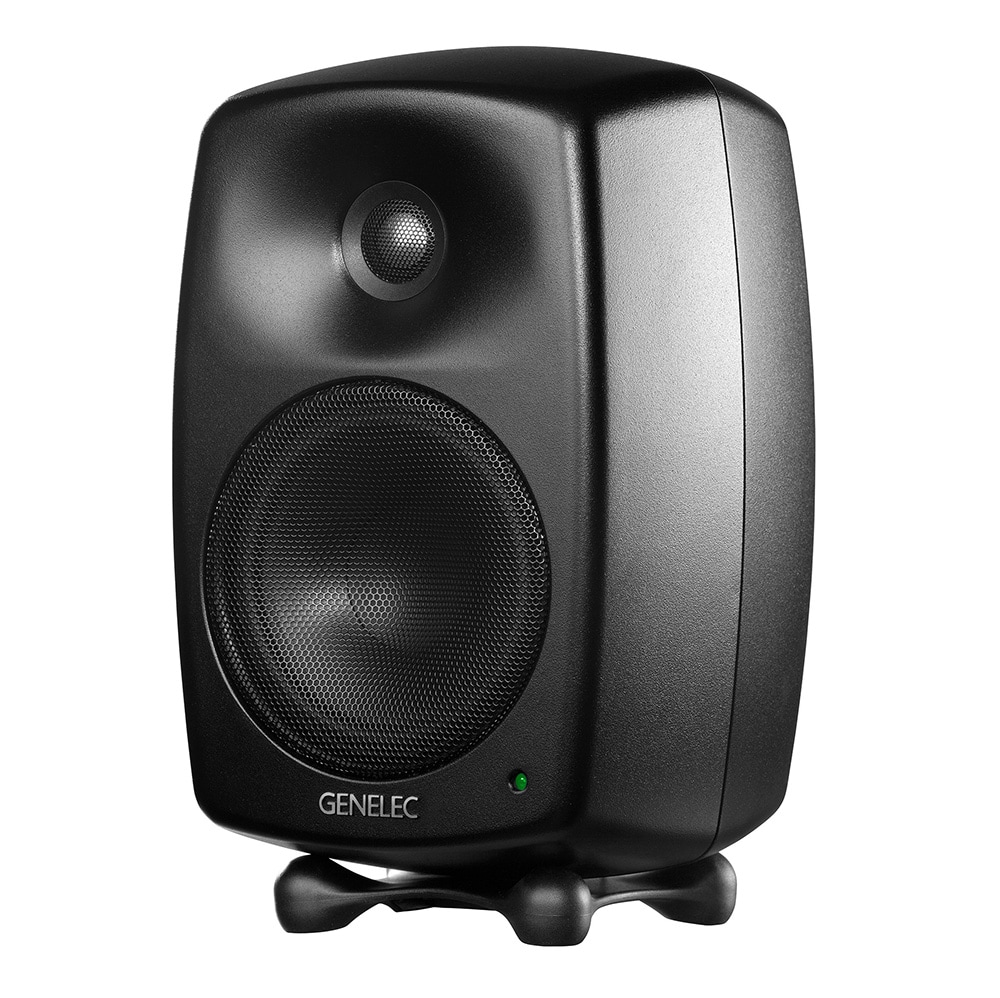

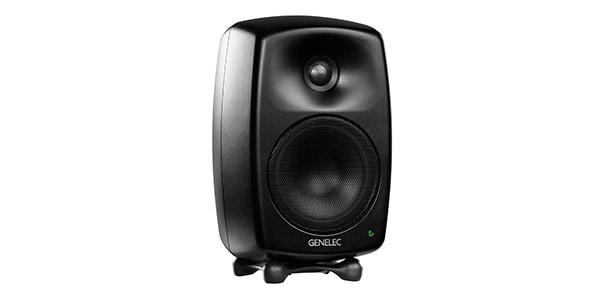

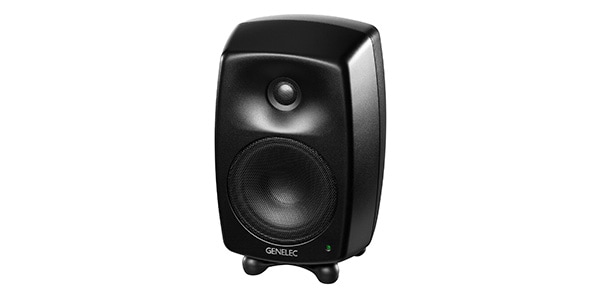

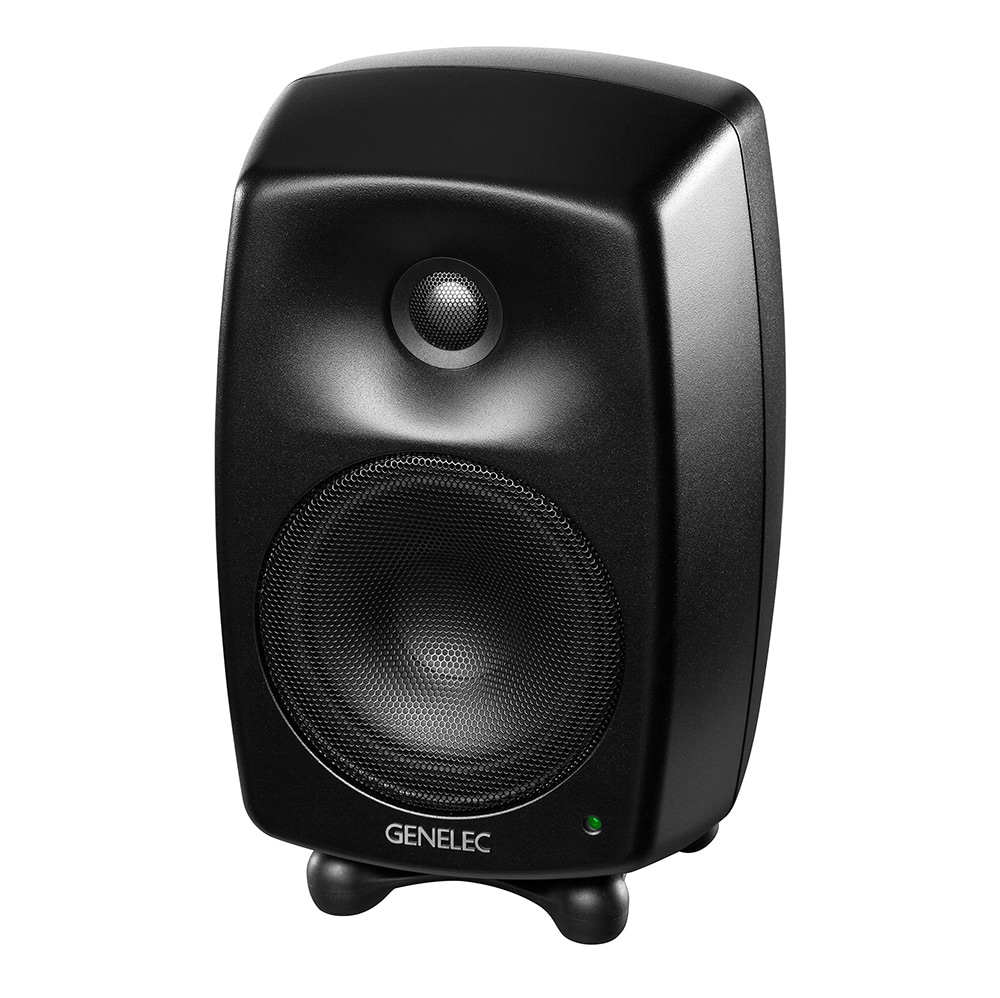

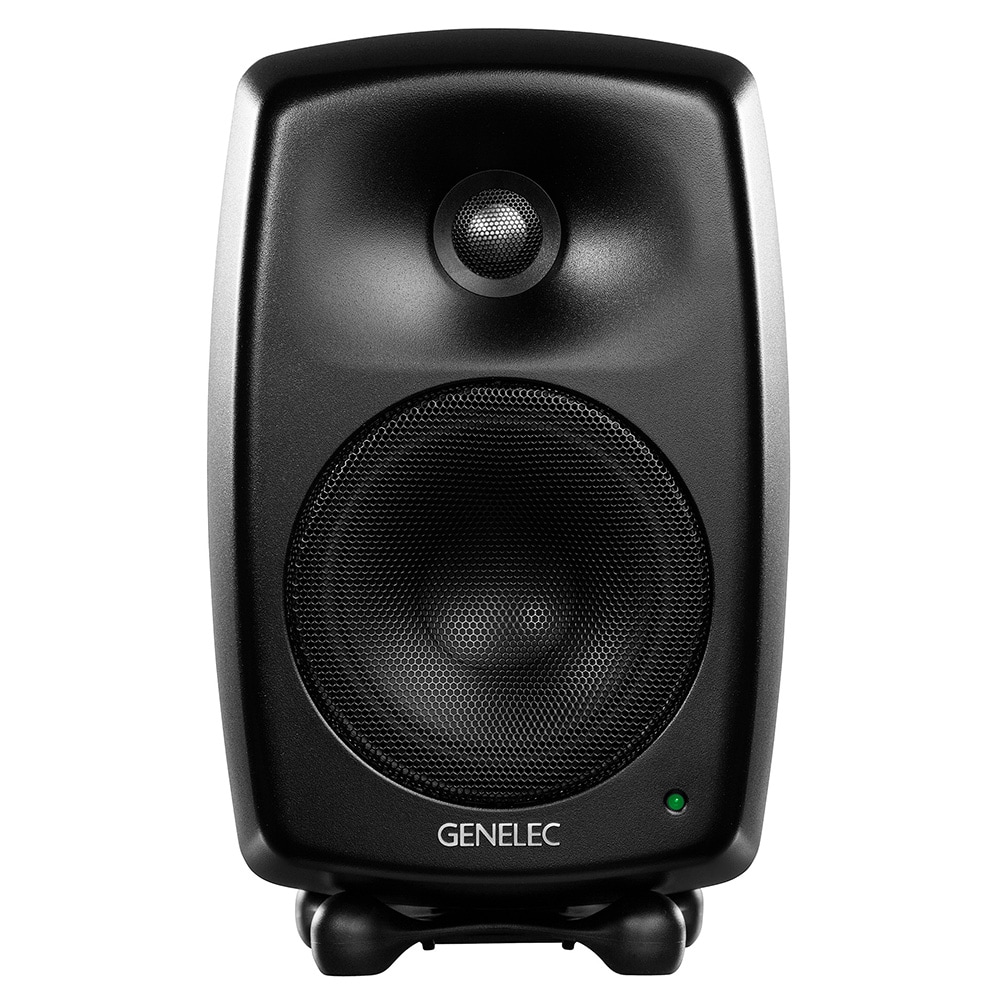

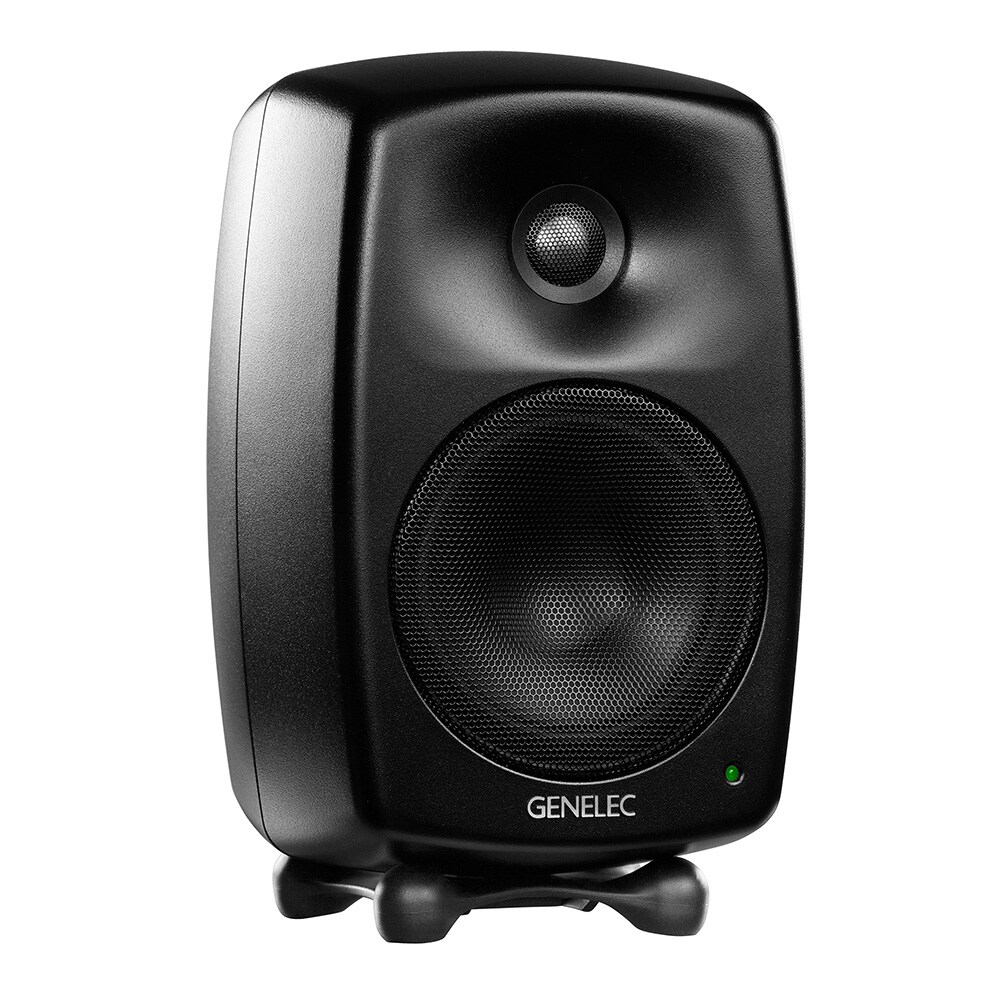

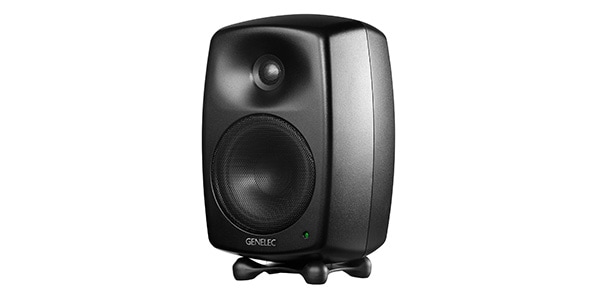

The 8330AMM is a powered monitor speaker from GENELEC. It features a 5-inch woofer and a 3/4-inch metal dome tweeter. GLM 3.1.0 can manage up to 45 smart monitors and subwoofers.

Ideal for facilities requiring a compact yet powerful and adaptable monitor, the 8330A delivers uncolored reproduction and the world's most advanced smart monitoring system.

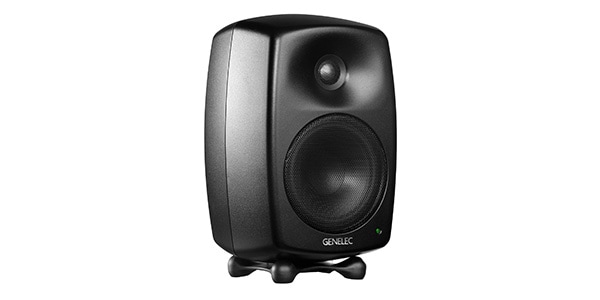

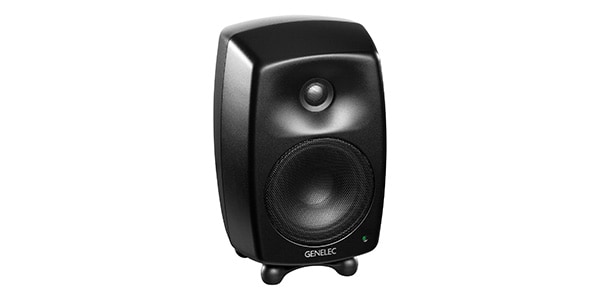

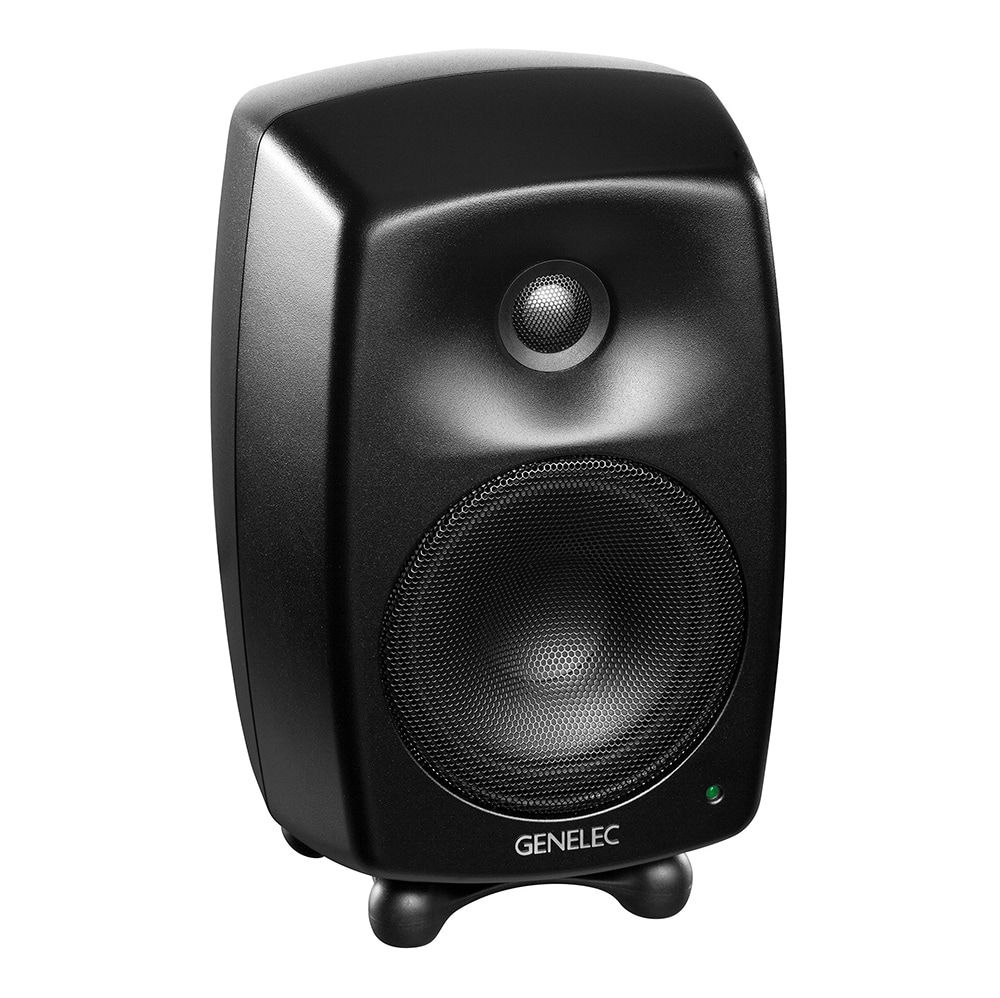

The 8330A, a monitor chosen by professionals for its power and flexibility, combines impressive sound with smart features thanks to SAM (Smart Active Monitoring) technology. This Class D bi-amplified 2-way smart monitor, featuring a 5-inch woofer and 3/4-inch tweeter, is compact enough to fit into even the most space-constrained studios, while exceeding the expectations of even the most demanding clients.

Minimum Diffraction Enclosure (MDE) provides uncolored and accurate sound reproduction, while Directivity Control Waveguide (DCW) ensures flat response both on-axis and off-axis. The 8330A also excels in adaptability and assistance. Genelec Loudspeaker Manager (GLM) 3.1.0 software provides features including AutoCal, which perfectly calibrates the monitoring system to the user's listening environment. It compensates for the effects of room acoustics to create an optimal monitoring solution. Furthermore, GLM 3.1.0 can manage up to 45 smart monitors and subwoofers, making it easy to create fully recallable setups from stereo to immersive audio.



■ Networked SAM (Smart Active Monitor) system providing automatic calibration

■ DCW technology for flat on-axis/off-axis response

■ MDE technology for uncolored sound reproduction

■ Advanced reflex port design for extended low-frequency response

■ Optimized amplifiers. Each transducer is driven by its own optimized amplifier.

■ Active crossover that operates at low signal levels

■ Sophisticated drive unit protection circuitry ensures safe operation

■ ISS (Intelligent Signal Sensing) technology reduces power consumption in standby mode

■ Iso-Pod stand isolates vibrations to improve sound image resolution

■ Versatile mounting options to suit any installation needs



■ SPL: 104dB

■ Frequency Response: 45 Hz - 23 kHz (-6 dB)

■ Frequency Response Accuracy: ± 1.5 dB (58 Hz - 20 kHz)

■ Drivers

Woofer: 5-inch

Tweeter: 3/4-inch metal dome + DCW

■ Amplifier Output: Woofer 50 W + Tweeter 50 W (all Class D)

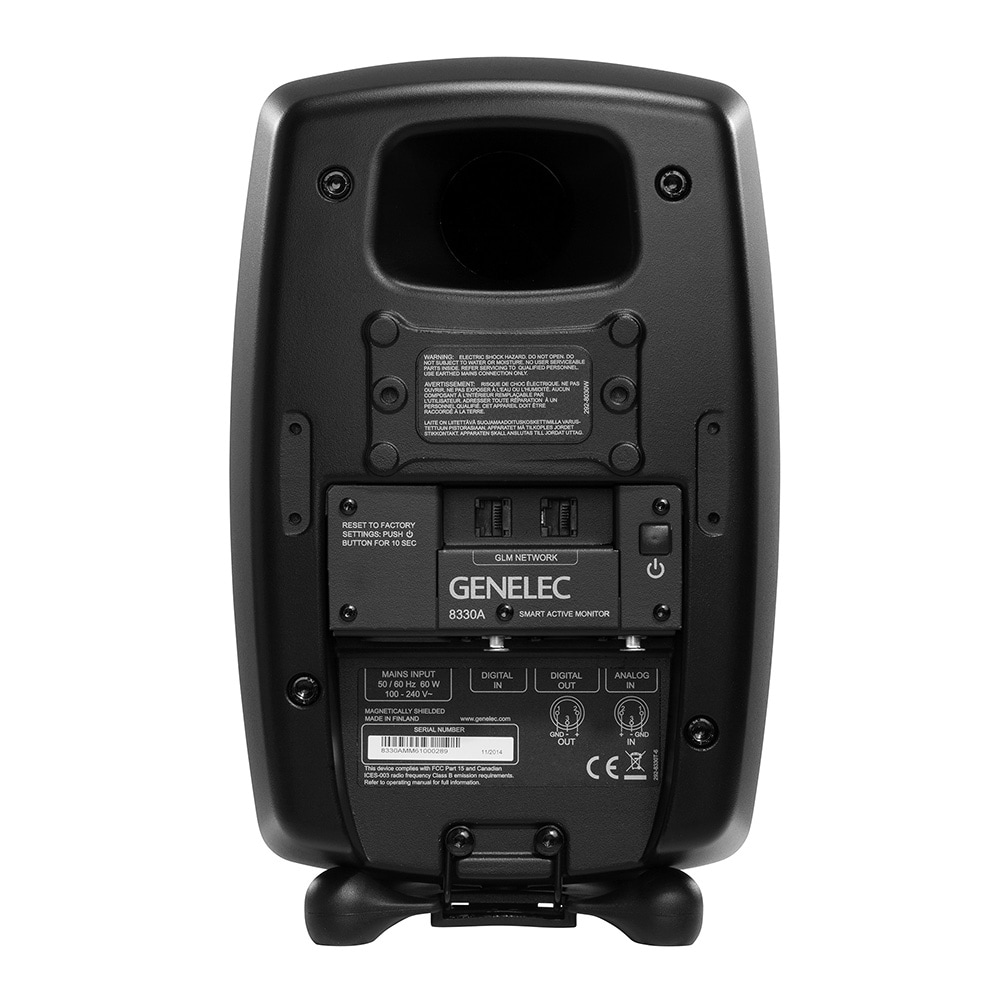

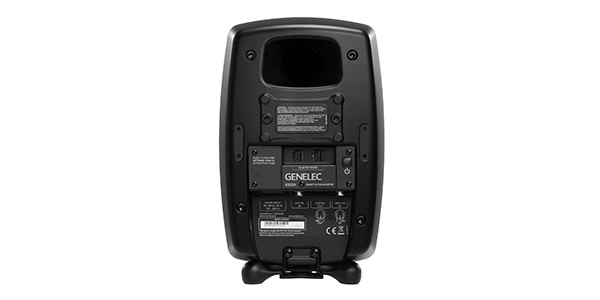

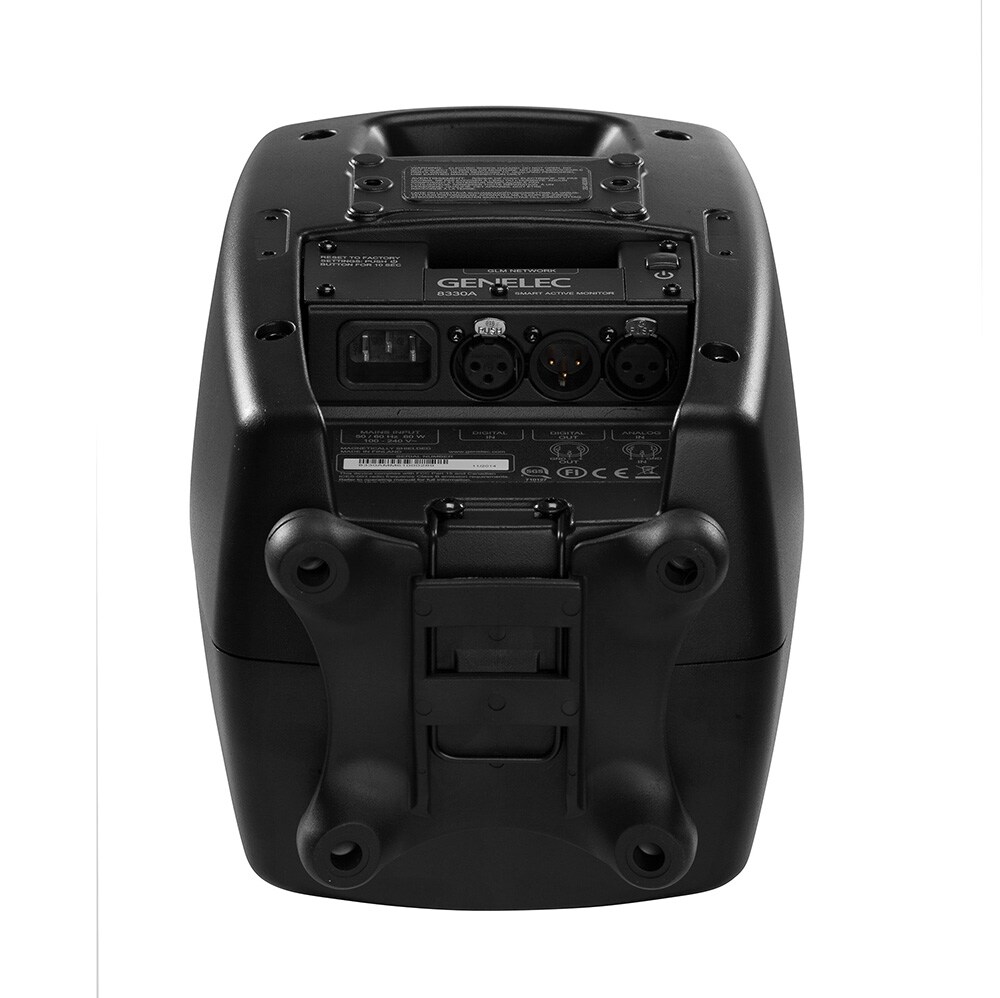

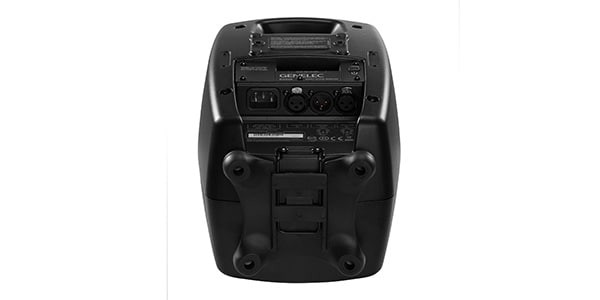

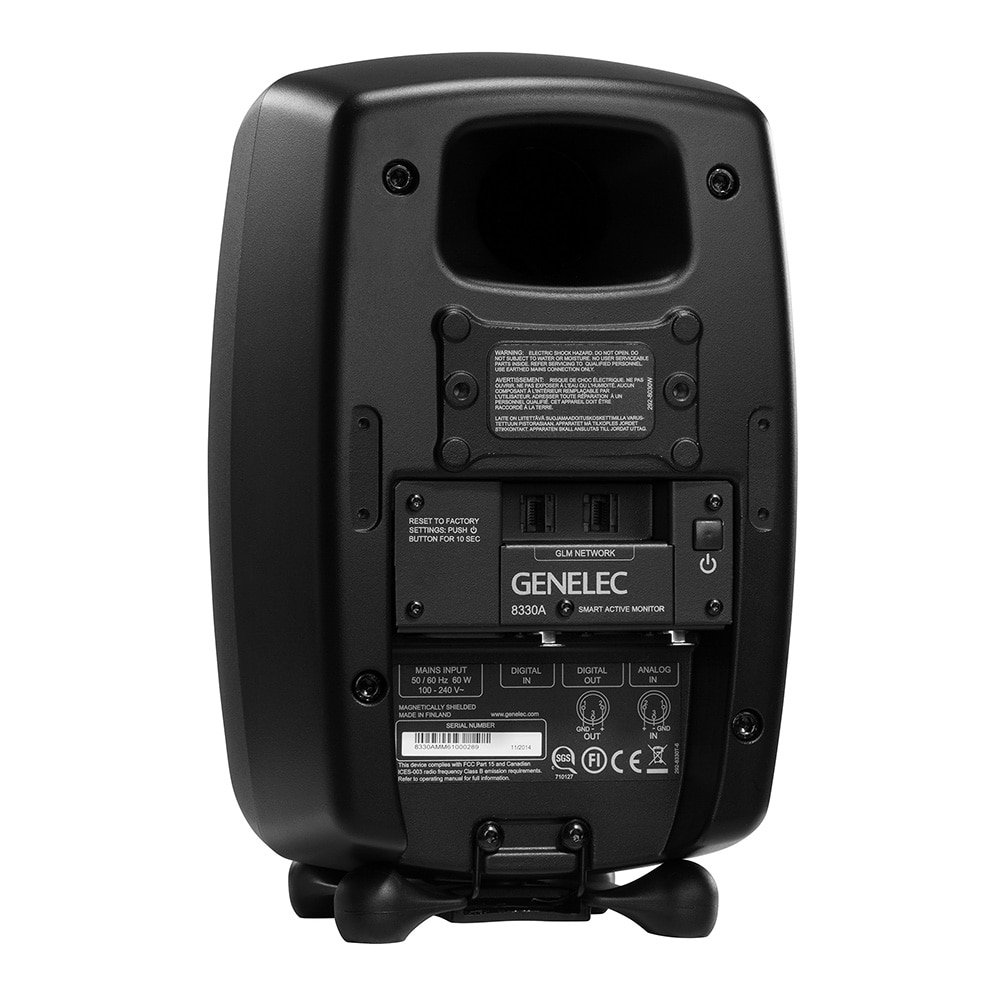

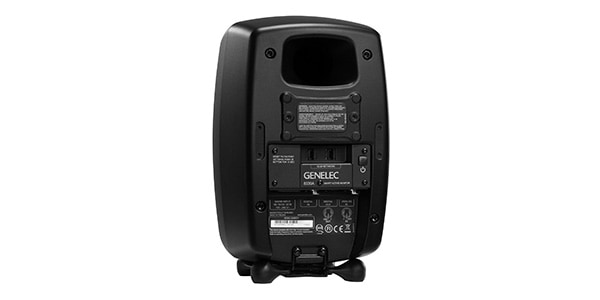

■ Connectivity:

1 x XLR analog input, 1 x input

1 x XLR digital output AES/EBU

2 x RJ45 control network

■External Dimensions: H 299 x W 189 x D 178 mm (including Iso-Pod?)

■Weight: 5.5kg

■Color: Black

*Sold individually. Not sold as a pair.

*This product is made to order. Therefore, cancellations or changes cannot be accepted after order confirmation for any reason. Please be sure to inquire about the delivery time before placing your order.
