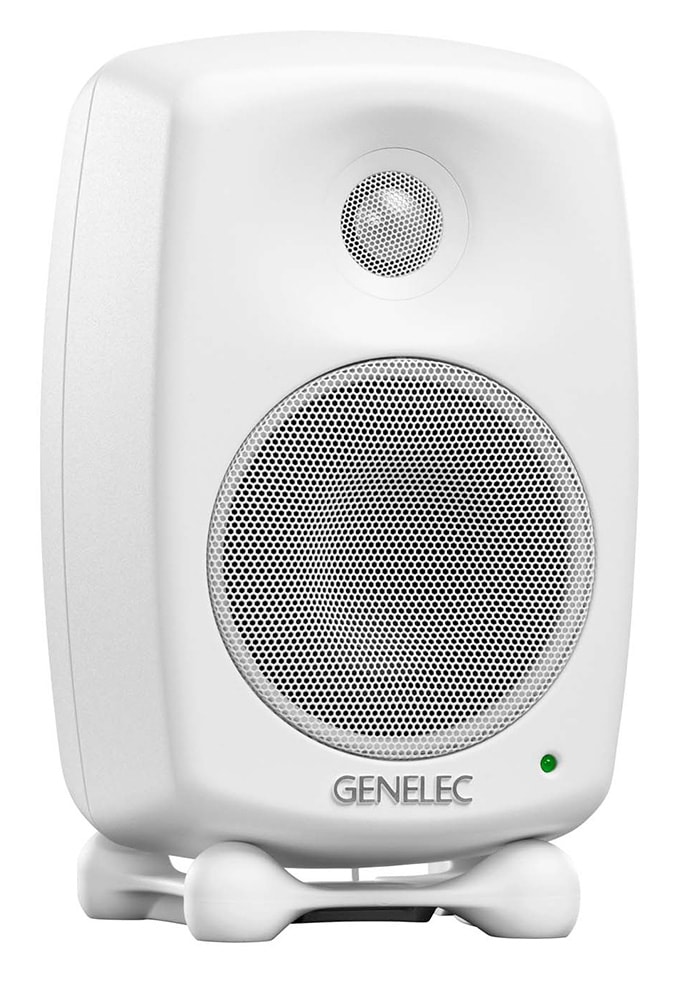

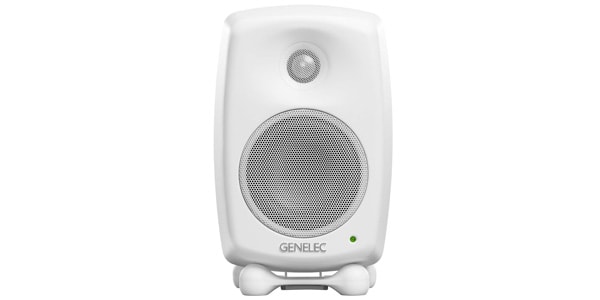

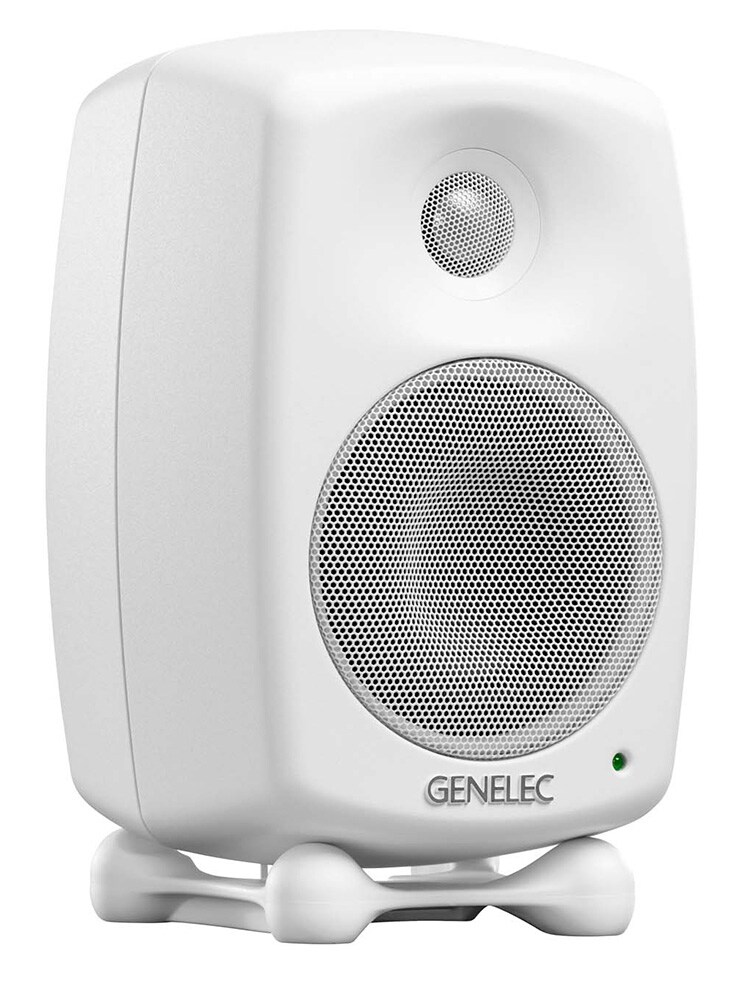

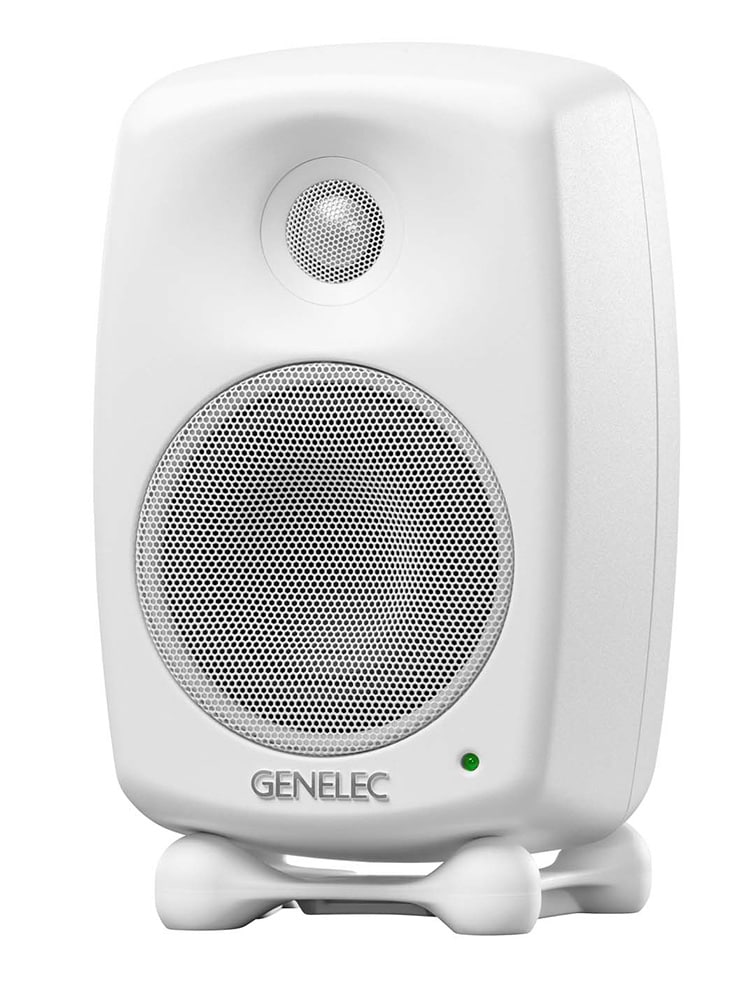

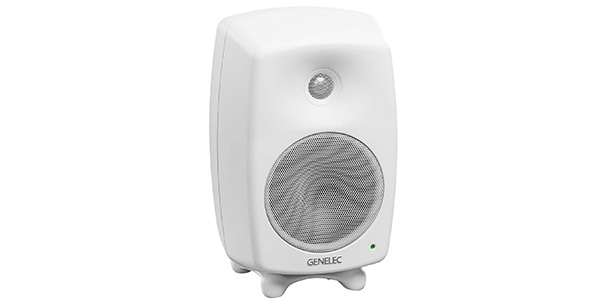

GENELEC / 8320AWM

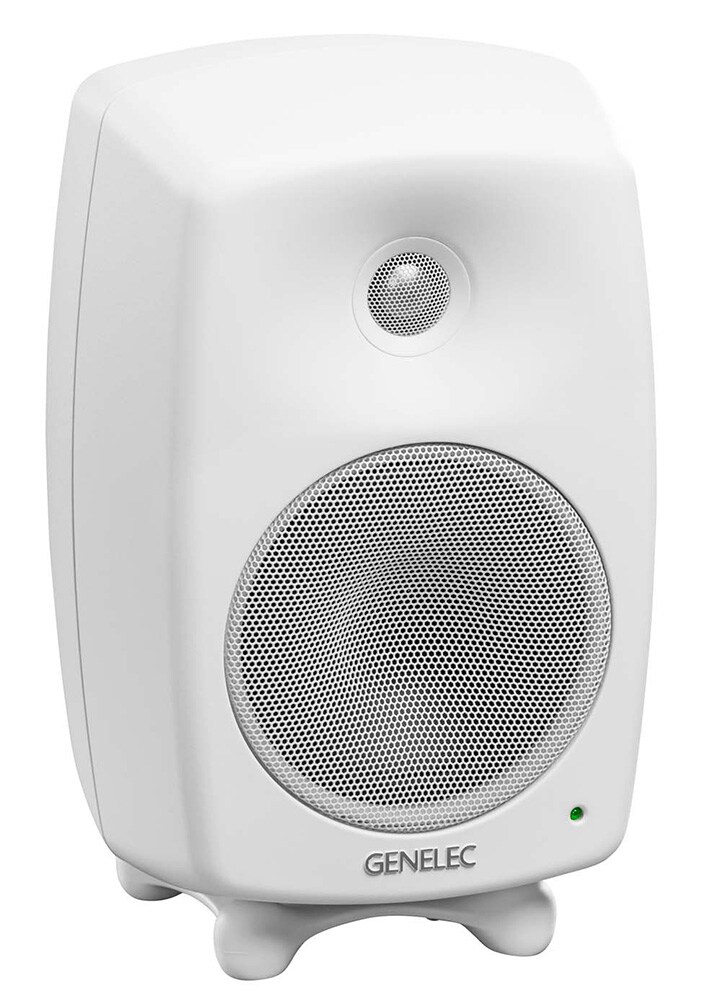

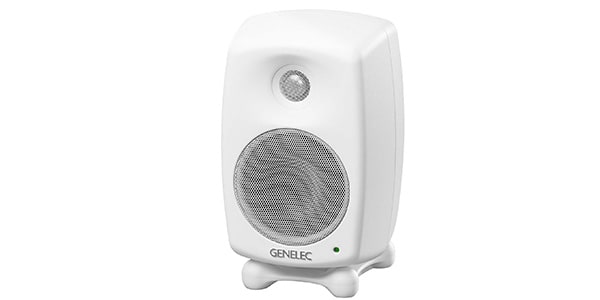

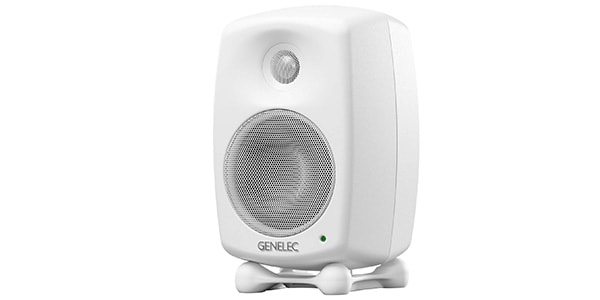

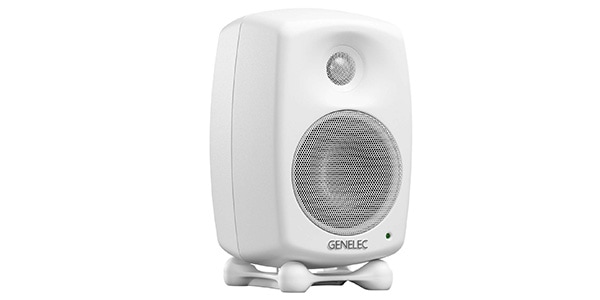

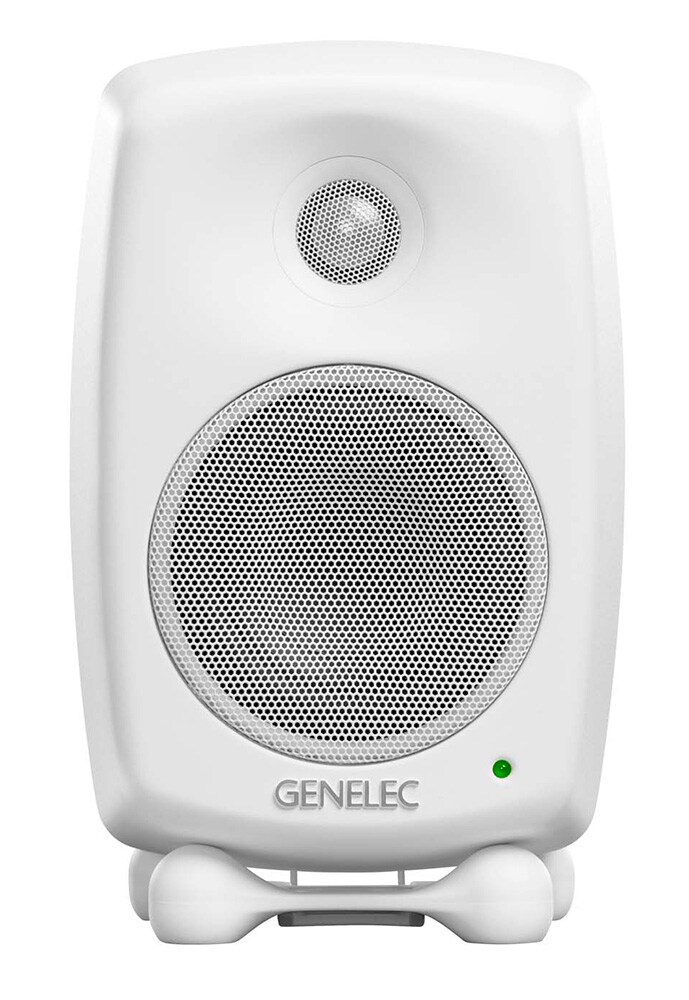

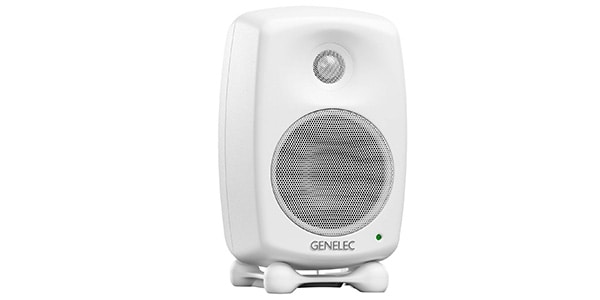

The 8320AWM is a powered monitor speaker from GENELEC. Despite its compact size, it features a powerful 2-way Class D bi-amplifier. A 4-inch woofer delivers a powerful sound. Available in white.

The 8320A is the perfect entry point into SAM (Smart Active Monitoring) technology, offering a compact design that fits even in extremely tight spaces while providing ample smart features to optimize your recording environment.

Packed with cutting-edge monitoring technology in a portable, compact enclosure, the 8320A maximizes your production environment, wherever you are.

Despite its small size, the 8320A features a powerful 2-way Class D bi-amp system, combining a powerful 4-inch woofer with Genelec's renowned acoustic design expertise and world-leading SAM technology. The SAM system is highly adaptable and assistive, offering a range of groundbreaking features through Genelec's proprietary GLM (Genelec Loudspeaker Manager) 3.1.0 software. AutoCal perfectly calibrates the monitoring system to match your listening environment, compensating for room acoustics to create an optimal monitoring solution. GLM 3.1.0 allows you to manage up to 45 smart monitors and subwoofers, enabling you to mix your desired sound in any setup, from simple stereo to ambitious immersive audio. Various control options are available, including the ability to recall different listening position settings.

All of these features are combined with MDE (Minimum Diffraction Enclosure) for uncolored, accurate sound reproduction and DCW (Directivity Control Waveguide) for flat on-axis/off-axis response. The result is an ideal compact monitor that adapts to your workflow.



■ Networked SAM (Smart Active Monitor) system providing automatic calibration

■ DCW technology for flat on-axis/off-axis response

■ MDE technology for uncolored sound reproduction

■ Advanced reflex port design for extended low-frequency response

■ Optimized amplifiers. Each transducer is driven by its own optimized amplifier.

■ Active crossover that operates at low signal levels

■ Sophisticated drive unit protection circuitry provides safe operation

■ ISS (Intelligent Signal Sensing) technology reduces power consumption in standby mode

■ Iso-Pod stand that isolates vibrations to improve sound image resolution

■ Versatile mounting options to suit any installation needs



■ SPL: 100dB

■ Frequency Response: 55 Hz - 23 kHz (-6 dB)

■ Frequency Response Accuracy: ± 1.5 dB (66 Hz - 20 kHz)

■ Drivers

Woofer: 4-inch

Tweeter: 3/4-inch metal dome + DCW

■ Amplifier Output: Woofer 50 W + Tweeter 50 W (all Class D)

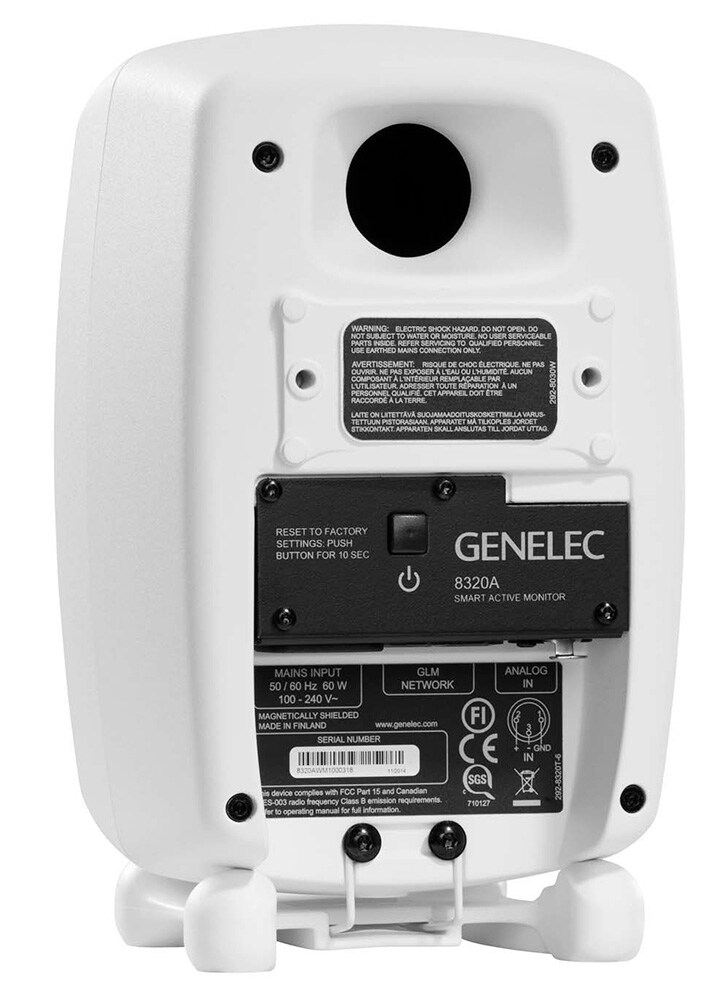

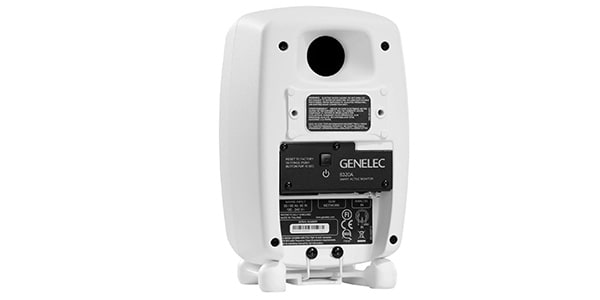

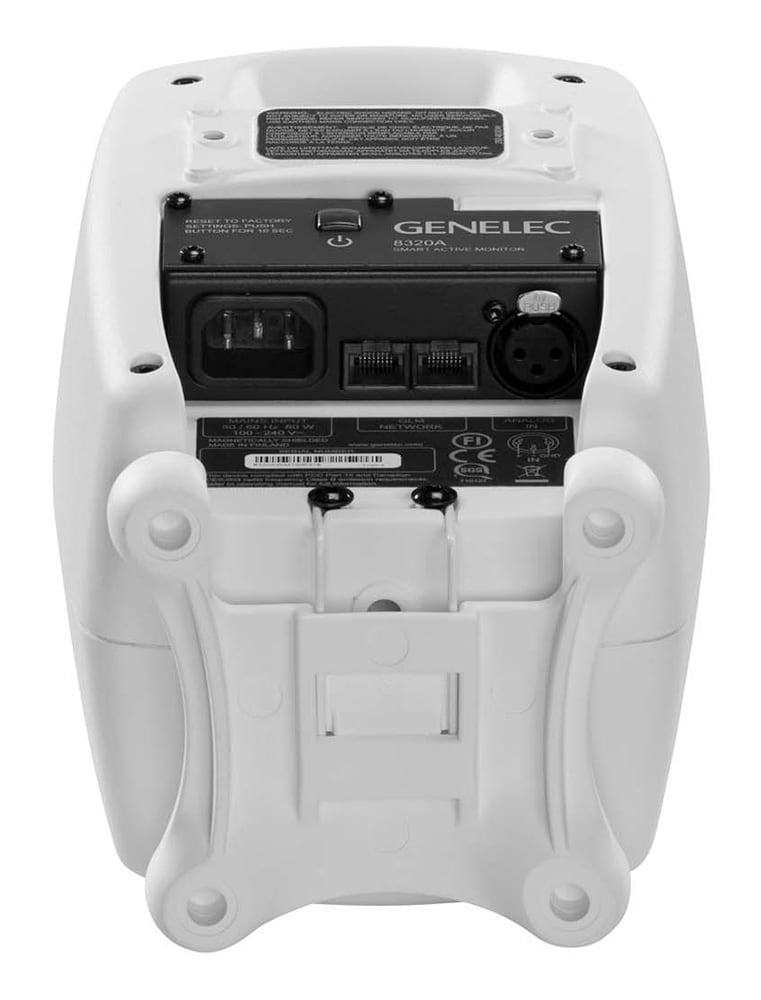

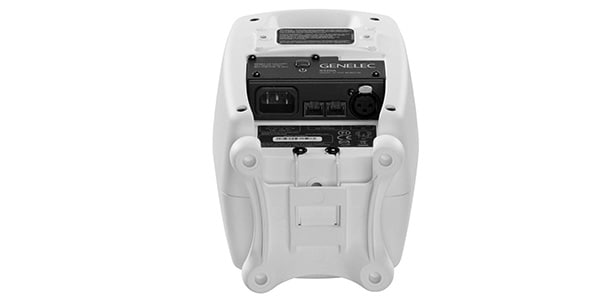

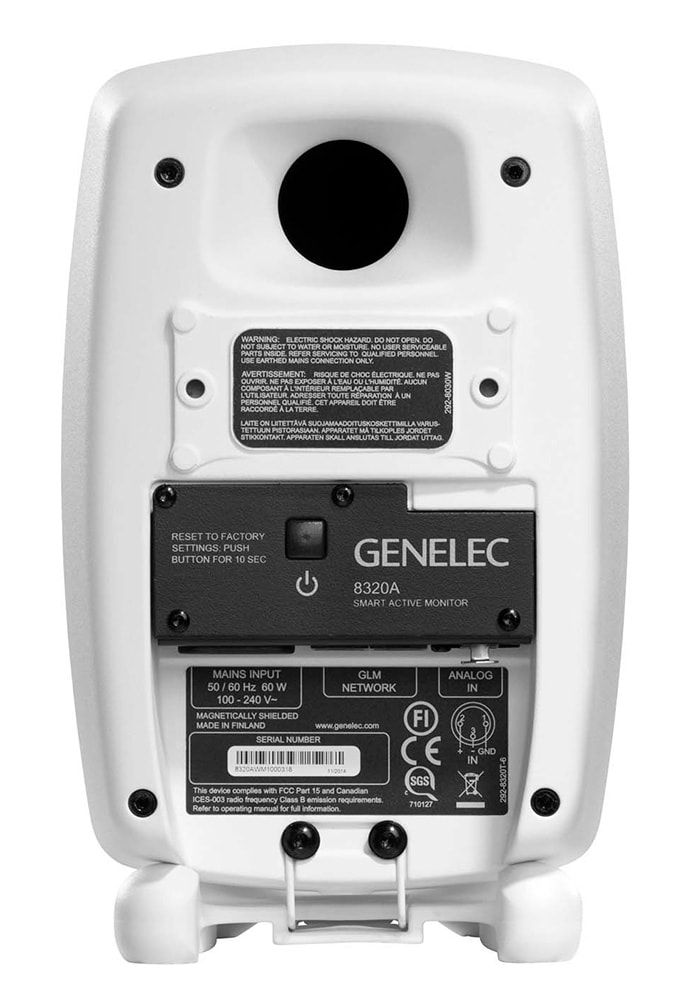

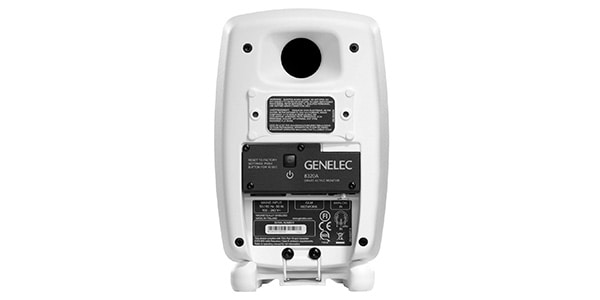

■ Connectivity:

1 x XLR analog input

2 x RJ45 control network

■ Dimensions: H 242 x W 151 x D 142 mm (including Iso-Pod?)

■Weight: 3.2 kg

■Color: White

*Sold individually. Not sold as a pair.

*This product is made to order. Therefore, cancellations or changes cannot be accepted after order confirmation for any reason. Please be sure to inquire about the delivery time before placing your order.
