GENELEC / 8330ARw

Variations

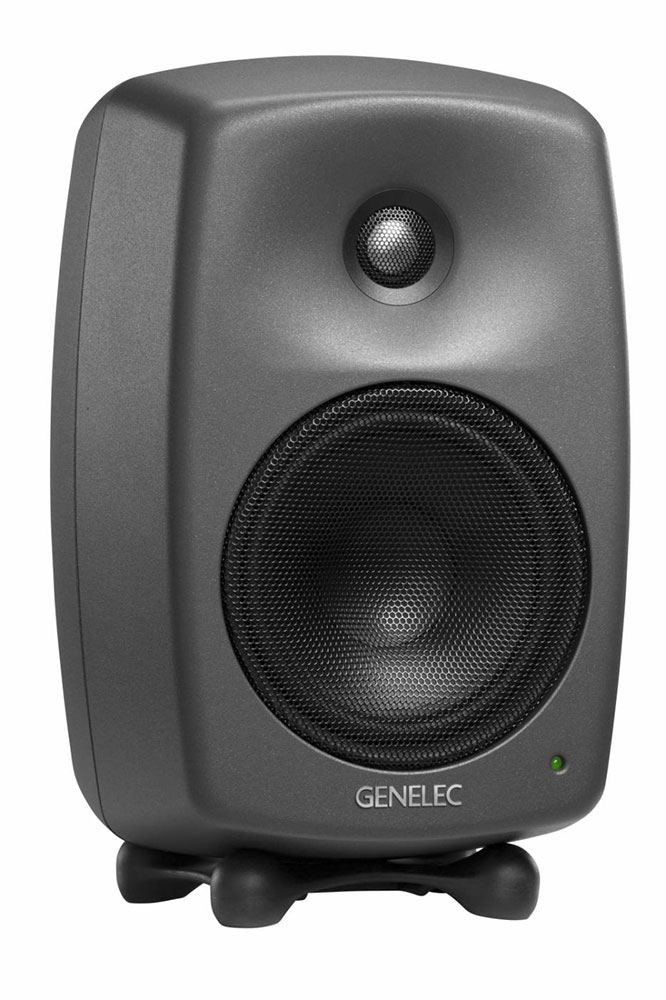

The 8330ARw is a powered monitor speaker from GENELEC. It features a 5-inch woofer and a 3/4-inch metal dome tweeter. GLM 3.1.0 can manage up to 45 smart monitors and subwoofers.

Ideal for facilities requiring a compact yet powerful and adaptable monitor, the 8330A delivers uncolored reproduction and the world's most advanced smart monitoring system.

The 8330A, a monitor chosen by professionals for its power and flexibility, combines impressive sound with smart features thanks to SAM (Smart Active Monitoring) technology. This Class D bi-amplified 2-way smart monitor, featuring a 5-inch woofer and 3/4-inch tweeter, is compact enough to fit into even the most space-constrained studios, while exceeding the expectations of even the most demanding clients.

Minimum Diffraction Enclosure (MDE) provides uncolored and accurate sound reproduction, while Directivity Control Waveguide (DCW) ensures flat response both on-axis and off-axis. The 8330A also excels in adaptability and assistance. Genelec Loudspeaker Manager (GLM) 3.1.0 software provides features including AutoCal, which perfectly calibrates the monitoring system to the user's listening environment. It compensates for the effects of room acoustics to create an optimal monitoring solution. Furthermore, GLM 3.1.0 can manage up to 45 smart monitors and subwoofers, making it easy to create fully recallable setups from stereo to immersive audio.

■ Networked SAM (Smart Active Monitor) system providing automatic calibration

■ DCW technology for flat on-axis/off-axis response

■ MDE technology for uncolored sound reproduction

■ Advanced reflex port design for extended low-frequency response

■ Optimized amplifiers. Each transducer is driven by its own optimized amplifier.

■ Active crossover that operates at low signal levels

■ Sophisticated drive unit protection circuitry ensures safe operation

■ ISS (Intelligent Signal Sensing) technology reduces power consumption in standby mode

■ Iso-Pod stand isolates vibrations to improve sound image resolution

■ Versatile mounting options to suit any installation needs

■ SPL: 104dB

■ Frequency Response: 45 Hz - 23 kHz (-6 dB)

■ Frequency Response Accuracy: ± 1.5 dB (58 Hz - 20 kHz)

■ Drivers

Woofer: 5-inch

Tweeter: 3/4-inch metal dome + DCW

■ Amplifier Output: Woofer 50 W + Tweeter 50 W (all Class D)

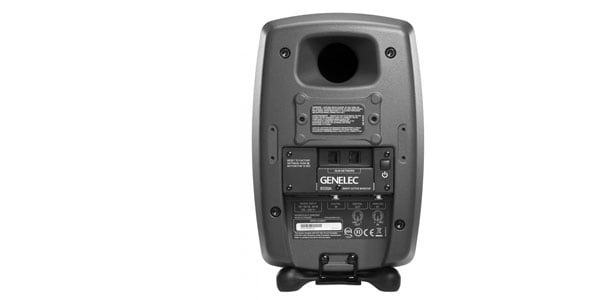

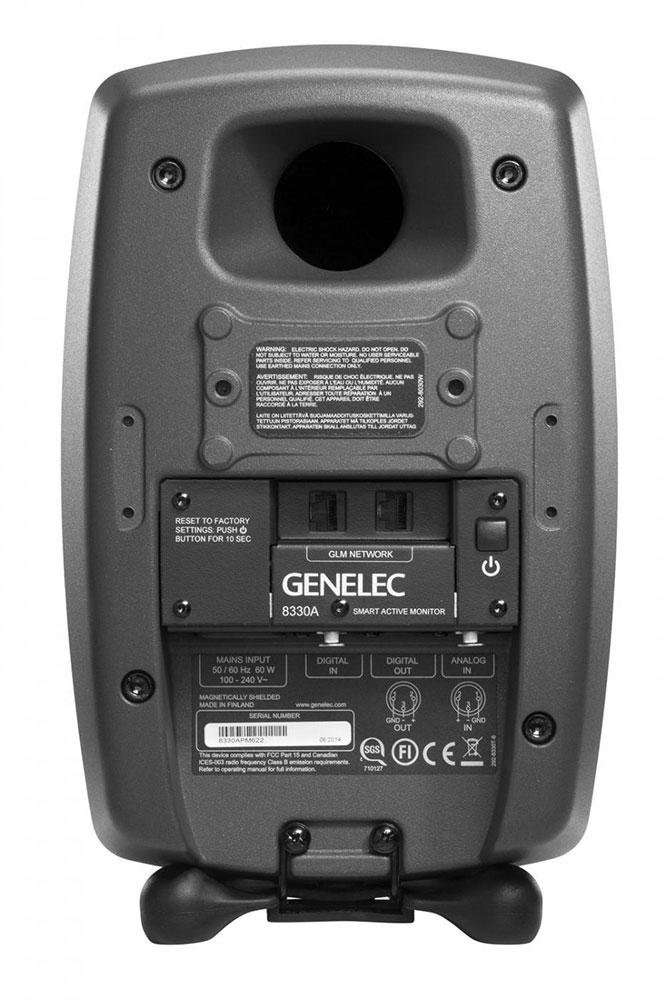

■ Connectivity:

1 x XLR analog input, 1 x input

1 x XLR digital output AES/EBU

2 x RJ45 control network

■External Dimensions: H 299 x W 189 x D 178 mm (including Iso-Pod)

■Weight: 5.5kg

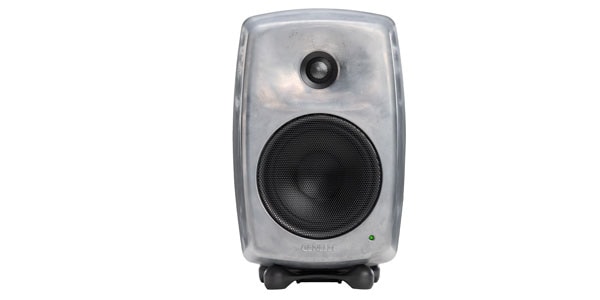

■RAW Finish

*Sold individually. Not sold as a pair.

*This product is made to order. Therefore, cancellations or changes cannot be accepted after order confirmation for any reason. Please be sure to inquire about the delivery time before placing your order.

RAWフィニッシュとは？

GenelecのRAWフィニッシュは、リサイクル・アルミニウムの素材をそのまま生かすべく、あえて無塗装で仕上げたカラー・ラインナップです。通常の塗装では現れないアルミニウム素材ならではの色ムラや加工時に生じるスクラッチ傷で表現される、独特かつ味わい深い質感が、RAWフィニッシュを世界でオンリーワンのスピーカーとしています。

また、無塗装であるためより地球に優しい生産工程となることも特徴です。RAWフィニッシュの選択は、地球環境の保護へ貢献にも繋がります。

※RAWフィニッシュ製品は再生アルミニウムを使用しているため、スクラッチ傷等も含んだ形がボディー表面に残っています。その質感をあえて残したまま、クリア塗装を行っている製品となりますため、これらの傷、ムラ等は、RAWフィニッシュ製品の特性及び仕様となり、一台一台が異なります。RAWフィニッシュの質感を理由とする交換・返品等はお受けすることはできません。予めご了承ください。
