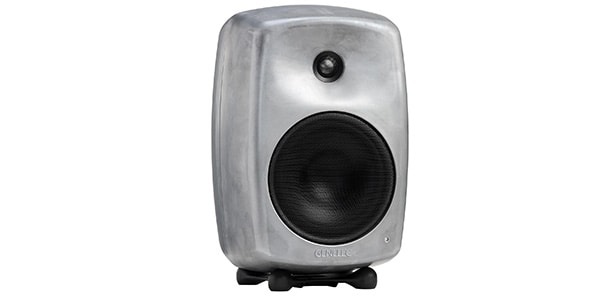

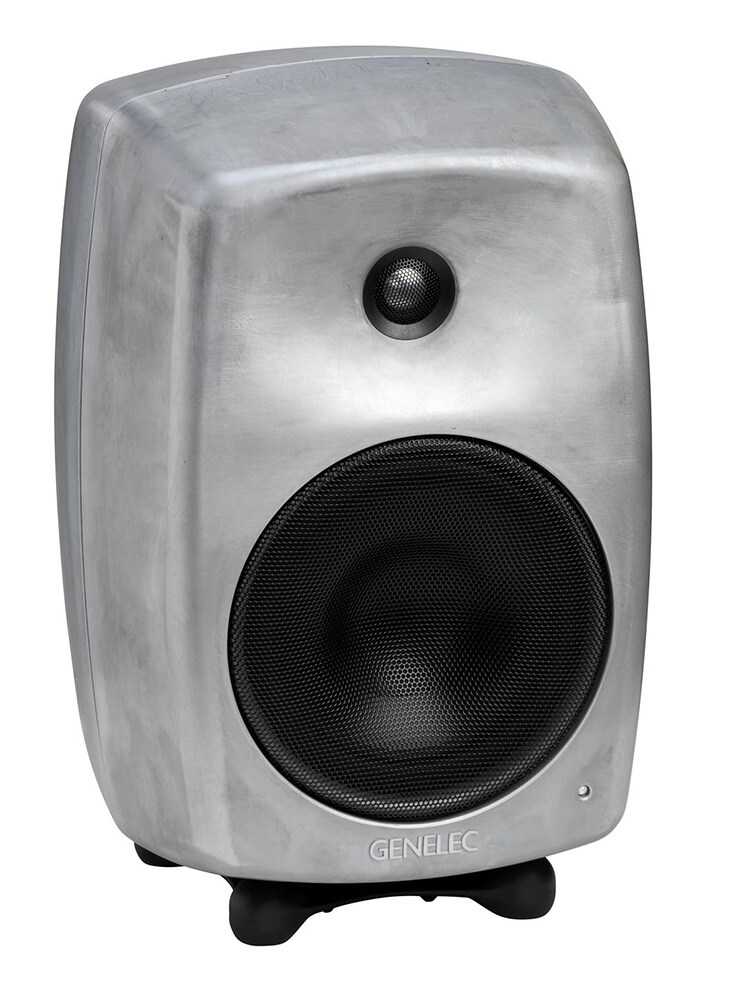

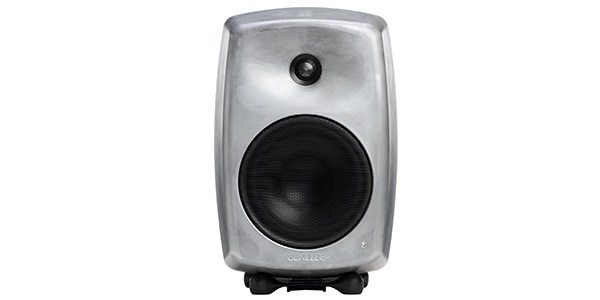

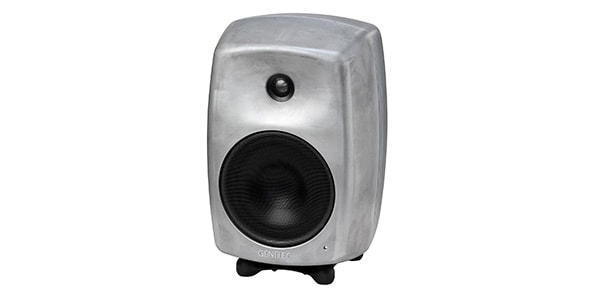

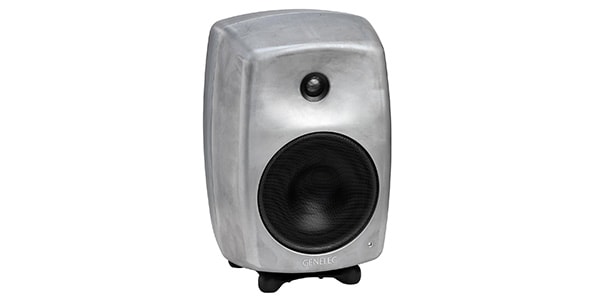

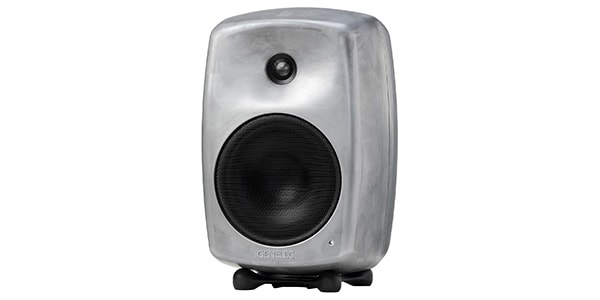

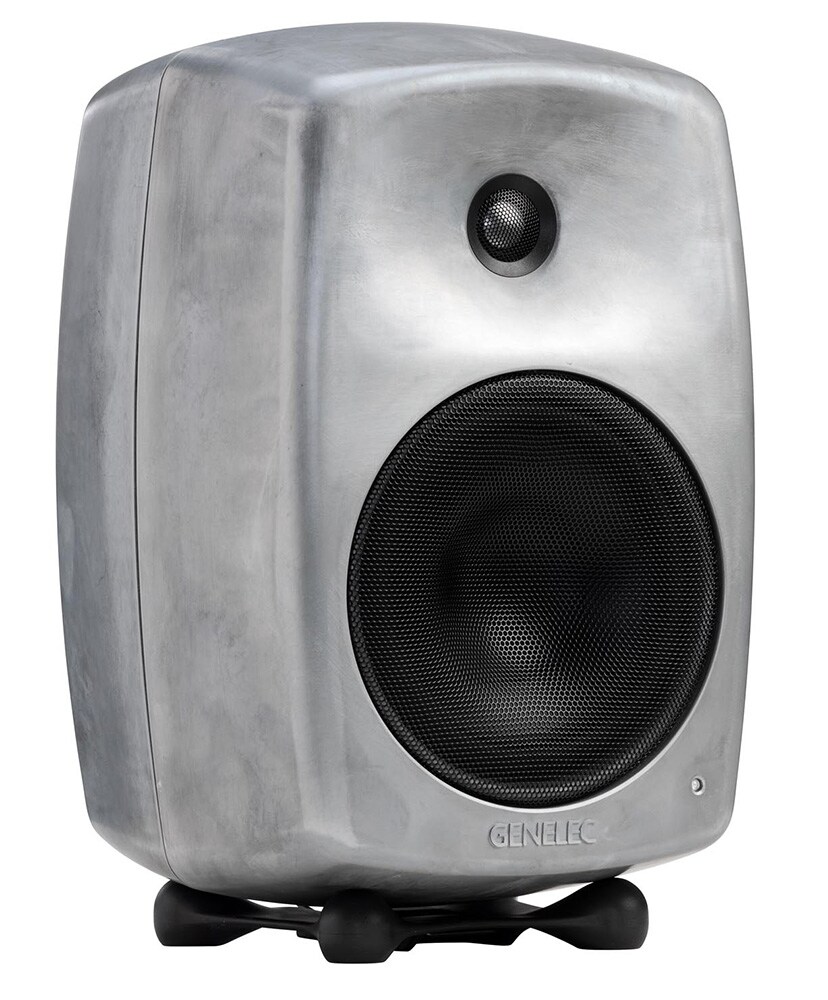

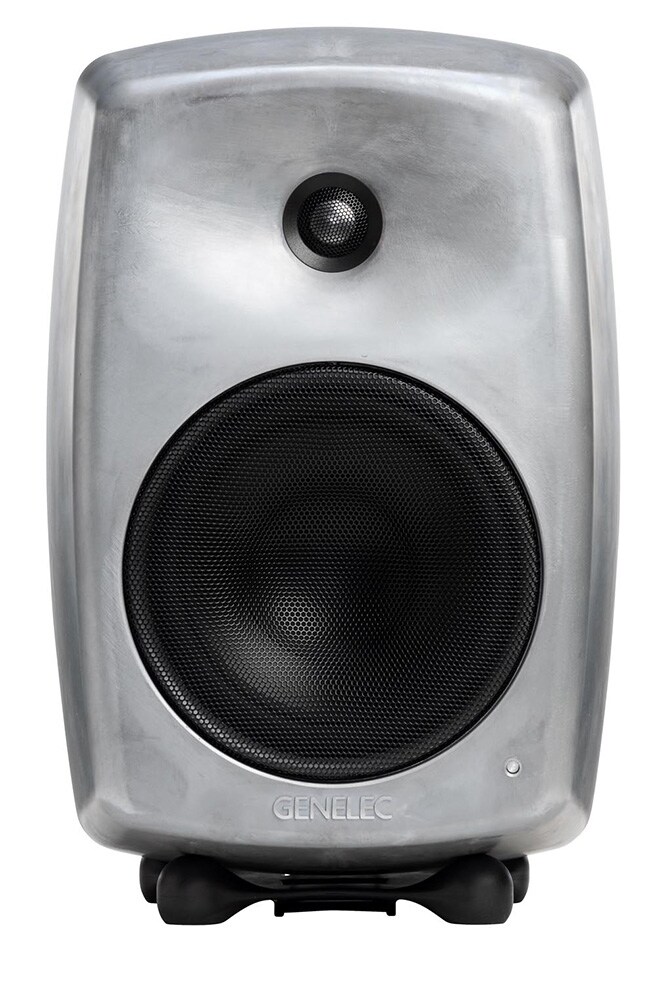

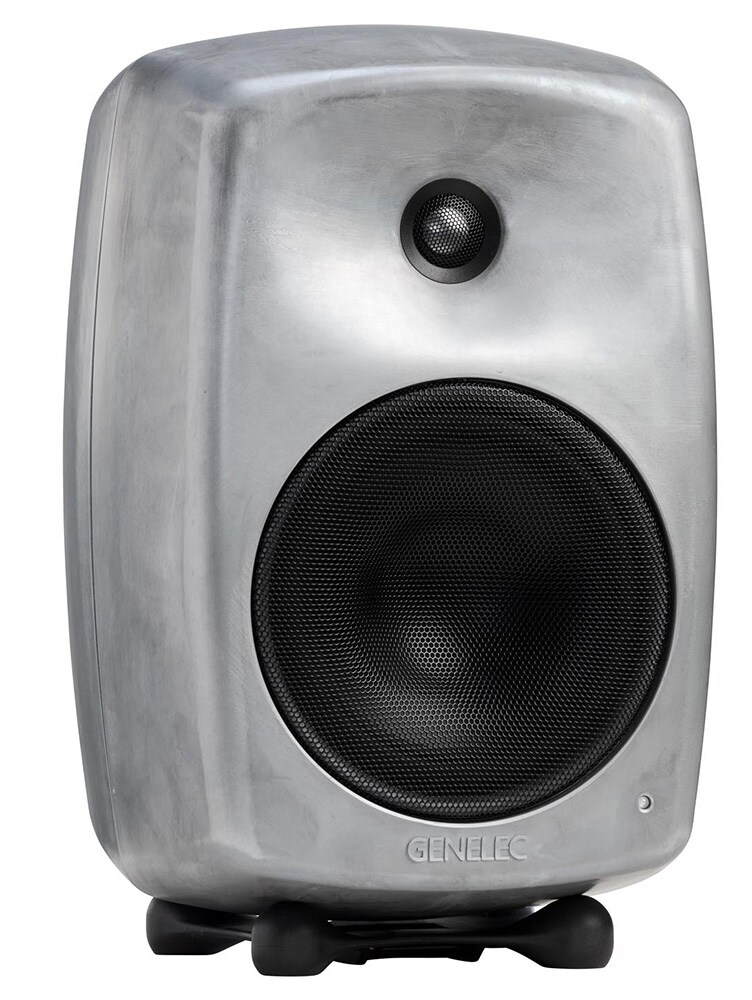

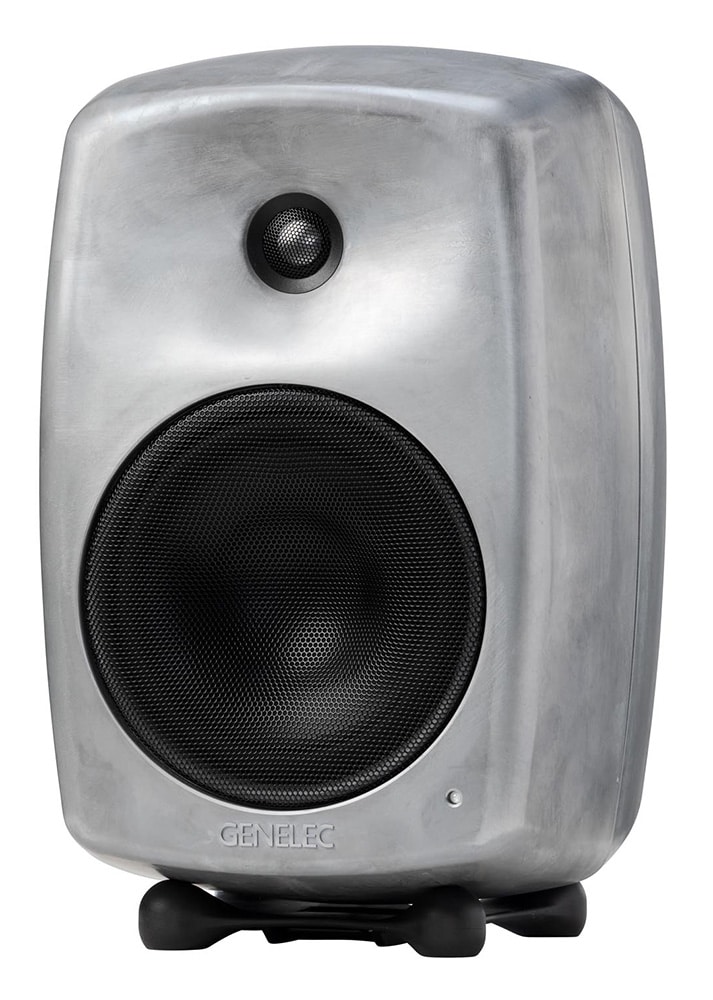

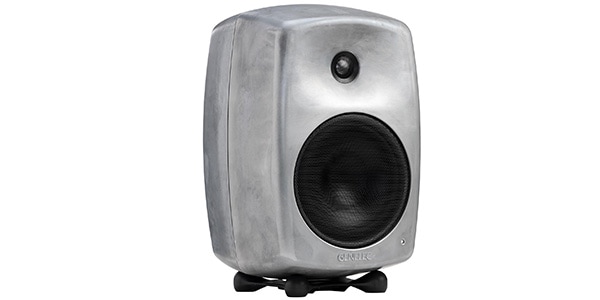

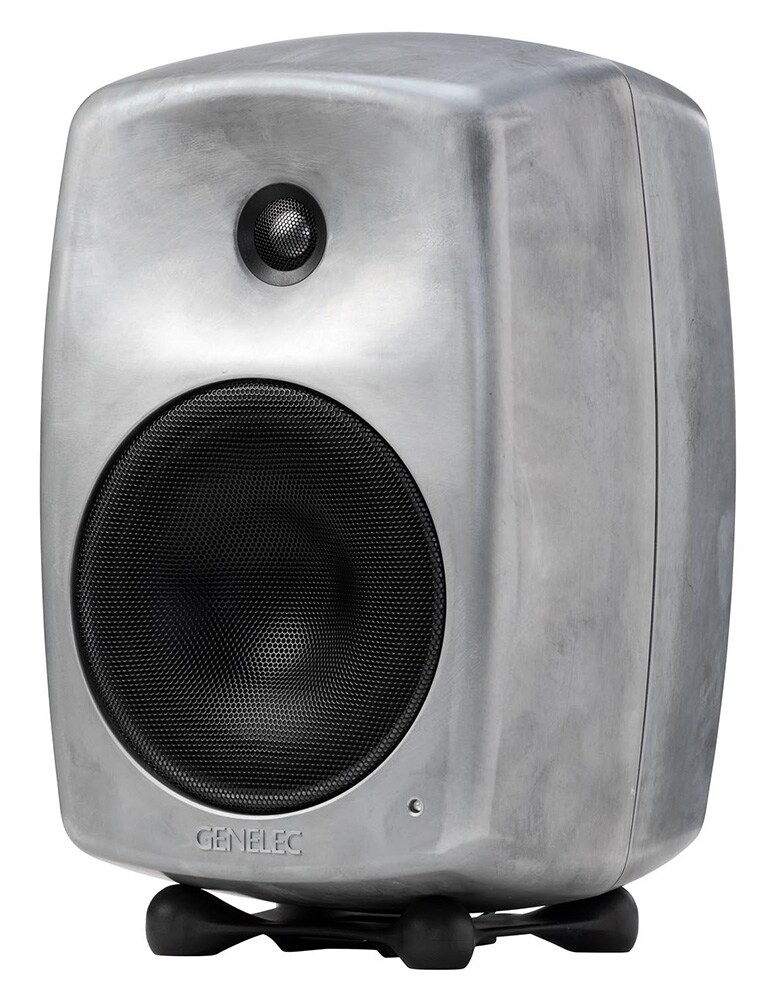

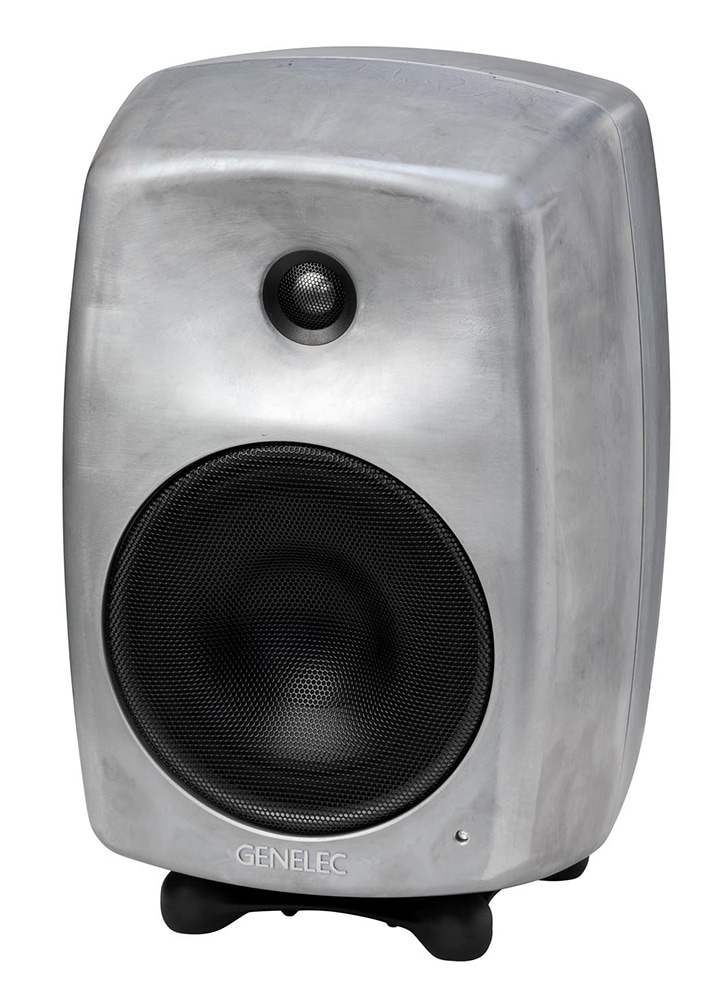

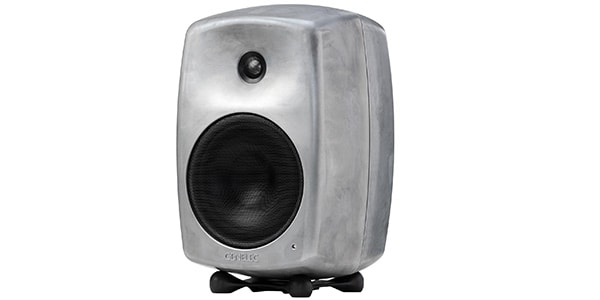

GENELEC/8340ARwM RAW Finish Studio Monitor

GENELEC / 8340ARwM RAW Finish Studio Monitor

GENELECお問い合わせ窓口

Variations

The GENELEC/8340A is a two-way Class D bi-amplified monitor featuring a 6.5-inch woofer and highly efficient Class D amplifiers with 150W of power for both the left and high frequencies.

■Studio Monitor

■6.5-inch

■LF150W/HF150W

■RAW Finish

■Single Unit

The Genelec 8340A quickly established itself as a trusted monitoring choice in studios worldwide. A two-way Class D bi-amp monitor featuring a 6.5-inch woofer and Genelec's highly efficient Class D amplifier, the 8340A embodies a perfect balance of acoustic expertise and SAM innovation.

At the heart of the system is an acoustic design shaped by decades of innovation and proven performance. Capable of handling extremely high sound pressure levels, the 8340A features a reflex port design for enhanced bass, MDE (Minimum Diffraction Enclosure) for uncolored sound reproduction, and DCW? (Directivity Control Waveguide) for flat on-axis/off-axis response. All of these features are linked to SAM's versatility. The GLM (Genelec Loudspeaker Manager) software allows for fine-tuning of every monitor setting, and AutoCal compensates for room acoustics, enabling perfect calibration of the setup to suit any listening environment, from simple stereo to large-scale immersive audio.

As a result, it's a state-of-the-art monitoring solution ideal for a wide range of applications, including recording studios, post-production houses, digital editing suites, radio, television, and mobile broadcasting stations.

■Key Technologies

SAM System

DCW Technology

MDE Technology

Reflector Port Design

Optimized Amplifier

Active Crossover

Protection Circuitry

ISS Technology

Iso-Pod Stand

Various Mounting Options

■Technical Specifications

SPL 110 dB

Frequency Response 38 Hz ? 22 kHz (-6 dB)

Frequency Response Accuracy ± 1.5 dB (44 Hz ? 20 kHz)

Driver Dimensions: Woofer 6 1/2 inch + Tweeter 3/4 inch, Metal Dome + DCW

Amplifier Output: Woofer 150 W + Tweeter 150 W (All Class D)

Dimensions: H 365 x W 237 x D 223 mm (Including Iso-Pod)

Weight: 8.4 kg

Connectivity: 1 x XLR Analog Input, 1 x Input/1 x Output XLR Digital AES/EBU, 2 x RJ45 Control Network

*This product is made to order. Therefore, cancellations or changes cannot be accepted after order confirmation for any reason. Please be sure to inquire about the delivery time before placing your order.

RAWフィニッシュとは？

GenelecのRAWフィニッシュは、リサイクル・アルミニウムの素材をそのまま生かすべく、あえて無塗装で仕上げたカラー・ラインナップです。通常の塗装では現れないアルミニウム素材ならではの色ムラや加工時に生じるスクラッチ傷で表現される、独特かつ味わい深い質感が、RAWフィニッシュを世界でオンリーワンのスピーカーとしています。

また、無塗装であるためより地球に優しい生産工程となることも特徴です。RAWフィニッシュの選択は、地球環境の保護へ貢献にも繋がります。

※RAWフィニッシュ製品は再生アルミニウムを使用しているため、スクラッチ傷等も含んだ形がボディー表面に残っています。その質感をあえて残したまま、クリア塗装を行っている製品となりますため、これらの傷、ムラ等は、RAWフィニッシュ製品の特性及び仕様となり、一台一台が異なります。RAWフィニッシュの質感を理由とする交換・返品等はお受けすることはできません。予めご了承ください。
