ZOOM / LiveTrak L6

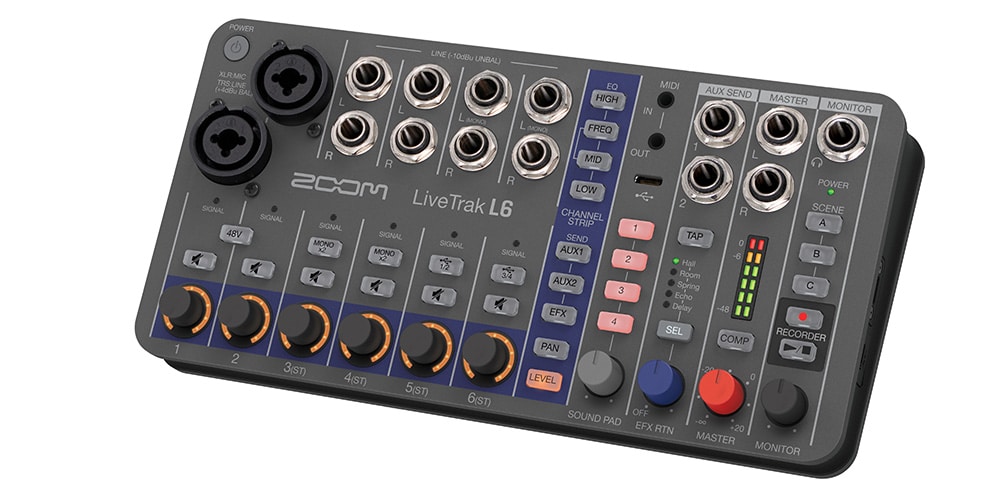

The ZOOM/LiveTrak L6 is a 10-channel, ultra-compact digital mixer and recorder that supports 32-bit float audio and requires no gain adjustment.

■Digital mixer, multi-track recorder, and audio interface functions

[Main features]
◎ Digital mixer and recorder with 32-bit float support and 10 input/12 track recording
◎ Dual AD converter circuit that can record sounds from loud to soft without gain adjustment
◎ 32-bit float/48 kHz sampling audio recording that does not deteriorate even when edited after recording
◎ Two XLR/TRS phone inputs for connecting microphones and line equipment (+4dBu)
◎ Eight TS phone inputs for connecting line equipment (-10dBu) such as synthesizers and effects (4 stereo or 6 mono inputs possible)
◎ Can supply +48V phantom power required by condenser microphones (channels 1/2)
◎ Channel encoder that can adjust the volume, sound quality, and left/right positioning of each channel
◎ 3-band EQ with LOW/MID (variable center frequency)/HIGH for adjusting the sound quality of each channel
◎ MUTE keys for each channel allow you to insert and remove sounds for musical performances
◎ Five built-in send effects (Hall/Room/Spring/Echo/Delay)
◎ Equipped with a master compressor that prevents the master output level from exceeding the limit and increases the sound pressure
◎ Two AUX SENDs that allow you to use external effects (PRE/POST fader output can be selected)
◎ Scene memory function that allows you to save three types of mixer settings
◎ Four SOUND PADs that allow you to play jingles and sound effects at any time
◎ 3.5mm TRS phone MIDI IN/OUT terminals that can be linked with external MIDI devices
◎ USB audio interface function* with 12 in/4 out and 32-bit float support that works with Windows/Mac/iOS (allows simultaneous recording to the main unit while live streaming)
◎ Can be used as audio for videos shot with a smartphone by simply connecting with a single USB-C cable
◎ Windows/Mac app "ZOOM L6 Editor" that allows you to perform SOUND PAD functions and detailed settings of the main unit
◎ Monitor out terminal with dedicated volume for connecting headphones
◎ Uses microSDHC/microSDXC cards as recording media (up to 1TB supported/sold separately)
◎ Runs for approximately 3 hours with 4 AA alkaline batteries
◎ Runs with 4 AA batteries, AC adapter (included with AD-17), or USB mobile battery
◎ Rack mount adapter (ERL-6) for installing LiveTrak L6 in Eurorack sold separately
◎ External dimensions/weight: 233 (W) x 114 (D) x 46.5 (H) mm / 526 g (main unit only)
* A Lightning to USB 3 camera adapter is required to connect to an iPhone/iPad with a Lightning connector

The LiveTrak L6 is the world's first digital mixer equipped with dual AD circuits and 32-bit float recording technology. It can input 10 channels of audio signals and simultaneously record up to 12 tracks (10 tracks + master L/R) to a microSD card (sold separately). The XLR/TRS phone input is equipped with a dual AD circuit that achieves a wide dynamic range and high S/N ratio, realizing clear audio input without the need for gain adjustment, from small to large sounds. The final stage has a built-in master compressor that prevents level over and increases sound pressure, avoiding harsh distortion at any stage of input, mixing, recording, and output.
The compact body, 23 cm wide and 11 cm deep, can be installed easily with other equipment, making effective use of limited space on the desktop. In addition, the battery-powered design that runs on four AA batteries or USB mobile power supply makes it easy to mix multiple synthesizers on a live stage, record podcasts on the go, and use it anywhere. Equipped with a 3.5mm TRS phone MIDI IN/OUT terminal that can be linked with external MIDI devices, it is also ideal as a machine live mixer that plays multiple synthesizers in sync without using a computer.
In addition, it has a 12-in/4-out USB audio interface function that supports 32-bit float, and can be used for recording on Windows/Mac/iOS devices or as a mixer for live streaming.
