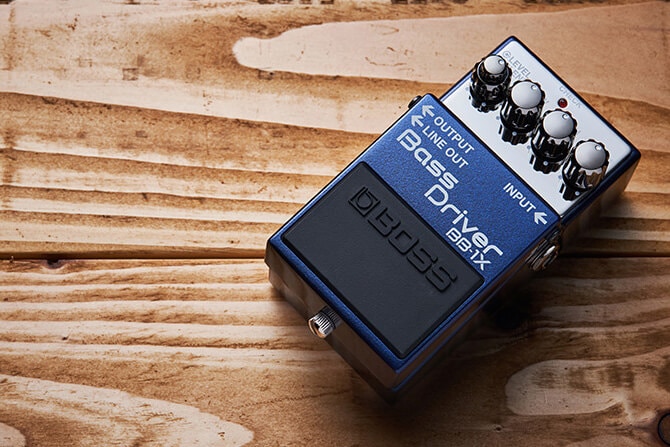

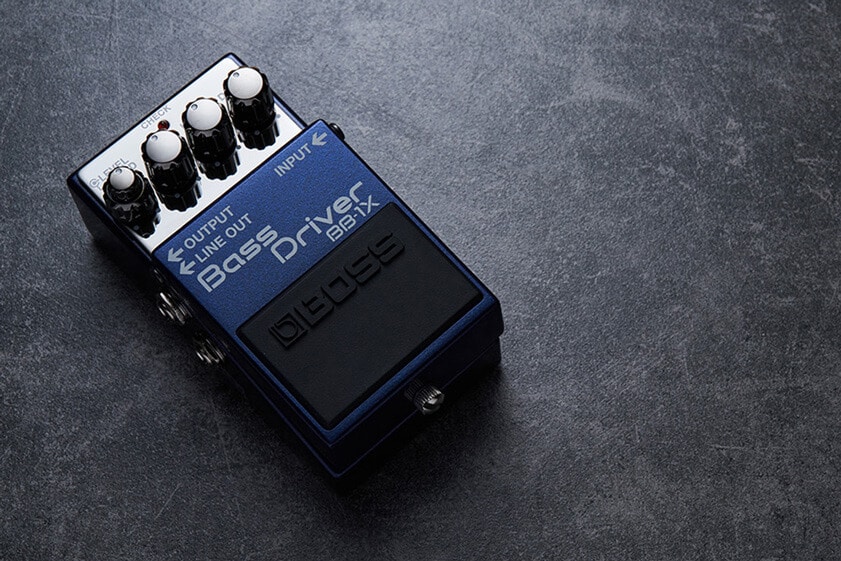

BOSS / BB-1X(B)

This latest bass preamp is the talk of the town. Its drive ensures the low end stays sharp, while its two-band EQ allows for a thick, punchy sound. In addition to the standard output, it also features a balanced line output that can be used to send signals to a PA.

■Bass Effects Pedal
■Bass Driver
■Nominal Input Level: -20dBu
■Input Impedance: 1MΩ
■Nominal Output Level: OUTPUT Jack: -20dBu, LINE OUT Jack: -20dBu
Output Impedance: OUTPUT Jack: 1kΩ, LINE OUT Jack: 600Ω
■Recommended Load Impedance: OUTPUT Jack: 10kΩ or greater, LINE OUT Jack: 600Ω or greater

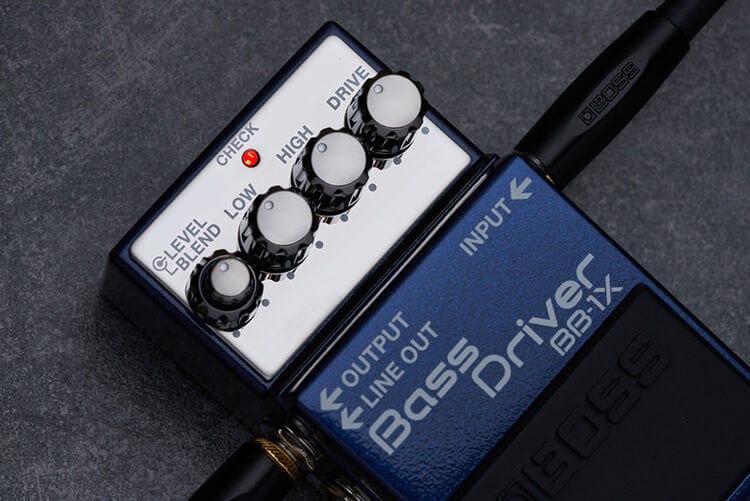

■Controls: Pedal switch, LEVEL knob, BLEND knob, LOW knob, HIGH knob, DRIVE knob
■Indicators: CHECK indicator (also serves as battery check indicator)
■Connections: INPUT jack, OUTPUT jack, LINE OUT jack (1/4-inch TRS connector), AC adapter jack (DC9V)
■Power Supply: Alkaline battery (9V) or manganese battery (9V), AC adapter (sold separately)
■Current Draw: 54mA
■Battery Life During Continuous Use (Varies depending on usage conditions) Alkaline battery: Approximately 6 hours
■Accessories: Warranty card, instruction manual, leaflet (safety precautions, usage precautions, service contact information), alkaline battery (9V); already connected to the unit
■Sold separately: AC adapter (PSA-100)
■Dimensions and weight: 73W x 59H x 129D mm, 450g
~From the manufacturer's website~
・Bring out the unique characteristics of your bass and amp for a thick, punchy sound.
・Advanced distortion that maintains dynamics and prevents low-end thinning, no matter how you play.
・Two-axis BLEND knob for intuitive blending of direct and processed sounds.
・LOW and HIGH tone knobs provide an incredible range of tone control.
・5. Two output systems: an OUTPUT jack for bass amps and a LINE OUT jack for direct balanced connection to a PA or recorder.
- A dedicated LINE OUT tone for practical use, tuned in collaboration with numerous bassists and PA engineers.
- Premium exterior design befitting a special edition.
