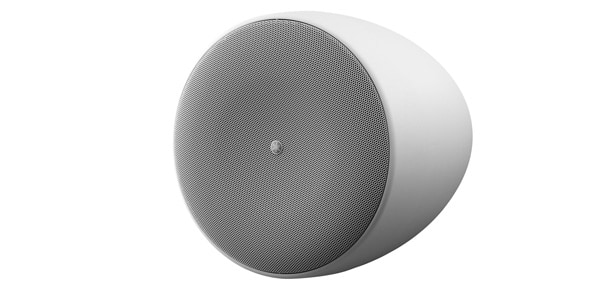

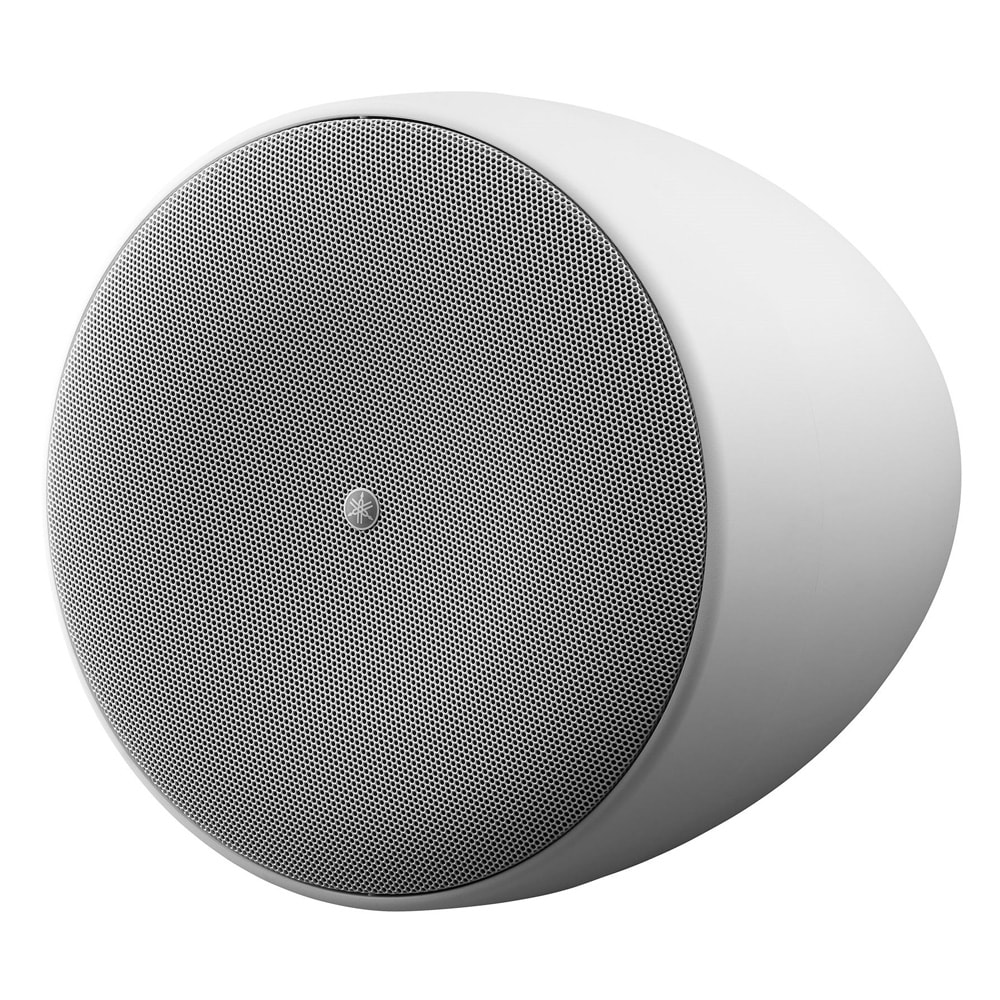

YAMAHA / VXH8W pendant speaker

Variations

The YAMAHA/VXH series are pendant-type speakers that are ideal for installation in facilities with ceilings or atrium structures. The VXH8 has a large power handling capacity of 360W and a narrow nominal directivity angle of 75°, allowing it to reach the intended area from a higher position.

■ Pendant speaker
■ 8 inches
■ 180W
■ 8Ω, 100/70V
■ White
■ 1 unit

The VXH series expands the lineup of speakers for commercial spaces, and is a pendant type speaker that is ideal for installation in facilities with high ceilings and atrium structures. By hanging it in the area where sound amplification is required, it is possible to create an acoustic design that delivers comfortable sound even in facilities with high ceilings, open structures, or sloped ceilings that are difficult to handle with existing ceiling-mounted or surface-mounted types.

■ Format: coaxial 2way, bass reflex type
■ Playback frequency band (-10 dB): 57 Hz - 20 kHz
■ Nominal directivity angle: 75°
■ Crossover frequency: 3 kHz
■ Components
LF 8" (20cm) cone
HF 1" (2.5cm) soft dome
■ Allowable input
NOISE 90W
PGM 180W
MAX 360W
■ Rated impedance
Lo-Z 8Ω
100V 60W/170Ω, 30W/330Ω, 15W/670Ω
70V 60W/83Ω, 30W/170Ω, 15W/330Ω, 7.5W/670Ω
■ Output sound pressure level (1W, 1m) 94dB SPL
■ Maximum output level (calculated value, 1m, Peak) 120dB SPL
■ Connector
Euroblock (4pin) x1 (input: +/-, loop through: +/-)
Wire minimum diameter AWG 24(0.2sq)
Wire maximum diameter AWG 12(3.5sq)
Protection Network and transducer protection in all bands
■ Dimensions (including grille) Φ356 x 434(D)mm
■ Mass (including grill) 7.2kg
■Waterproof and dustproof performance IP45 *When waterproofing the cover hole
■ Bundled items
GRIPPLE Speaker Hanging Kit x1
Euroblock x1
Waterproof cushion x1
Back cover set x1
Instruction manual x1
GRIPPLE KIT INSTALLATION GUIDE x1
■ Packing quantity 1 unit
