YAMAHA / VXC2FW

Variations

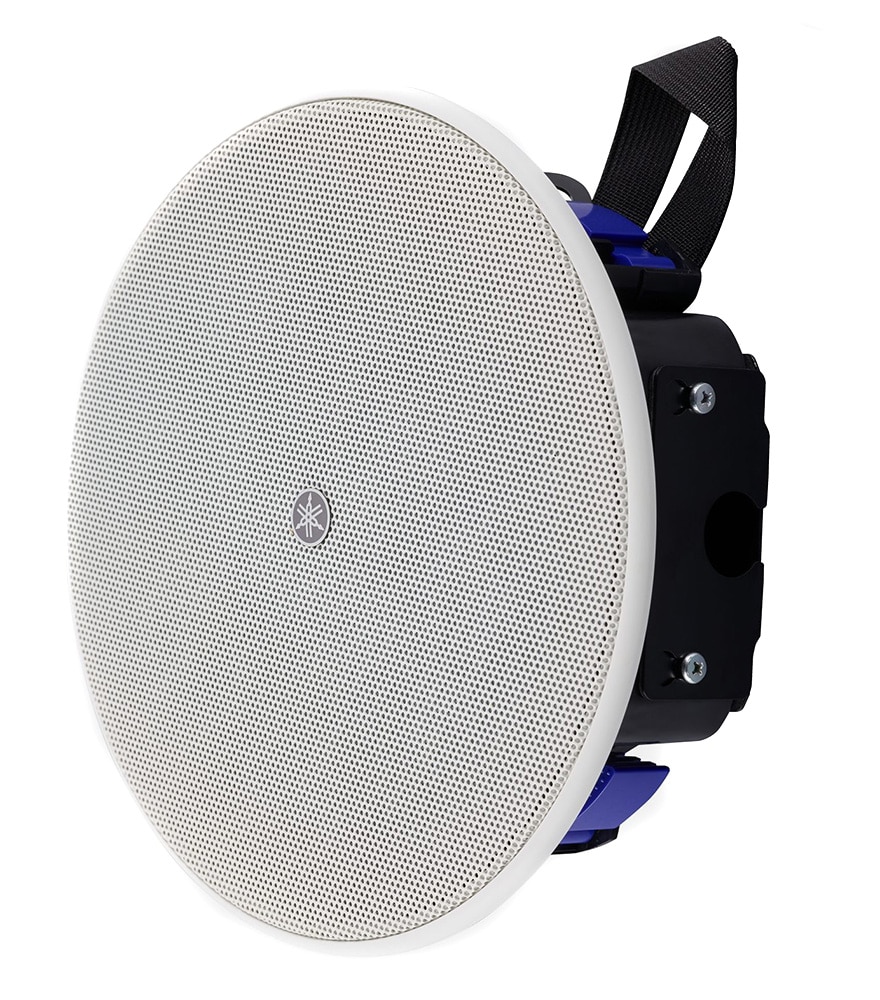

The VXC2FW is a ceiling speaker equipped with a 2.5-inch full-range unit. Its wide coverage allows it to cover a large area with a single unit. It supports both high-impedance and low-impedance connections. Available in white.

■Ceiling Speaker

■30W/8Ω

■High Impedance Compatible

■1 Unit

■White

・Equipped with a 2.5"" full-range unit

・Optimal acoustic design for background music playback

・Wide coverage to cover a wide area with a single unit

・Supports both high-impedance and low-impedance connections with a single unit

・Low-profile model suitable for limited ceiling spaces

・Equipped with a ""carry band"" for safe installation

・Quick installation with a double-threaded screw clamp mechanism

・Paintable magnetic catch grille

・1.7kg, ?225 x D89 mm

The ""VXC Series"" delivers pleasant music playback and easy-to-hear announcements.

The ""F model"" is a ceiling speaker that provides the highest sound quality for background music playback required in various settings such as restaurants, apparel shops, and hotels. Compared to the standard models in the same series, ""VXC4,"" ""VXC6,"" and ""VXC8,"" the back can depth has been reduced, further increasing installation flexibility.

Furthermore, like the standard models, it supports both low-impedance and high-impedance connections with a single unit, and the speaker itself features a smart mechanism that enables safe and quick installation.

■Type: Full-range back-can bass reflex

■Components:

6.4cm (2.5-inch)

Full-range unit

■Nominal Directivity (1kHz-4kHz average): 160° conical

■Power Handling / Rated Impedance

Lo-Z: 15W (NOISE), 30W (PGM), 60W (MAX) / 8Ω

100V System:

15W / 670Ω

7.5W / 1.3kΩ

3.8W / 2.7kΩ

1.9W / 5.4Ω

70V System:

15W / 330Ω

7.5W / 670Ω

3.8W / 1.3kΩ

1.9W / 2.7kΩ

1W / 5.4Ω

■Output Sound Pressure Level: 86 dB SPL

■Maximum Output Sound Pressure Level (Calculated, 1m): 104 dB SPL

■Frequency Response (-10 dB): 67 Hz - 20 kHz

■Connector: Euroblock (4-pin) x 1 (Input: +/-, Loop-through: +/-)

■Protection: Network and transducer protected across the entire frequency range

■Finish

VXC2FW: White (Munsell N9.3 approx.)

■Dimensions: φ225 × 89H mm

■Weight: 1.7 kg

■Opening Dimension: φ186 mm

■Mountable Panel Thickness: 5 mm - 37 mm

■Accessories

Drilling Template

Euroblock (4-pin)

Terminal Cover

■Package Quantity: 1

■Other Compatible Piping: φ15.4 mm - φ21.3 mm

■Optional Accessories (Sold Separately):

PK-C4W: Pendant Mount Kit

AB-C2: Ceiling Reinforcement O-ring and Hanging Bracket
