YAMAHA / VXC2FB

Variations

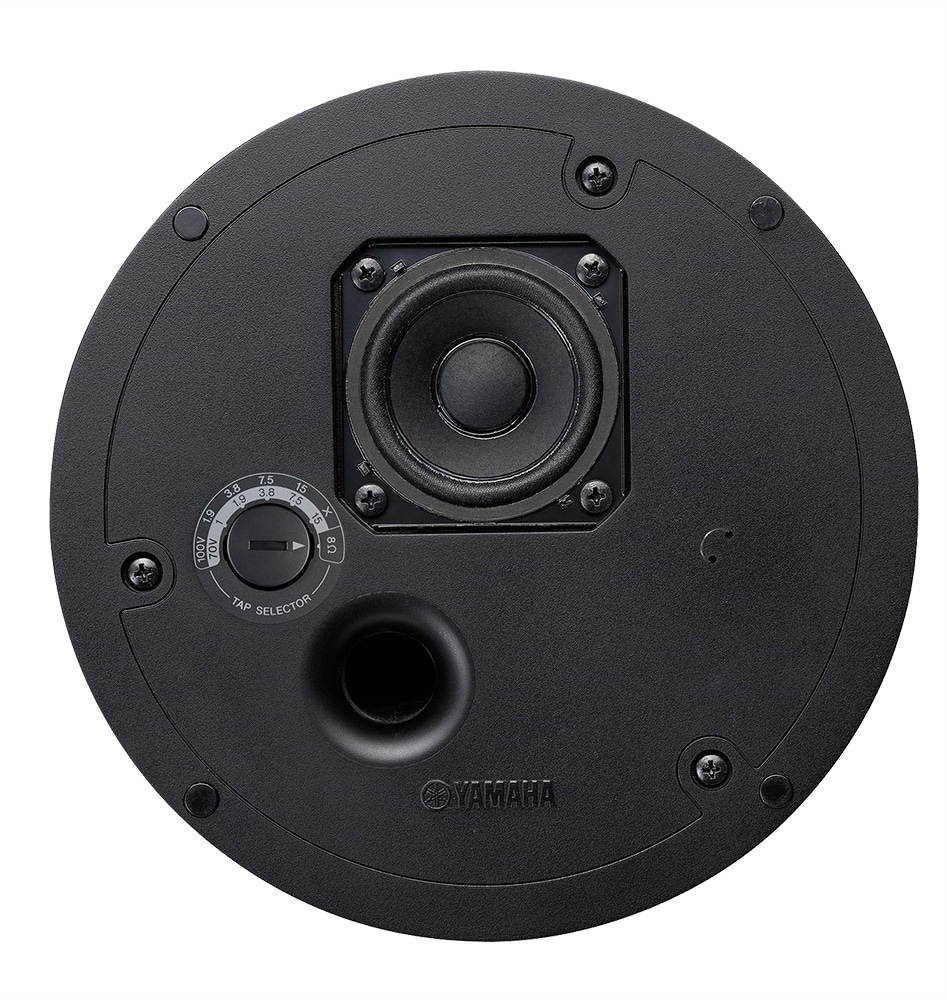

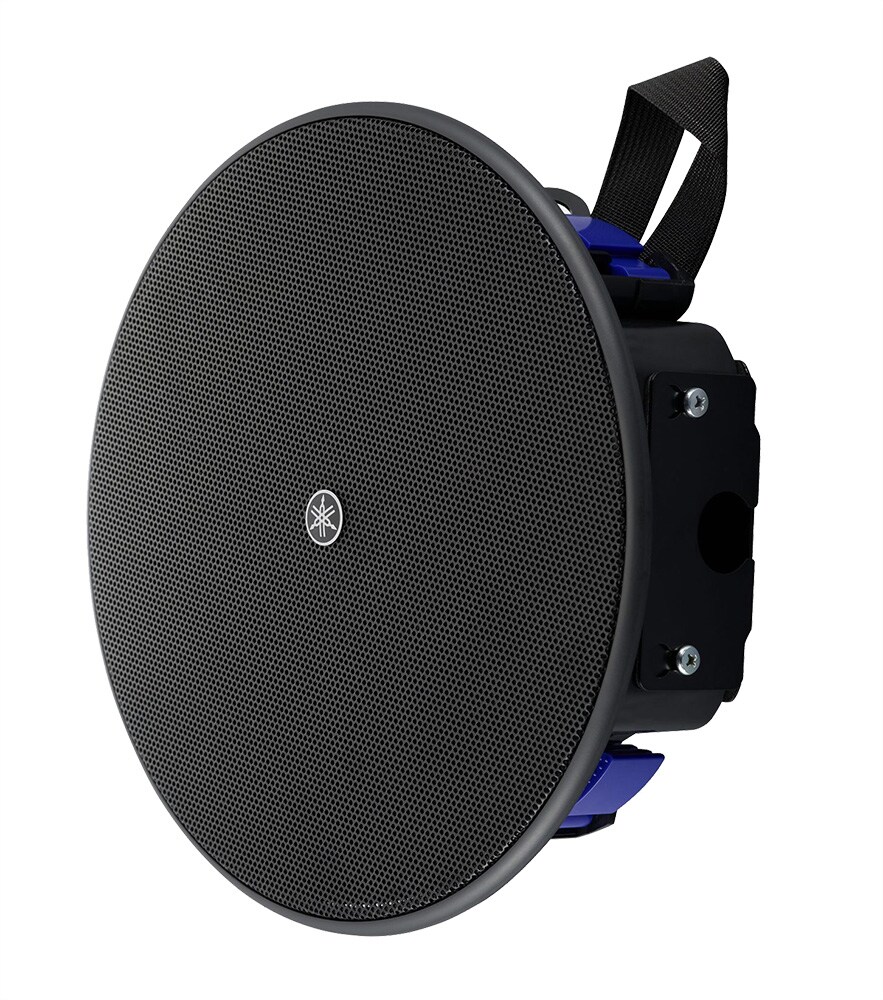

VXC2FBはシーリングスピーカー。2.5"フルレンジユニットを搭載。ワイドカバレッジにより1台で広範囲のエリアをカバー。ハイインピーダンス接続/ローインピーダンス接続の両方に対応。

■ Ceiling speaker
■ 30W / 8Ω
■ High impedance
■ One piece
■ Black

＜Specifications＞
■ Full-range back can, Bass reflex
■ Components:
6.4 cm (2.5 inch)
Full range unit
■ Nominal directional angle (1kHz to 4kHz average): 160 ° cone
■ Allowable input / rated impedance
Lo-Z: 15W (NOISE), 30W (PGM), 60W (MAX) / 8Ω
100V system:
15W / 670Ω
7.5W / 1.3kΩ
3.8W / 2.7kΩ
1.9W / 5.4Ω
70V system:
15W / 330Ω
7.5W / 670Ω
3.8W / 1.3kΩ
1.9W / 2.7kΩ
1W / 5.4Ω
■ Output sound pressure level: 86 dB SPL
■ Maximum output sound pressure level (calculated value, 1m): 104 dB SPL
■ Reproduction frequency band (-10 dB): 67 Hz-20 kHz

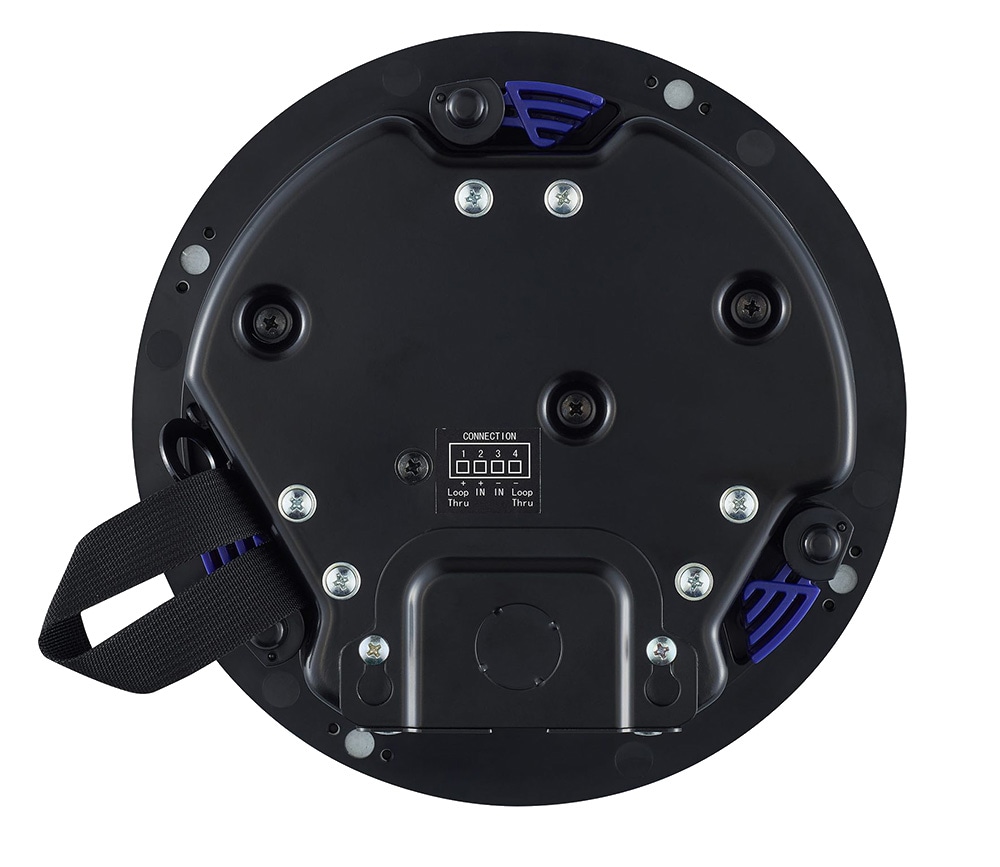

■ Connector: Euroblock (4-pin) × 1 (Input: +/-, Loop-through: +/-)
■ Protection: Protects network and transducers in all bands
■ Finish VXC5F:
VXC2FB: Black (Munsell N3 approximation)
■ Dimensions: 225 x 89H mm
■ Weight: 1.7 kg
■ Front dimensions: 186 mm
■ Installable plate thickness: 5 mm-37 mm
■ Accessories
Template for drilling
Euroblock (4-pin)
Terminal cover
■ One piece
■ Compatible pipe size: φ15.4 mm-φ21.3 mm
■ Options sold separately:
PK-C4B: Pendant mount kit
AB-C2: O-ring for ceiling reinforcement and hanging bracket
