YAMAHA / VXC8SB

Variations

■ Ceiling subwoofer
■ 200W / 8Ω
■ High impedance
■ One piece
■ Black

＜Specifications＞
■ Bandpass type subwoofer
■ Allowable input
NOISE: 100W
PGM: 200W
MAX: 400W
■ Rated impedance
Lo-Z: 8Ω

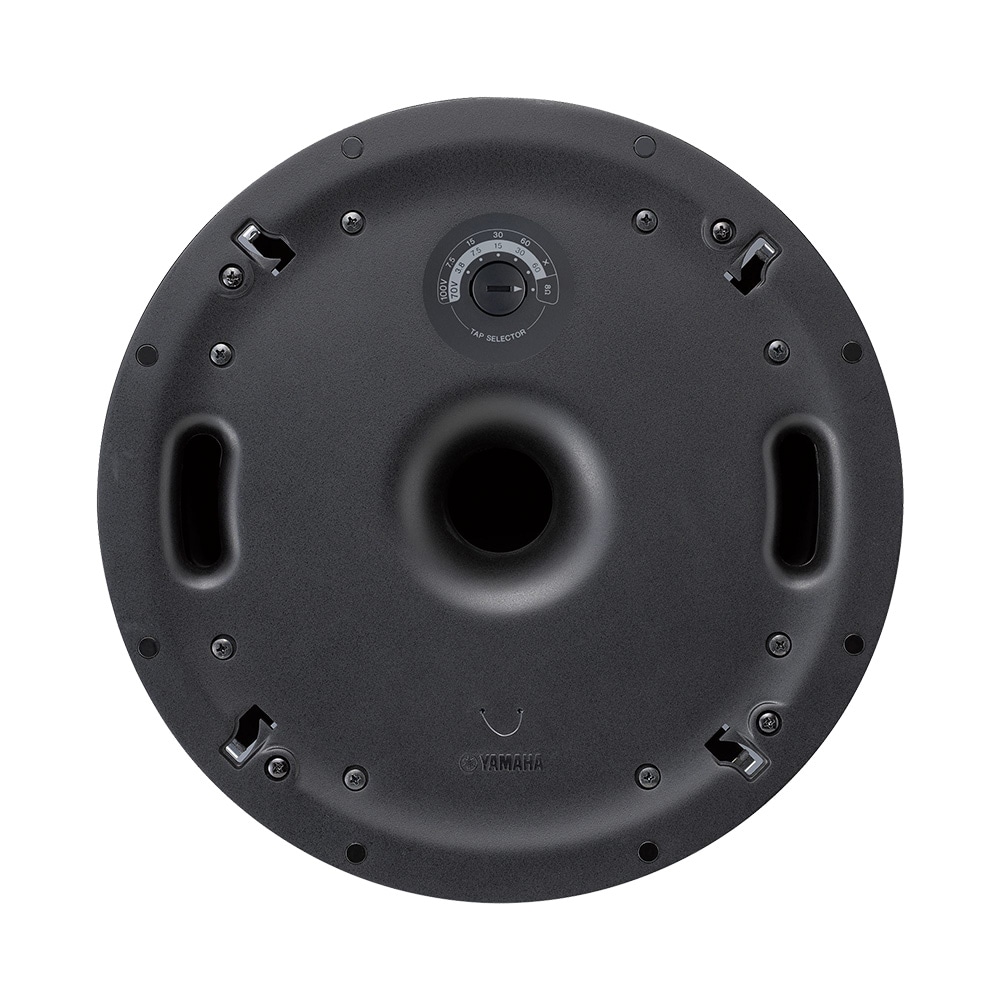

100V system
60W / 170Ω
30W / 330Ω
15W / 670Ω
7.5W / 1.3kΩ
70V system
60W / 83Ω
30W / 170Ω
15W / 330Ω
7.5W / 670Ω
3.8W / 1.3kΩ
■ Sensitivity (1W, 1m): 88dB SPL
■ Maximum output sound pressure level: 114 dB SPL
■ Reproduction frequency band (-10 dB): 67 Hz-20 kHz
■ Component: 20.3cm (8 inch) cone

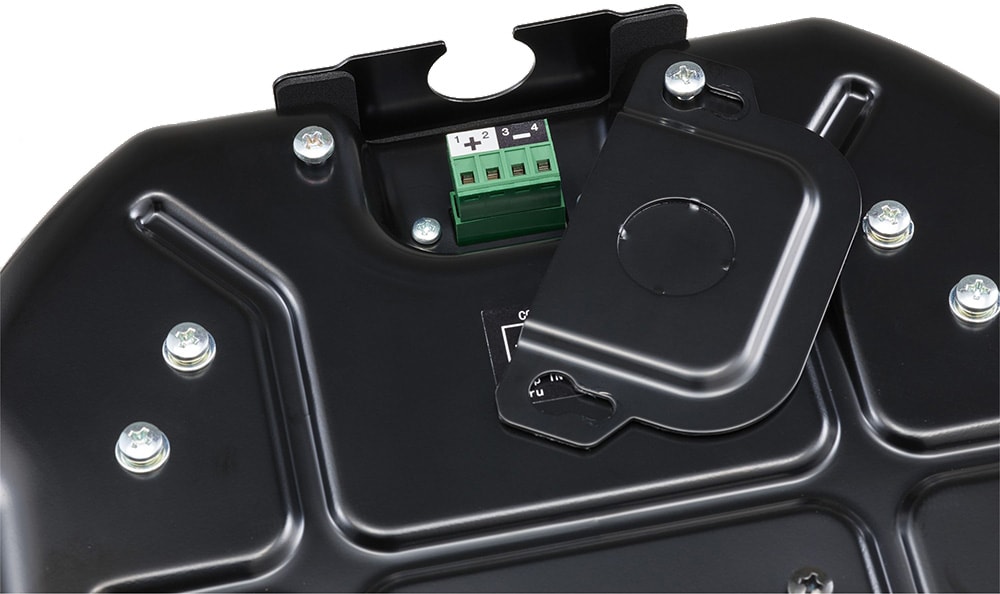

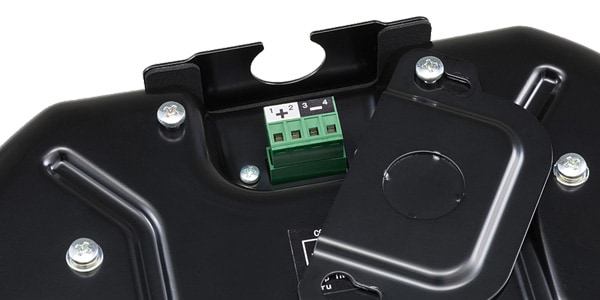

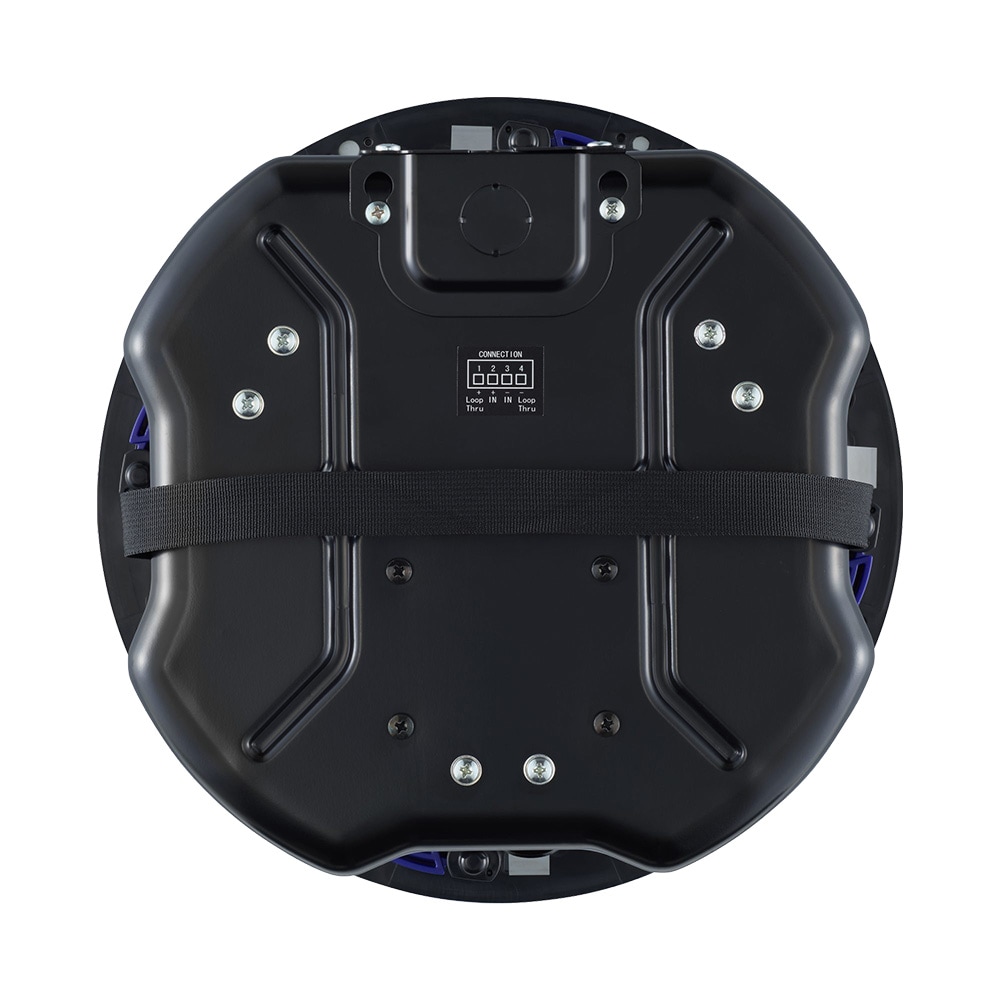

■ Connector: Euroblock (4-pin) x 1 (Input: +/-, Loop-through: +/-)
■ Protection: Protects network and transducers in all bands
■ Finish
VXC8SB: Black (Munsell N3 approximation)
■ Dimensions and weight: φ324 × 314Hmm, 8.7kg (opening dimension: φ285mm)
■ Accessories:
O-ring
Bolt suspension bracket
Template for drilling
Euroblock (4-pin)
Terminal cover
■ One piece
■ Compatible pipe diameter: φ15.4 mm-φ21.3 mm
