YAMAHA / VXC8SW

Variations

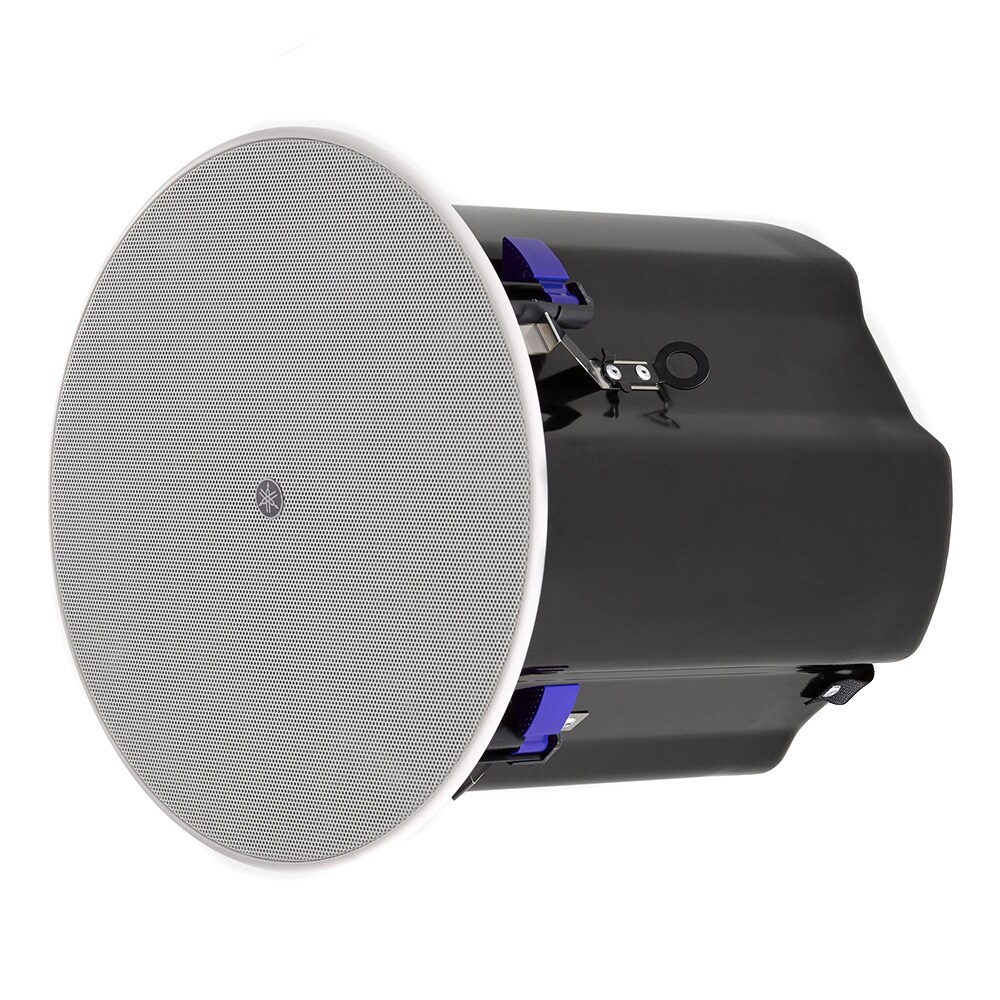

The VXC8SW is an 8-inch ceiling subwoofer. It employs a distortion-resistant bandpass design for extended bass response. It supports both high-impedance and low-impedance connections. Quick installation is possible thanks to its double-threaded clamp mechanism. Available in white.

■Ceiling Subwoofer

■200W/8Ω

■High Impedance Compatible

■1 Unit

■White

・A subwoofer perfectly suited to the VXC and VXS series in terms of sound quality and size.

・Extended bass thanks to a distortion-resistant bandpass design.

・Supports both high-impedance and low-impedance connections with a single unit.

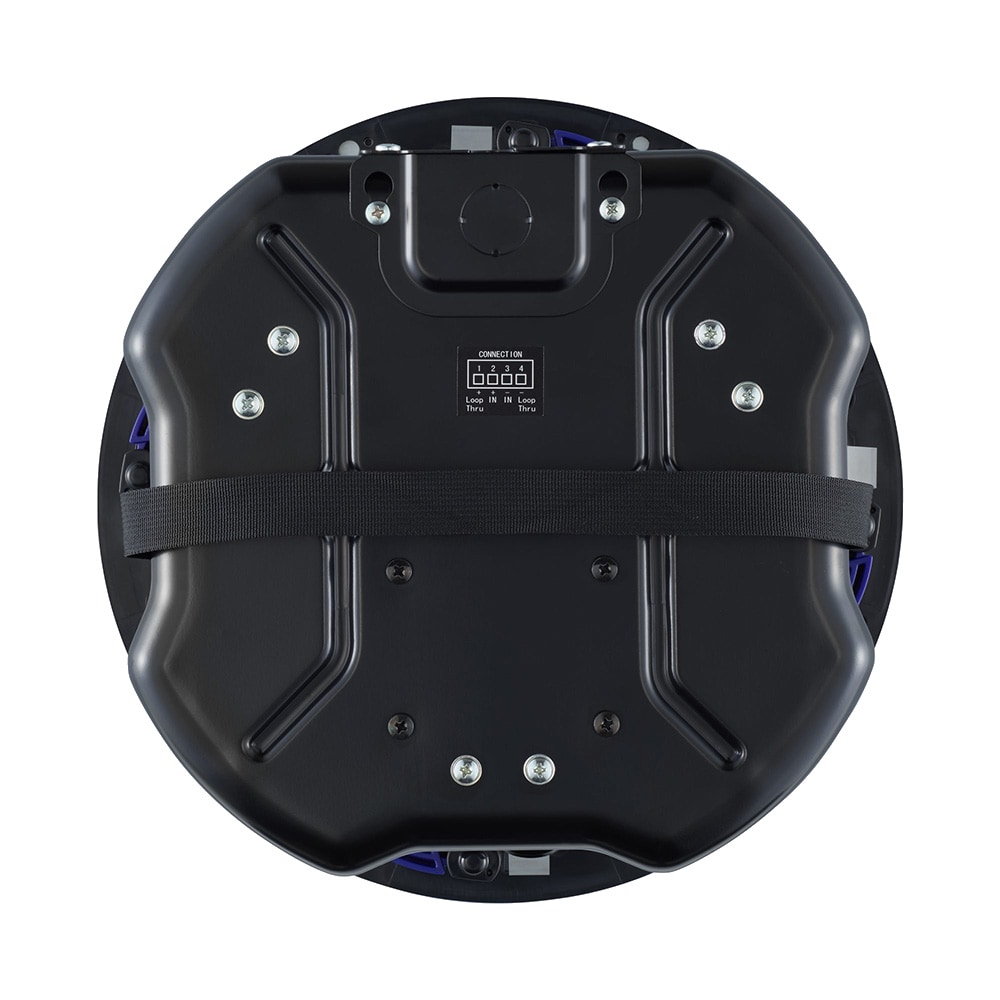

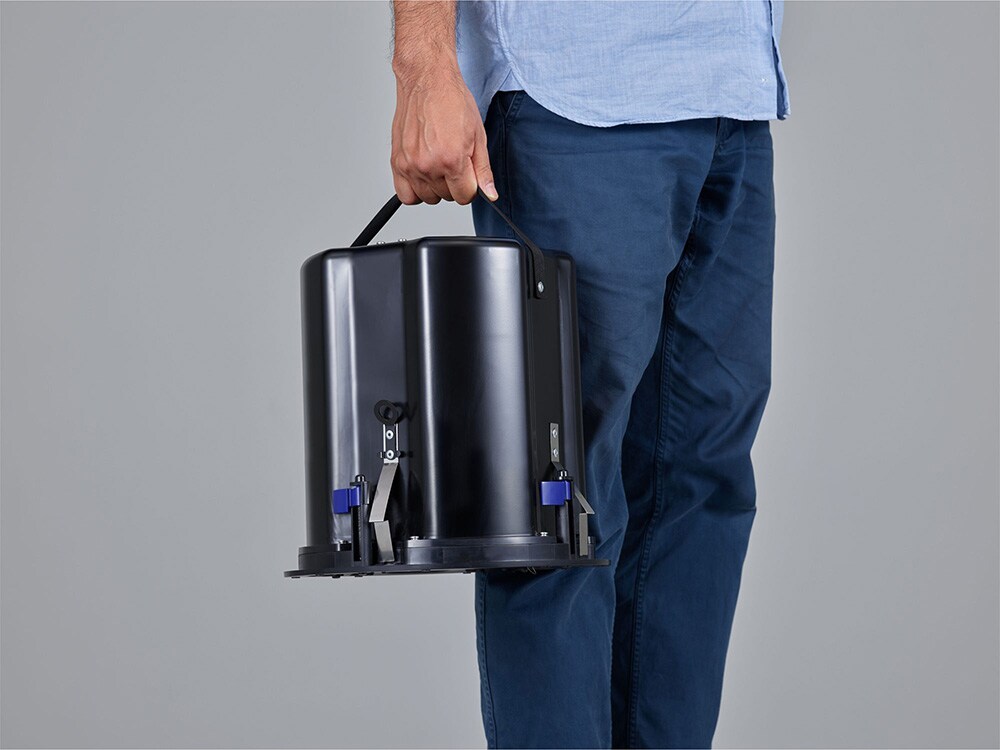

・Equipped with a ""carry band"" for safe installation.

・Equipped with an ""anti-drop tab"" mechanism for secure temporary fastening.

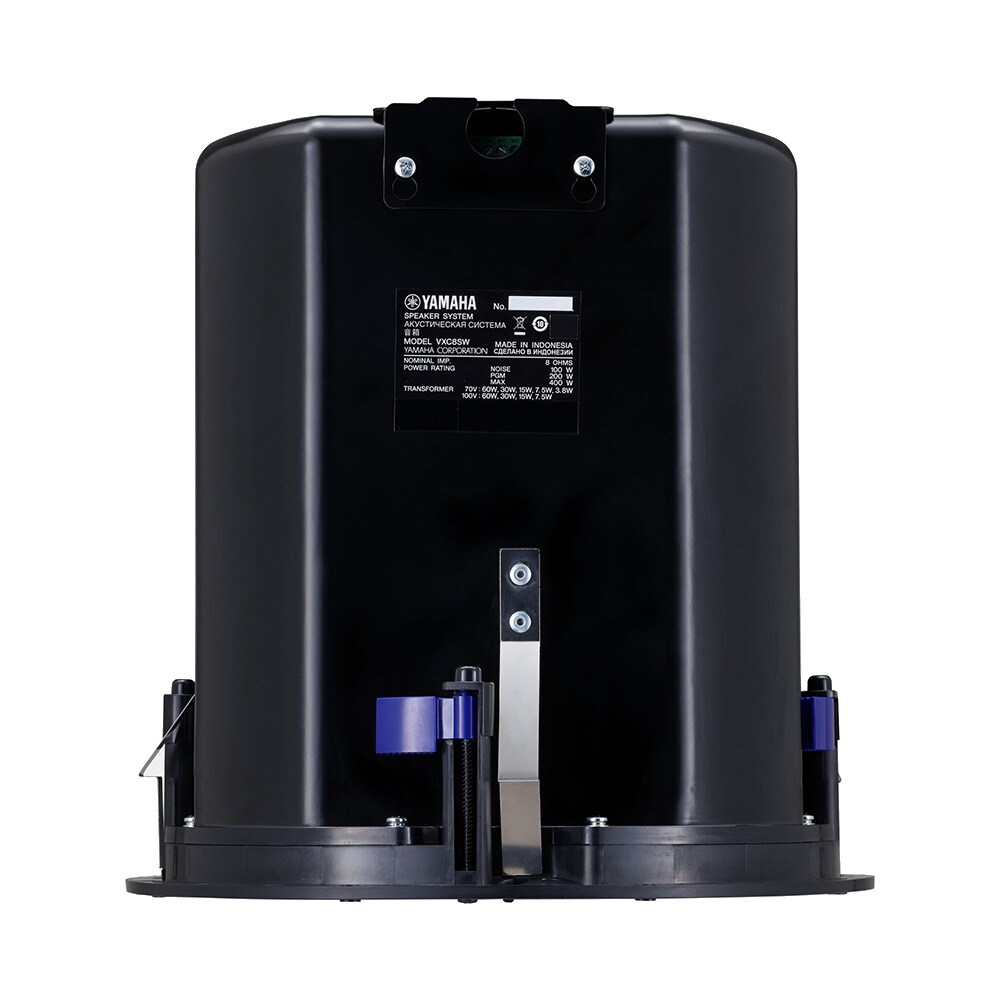

・Quick installation with a double-threaded screw clamp mechanism.

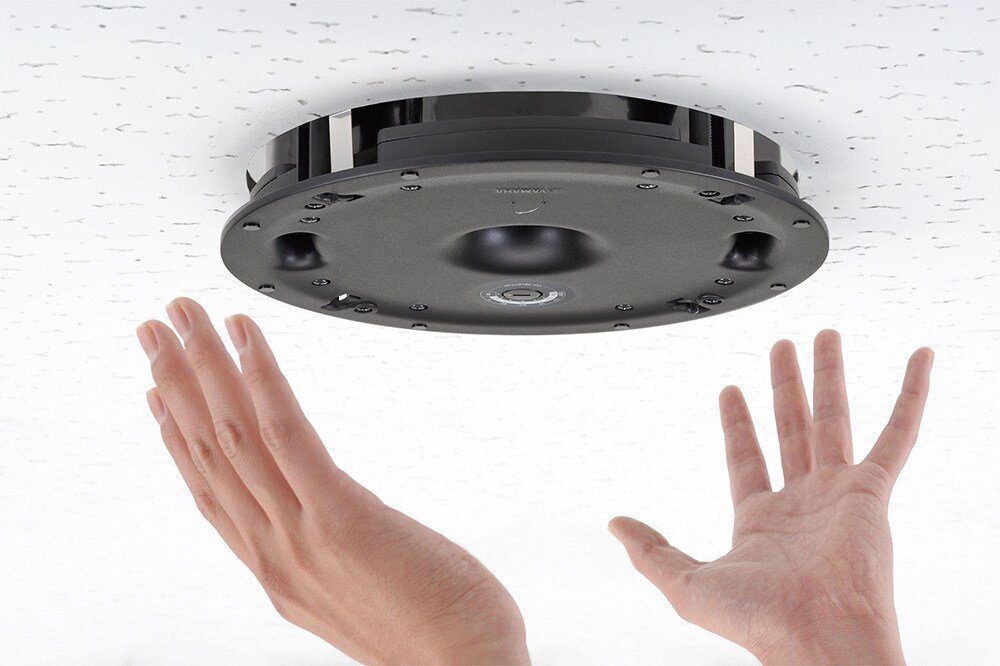

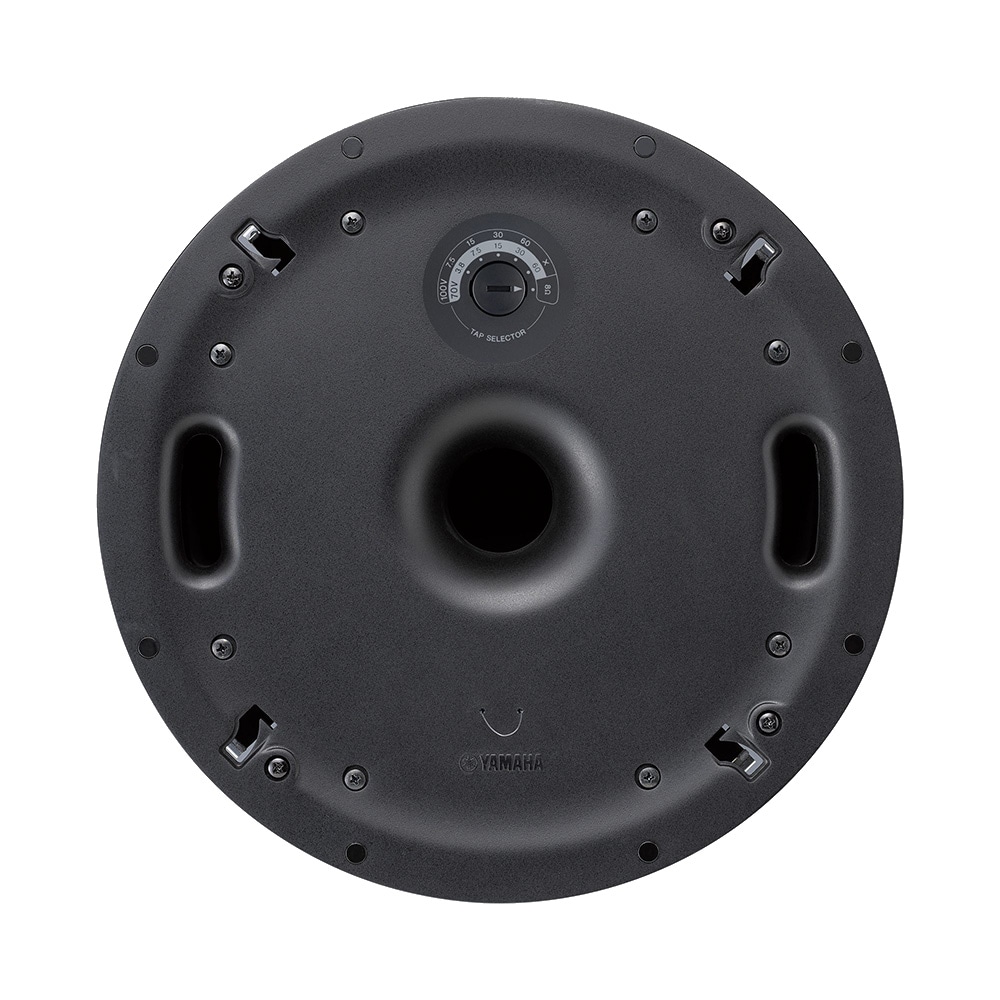

・Paintable magnetic catch grille.

・8.7kg, φ324 x D314 mm

A powerful tool for creating a higher-grade sound space.

The VXC-S series model is a ceiling subwoofer that perfectly matches the VXC and VXS series. It naturally extends the low frequencies, adding volume and enabling high-quality, rich music reproduction. Its ceiling-mounted design allows for installation without interfering with interior design.

■Type: Bandpass Subwoofer

■Power Handling

NOISE: 100W

PGM: 200W

MAX: 400W

■Rated Impedance

Lo-Z: 8Ω

100V System

60W / 170Ω

30W / 330Ω

15W / 670Ω

7.5W / 1.3kΩ

70V System

60W / 83Ω

30W / 170Ω

15W / 330Ω

7.5W / 670Ω

3.8W / 1.3kΩ

■Sensitivity (1W, 1m): 88dB SPL

■Maximum Output Sound Pressure Level: 114 dB SPL

■Frequency Response (-10 dB): 67 Hz - 20 kHz

■Components: 20.3cm (8-inch) cone

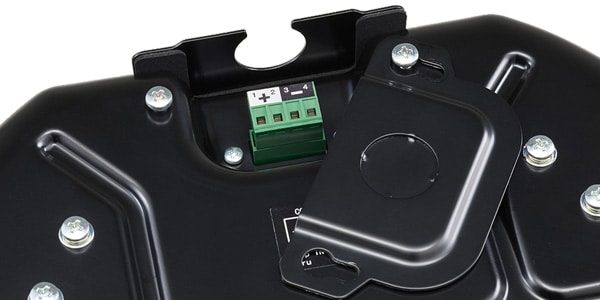

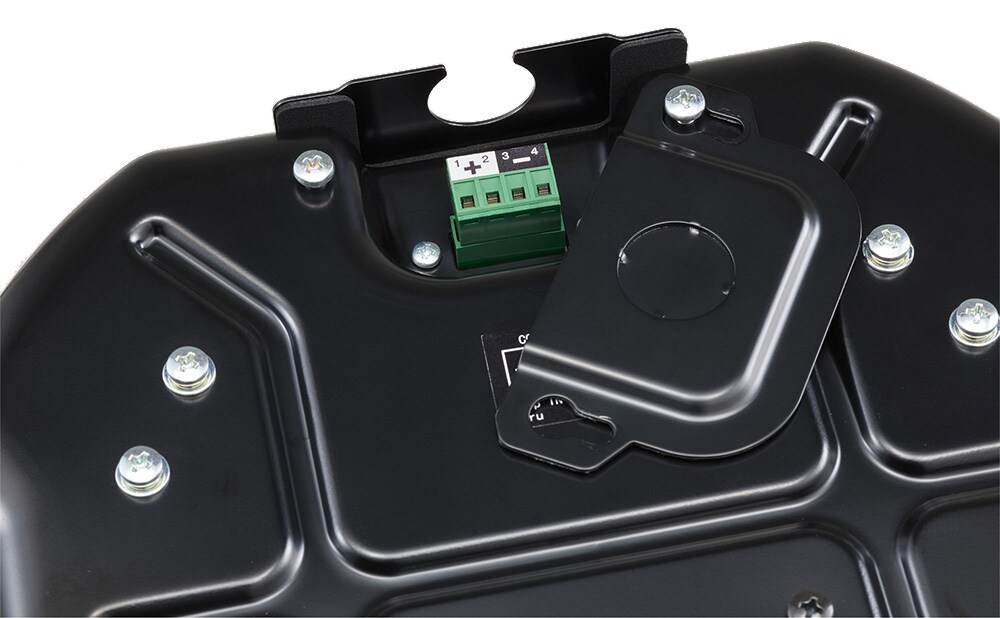

■Connector: Euroblock (4-pin) x 1 (Input: +/-, Loop-through: +/-)

■Protection: Protects network and transducer across the entire frequency range

■Finish

VXC8SW: White (Munsell N9.3 approx.)

■Dimensions, Weight: φ324 x 314Hmm, 8.7kg (Opening dimensions: φ285mm)

■Accessories

O-ring

Bolt suspension bracket

Drilling template

Euroblock (4-pin)

Terminal cover

■Package Quantity: 1 unit

■Other: Compatible piping: φ15.4 mm - φ21.3 mm
