SAMSON/MD2 Pro Stereo DI

SAMSON / MD2 Pro Stereo DI

メーカーサイト商品ページ

Variations

The MD2 Pro is the top-of-the-line model in the series, supporting stereo input and output. Like the mono-designed models, it also features a gain switch and a SUM switch, making it the direct box that best meets a wide range of needs.

こちらの
商品も
オススメ！

CLASSIC PRO ダイレクトボックス CDI-2P

ダイレクトボックス、パッシブタイプ、2ch

To The Max

MD2 Proは、各チャンネルに0dB／-10dB／-20dBの3段階PADスイッチを搭載。ラインレベル信号とスピーカーレベル信号を切り替えて使用でき、幅広い機器との接続に対応します。
また、ステレオ／モノラル切替機能を備え、一般的なモノラルPAシステムにも柔軟に対応。
THRU（スルー）出力により、入力信号をそのままアンプやモニターへ送ることができるため、原音に影響を与えることなく信号を分配できます。
特に、ギターアンプのマイキングが難しい環境や、インイヤーモニターを使用するシステムなどで便利な機能です。

Clean, Clear Signal

MD2 Proは、Samson製STLX Mu-Metalシールドトランスを2基搭載。広帯域でフラットな周波数特性と超低歪みを実現するとともに、ハムノイズや高周波（RF）ノイズを効果的に抑制します。バランス出力により、アンバランス接続に比べてノイズの影響を受けにくく、長距離ケーブルでもクリアな信号伝送が可能です。

Roadworthy Construction

14ゲージ・スチール製シャーシを採用し、ツアーやライブなどの過酷な使用環境にも対応。堅牢な筐体が内部の配線やスイッチ、はんだ接合部を保護し、高い耐久性と信頼性を実現します。

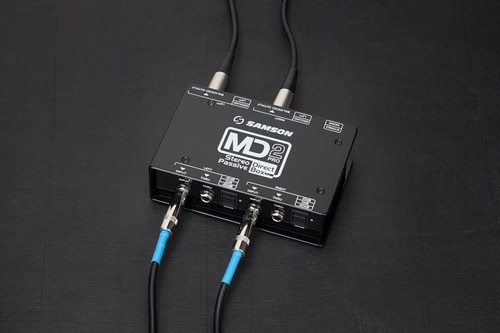

The Samson MD2 Pro stereo passive direct box condenses two premium direct boxes into a single case. Its robust construction and two shielded transformers provide a high-quality signal solution for a variety of live sound and recording applications. The MD2 Pro is ideal for converting unbalanced stereo line/instrument-level signals from keyboards, electronic drum kits, acoustic/electric guitars, and more.

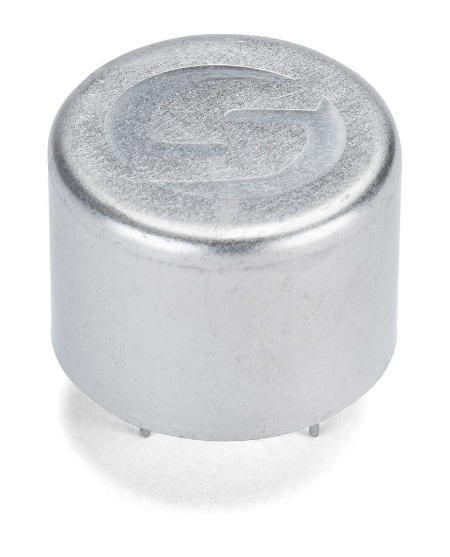

■ Custom STLX Transformers

The MD2 Pro features two key functions: Samson's STLX Mu-Metal shielded transformers provide ultra-low distortion, superior protection against hum and RF interference, and an extended, flat frequency response. The MD2 Pro's balanced output provides a cleaner signal that is less susceptible to noise than unbalanced transmission, allowing for longer cable runs. The MD2 Pro also features a stereo/mono SUM switch, as well as three-position 0dB/-10dB/-20dB attenuation switches for each input to switch between line and speaker level signals.

■Thru-Jack

The MD2 Pro's thru-jack allows you to extract the input signal without affecting the original audio, and pass the signal to an amplifier or monitor. Depending on the application, this is particularly suitable for musicians using in-ear monitors.

■Roadworthy Construction

Housed in a 14-gauge steel chassis, the MD2 Pro is designed to withstand the most demanding live tour conditions. Its robust exterior protects all internal connections, switches, and solder joints from impact, ensuring high reliability.

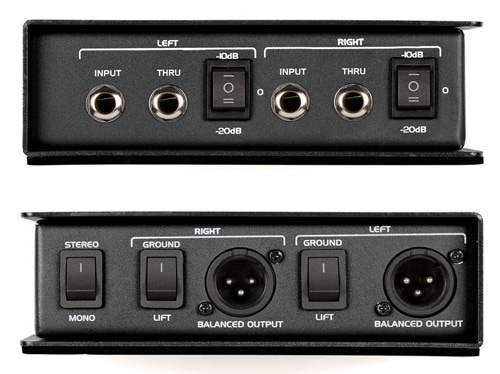

■Features

? All-metal impact-resistant design

? Dual Samson STLX mu-metal shielded transformers

? Stereo/mono SUM switch

? Dual 3-position 0dB/-10dB/-20dB attenuation switch

? Dual ground lift switch

? Dual 1/4"" input and thru

? Dual balanced XLR output

? Passive design

? 18Hz?40kHz frequency response
