KLARK TEKNIK / DN200-V2

This is a 2-channel version of our classic active DI box, reborn with a new design. It's a direct box that combines robustness to withstand the demanding conditions of stage use with high-quality sound.

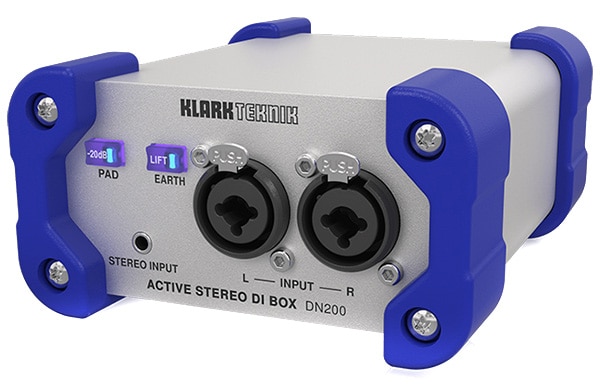

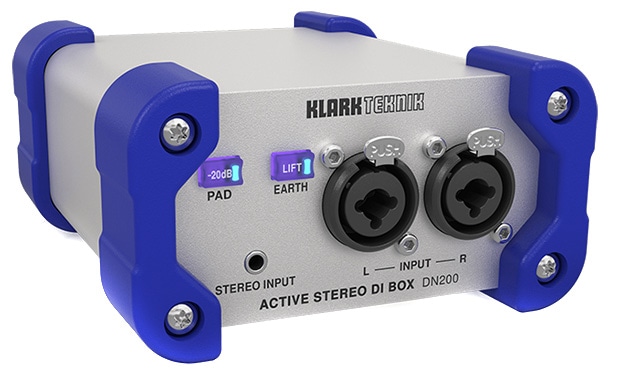

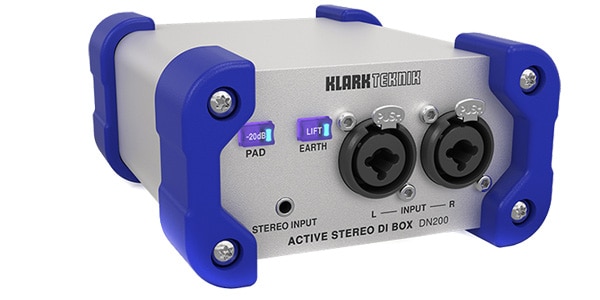

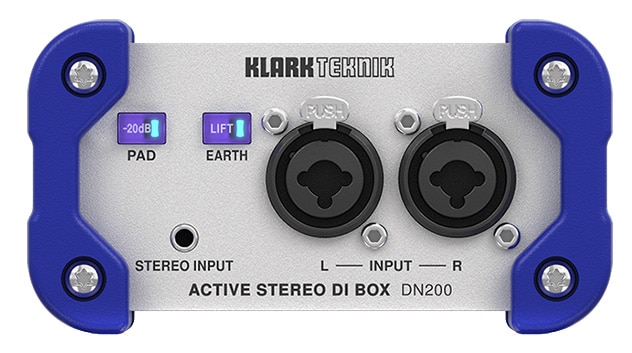

■Input

? Connectors: 2 x Combo XLR, 2 x 1/4"" TRS Link Jacks, 1/8"" Stereo TRS Jack

? Impedance: 1MΩ (Balanced Combo and Link Jacks), 20kΩ (Combo XLR only), 500kΩ (Unbalanced 1/8"" Stereo TRS Jack)

? Maximum Input Level: 28 dBu Combo XLR and TRS Link Jacks (Pad Compatible), 21 dBu 1/8"" TRS Jack (Pad Compatible)

? Attenuator: 20 dB Pad

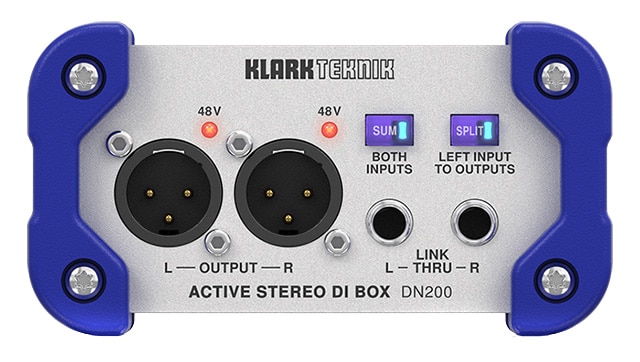

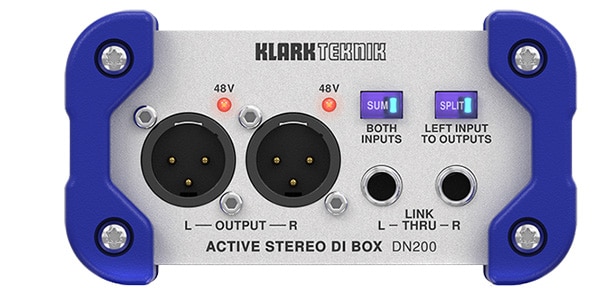

■Output

? Connectors: 2 x 3-pin XLR

? Impedance: 50Ω

? Maximum Output Level: 13 dBu with 10 kΩ load, 10 dBu with 600 Ω load

? Minimum Load: 600 Ω

■System

? Noise: -103 dBu, 22 Hz - 22 Unweighted kHz, input terminated with 10kΩ resistor

* Frequency response: 20 Hz to 20 kHz, ±1 dB, 10 kΩ load

* Twist (THD + N): Typically <0.005% @ 1 kHz, +10 dBu

* Crosstalk: <100 dB @ 1 kHz, input terminated

■ Voltage Requirements

* Voltage: +48 V phantom

* Current consumption: <10 mA per channel

■ Physical

* Dimensions: 118 x 63 x 142 mm (4.7 x 2.5 x 5.6"")

* Weight: 0.65 kg (1.43 lbs)
