YAMAHA / MG12XUK Analog Mixer 12ch

This mixing console is designed for creating expressive music, featuring carefully selected microphone preamps and the high-grade compressors and EQs essential for sound creation. Its metal chassis body not only ensures durability, but also creates a stylish, industry-standard MG series standard model. It also features a rotary fader.

■Type: Analog Mixer
■Number of Mono Channels: 6
■Number of Stereo Channels: 3
■EQ: 3-band (mono ch), 2-band (stereo ch)
■AUX: 1 (Built-in FX)
■Groups (Bus): None
■Digital Effects: 1 (24 types)
■Dimensions (W x H x D): 315 x 91 x 297 mm
■Weight: 3.0 kg
■Other:

~From the Manufacturer~
◆D-PRE (D-PRE Discrete Class-A Microphone Preamp)
The D-PRE microphone preamp employs an inverted Darlington circuit, a design often used in high-end audio amplifiers. This circuit utilizes multiple amplification elements for high current and low impedance. The resulting sound is rich and smooth, with a crisp, lustrous midrange, while also providing a natural, open, and airy feel. The D-PRE is meticulously tuned to reproduce the original sound faithfully, with a flat response across the entire frequency range.

◆The key to high-quality sound lies in the op-amp.
As part of the development of the MG series, we developed a new, high-quality, custom-made op-amp, the MG01. While many op-amps on the market emphasize electrical characteristics and efficiency, we focused on sound quality first and foremost. The MG01 op-amp is a product of our own making, optimizing its internal components and wiring, and carefully selecting high-quality silicon wafers and copper wire for superior performance.

◆A one-knob compressor that delivers professional sound with just one knob.
Achieve optimal compression for everything from vocals to instruments, achieving a professional sound without having to memorize complex names or operating principles or connect a separate compressor.

◆EQ and High-Pass Filter
Mono channels on the MG10 and above are equipped with a 3-band EQ. Each mono channel is equipped with a high-pass filter to remove unwanted low frequencies and allow for clearer mixing.

◆Mono Input Channels for Maximum Channel Utilization
Mono inputs feature high-quality, renowned Neutrik combo jacks, accepting both microphone and line-level signals. They also feature a 26dB pad for handling high-volume sources. Stereo line inputs on MG12 and above also feature standard XLR connectors, allowing for full channel utilization.

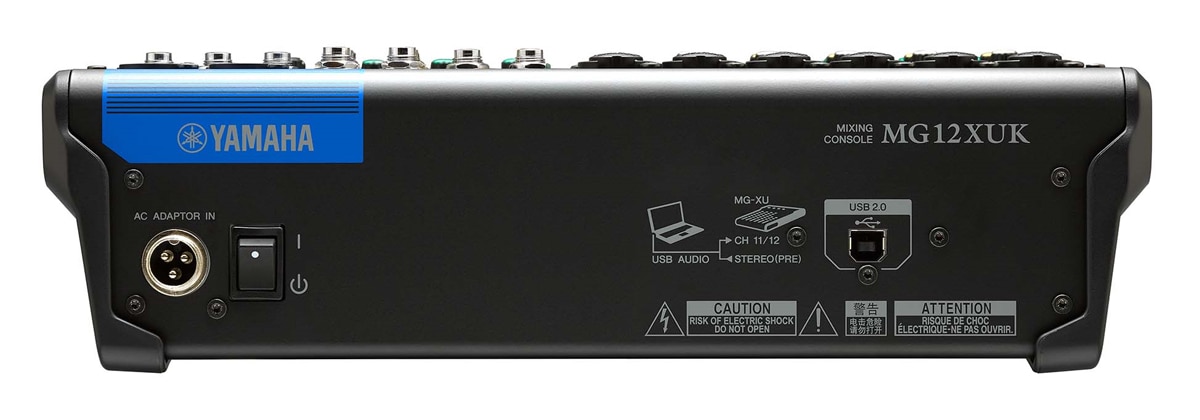

◆Output Channels with Flexible Output Configuration
While smaller models tend to omit the main XLR output, all models feature XLR and phone jacks.

◆SPX Digital Effects
The SPX Digital Multi-Effects Processor offers 24 editable programs to suit any situation, allowing you to color your sound in a variety of ways. You'll be captivated by its natural, realistic, high-quality reverb and delay sounds. Connecting the optional FC5 footswitch allows you to turn effects on and off with your foot.

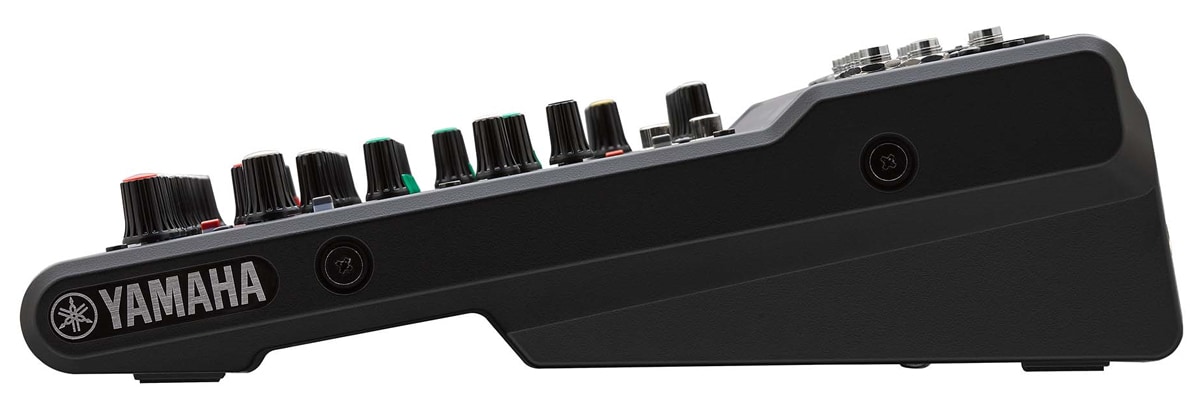

◆The robustness of the metal chassis
The powder-coated metal chassis enhances impact resistance, boasting unprecedented durability. The sleek design allows for optimal convection cooling, and the internal layout separates the power supply circuit from the analog circuit, thoroughly eliminating the effects of noise and contributing to a longer lifespan for the internal components. Furthermore, the knobs have been carefully positioned to distribute impacts on the panel surface and absorb damage to the internal circuit board.

*When we provide repairs/support, we generally do not provide replacement units. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
