JBL / EON208P

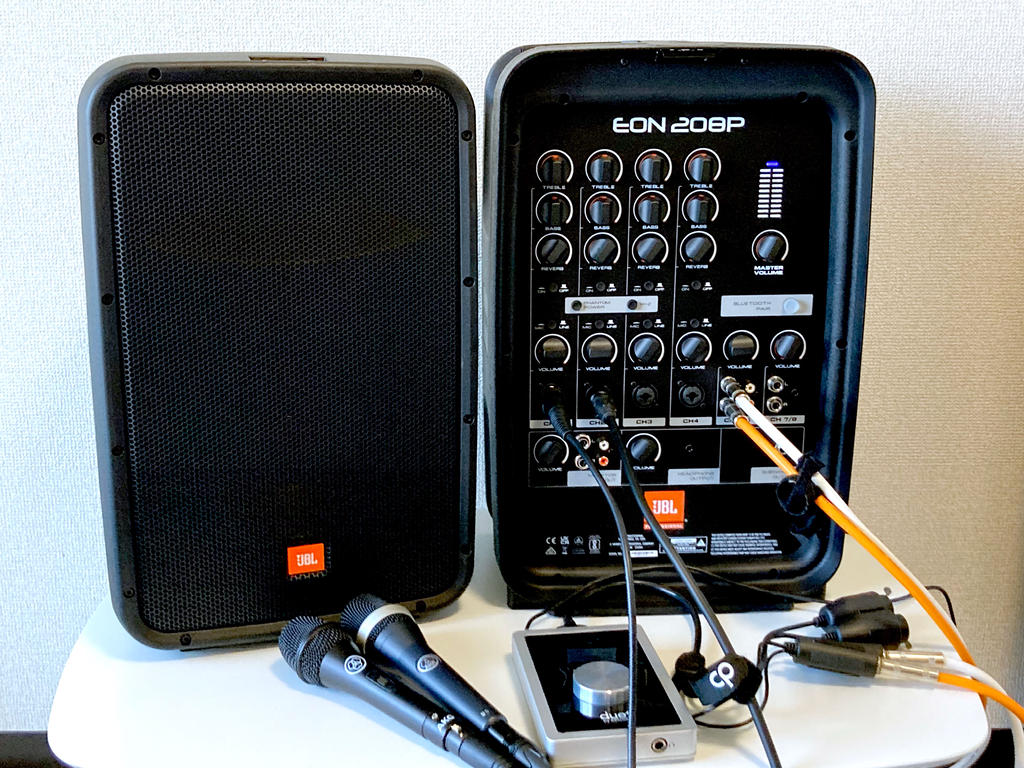

JBL / EON208P is a self-contained, portable PA system. A microphone and a microphone cable are included, and can be used immediately from the day it arrives! It also supports line level devices such as microphones and CD decks, high-impedance inputs such as guitars and basses, and Bluetooth devices. The mixer and speaker can be clipped together for easy carrying.

■ Input terminals:
1-4ch: Combo jack
5 / 6ch: Phone x 2, RCA x 2
7 / 8ch: phone x 2, stereo mini
■ Output terminals:
Monitor: Phone x 2, RCA x 2
Headphones: Stereo mini
Subwoofer: Phone
Speaker: Phone x 2
Outputs: 300W (150W x 2)
■ Frequency range (-10dB): 60Hz-20kHz
■ Maximum sound pressure level: 121dB SPL (peak)
■ 48V phantom power supply (CH1/2)
■ Compatible with high impedance connections such as guitar / bass (3ch)
■ Driver configuration:
LF: 8 inch (203mm)
HF: 1 inch (25mm)
■ Directional angle (horizontal x vertical): 100 ° x 60 °
■ Dimensions (W × H × D):
Combined for transport: 658 × 465 × 301mm
Mixer: 301 × 465 × 206mm
Speaker: 296 × 457 × 259mm
■ Weight:
Combined for transport: 16 kg (body only)
Mixer: 4.7kg
Speaker: 5.7kg
■ Accessories

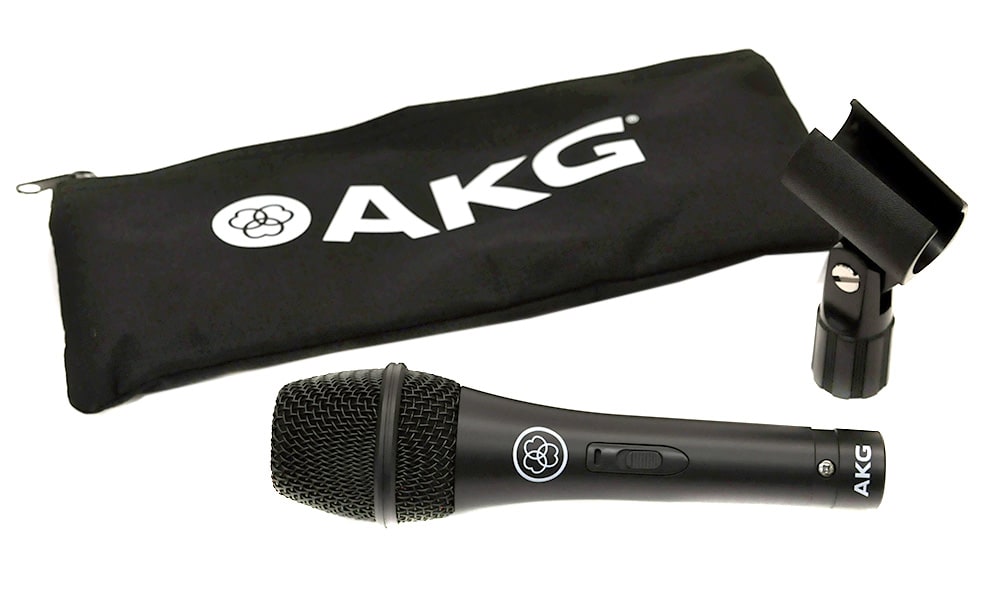

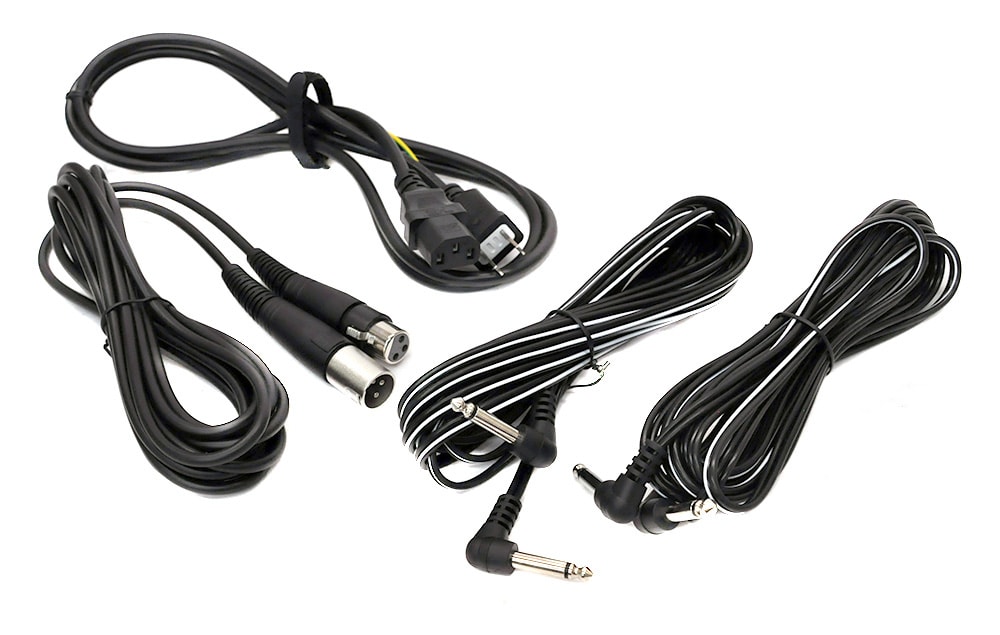

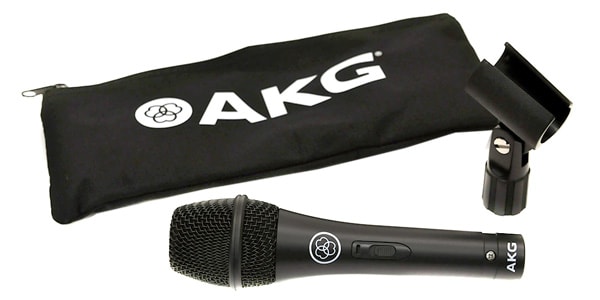

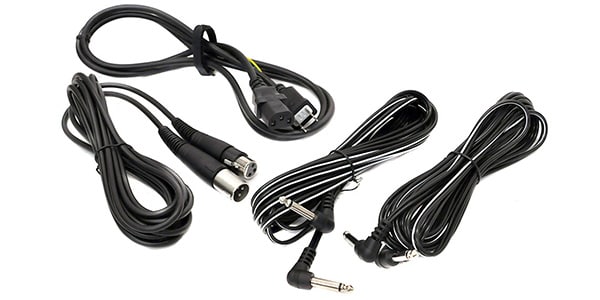

Speaker cable (about 4.5m) x 2, AKG dynamic microphone, microphone holder, microphone pouch, microphone cable (about 4m), power cord (2-pin)
