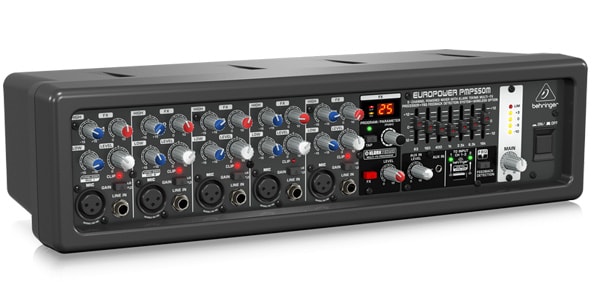

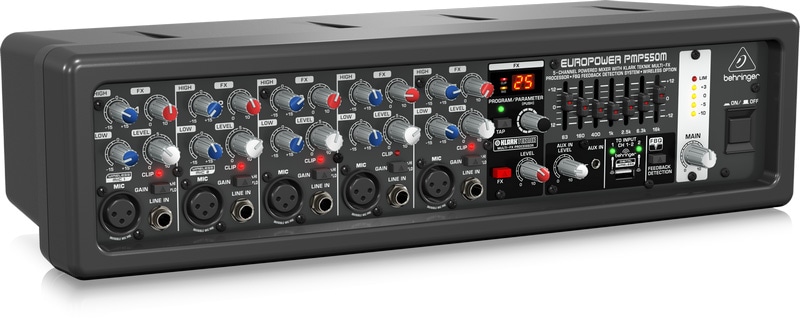

BEHRINGER / PMP550M EUROPOWER powered mixer

This lightweight, compact powered mixer is equipped with a high-power amplifier (250W x 2 (4Ω)) and a USB port compatible with the dedicated wireless system (ULM).

■ Powered Mixer
■ Microphone Input
・Type: XLR, electronically balanced
・Gain: +29dB, +9dB pad included
・Maximum Input Level: +12dBu @ +10dB gain
・Impedance: 2.0kΩ balanced / 1.0kΩ unbalanced
・Phantom Power: +15V
■ Mono Line Input
・Type: 1/4"" TRS jack
・Impedance: Approximately 20kΩ balanced, 10kΩ unbalanced
・Maximum Input Level: +21dBu
■ Equalizer
Low: 80Hz/±15dB
High: 12kHz/±15dB
■Main Mix System Data
・Frequency Response (Amplifier Output): 20Hz-20kHz (+0/-3dB)
■Amplifier (Per Channel) Maximum Output
4Ω: 250W + 250W
8Ω: 140W + 140W

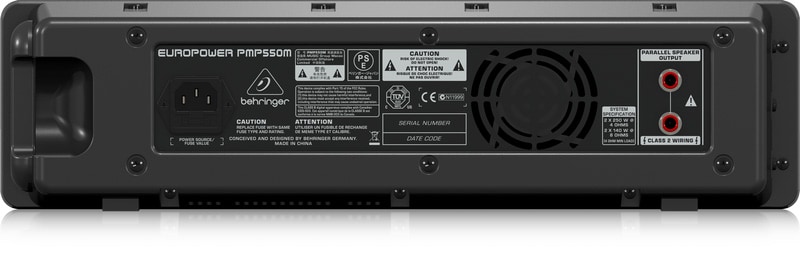

■Speaker Output Type: 1/4"" TS Jack
■Speaker Output Load Impedance: 4-8Ω
■DSP
・Type: KLARK TEKNIK
Converter: 24-bit Sigma Delta
Sample Rate: 40 kHz
■Wireless System BEHRINGER ULM Series USB Receiver: The USB socket can connect two independent BEHRINGER ULM microphones.
■Display Type: 2-digit, 7-segment LED
■Power Supply: 100-120V or higher
■Fuse: 100-120V or higher
■Power Consumption: 90W
■Power Input: Standard IEC outlet
■Dimensions (W x H x D): 450 x 117 x 185mm
■Weight: 4.5kg

※ Rack mount brackets included
※ When installing the rack mount angles, remove the top and bottom two of the three screws on each side. ※ Do not remove the middle screw. Removing all three will cause the support plate to fall inside.
