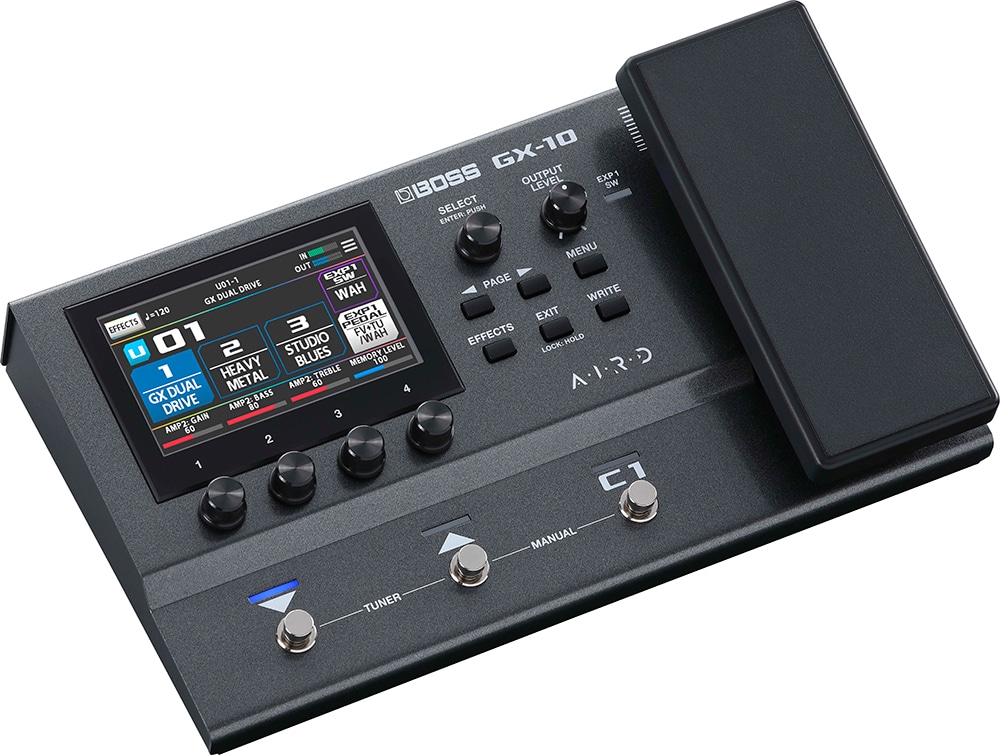

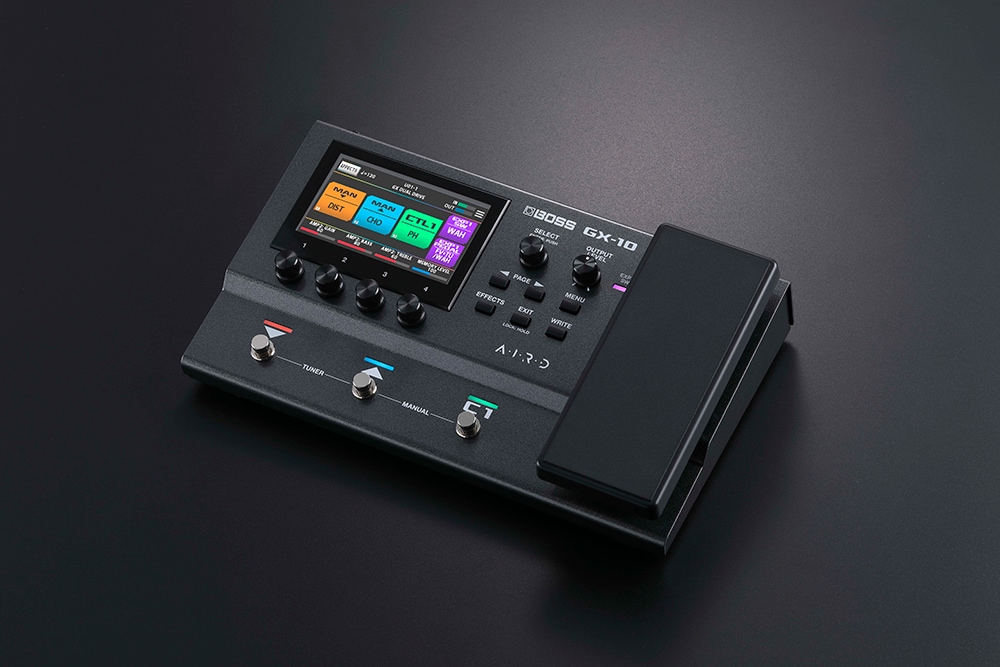

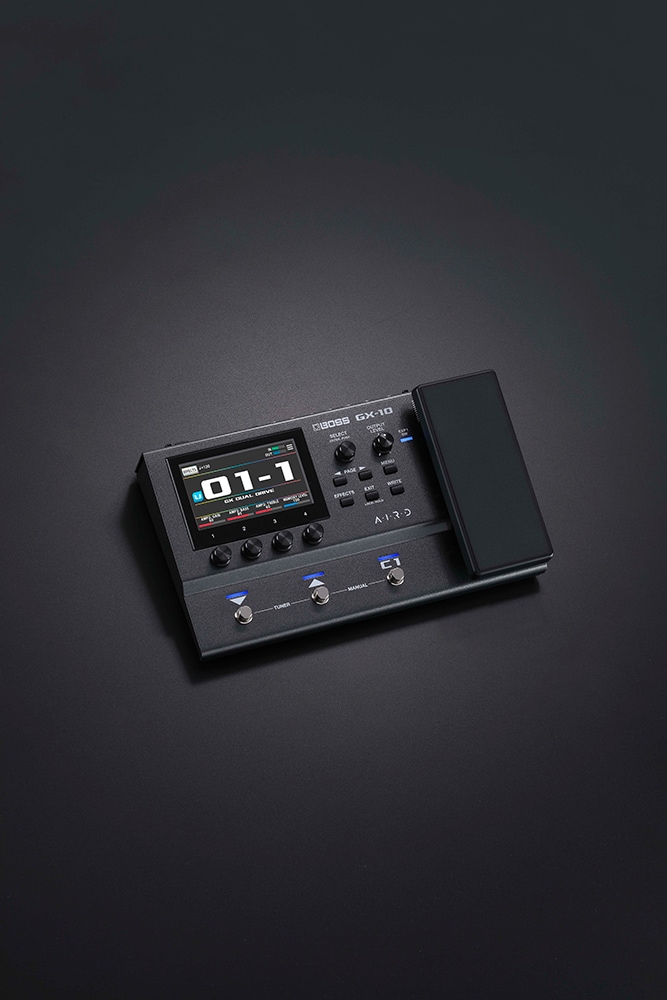

BOSS / GX-10

A multi-effects device that achieves the guitarist's ideals in a well-balanced manner in all aspects, including size, sound quality, and practicality.

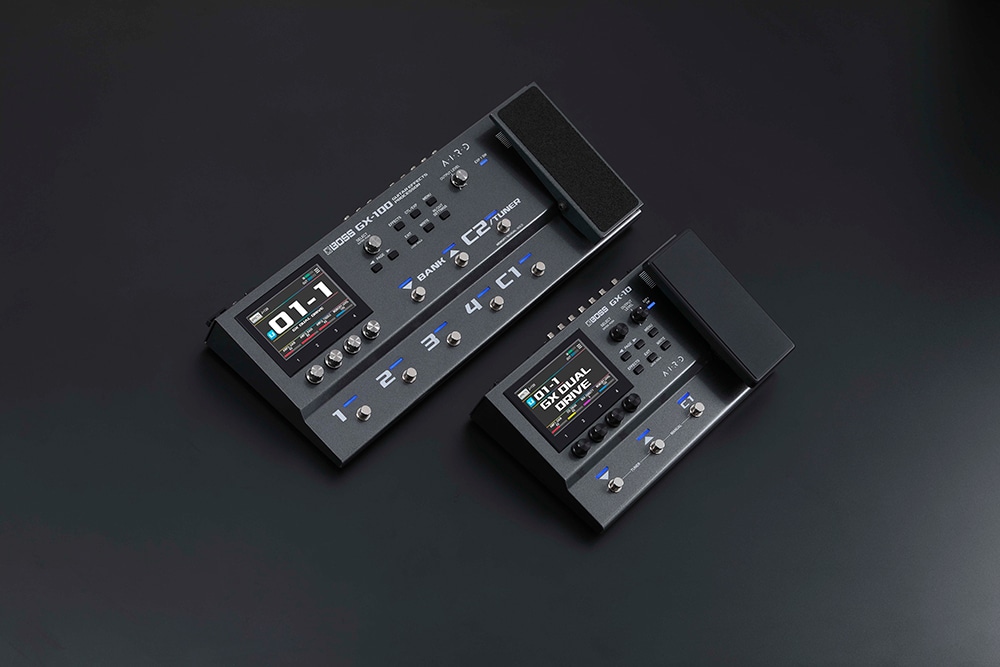

BOSS's GX-100 multi-effects unit combines a modern and sleek user interface with excellent sound. The GX-10 condenses that identity into a portable size. It features a spacious, three-dimensional amp sound created by our proprietary AIRD technology, and a large number of BOSS effects using top-of-the-line algorithms, as well as a color display that supports touch operations for smart sound makeup. The three footswitches on the main body provide more control than meets the eye, allowing for enhanced performance. The portable and robust housing makes it useful in a variety of situations, from tabletop recording and practice to studio sessions and live performances on stage. Do you want to focus on sound despite its small size and want more intuitive operation? The GX-10 is a well-balanced realization of the guitarist's ideals and is sure to be the perfect solution for any player.

■Main features
1 A portable multi-effects device that inherits the same core engine as the GX-100.
2 High-quality sound with 48kHz sampling rate, 24bit AD conversion, 32bit DA conversion, and 32bit internal calculation float (floating point) processing
3 The latest AIRD technology delivers the sound and playing feel of a tube amp.
4 32 carefully selected AIRD preamplifiers (guitar: 23 types, bass: 9 types) and 170 high-quality
Equipped with BOSS effects
5 15 effect blocks that can be freely customized in connection order and combinations

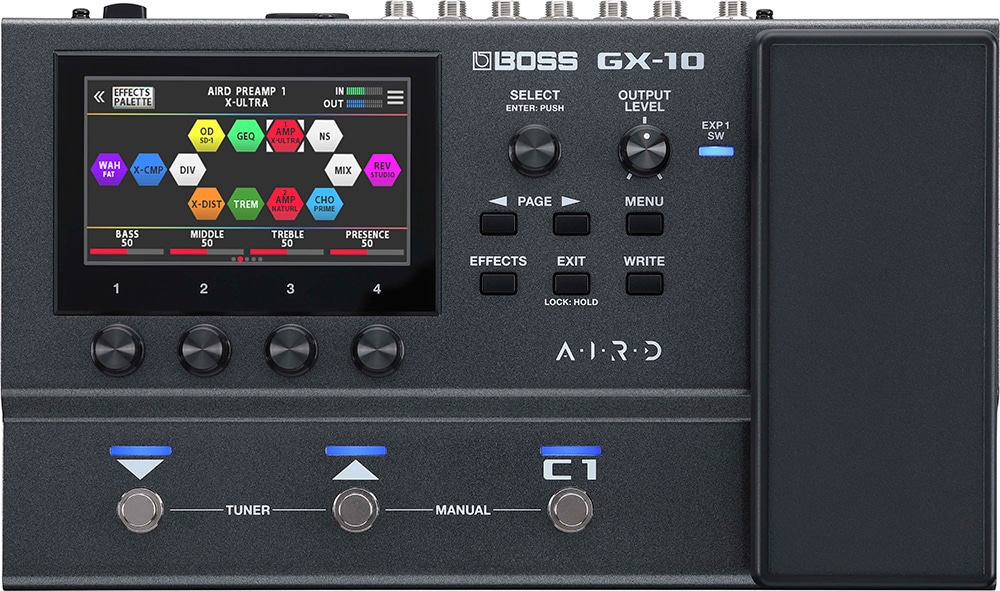

6 Touch-compatible color display and 4 knobs ensure smooth operation
7 In addition to a variety of built-in cabinet simulators, it supports a wide range of sound creation by importing cabinet IR data.
8 Three control modes allow flexible real-time operation of footswitches
9 SEND/RETURN terminal for connecting external effects
10 Extend control with external footswitches or expression pedals
11 USB Type-C terminal for connecting to a PC or mobile device* for recording and audio playback
12 Edit/manage sound with BOSS TONE STUDIO, a dedicated app compatible with Windows/macOS
13 Users can freely share live sets with each other on the online platform BOSS TONE EXCHANGE
14 Live sets created with GX-100 can also be used.
15 By connecting the optional Bluetooth? Audio MIDI Dual Adapter (BT-DUAL), you can play audio and
iOS/Android dedicated app can be used
*Operation with all devices and software is not guaranteed.

■SPECS
・Sampling frequency: 48kHz
・AD conversion: 24 bit +AF method
*The AF method (Adaptive Focus method) is a Roland/Boss original method that dramatically improves the SN ratio of the AD converter.
・DA conversion: 32 bits
・Internal calculation: 32-bit floating point
・Effect types: 170 types
・Maximum number of simultaneous effects: 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP) *Varies depending on usage conditions
・Memory: 198 (user) + 99 (preset)
・Phrase loop: 38 seconds (mono) 19 seconds (stereo)
・Tuner internal detection accuracy: ± 0.1 cent
・Nominal input level: INPUT:-10dBu RETURN:-10dBu
・Maximum input level: INPUT: +7dBu RETURN: +7dBu
・Input impedance: INPUT: 1M Ω RETURN: 1M Ω
・Nominal output level: OUTPUT L/MONO, R: -10dBu PHONES: -10dBu SEND: -10dBu
・Output impedance: OUTPUT L/MONO, R: 1k Ω PHONES: 44 Ω SEND: 1k Ω
・Recommended load impedance: OUTPUT L/MONO, R: 10k Ω or more PHONES: 44 Ω or more SEND: 10k Ω or more
・Controls: ▼ switch, ▲ switch, CTL1 switch, POWER switch, EXP1 switch, PAGE button, MENU button, EFFECTS button,
EXIT button, WRITE button, 1 to 4 knobs, SELECT knob, OUTPUT LEVEL knob, EXP1 pedal
・Display: Color graphic LCD (480 x 272 dots) with touch screen

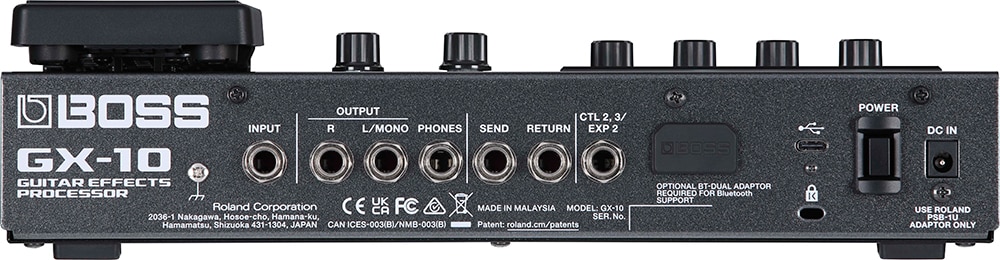

・Connection terminals: INPUT terminal, OUTPUT (L/MONO, R) terminal, SEND terminal, RETURN terminal: Standard type, PHONES terminal: Stereo standard type,
CTL2,3/EXP2 terminal: TRS standard type, USB COMPUTER terminal: USB Type-C(R), Bluetooth ADAPTOR terminal: Dedicated type, DC IN terminal
・Power supply: AC adapter
・Current consumption: 600mA
・Power consumption in off mode (when the power is automatically turned off): 0.0W
・External dimensions: 300 (width) x 183 (depth) x 74 (height) mm
・External dimensions (at maximum pedal tilt): 300 (width) x 183 (depth) x 96 (height) mm
・Mass: 2.2kg
・Accessories: AC adapter (PSB-1U + AC cord set), instruction manual, ""Safety Precautions"" flyer, warranty card
・Sold separately: Foot switch: FS-5U, FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Bluetooth(R) Audio MIDI Dual Adapter (model number BT-DUAL)
Wireless MIDI expression pedal:EV-1-WL
Wireless footswitch: FS-1-WL
