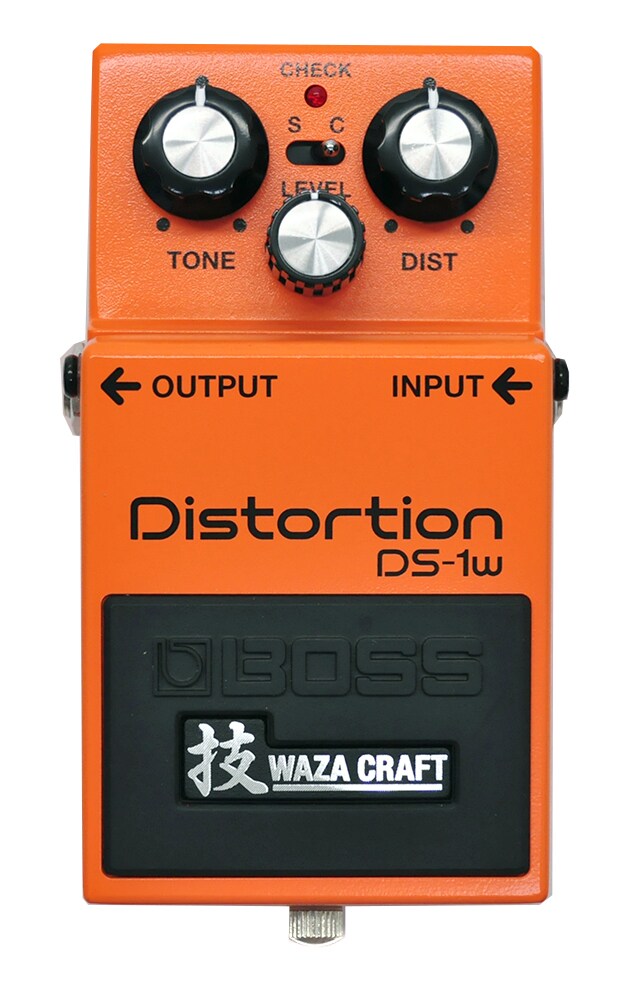

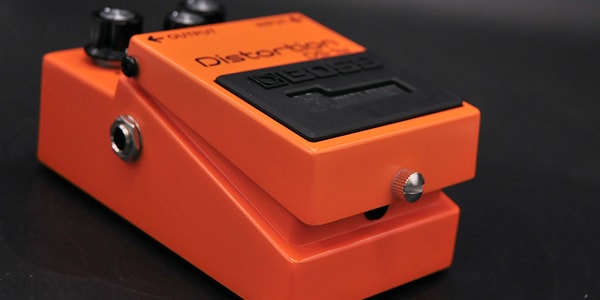

BOSS / DS-1W

DS-1 Distortion is the origin of distortion, reexamined by experienced engineers. The DS-1W uses a newly designed two-stage gain circuit that is fully analog and discrete, designed by experienced engineers. In addition to the standard mode that gives you the sound that is symbolic of distortion, it also comes with a custom mode that adds tuning to further bring out its potential.

In addition to the standard mode that gives you the sound that symbolizes distortion, it also comes with a custom mode that adds tuning to bring out its potential even further.

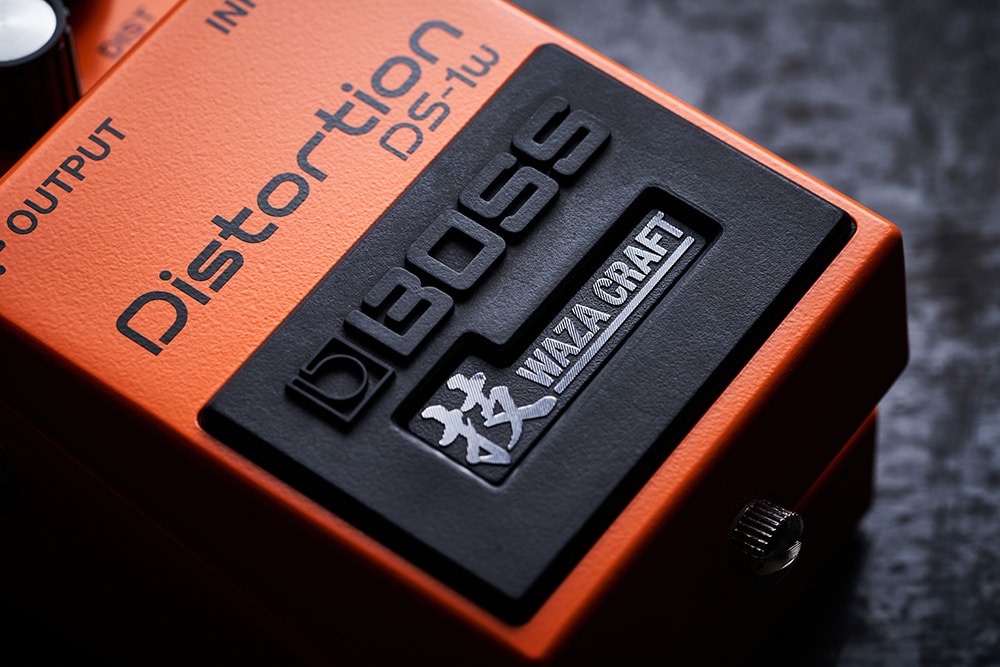

1. Special edition ""WAZA CRAFT"" series that produces the ultimate tone
2. A newly designed 2-stage gain circuit with a focus on full analog discrete components
3. Standard mode that gives you the sound of the original DS-1
4. Custom mode with a powerful midrange and fast response
5. The TONE knob is tuned specifically for each mode to allow optimal sound shaping
6. In custom mode, the maximum output is enhanced to +6dB, allowing you to demonstrate its potential as a booster
7. Equipped with a premium buffer that maintains the pure signal of the guitar body

The common idea of ​​orange = distortion pedals is that the DS-1 is a symbol of distortion and also represents its high level of perfection as an instrument.
The distortion sound, which combines crispness and sustain different from previous characters, enables tight backing and relaxed solo playing.
For over 40 years since its debut in 1978, this legendary pedal has been loved by guitarists in all genres, including hard rock, metal, fusion, and grunge, as the best partner for guitarists.

The DS-1W has two modes: Standard and Custom. Both modes use a two-stage gain circuit with a fully analog discrete configuration newly designed by experienced engineers.

Standard mode is useful when you want to play backing that is tight and clear while distorting intensely.

Custom mode shows its potential in situations where you need a thicker sound, such as modern riffs and guitar solos.

You can get a powerful sound characterized by a rich midrange while maintaining the iconic sharp distortion and sustain.

By using the two modes, you can play with the ideal distortion sound for each scene.

In Standard mode, you can play with the original DS-1 sound. The crisp, yet smooth distortion is a sound that many guitarists love.

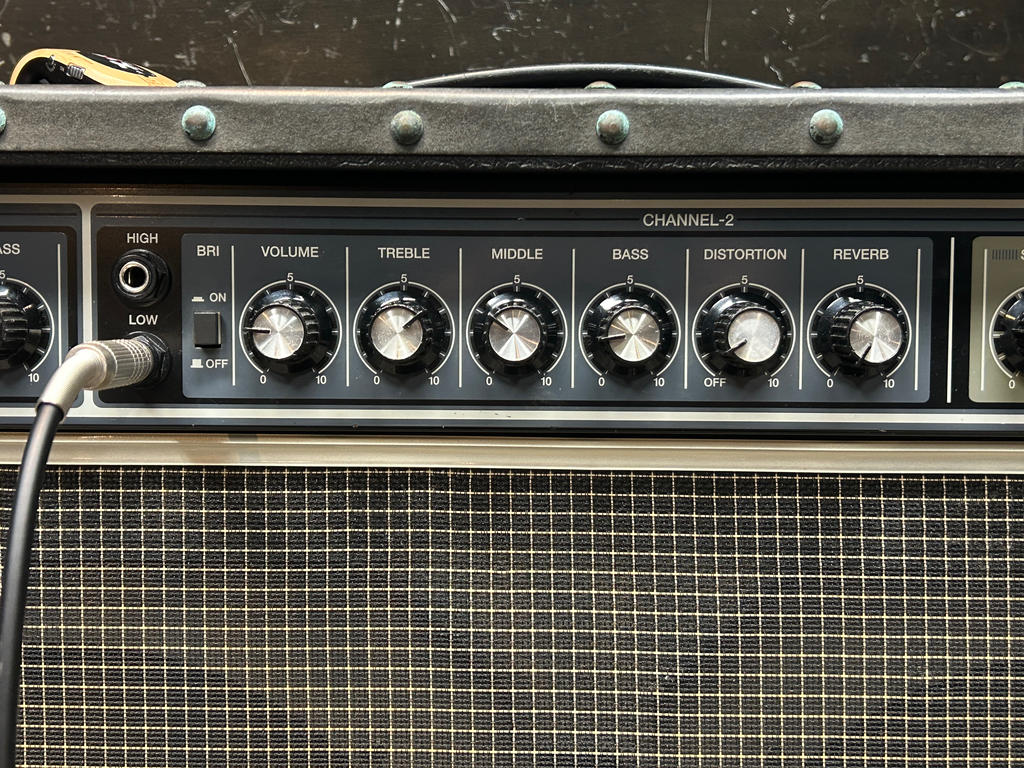

You can use it alone, or connect it to a distorted amp as a gain booster to get a dynamic, beautiful distortion sound that incorporates the essence of the DS-1.
The unique TONE knob controls the low and high frequencies simultaneously, allowing you to adjust the balance of the range to suit your band ensemble and the amp you are using.

The DS-1W's Custom mode maintains the sharp distortion and sustain that are characteristic of the DS-1, while achieving a new sound character and response.
The midrange is more pronounced, giving it a strong presence in a band ensemble.
In addition, the response when picking is quick and the nuances are more faithfully reflected.
Even with the same settings, a wide range of expressions are possible, from crunch to deep distortion, depending on the strength of your picking.
The Tone knob's effect has also been specially tuned to take advantage of the character of Custom mode.

In addition, the LEVEL knob's control range has been expanded to a maximum of +6dB compared to Standard mode.

It also works as a powerful booster for amps and distortion effects.

■Main specifications
●Nominal input level INPUT: -20dBu
●Input impedance INPUT: 1M Ω
●Nominal output level OUTPUT: -20dBu
●Output impedance OUTPUT: 1k Ω
●Recommended load impedance OUTPUT: 10k Ω or more
●Bypass: Buffered bypass

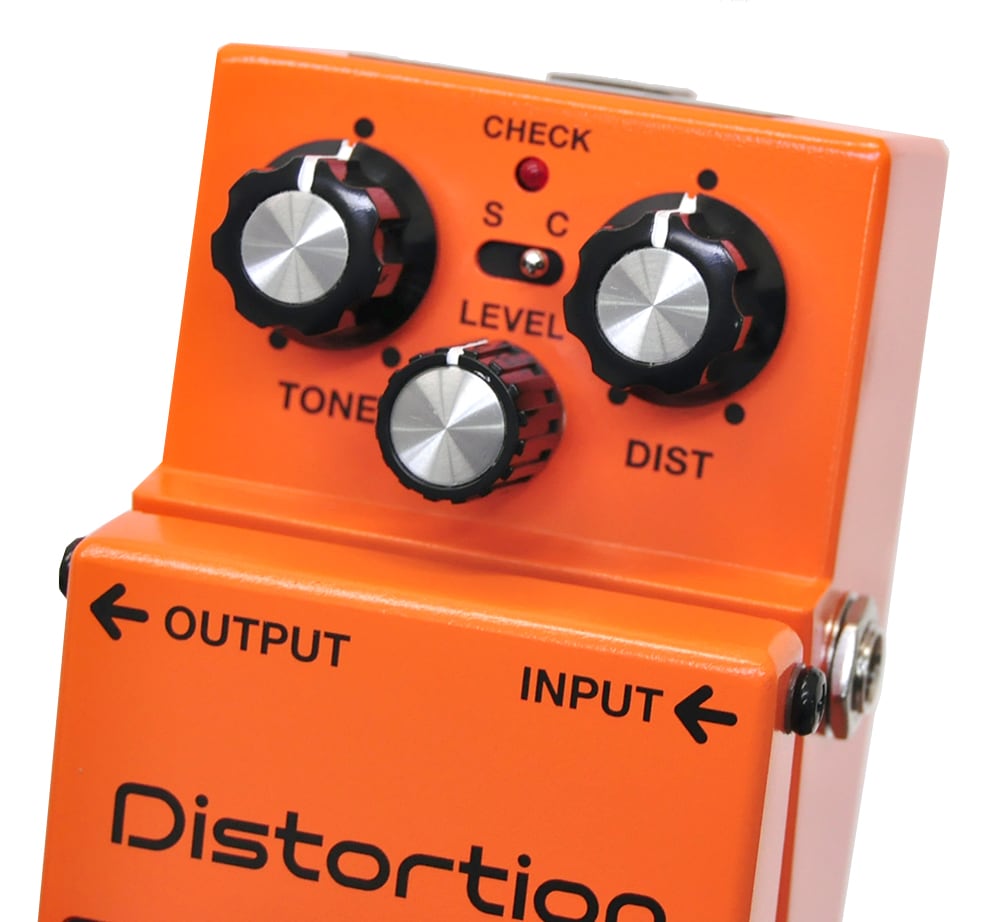

●Controls: Pedal switch, mode switch, DIST knob, LEVEL knob, TONE knob
●Indicators: CHECK indicator (also serves as battery check)

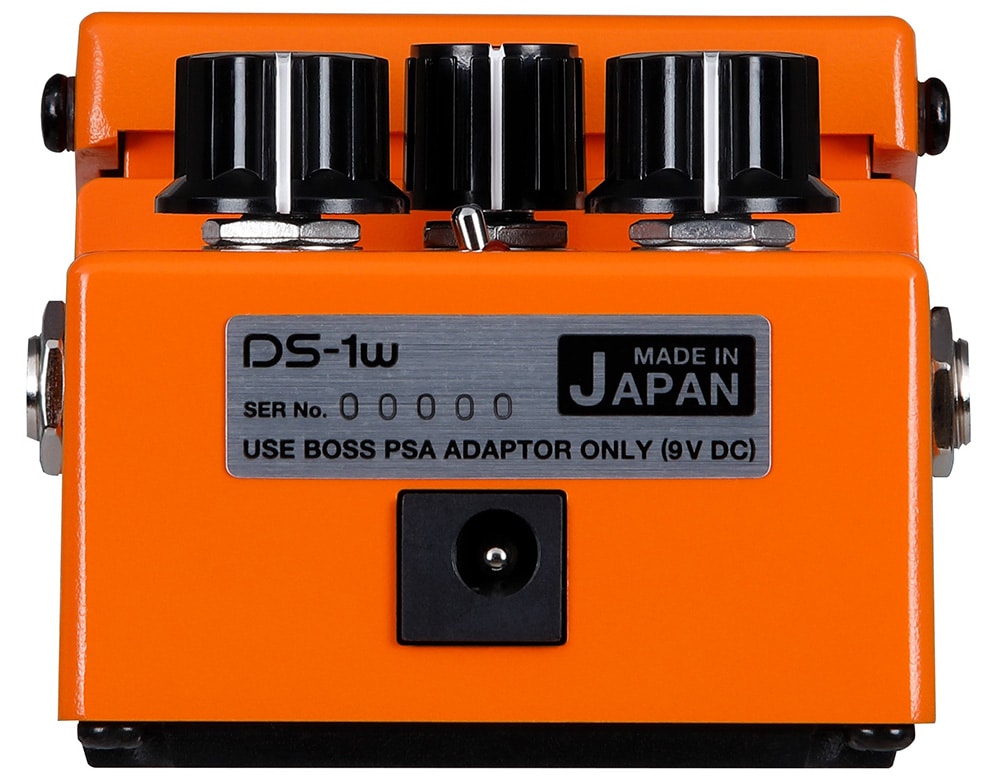

●Connection terminals INPUT terminal: standard type, OUTPUT terminal: standard type, DC IN terminal
●Power supply: Alkaline battery (9V type) or manganese battery (9V type), AC adapter
●Current consumption: 15mA
●Battery life during continuous use (varies depending on usage conditions) Alkaline battery: approx. 50 hours, manganese battery: approx. 25 hours
●External dimensions: 73 (width) x 129 (depth) x 59 (height) mm
●Weight (including dry cell battery): 430g
●Accessories: Warranty card, leaflet (safety precautions, usage precautions, contact point), alkaline battery (9V type, already connected to the main unit)
●Optional AC adapter: PSA-100
* 0dBu = 0.775Vrms
