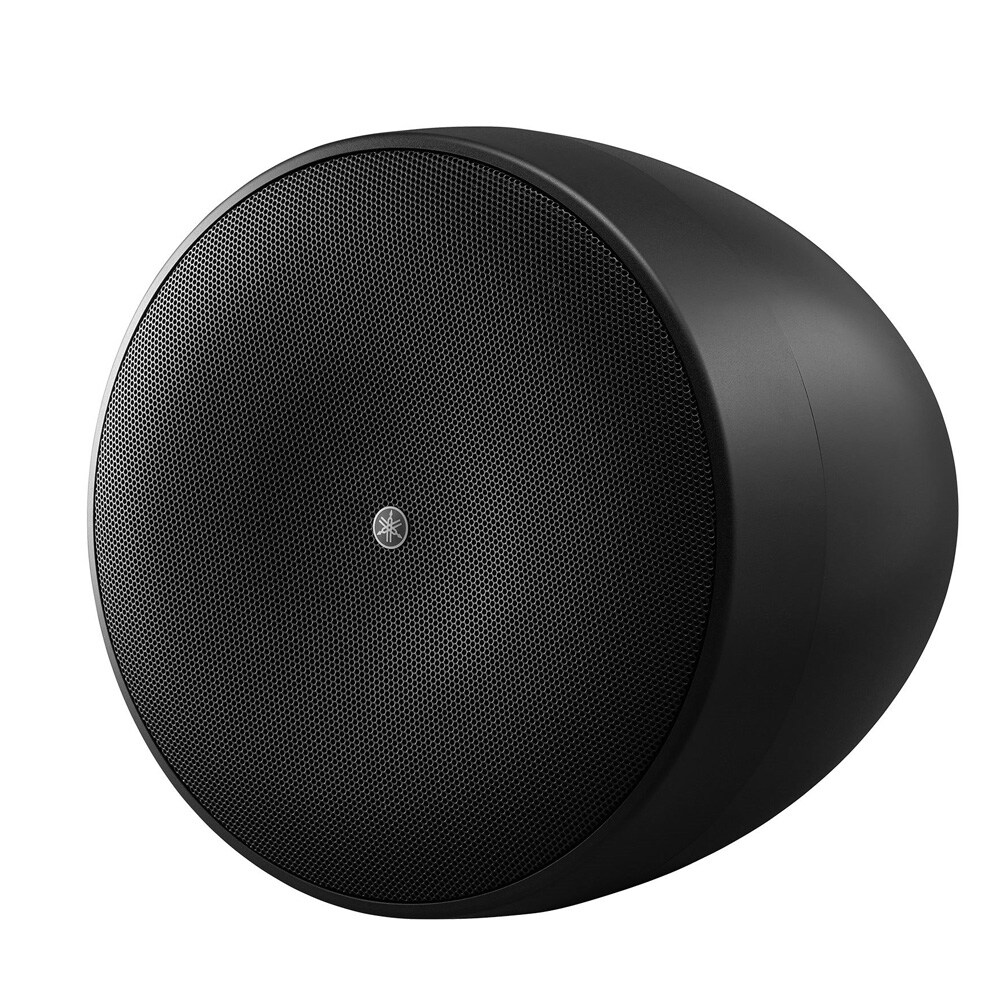

YAMAHA / VXH6B Pendant Speaker

Variations

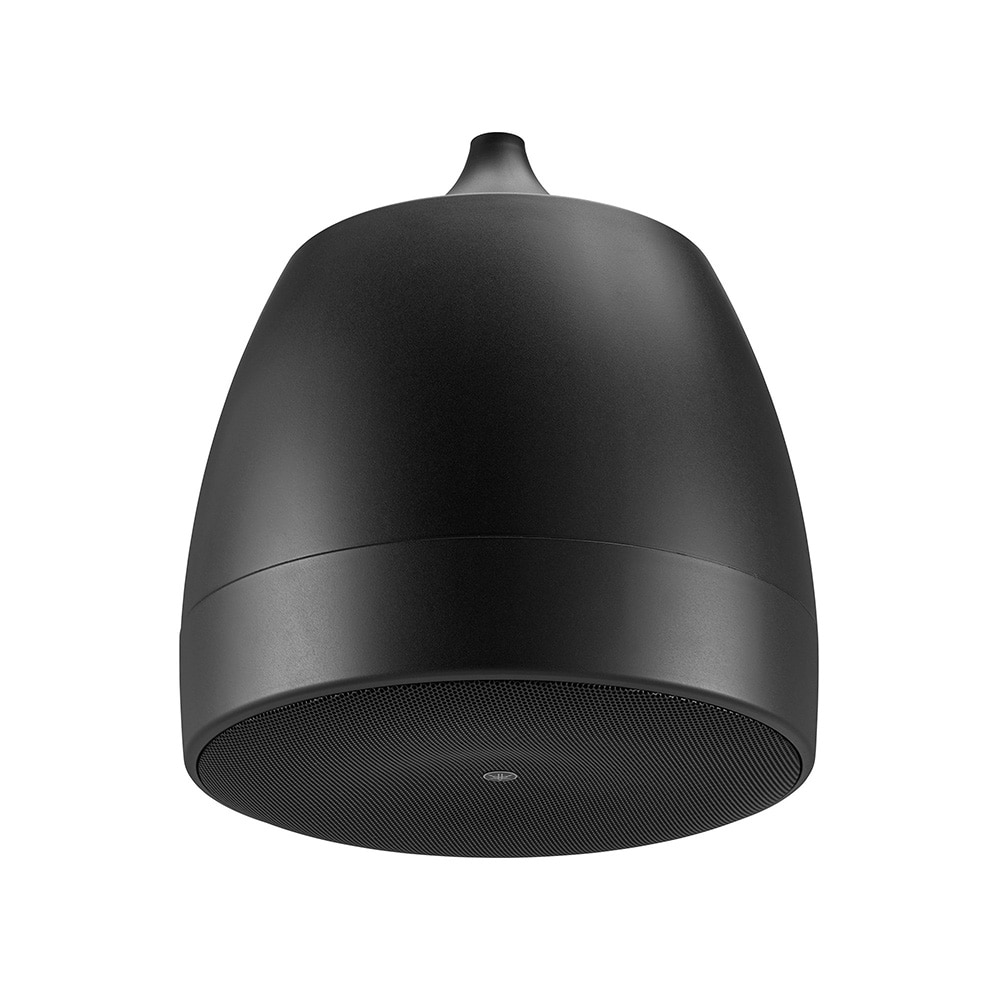

The YAMAHA VXH series is a pendant speaker that is ideal for installation in facilities with ceilings or open-ceiling structures. The VXH6 has a wide nominal directivity angle of 120° and is designed for applications where the speaker is positioned relatively low and covers a wide area.

■Pendant speaker
■6.5 inches
■150W
■8Ω, 100/70V
■Black
■1 unit

The VXH series is a pendant speaker that expands the lineup of speakers for commercial spaces and is ideal for installation in facilities with high ceilings and open-ceiling structures. By hanging it in areas where sound amplification is required, it is possible to create an acoustic design that delivers comfortable sound even in facilities with high ceilings, open structures, and sloped ceilings that are difficult to handle with existing ceiling-embedded and surface-mounted types.

■Type: Coaxial 2-way, bass reflex type
■Playback frequency range (-10 dB): 55 Hz - 20kHz
■Nominal directivity angle: 120°
■Crossover frequency: 3kHz

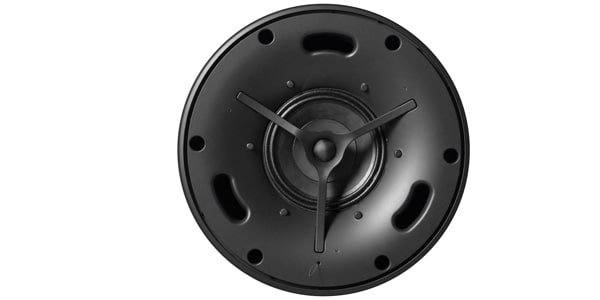

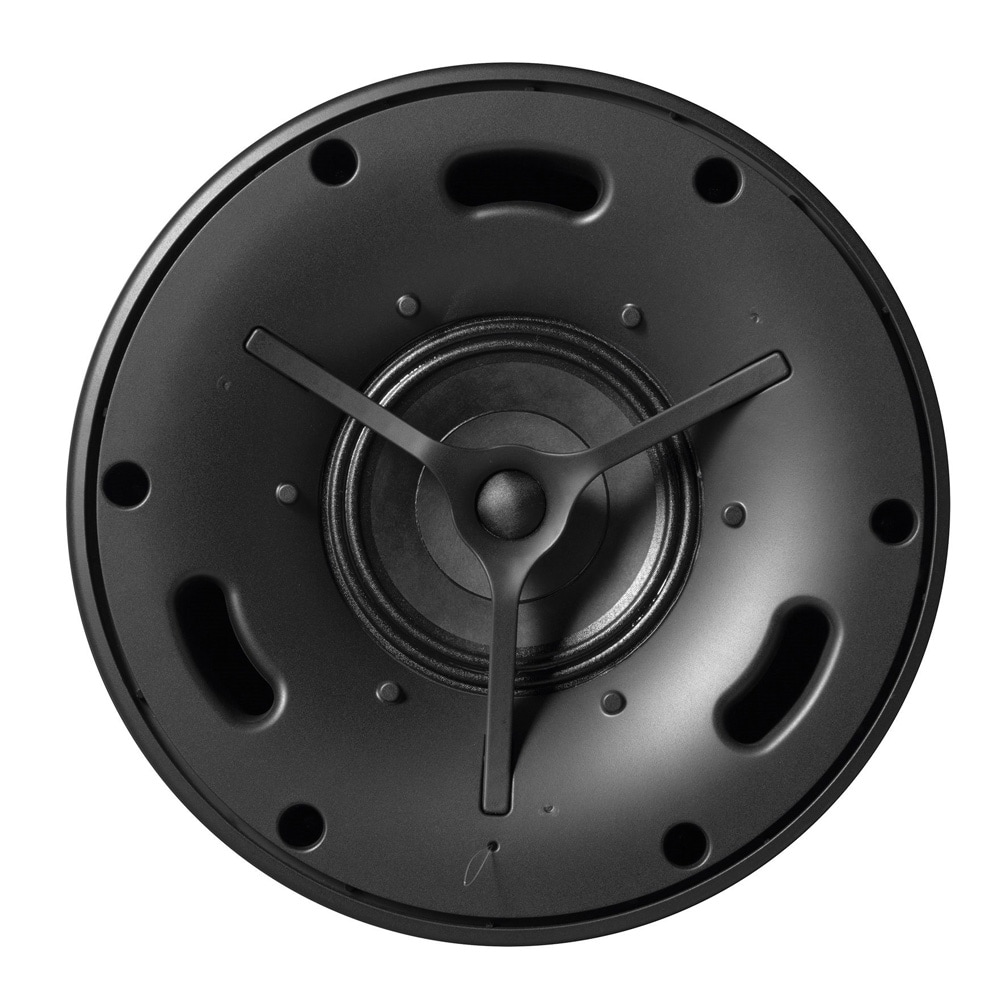

■Components
LF 6.5"" (16cm) cone
HF 1"" (2.5cm) soft dome
■Maximum input power
NOISE 75W
PGM 150W
MAX 300W
■Rated impedance
Lo-Z 8Ω
100V 60W/170Ω, 30W/330Ω, 15W/670Ω
70V 60W/83Ω, 30W/170Ω, 15W/330Ω, 7.5W/670Ω
■Output sound pressure level (1W, 1m): 93dB SPL
■Maximum output level (calculated value, 1m, Peak): 118dB SPL

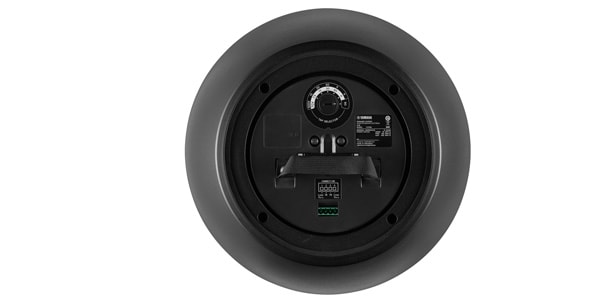

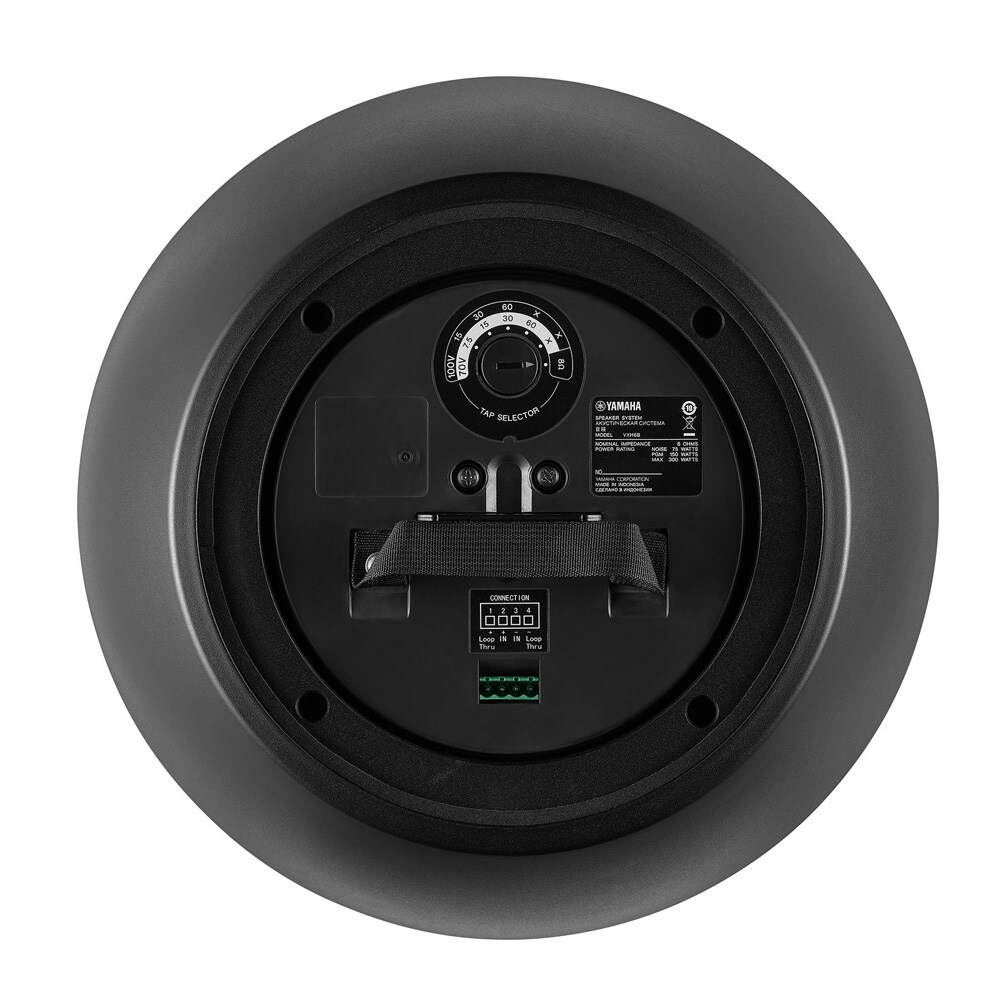

■Connector
Euroblock (4pin) x1 (input: +/-, loop-through: +/-)
Minimum wire diameter AWG 24 (0.2sq)
Maximum wire diameter AWG 12 (3.5sq)
■Protection: Protects network and transducers over the entire frequency range
■Dimensions (including grill): Φ341 x H379 (D) mm
■Weight (including grill): 5.7 kg
■Waterproof and dustproof performance: IP45 *When cover holes are waterproofed
■Included items

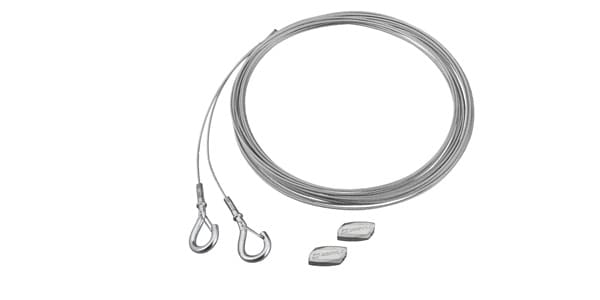

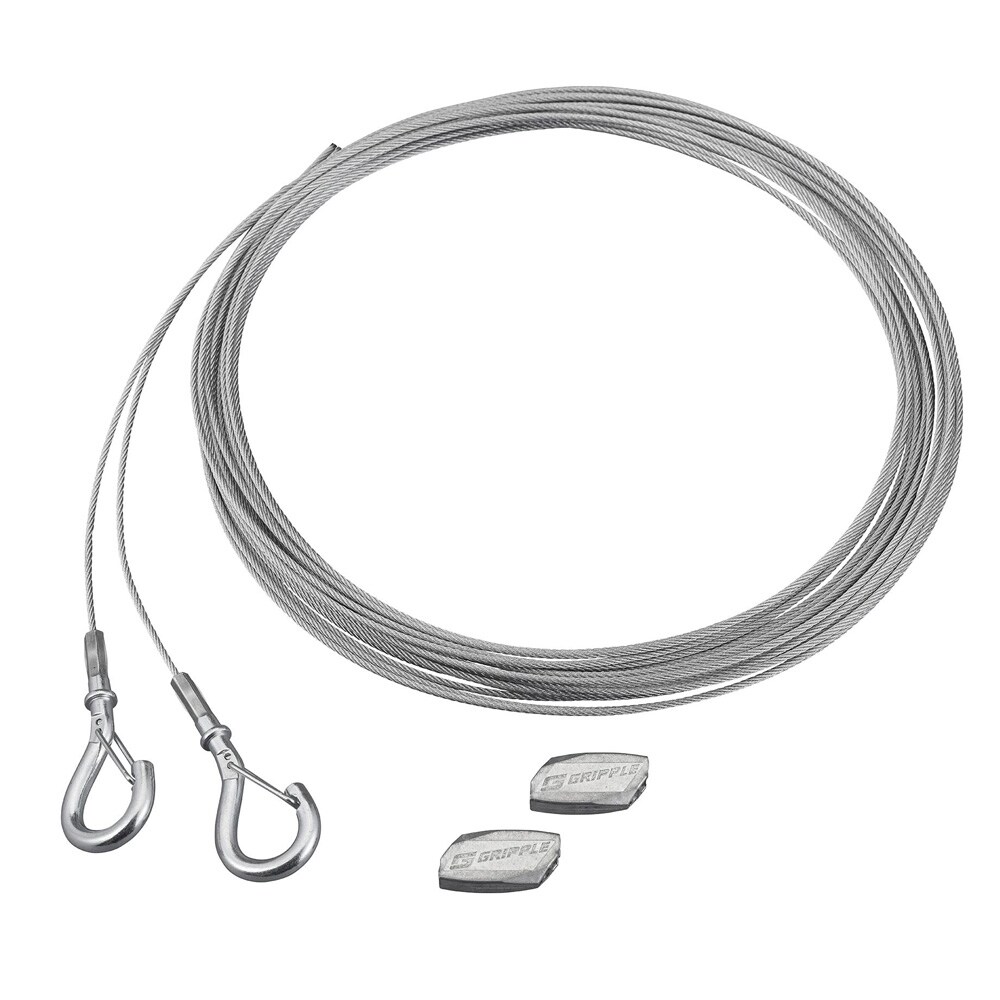

GRIPPLE speaker hanging kit x1
Euroblock x1
Waterproof cushion x1
Rear cover set x1
Instruction manual x1
GRIPPLE kit installation guide x1
■Package quantity 1 unit
