Soundcraft / Notepad-5 Analog Mixer 5ch

The Soundcraft Notepad-5 is a desktop analog mixer featuring professional-grade analog component and USB audio interfaces, ideal for use with Mac or PC editing software.

■Type: Analog Mixer
■Mono Channels: 1 (Mic: XLR, Line: TRS Phone)
■Stereo Channels: 2
■EQ: 2-band (Mono channels only)
■AUX: None
■Group (Bus): None
■Digital Effects: None
■Dimensions (W x H x D): 203 x 82 x 230 mm
■Weight: 0.9 kg
■Other:

■USB Audio Interface
・USB Audio Input/Output: 16-bit, 24-bit
・Sampling Frequency: 44.1/48 kHz

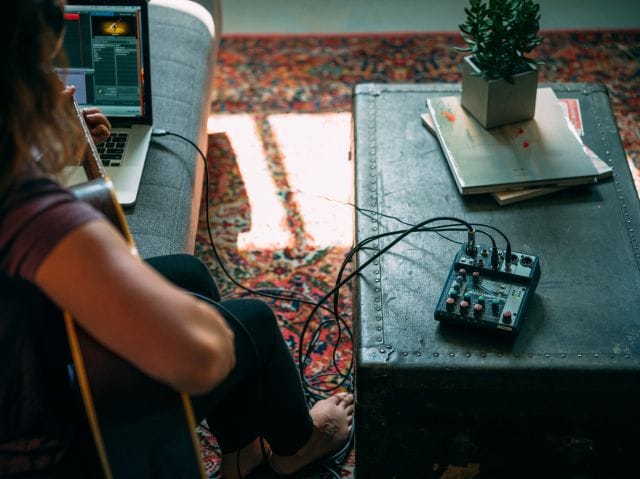

■Seamless Integration with Mac and PC
The built-in USB audio interface allows you to easily record, edit, and play back projects using audio software.

■Easy Operation
Mono channels feature 2-band EQ. Listening levels can be comfortably adjusted using the rotary headphone control. The master level with LED meter provides precise control over the master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series offers easy operation even for first-time mixers.

■Ideal for Rehearsals and Gigs
The compact Notepad-5 easily fits in a gig bag, making it ideal for sessions and rehearsals. Designed to connect your favorite instruments and gear, including microphones, guitars, and keyboards, it's available in three models (Notepad-5, 8FX, and 12FX), perfect for everything from soloists to small rock ensembles.

■All-in-One Podcasting
The combination of high-quality Soundcraft components and a built-in USB audio interface creates the ideal podcasting workflow, without compromising on sound quality.

■Seamless Integration with Mac and PC
The Notepad's built-in USB audio interface allows you to easily record, edit, and play back projects using your favorite audio software. Experience the ultimate blend of analog and digital.
*Soundcraft driver installation required for PC.

■You can mix the mixer sound with the USB input sound and output it via USB.
1. Connect the Notepad mixer to your PC with a USB cable.
2. Open the Soundcraft USB Audio Control Panel (download it from the manufacturer's website).
3. Select the Audio routing tab.
4. Select Mix L+R for Inputs 1+2.

■If your Soundcraft/Notepad-5 is not recognized by your PC, please check the following.
1.
Install ""Notepad Firmware and Control Panel Setup"" from the product page on the manufacturer's website.
https://www.soundcraft.com/en-US/products/notepad-5#downloads_and_docs
For Zoom, Notepad will not appear in the microphone device list unless you install it.

②
1. Right-click the Windows Start icon and select ""Settings.""
2. Click "update and Security.""
3. Click ""Recovery.""
4. Click ""Restart Now"" under Advanced Startup.
5. Click ""Troubleshoot.""
6. Click ""Advanced Options.""
7. Click ""Startup Settings.""
8. Click ""Restart.""
9. On the ""Startup Settings"" screen, click F7.
10. Complete. Check to see if the mixer appears in your PC's sound settings.

*A USB cable is not included; please purchase one separately.
*Not compatible with iPhone or iPad. For Windows PC and Mac only.
*We do not provide support for compatibility or usage with individual apps such as Zoom or OBS.
*This product does not have a power switch; power is turned on/off by unplugging and plugging in the power outlet.
When turning the power on, be sure to follow the steps below.
1. Plug the power adapter into the mixer.
2. Plug the power adapter into a power outlet.

To turn off the power, follow these steps in reverse.

*We generally do not provide replacement units when providing repairs or support. In the event of a malfunction, please return the product to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
