CLASSIC PRO / UXD-100+UF-61

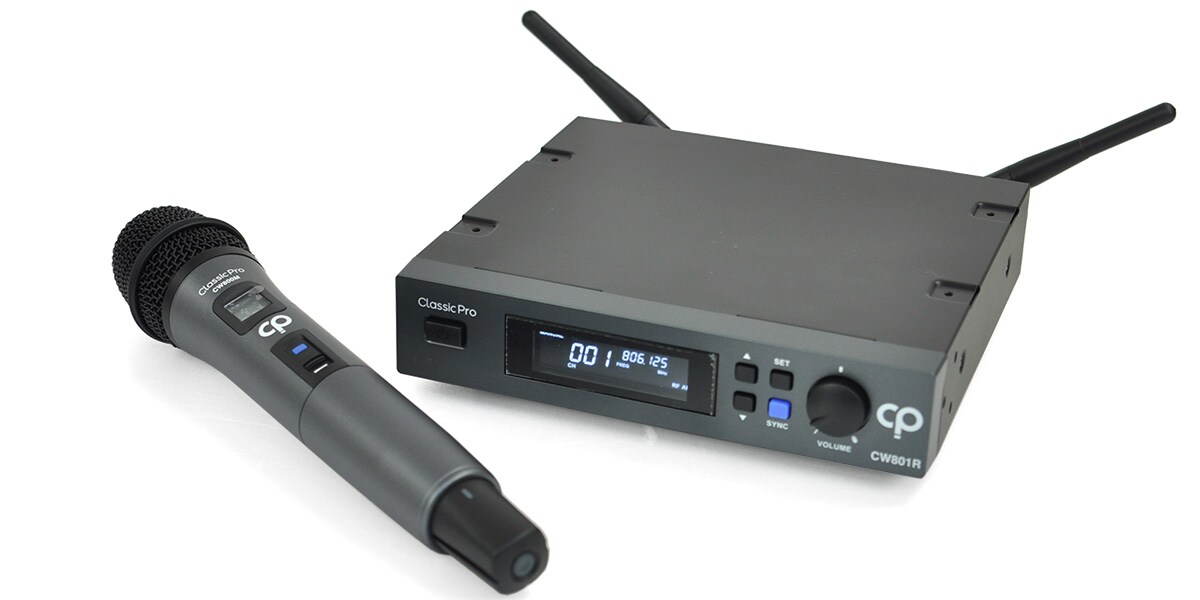

CWS800 series, a set of single channel receiver and handheld microphone. Equipped with auto scan mode to automatically search for channels without interference, and SYNC function to send receiver settings to the transmitter. Select any one of the 30 channels in the B band. Up to 6 sets can be used in the same area.

・Choose one channel to use from 30 B-band channels. Up to 6 sets can be used in the same area.

・Maximum reach: Approximately 90m (Note: The reach of the radio wave varies depending on the radio wave conditions, the presence or absence of reflection or interference, and the transmission output)

・The microphone is equipped with a dynamic capsule suitable for vocals.

・The channel sync button is also placed in an easy-to-see position. Muting is also easy with the switch at hand.

・The LCD screen of the receiver now displays characters more clearly and is easier to read. (VA LCD installed)

◆Receiver CW801R
Receiving frequency: UHF806.125-809.750MHz
Number of systems usable in the same area: up to 6
Case: 19-inch EIA standard rack mount compatible (metal case)
Transmission method: PLL synthesizer
S/N ratio: >100dB
Spurious response: 70dB (minimum)
Receiving sensitivity: 52dB
AF response: 80Hz-18kHz
T.H.D: <1% (at 1kHz)
Dynamic range: >100dB
Tone signal: 32.768kHz
Audio output: Balanced XLR, unbalanced phone
Power supply: DC12V
Current consumption: 260±10mA
Dimensions: 200 x 42 x 183mm
Weight: 930g
Operating ambient temperature: 5°C-45°C

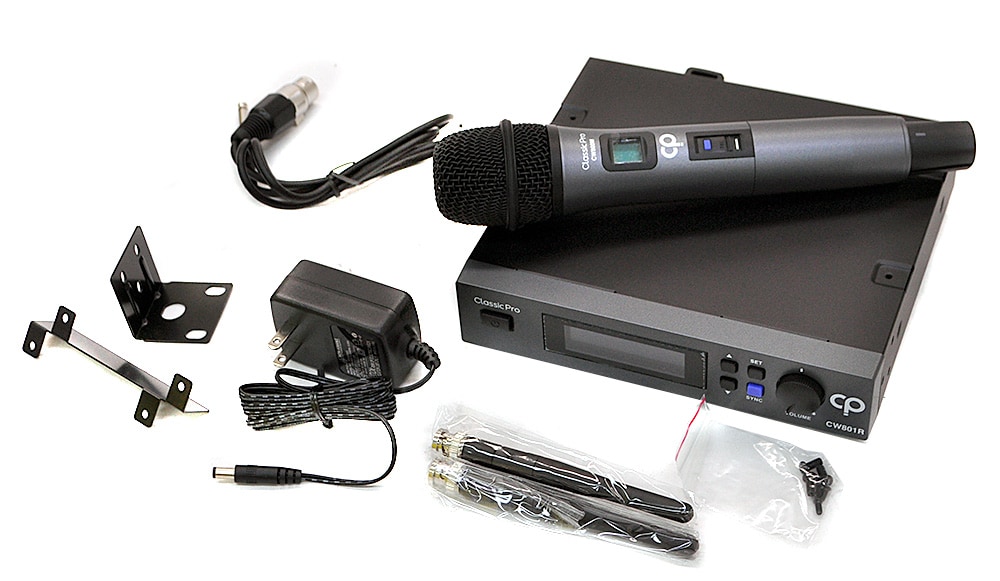

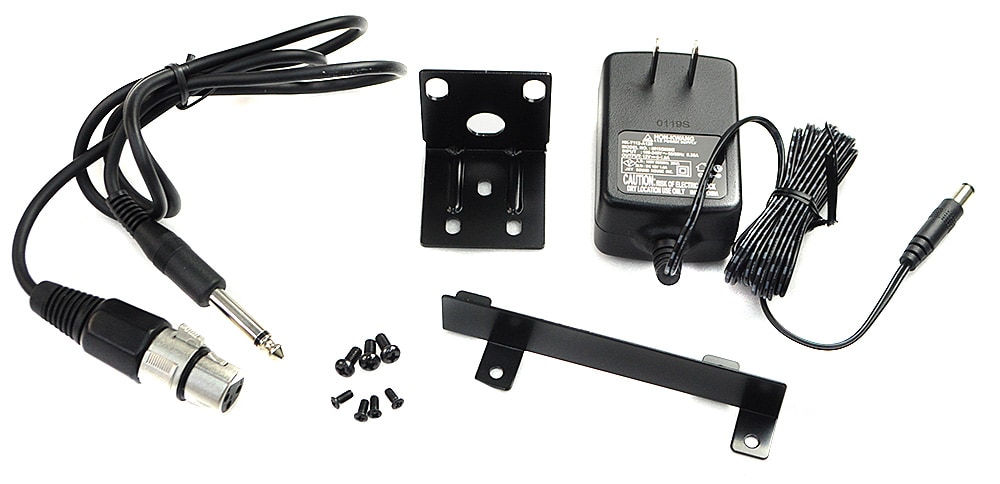

Accessories: 2 antennas, power adapter, bracket for connecting 2 receivers, 1 rack ear, 1 cable (XLR female-phone)

◆Handheld transmitter (CW800M)
Transmission frequency: UHF806.125-809.750MHz
Channel setting: SYNC
Display: LCD display shows channel and battery level
RF output: 10mW (max)
Frequency stability: ±0.005%
Spurious radiation: >60dB
Gain: 0dB, -10dB, -20dB
Battery: DC3V (2 x 1.5V AA batteries)
Current consumption: 120±10mA
Dimensions: 54φ x 260mm
Weight: 234g

*If mounting one unit in 1U, please purchase CWR800PLUSRKPAIR.
