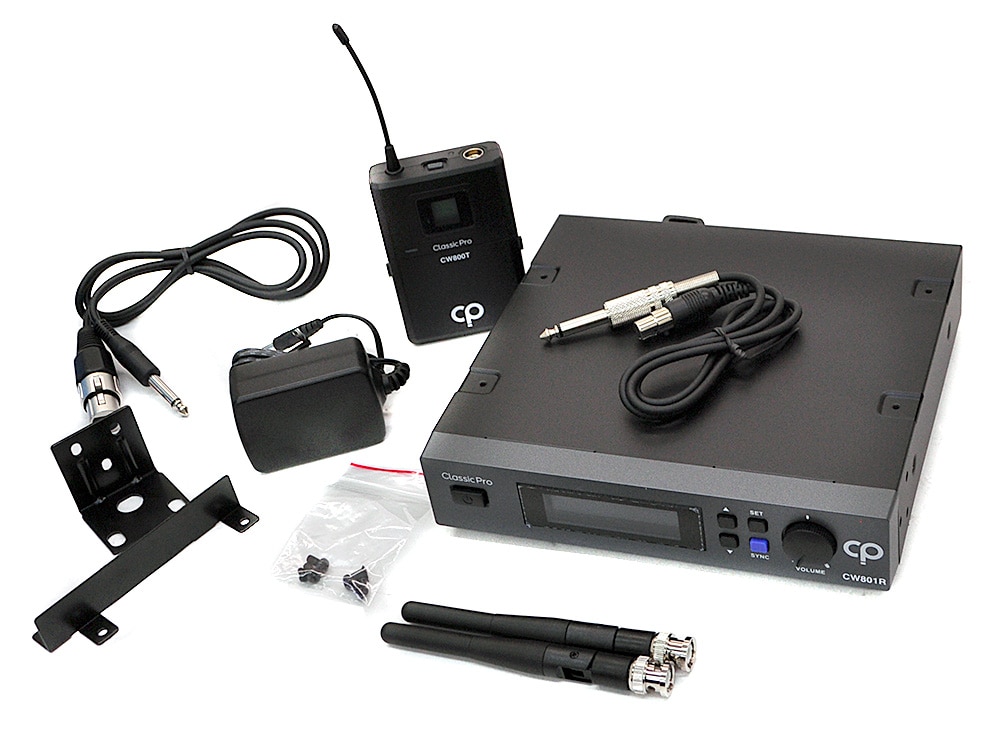

CLASSIC PRO / UXD-100 + UT-61 + CB-402M

CWS800 series, single channel receiver, belt pack transmitter and instrument connection cable set. Equipped with auto scan mode to automatically search for interference-free channels and SYNC function to send receiver settings to transmitter. Select any one of the 30 channels in the B band. Up to 6 sets can be used in the same area.

・Choose one channel to use from 30 B-band channels. Up to 6 sets can be used in the same area.

・Maximum reach: Approximately 90m (Note: The reach of the radio wave varies depending on the radio wave conditions, the presence or absence of reflection or interference, and the transmission output)

・The LCD screen of the receiver now displays characters more clearly and is easier to read. (VA LCD installed)

◆Receiver CW801R x 1
Reception frequency: UHF806.125-809.750MHz
Number of systems usable in the same area: up to 6
Case: 19-inch EIA standard rack mount compatible (metal case)
Transmission method: PLL synthesizer
S/N ratio: >100dB
Spurious response: 70dB (minimum value)
Reception sensitivity: 52dB
AF response: 80Hz-18kHz
T.H.D: <1% (at 1kHz)
Dynamic range: >100dB
Tone signal: 32.768kHz
Audio output: Balanced XLR, unbalanced phone
Power supply: DC12V
Current consumption: 260±10mA
Dimensions: 200 x 42 x 183mm
Weight: 930g
Operating ambient temperature: 5°C-45°C

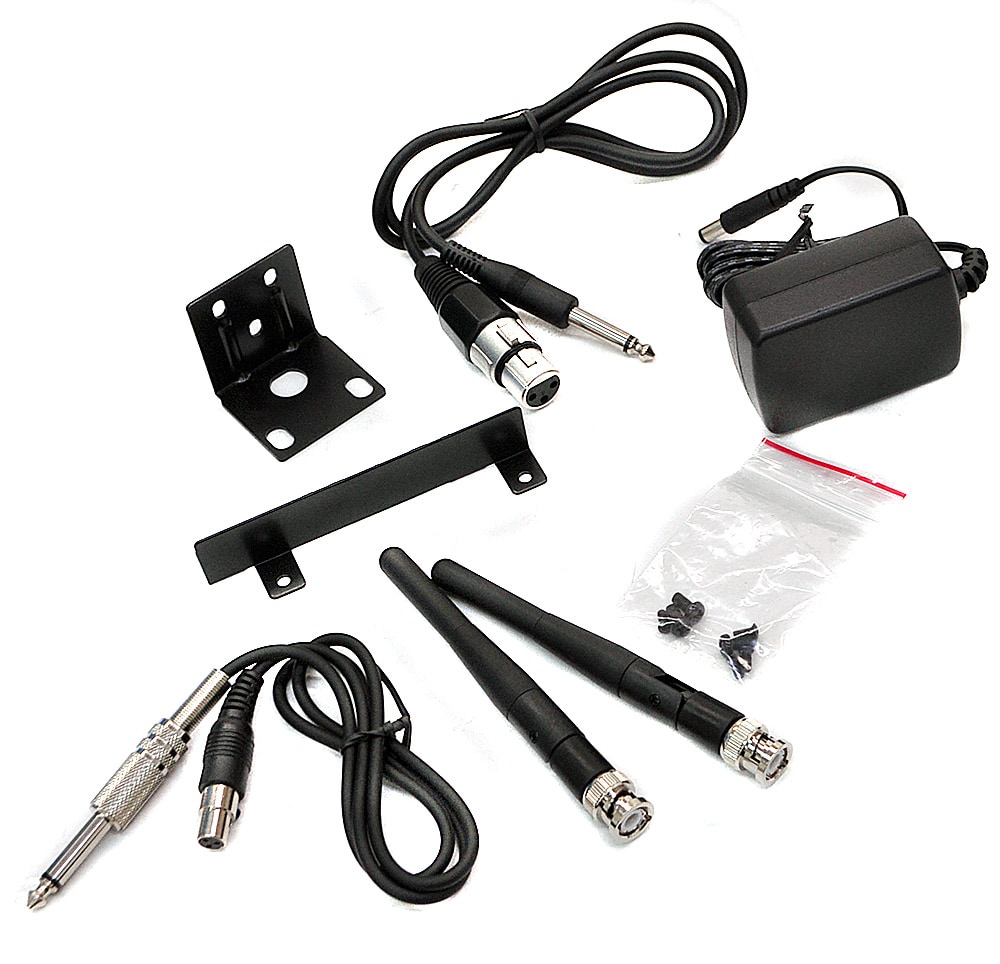

Accessories: 2 antennas, power adapter, bracket for connecting 2 receivers, 1 rack ear, 1 cable (XLR female-phone)

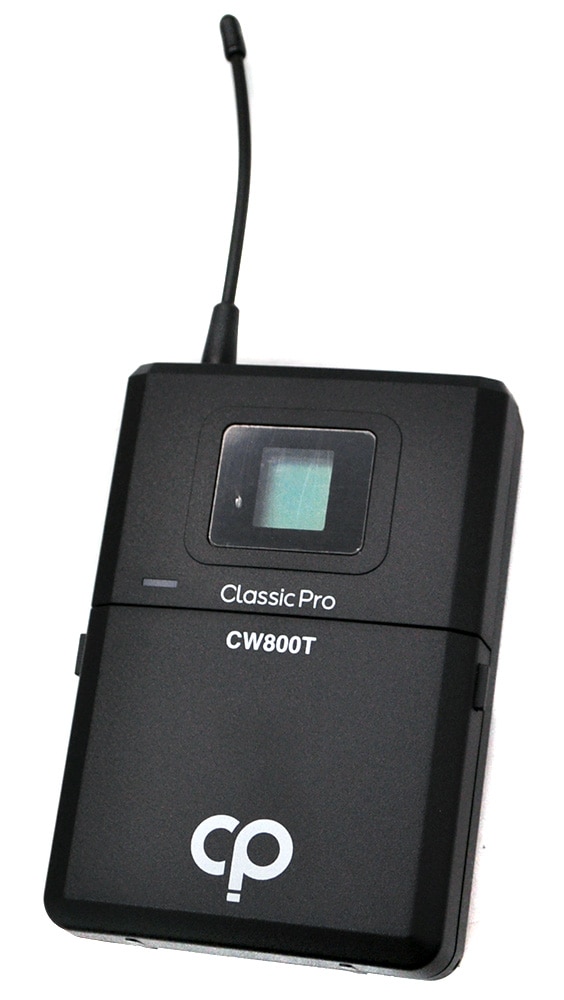

◆Beltpack transmitter (CW800T)
Channel setting: SYNC
Display: LCD display shows channel and battery level
RF output: 10mW (max)
Frequency stability: ±0.005%
Spurious radiation: >60dB
Gain: 0dB, -10dB, -20dB
Battery: DC3V (2 x 1.5V AA batteries)
Current consumption: 120±10mA
Dimensions: 65x97x25mm
Weight: 86g

◆Instrument connection cable (CW810G)
mini XLR (TA3F) - standard phone
