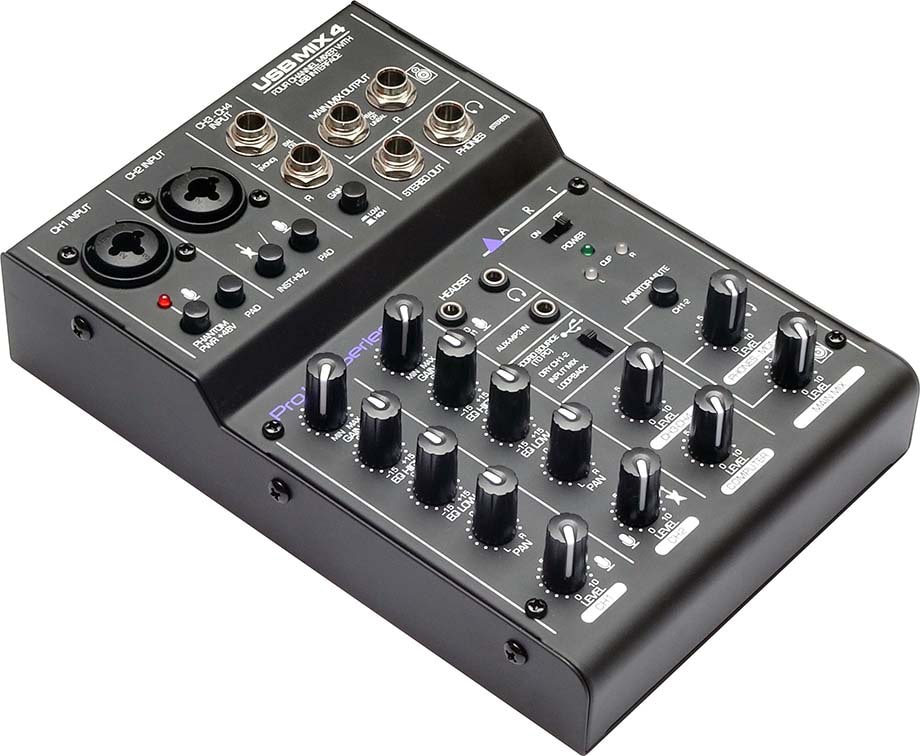

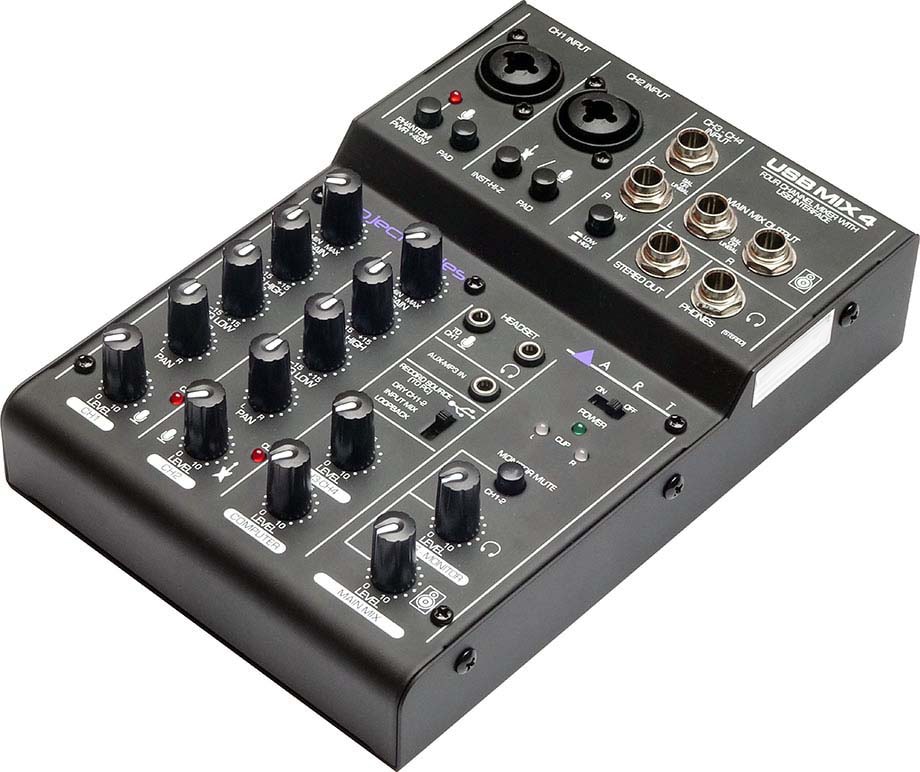

ART / USB MIX 4 USB analog mixer for streaming

The ART USBMIX4 is a four-channel mixer with a built-in USB audio interface. It features microphone and line inputs, plus two instrument inputs. It's ideal for a variety of applications, including desktop music, podcast recording, and jam session recording. It's compatible with Mac and Windows.

■Type: Analog Mixer
■Number of Mono Channels: 2
■Number of Stereo Channels: 1
■EQ: 2-Band
■AUX: None
■Group (Bus): None
■Digital Effects: None
■Dimensions (W x H x D): 130 x 45 x 191
■Weight: 710g
■Other:

■Loopback Function
The loopback function is convenient for internet streaming. It mixes the audio input to the unit with the playback signal from your computer and sends it back to the computer. This function is enabled by setting the RECORD SOURCE (TO PC) switch to LOOPBACK.

■Headset Jack
The unit is equipped with a headset microphone jack, convenient for internet streaming. The signal from a microphone connected to this jack is sent to CH1.

■AUX Input
The unit is equipped with a stereo miniphone AUX input jack. Connect a smartphone, portable music player, or other device.

■USB Power
Powered by the USB port. In addition to a computer/USB power adapter, it can also be used with a USB mobile battery, making it convenient for mobile use.

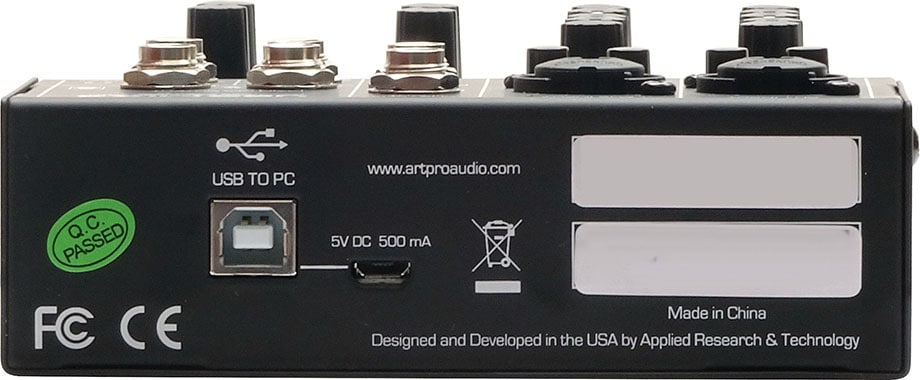

- The USB TO PC terminal connects to a computer. It draws power from the computer and transfers audio data.

- The 5V DC terminal (micro USB) connects a USB power adapter or USB mobile battery. This terminal only supplies power.

■4-Channel Mixer
CH1 can input a microphone/line signal, CH2 can input a microphone or instrument, and CH3 & 4 can input a line signal. CH1 & 2 are equipped with input gain, 2-band EQ, pan, and output level.

- CH1
CH1 can input a microphone or line signal, CH2 can input a microphone or instrument, and CH3 & 4 can input a line signal. CH1 & 2 are equipped with input gain, 2-band EQ, pan, and output level.

- CH2
Compatible with both XLR (balanced) for microphones and 1/4-inch (unbalanced) for instruments.
・CH3 & CH4
These 1/4-inch balanced stereo input terminals accept line-level signals. To input a mono signal, use only the L terminal.

■Key Features
・Powered by a USB terminal (5V: Type-B or micro USB Type-B)
・CH1 is a combo terminal that accepts balanced signals. It supports both an XLR terminal for microphones and a 1/4-inch terminal for line-output devices.
・Low-noise 48V phantom power can be supplied to the microphone on CH1. This can be turned on or off.
・CH2 supports both XLR (balanced) and 1/4-inch (unbalanced) connectors. Supports XLR jacks for microphones and 1/4-inch jacks for instruments.
- CH3-CH4 have balanced 1/4-inch TRS jacks, accepting stereo or mono line-level signals.
- The 1/4-inch TS output jack provides unbalanced line-level output.
- Stereo mini-phone jack for connecting music players, etc.
- Stereo output is independent of PC interface settings.
- The stereo 1/4-inch headphone jack has adjustable levels.
- Each input, main out, and headphone monitor can be individually configured.
- CH1 & 2 have a red LED to indicate clip.
- USB 2.0 compatible.
- USB cable included.

*We generally do not provide loaners for repairs or support. In the event of a malfunction, please return the unit to us. We or the manufacturer will handle the issue in accordance with our support policy.
